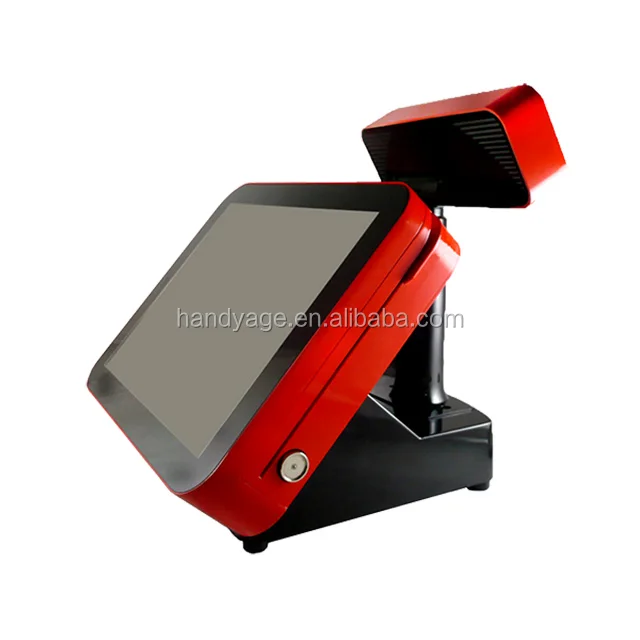

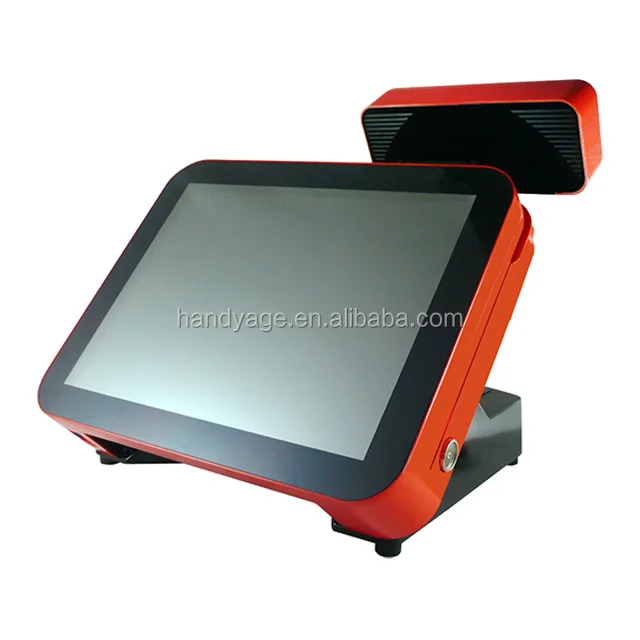

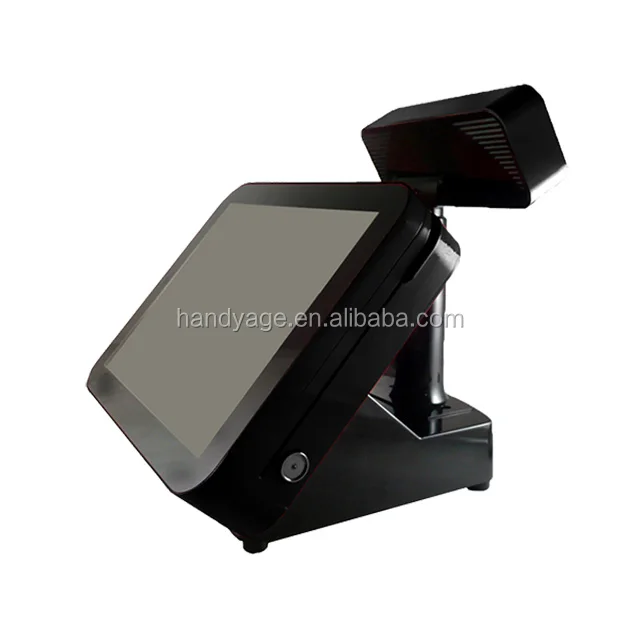

Item: Touch All in One POS System (PO0500-016)

Features

• Space-saving and easy maintenance


• Split-proof full-flat touch screen LCD monitor


• Intel atom core dual 1.8GHz processor (Variety of CPU selectable)



  • Atom


  • Cerelon


  • Core Duo


  • Core 2 Duo





Description

• The PO0500-016 is a multi-functional, fully integrated all-in-one POS system intended to meet the needs of different market segments. With the combination of POS terminal, receipt printer and customer display, PO0500-016 is especially suitable for retail or hospitality services under confined space environments

Specification

• Main Board




• CPU: Intel Atom D525 Dual Core(1.8GHz , 1MB Cache)


• Chipset: Intel D525 ICH 8M


• System Memory: 2 x 204 pin DDR3 SODIMM Socket , up to 4GB


• Graphic Memory: Share System Memory 64~ 224MB


• OS Support: POS Ready 2009, POS Ready 7, XP Pro, Vista , Windows 7 , Linux




• Display




• Display Type: 15" LCD Monitor


• Brightness: 250 nits


• Resolution: 1024 x 768 Pixel


• Touch Screen: 5 Wire Resistive Type


• Tilting Angle: Fixed 50 Degree




• Storage




• HDD: 1x 2.5" SATA


• Compact Flash: 1 x Slot Type III




• I/O Ports




• Serial: 2 x COM with Power Selected 5/12V, 1 x COM without Power Output


• Parallel: 1 x DB 25 Parallel Port


• USB: 6 x USB 2.0 ( External), 2 x USB 2.0 (Internal, 1 reserved for touch screen)


• Mini PCIe: 1 x Internal


• PS/2 Mouse: 1 x 6 - pin Mini DIN-


• PS/2 KeyBoard: 1 x 6 - pin Mini DIN


• LAN: 1 x RJ- 45, Giga LAN Support


• VGA: 1 x DB-15, Female


• DC Out: 1 x 12VDC Jack for Customer Display or 2nd Display


• Cash Drawer: 1 x RJ- 1 1, 12/ 24 VDC Selectable


• Audio Jack: 1 x Line Out, 1 x MIC In, 2 x Internal Speaker 2W




• Others




• Power Input: 12VDC 90W,4- pin Connector with Lock ( External Adaptor: 100~240 VAC, 50/60HZ)


• Power Input ( Printer): 24VDC/ 2.5A ( with External Adapter 100~ 240VAC 50/ 60H z )


• Color: White, Black, Orange


• Compliance: FCC / CE / WEEE / RoHS


• Weight: 8.5 Kg


• Dimension (mm): 370(W) x 320( D) x 300(H)


• Operating Temperature: 0°C ~ 40°C


• Operating Humidity: 20% ~ 80% RH non- condensing


• Storage Temperature: -20°C ~ 60 ° C


• Storage Humidity: 20% ~ 85% RH non- condensing




• Optional Peripherals




• Customer Display: VFD / LCD, Pole Type


• MSR: 3 Track, PS/2 or USB or COM


• I-Button: Dallas Key RS232 I/F


• 2nd Display: 12.1" , 15”with or without Touch


• Wi-Fi: PCIe interface Module
