slab formwork for concrete,replace table form/doka formwork

Related products:

formwork system, scaffold props,shuttering materials, base jack, plywood supporting,post shore, shoring props, steel pipe,galvanized scaffold plank,formwork accessories scaffolding coupler, double scaffold clamp, scaffold pipe clamp

Product Description

ceiling/roof/floor slab formwork

1. Model: Slab Formwork (pure steel, electrophoretic painted)

2. Application: used together with plywood for concrete form.

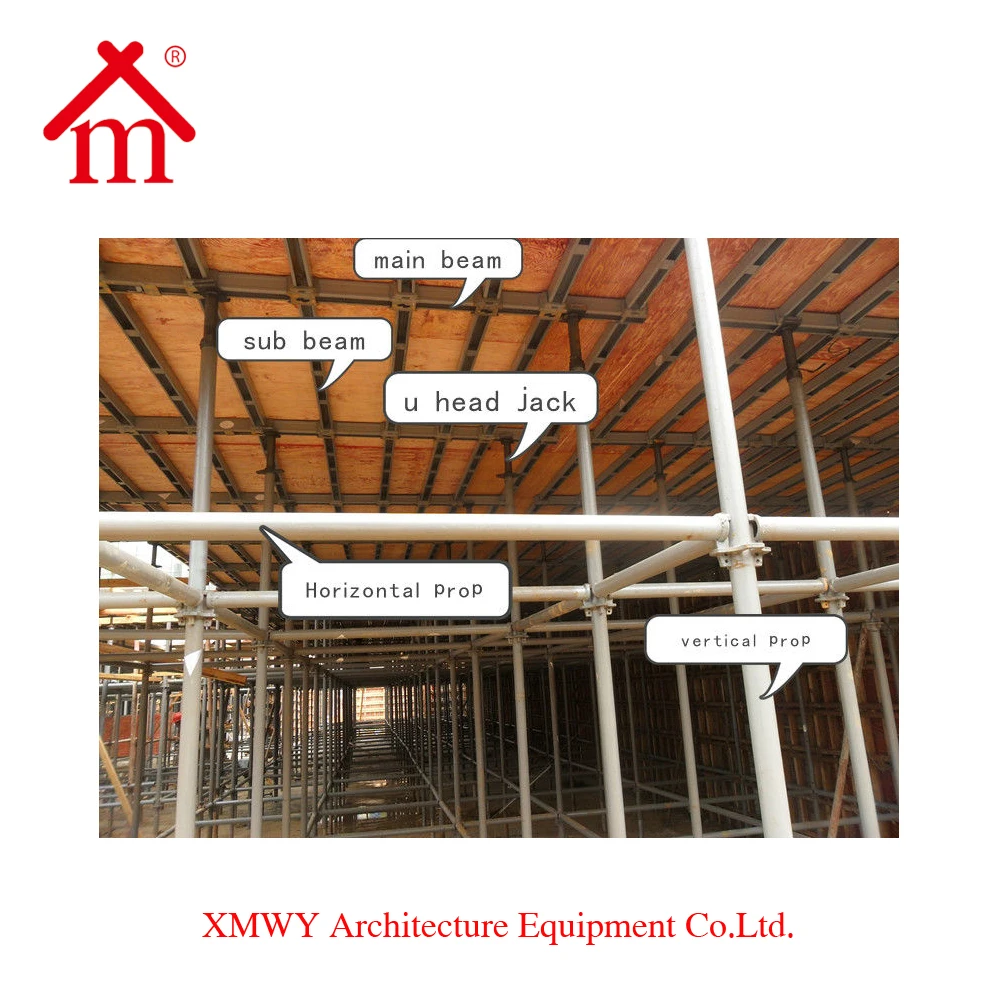

3. Components:
-- Main Beam: length adjustable between 1.17m and 4.39m;
-- Sub Beam: normal size in L1.15m
Material of Beam: cold rolled steel

-- Vertical prop: OD48mm*THK 3.0mm*L 2.55m(normal)
easily connected to reach any required height

-- Horizontal prop: OD48mm*THK 2.75mm*L 1.22m(normal)

-- 'U'-Screw: OD38mm*THK 3.0mm*L 0.6m(normal)
Material: seamless pipe, threaded

4. Load Capacity: 3500kg per s.q.m.(whole system)

5. Installation: A group of 4 workers can erect 300s.q.m in 8 hours.

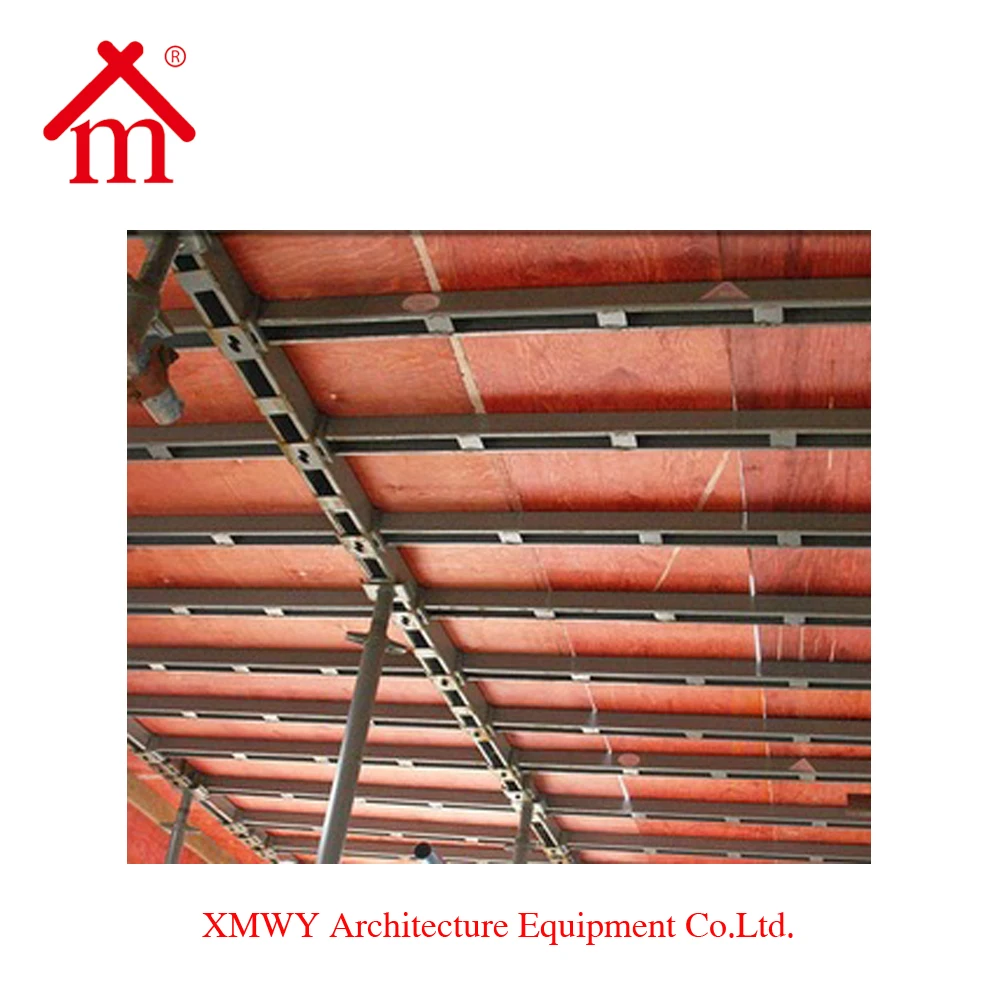

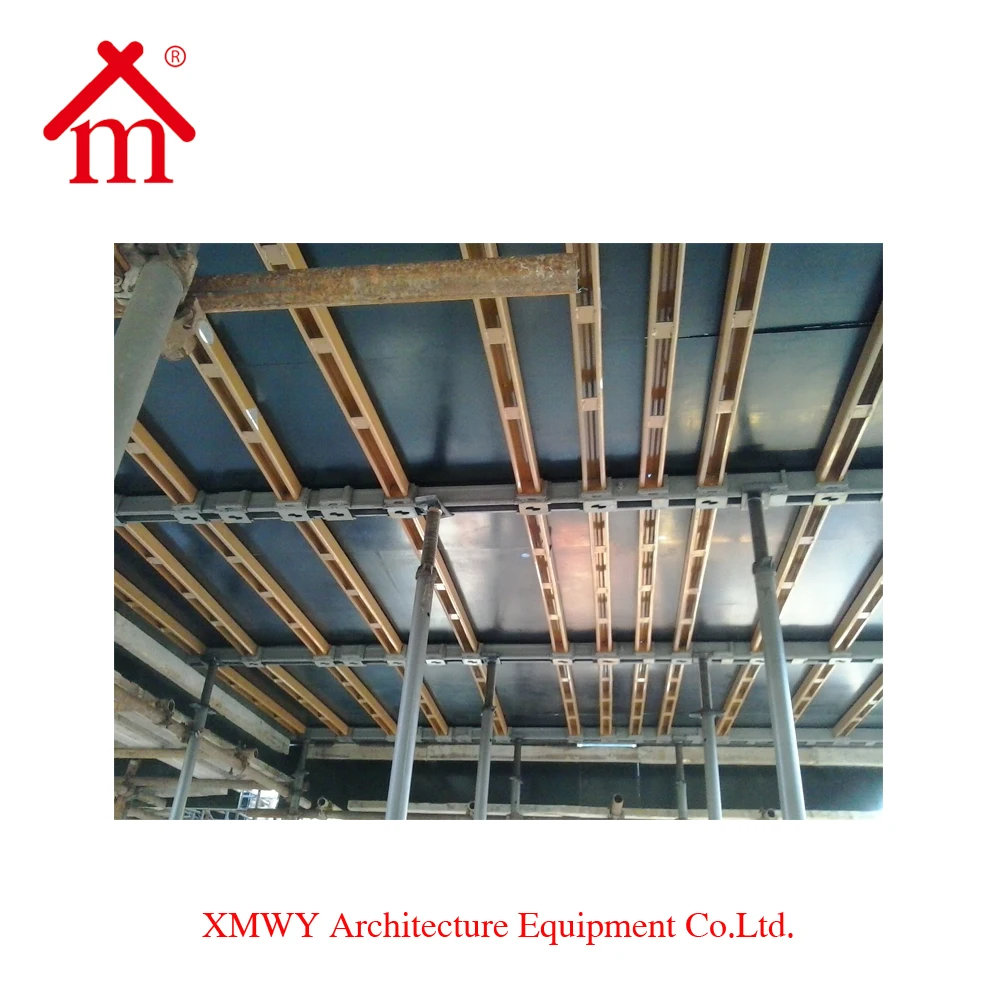

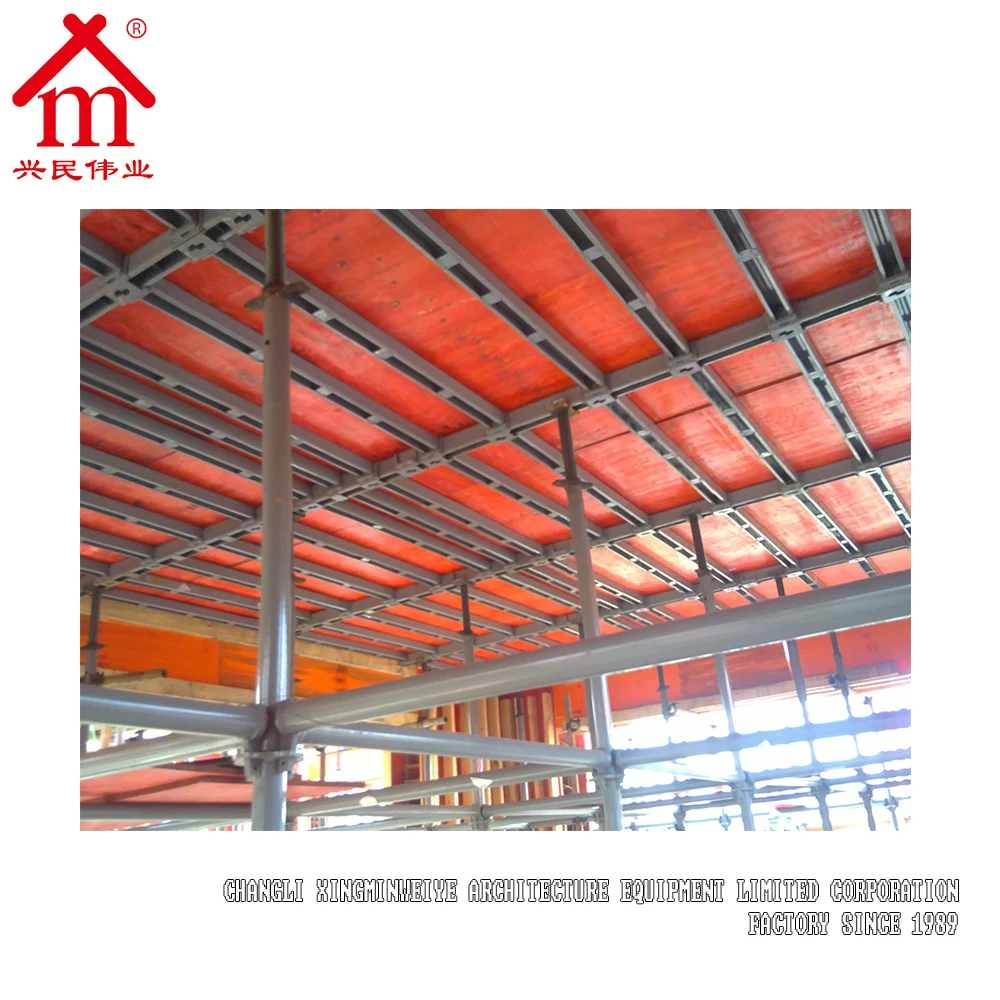

6. Project Photos:

slab formwork

SUB BEAM_

7. Design

We can design for each specific project according to your structural drawings.

We also have standard match that allow for more flexible uses.

7. Certificates & Factory

EXHIBITION

Any further questions, pls feel free to contact with us.

It'd be pleasure to hear from your needs.
