Product Specification | |
Type | AM2130 |
Color | Sliver (can be customized) |
Size | Middle and small size (can be customized) |

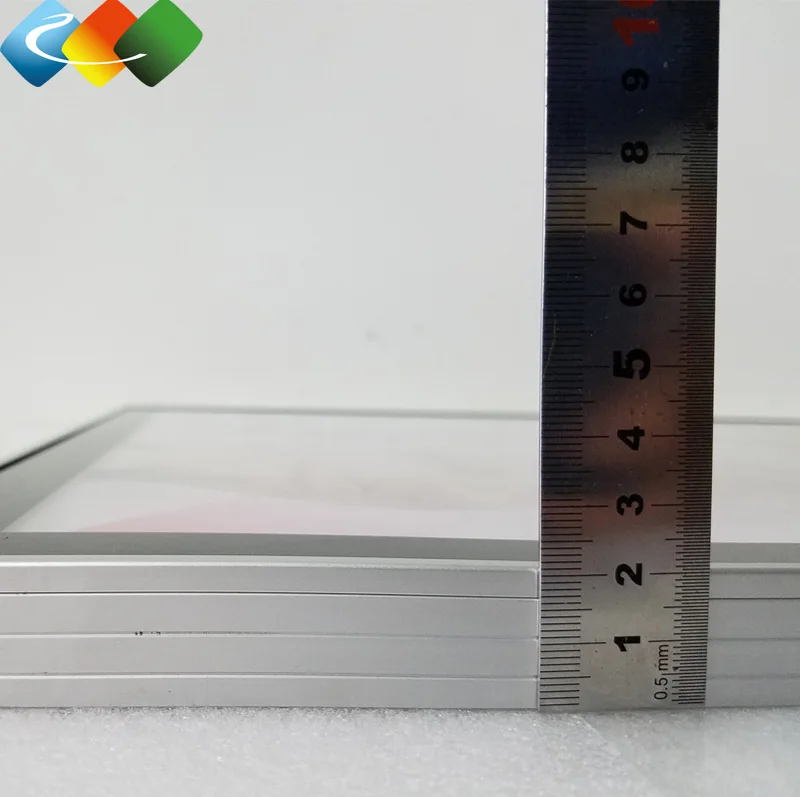

Outer Frame | 21mm thick 30mm wide |
Installation | Wall-mounted type |
Voltage | 12V/24V |
Light Source | LED |

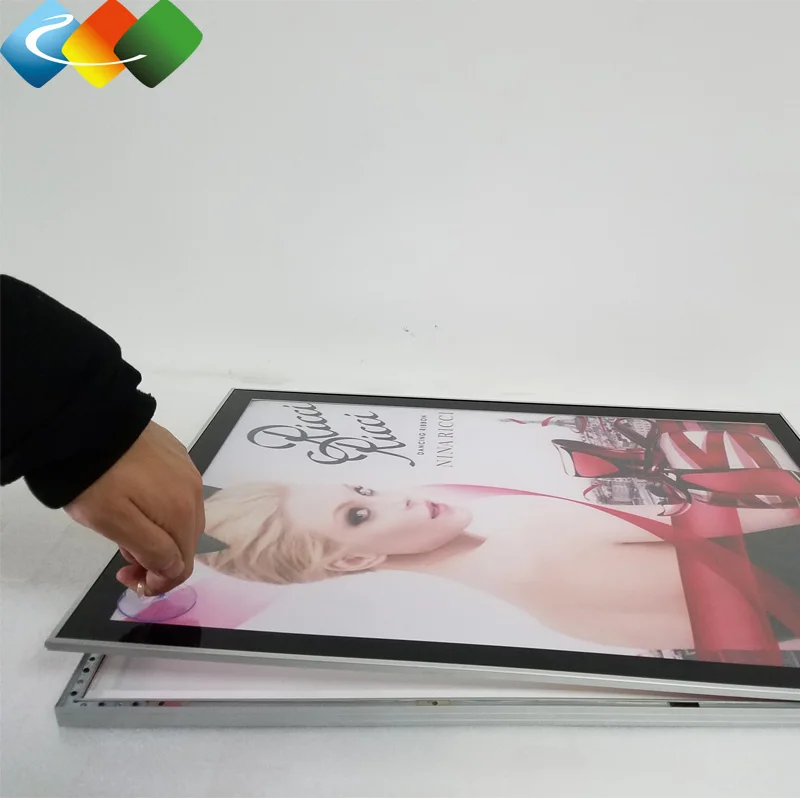

Change Pictures | Magnetic style,open the panel to change pictures with a sucker |
Structure | Aluminum,LGP,LED strips,adapter |
More Details, Please Click Here To Contact Us >
Product Parameter | ||||||||
ITEM | FRAME SIZE (MM) | Viewing size (mm) | Thickness (mm) | FilmSize (mm) | Packing size (mm) | Volume (m3) | Gross weight (KG) | |
YH-AM2130 (Single-sided) | A0 | 1213*865 | 1153*805 | 21 | 1189*841 | 1320*950*80 | 0.1 | 16.1 |
A1 | 865*618 | 805*558 | 841*594 | 970*770*80 | 0.06 | 9.2 | ||
A2 | 618*444 | 558*384 | 594*420 | 720*520*80 | 0.03 | 4.6 | ||
A3 | 444*321 | 384*261 | 420*297 | 550*400*80 | 0.02 | 2.5 | ||
B0 | 1438*1024 | 1378*964 | 1414*1000 | 1550*1150*80 | 0.14 | 21.8 | ||
B1 | 1024*731 | 964*671 | 1000*707 | 1150*800*80 | 0.07 | 12.2 | ||
B2 | 731*524 | 671*464 | 707*500 | 830*700*80 | 0.05 | 6.1 |
LED LIGHT SOURCE |
LIGHT GUIDE PLATE |
Adopt optical grade PMMA acrylic, 3D laser dotted and engraved processing technology;High luminous efficiency, uniform and soft light, energy saving and environmental protection.
1,Remove the LED panel from the wooden case, not from the edges but from the
middle, prevent bending and curving and carry it vertically.
2,Carry the led panel vertically, prevent every possibility of bending and curving. Pay
attention not to pull the power cables.
3,Do not use suction cups for the handling or installation of the LED panel
4,In addition to the images, pay attention to:
5,Avoid hitting, pulling or damaging the electrical cables.
6,avoid contact of the led panel with liquid
1.Winding film, bubble film+carbon or wooden box
2.minimum order;1 piece
3.supply capacity:350 pieces per day
4.transport mode:sea,air and so on
5.port:shanghai
6.delivery deadline:generally 7 days after payment
7.provide samples
FAQ |
Q1. What is your MOQ?
A1: Our MOQ is 1 piece.
Q2: What is the lead time?
A2: Production time usually takes about 5-7 working days, depending on order quantity.
Q3: DO you have the regular size of your products?
A3: No, all the products are customized products.
Q4: Do you offer OEM, ODM services?
A4: Yes, we offer OEM, ODM services to meet different needs.
Q5: Do you have your own factory?
A5: Yes, our factory is in Kunshan City, Jiangsu.
