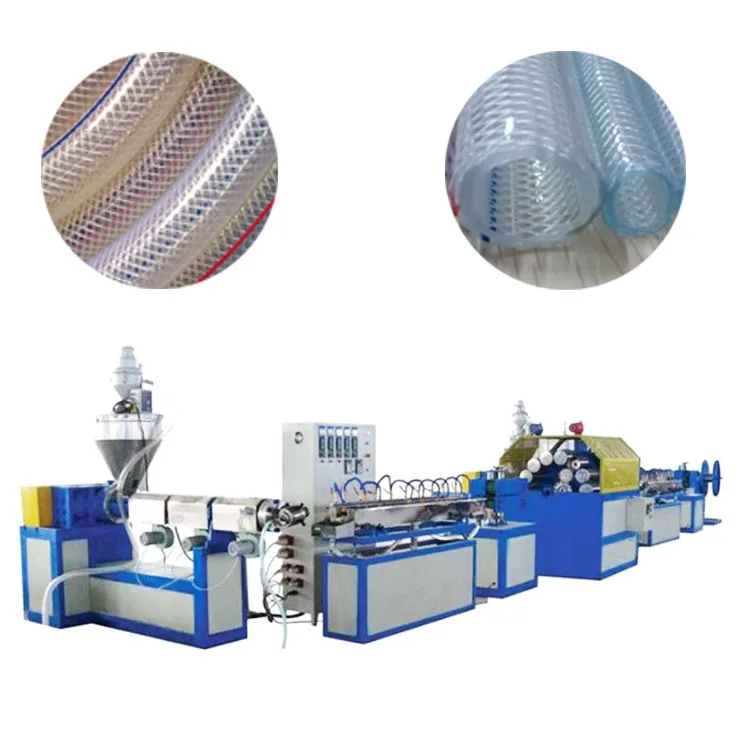

PVC Fiber Hose Machine

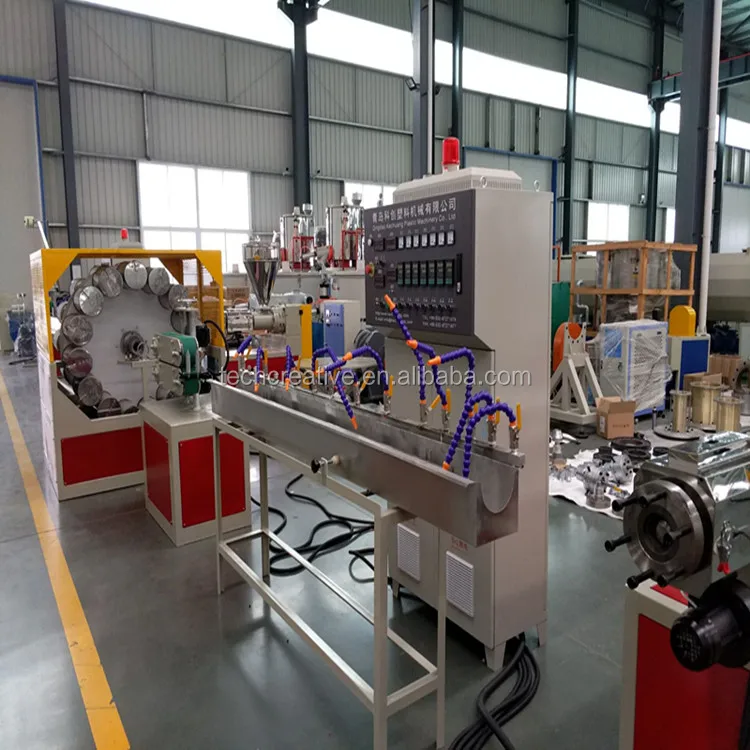

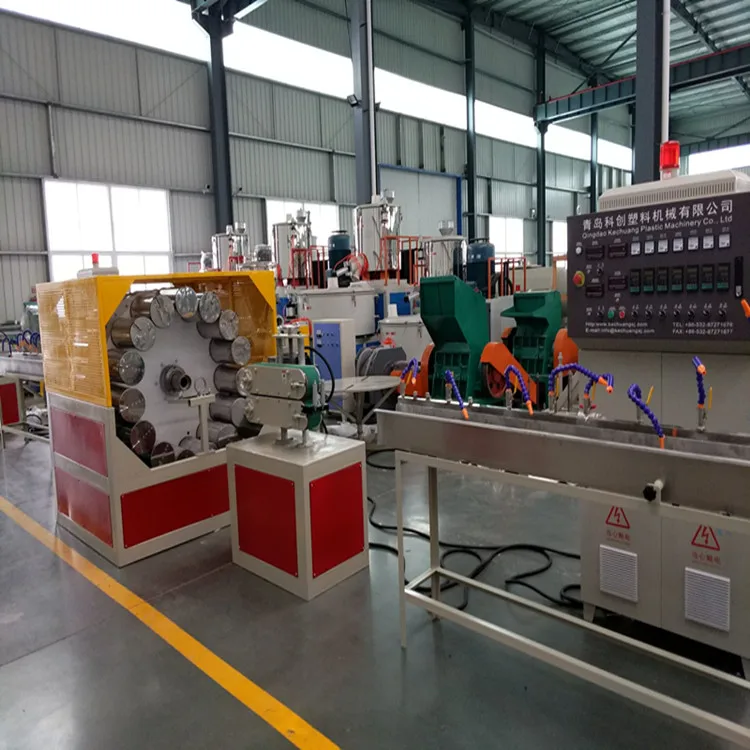

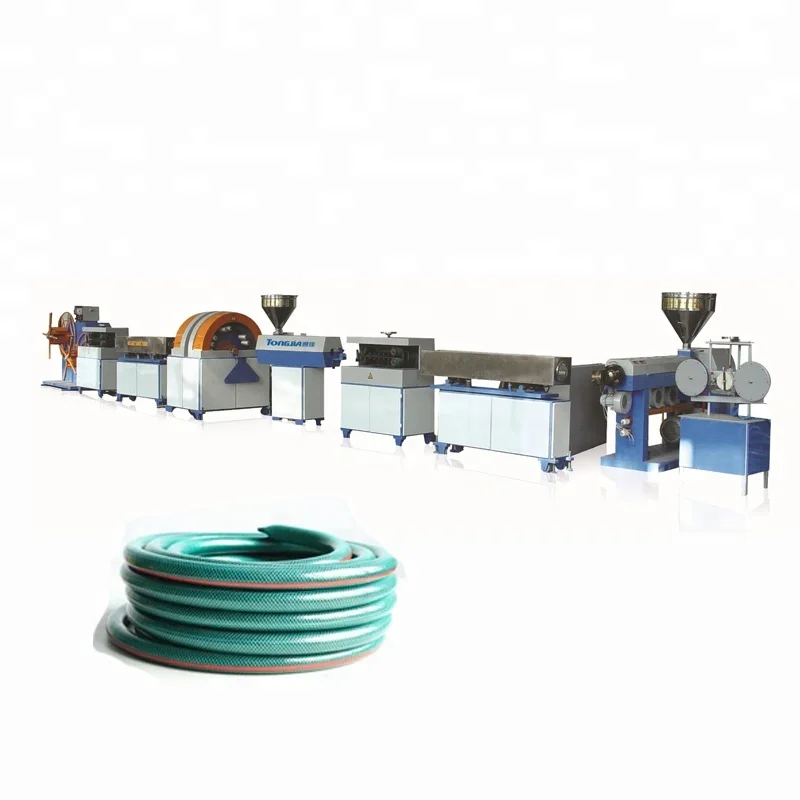

PVC Garden Hose Production Line
PVC Fiber Hose Making Machine

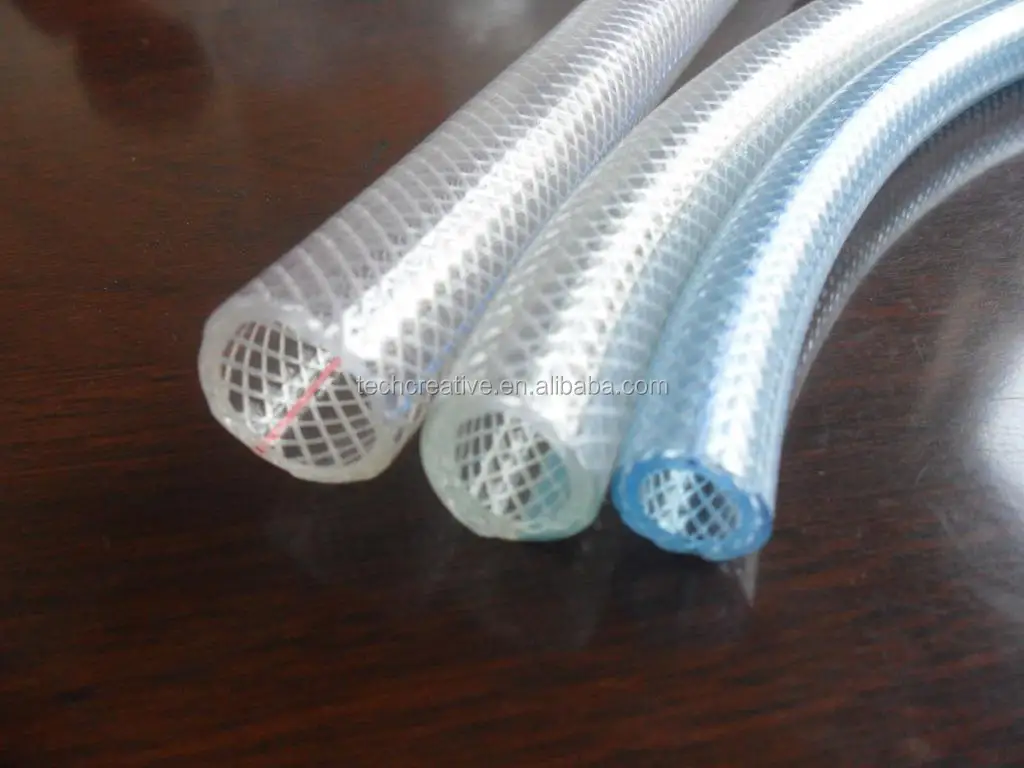

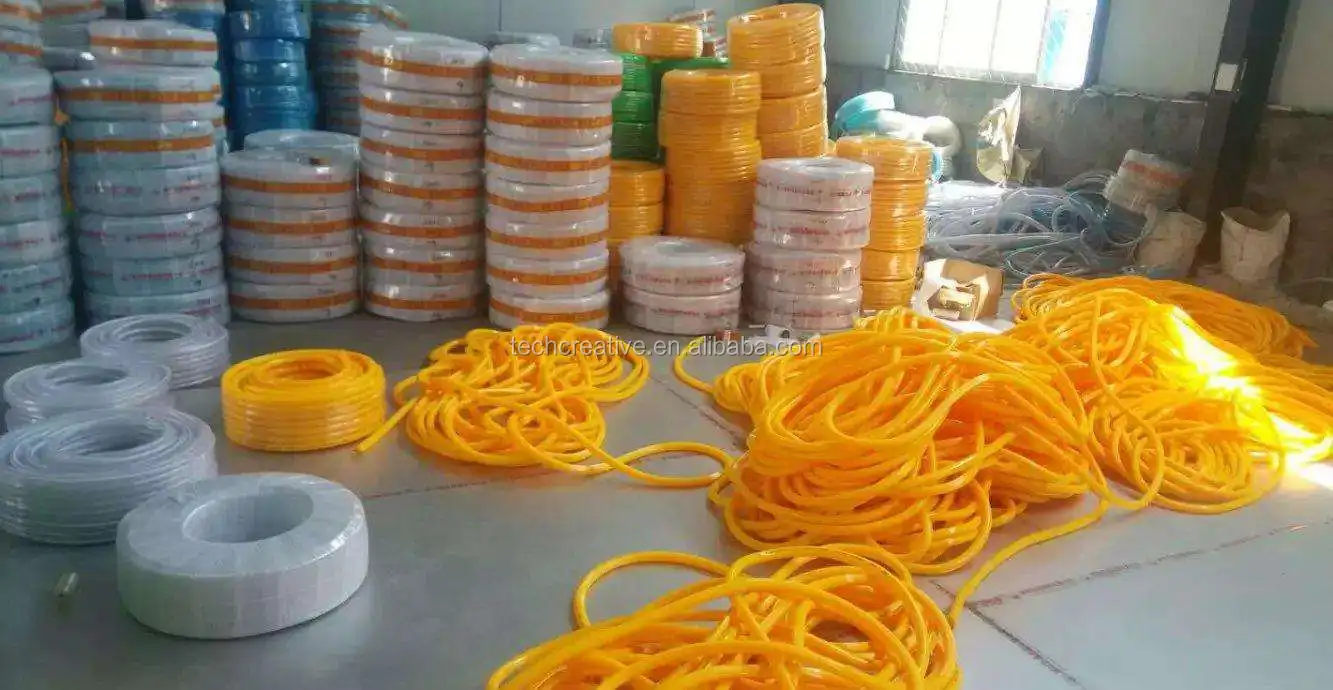

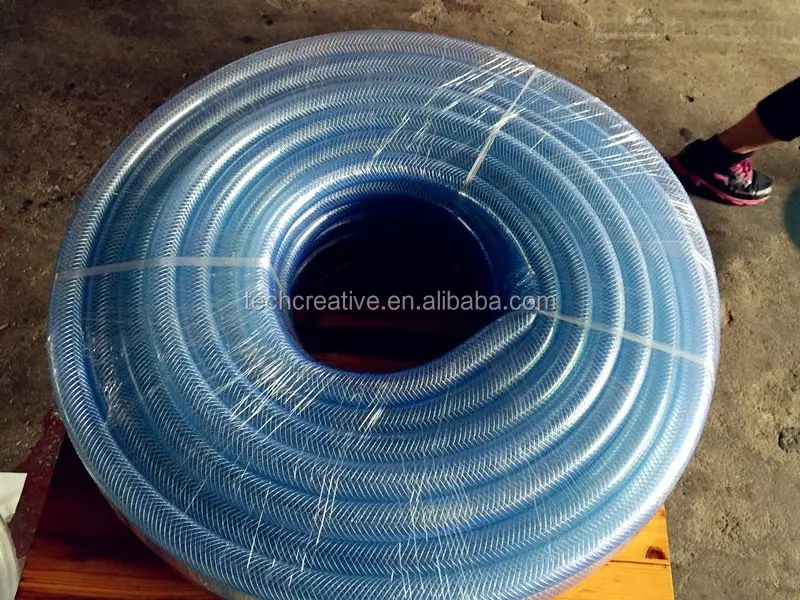

Product Description: It is made of high-quality materials and unique winding technology. It is soft and flexible, bright and colorful, with good pressure resistance, weather resistance and long service life. The tube surface can be more beautiful with colored lines. It is suitable for all kinds of garden watering vehicle washing, community mine, household cleaning, and is a good hose for conveying air, water, oil and other liquids and gases.
Product specifications: from the inner diameter 8mm-50mm, can be customized according to different requirements of customers (wall thickness between 2-5mm).
First, the hose production process

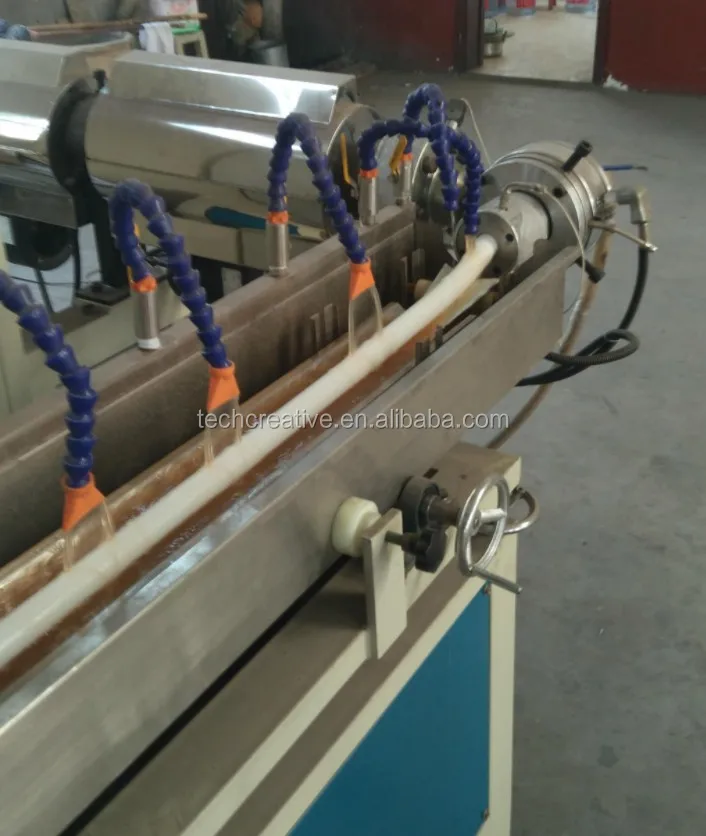

Raw material mixing, inner layer extrusion → mold forming → spray cooling → traction → winding (weaving) → drying → outer layer extrusion through die coating molding → spray cooling → traction → coiling → packaging finished product
List | Qty |
1.Vacuum loader | 1X2sets |
2.Dryer | 1X2sets |

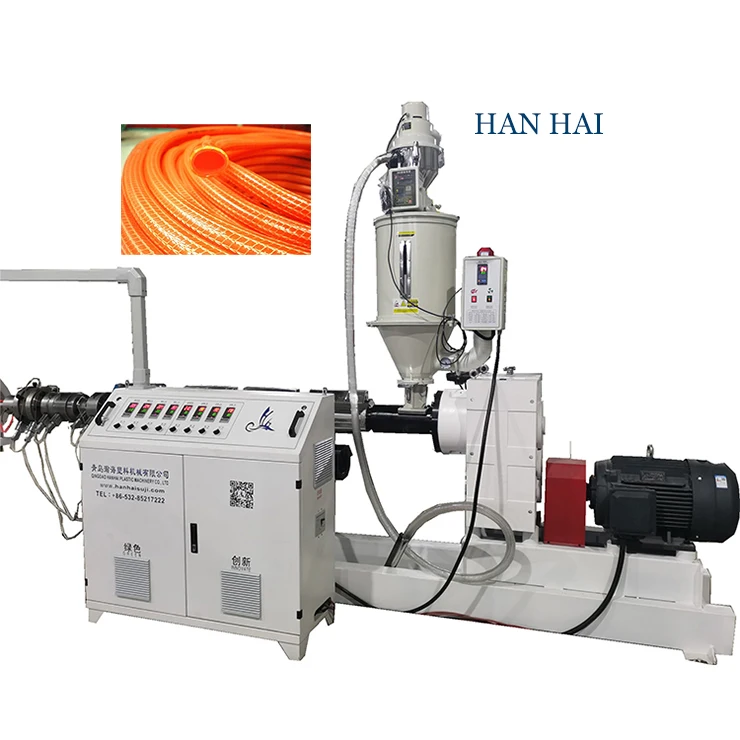

3. SJ-65 Single Screw Extruder | 1X2sets |

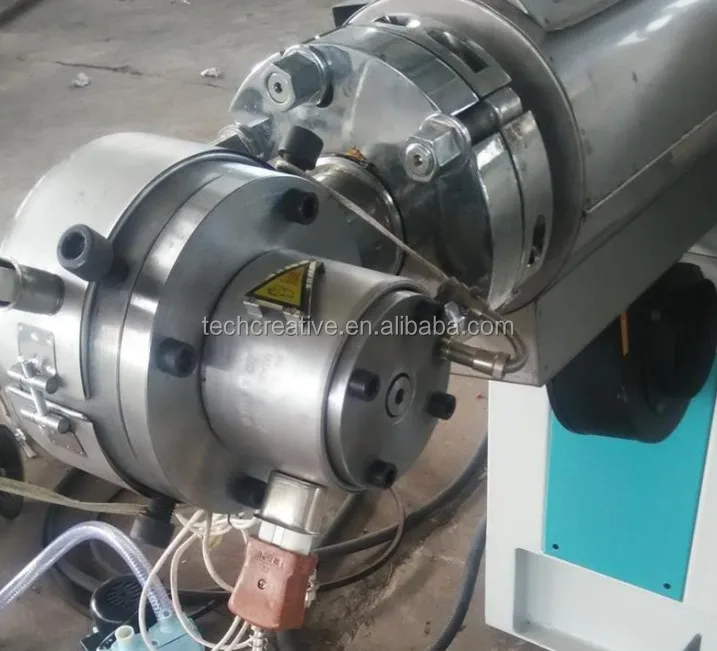

4.Mould |
|

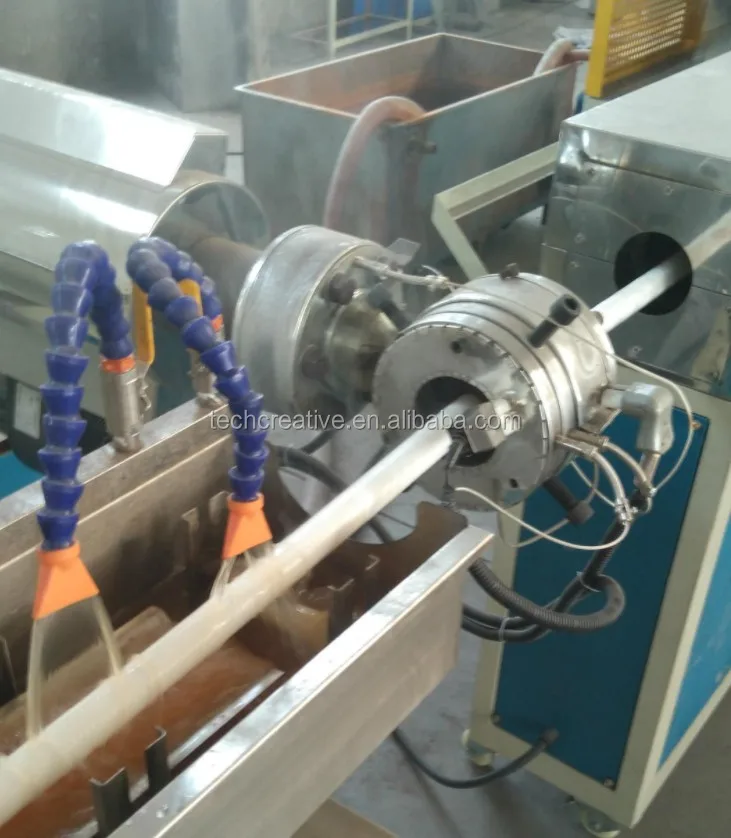

5.Water cooling tank | 1X2sets |
6.Hauling off | 1x2sets |

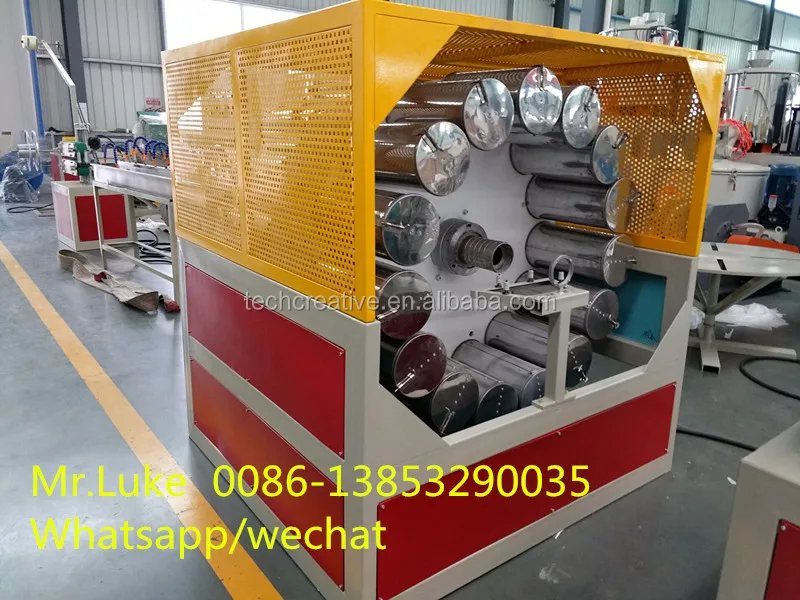

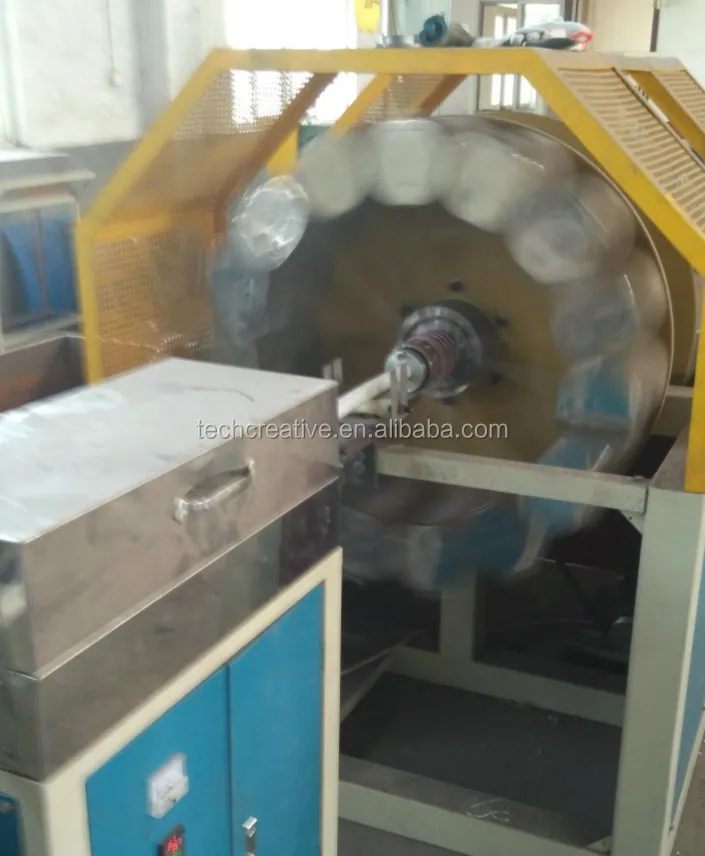

7.Fiber Knitting machine | set |
8.Heating tank | 1set |
9.Coiler | 1set |
10Controlling cabinet | 2sets |
Third, the main technical parameters of the production line
1. Maximum production capacity of the production line 60kg- 100kg/h
2. Production line working speed 1m-12m/min
3. Production line pipe range 8-50mm
4. The production line consumes 2m3/h (excluding circulating water)
5. Production line gas consumption 0.1m3/min
6. Production line water supply pressure 0.4mpa
7. Production line installed power 65KW
8. The total length of the production line is 17 meters.
9. Power supply Three-phase, 380V, 50HZ
