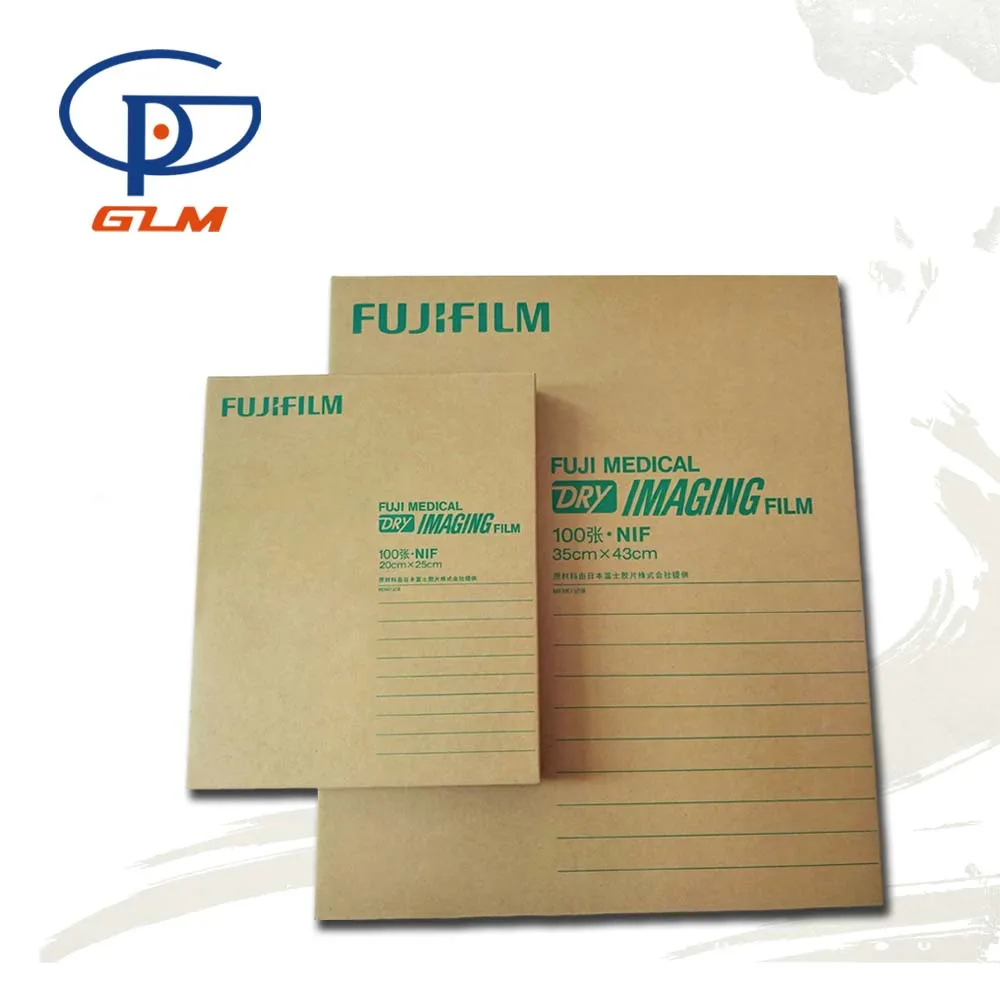

Fuji Тепловая медицинская сухая печать blu пленка для рентгеновского изображения выход из Китая прямая продажа

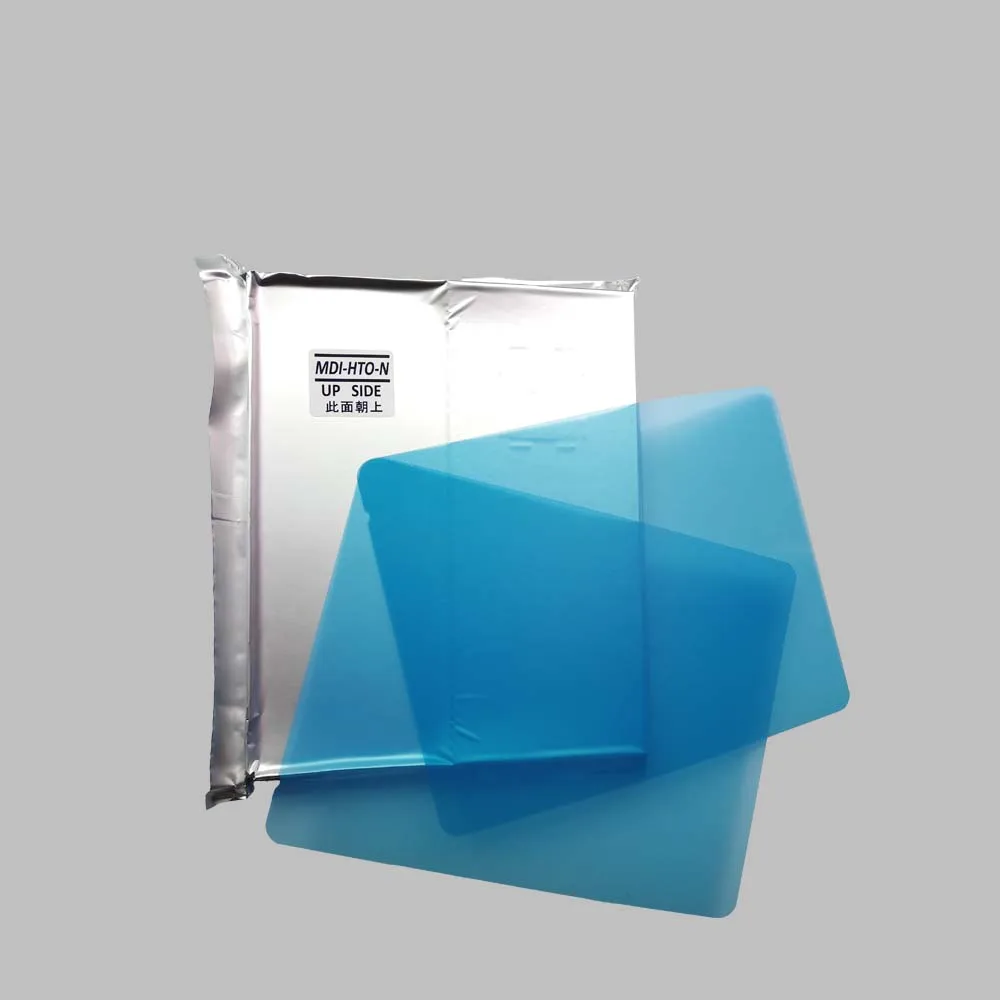

medical dry film for thermal printer

Medical dry film for thermal printer was produced by using top quality polyester film and advanced coating technology! Low using cost than silver salt film

Features and uses:

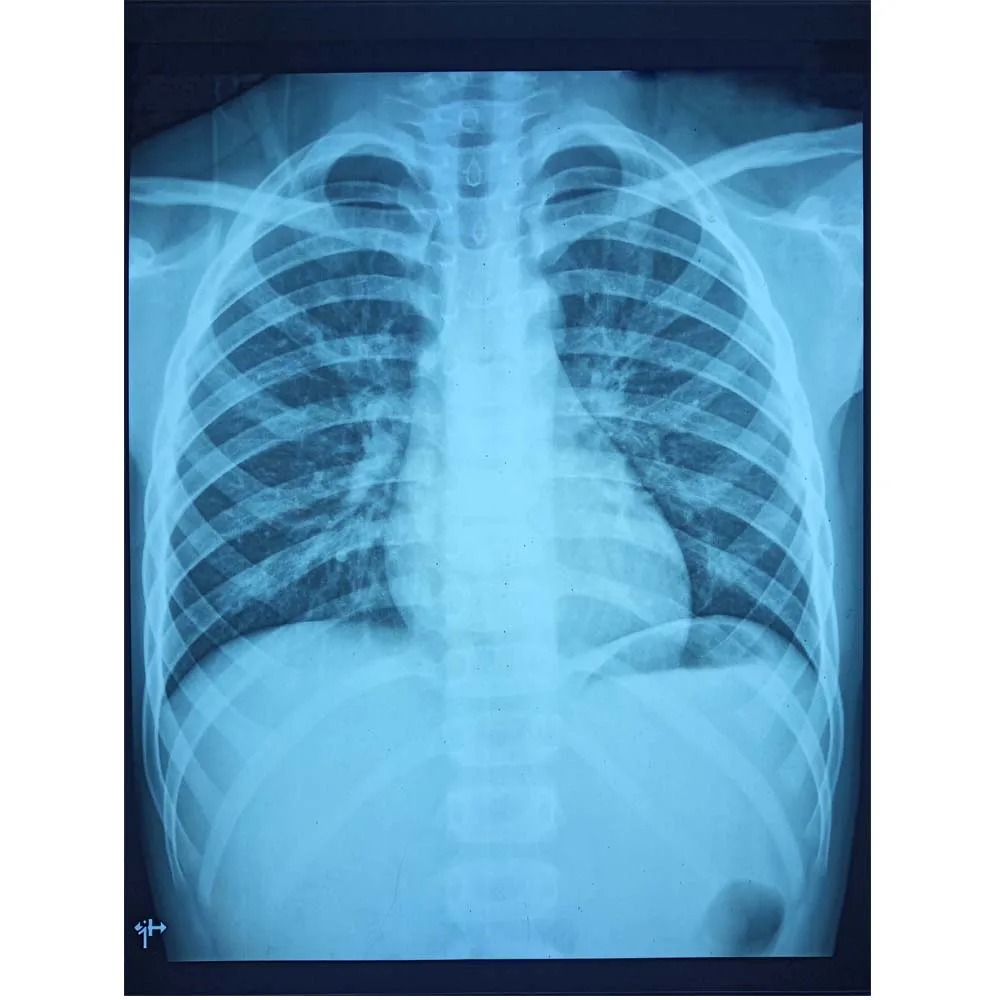

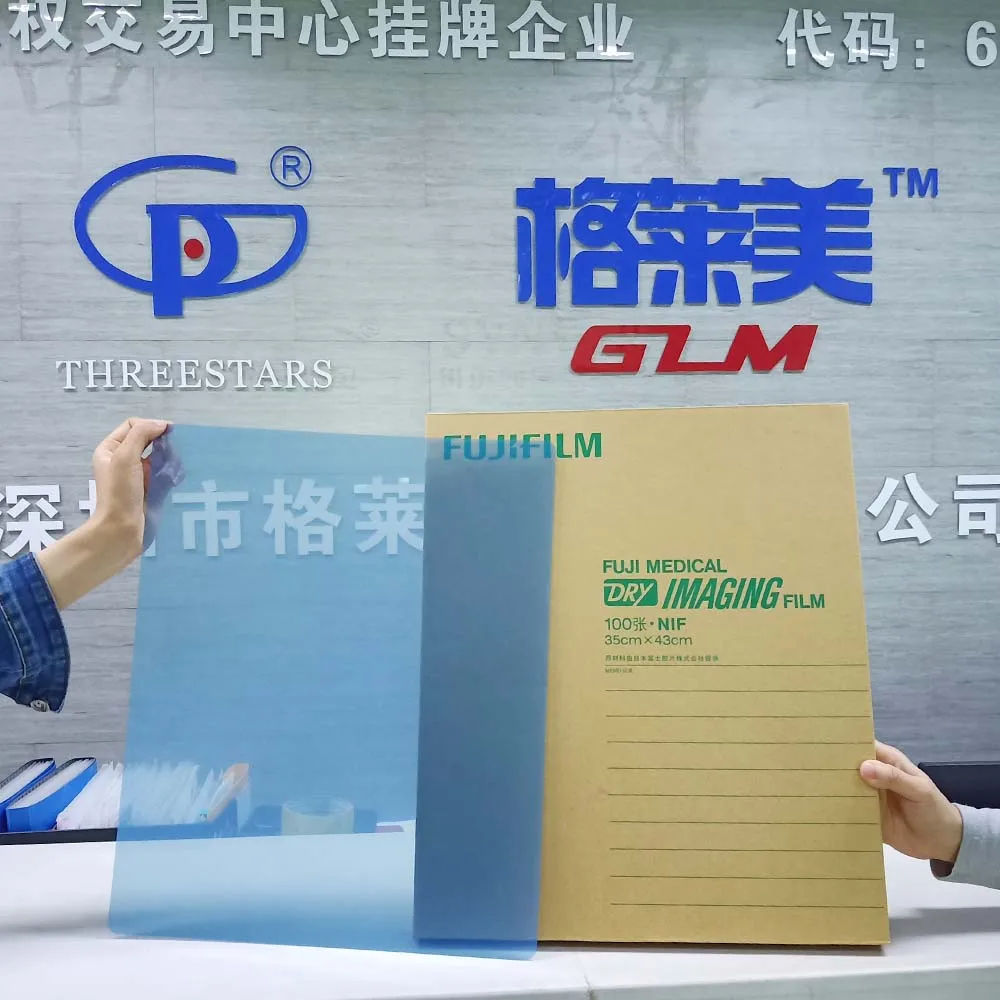

This product have image layer and protect layer on different side of bluish polyester bases, and there are no sensitive silver halide on either side. The film is fit for thermal printer to print digital image which was processed and stored in the computer, to attain the enhanced x-ray image quality. It is environmental-friendly since the process procedure was saved and free of the Chemicals. The product features low fog, high sharpness, high max density, bright tone, and convenient to use. It can be used directly in GLM8900 and AGFA/Fuji thermal printer .

Safe light:

It can be processed under room light since the film was not sensitive to light.

Processing:

The product can be directly printed by Fuji thermal printer to get ideal image. The print conditions should be tested when use the film in other printer.

Conditions of usage:

The best condition of usage as following:

Temperature 18aC 〜24ac, humidity 50%〜65%RH.

Storage:

Please store the film in cool and dry place without dust. Keep away from direct sunlight, acid or alkaline gas. Details as follows:

1.Temperature and humidity: temperature 10°C ~ 23°C, humidity 30% ~ 65%RH, keep away from the heat resource.

2.Gas: There are no hydrogen sulfide, ammonia, sulfur dioxide, formaldehyde, and any other alkaline gas, etc.

3.Pile: Please keep film upright to avoid the bad influence cause by pressure.

self service medical dry film printing kiosk.

*it can be connected with all the report workstations like ultrasonography dept.,endosscope dept.,pathology dept.,E.N.T dept.etc.with the capacity to print the reports from multi-departments and maximize save the human resources.

*print type:paper or film.

*it is directly connected with PACS workstation and reveived reports.

*A4 format imaging printer:high quality report printing image

thermal printer for printing medical dry film

Print Technology:   Direct thermal (dry, daylight load film)
Spatial Resolution :320dpi (12.6 pixels/mm)
Throughput: 35×43 cm (14"×17") ≥50 sheets per hour
Gray scale: Contrast Resolution\t14 bits
Film Input: Two supply tray, 200 sheets capacity total
Film Output :One receive tray, 50 sheets capacity
Film Sizes: 14"×17", 11"x14", 10"x12", 8" ×10"
Interfaces: 10/100 Base-T Ethernet (RJ-45)
Network Protocols: Standard DICOM 3.0 connection
Image Quality :  Automatic calibration using built-in densitometer
Control Panel\tTouch screen, displaying Online, Alert, Fault and Active
Power: 100-240V 50/60Hz, 600W printing
Weight: 50kg
Environment\tOperating Temperature: 5-35°C
Storage: -22~50°C
Storage Humidity: 30~85%

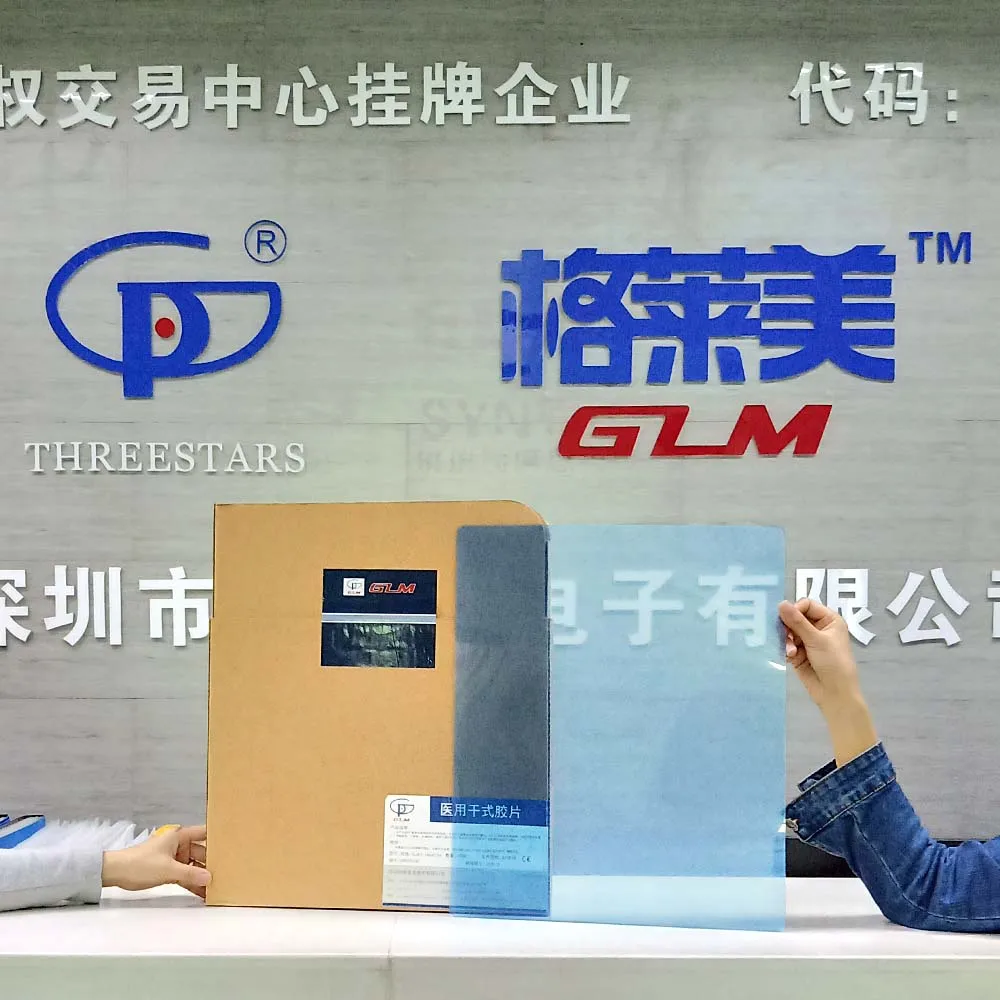

Threestars devotes itself to the medical industry, our films not only can be compatible with our own printer,but also can be used by Agfa and Fuji and some other famous brands printers.at present,we have gained many successful cases in business with partners of great projects from state owned hospital,giant corporation and the government in domestic and overseas market.and we have already established many representative offices in China. as well as sell them to foreign countries, specifically the counties in Middle-east, Asia and Africa.

"Good Faith, Professional work" has always been our service concept. threestars provides the customers with excellent quality products at the same time, also brings the perfect and timely after -sale service, which make the customers "buys felt relieved, uses relieved!".

We offer top quality products at more competitive price in domestic and international market. Our professional team will meet customers' requirements and demands in time. Welcome to visit our factory.
