laser metal cutting machine 500w Aluminium Copper Brass for sheet

Описание и отзывы

Характеристики

laser metal cutting machine 500w Aluminium Copper Brass laser cutting machine for metal sheet

Introduction:

LN FLC series fiber optical laser cutting machine adopts the world's top fiber laser with gantry structure, high-precision bilateral drive, high strength aluminum alloy beams, precision linear rail, helical gear transmission system, and supplemented by advanced German laser.

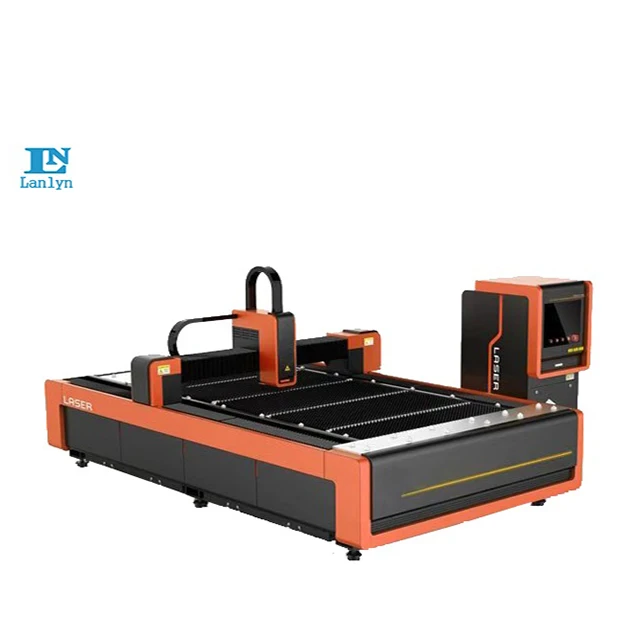

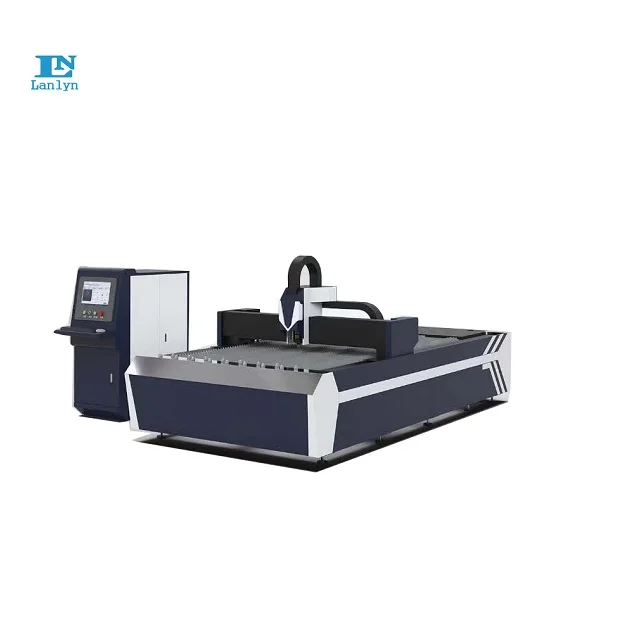

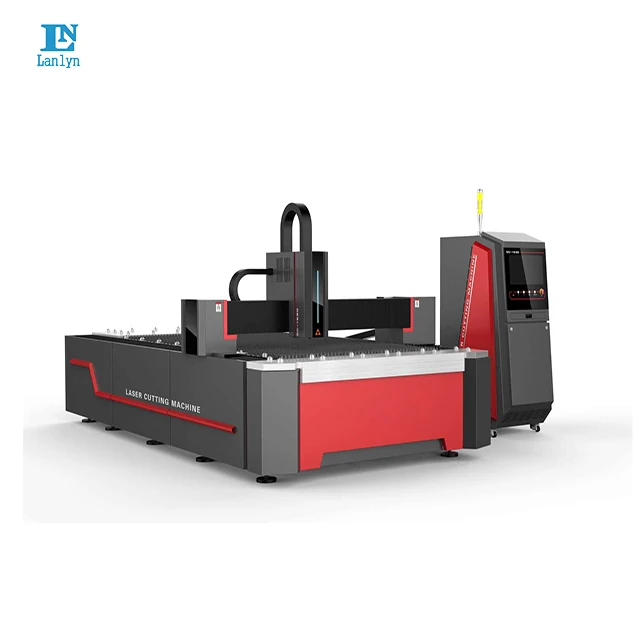

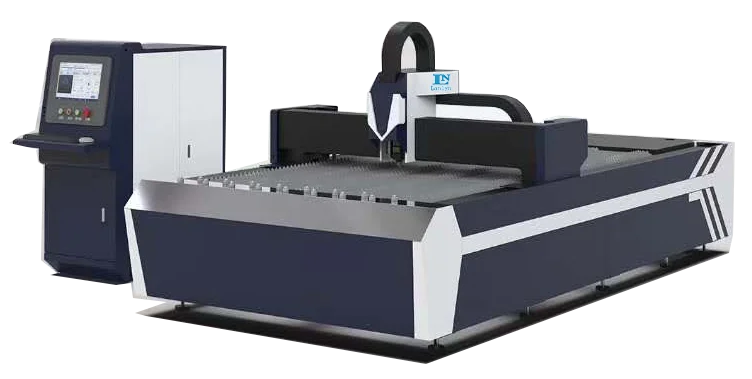

LN-FLC 3015 Industrial Laser Cutter
LN FLC series fiber optical laser cutting machine adopts the world's top fiber laser with gantry structure, high-precision bilateral drive, high strength aluminum alloy beams, precision linear rail, helical gear transmission system, and supplemented by advanced German laser cutting control system. This equipment has perfect whole rigidity, stable performance with high speed, high precision, high efficiency and high cost performance.

Fiber laser cutting machine is the newest generation laser cutting system, the fiber laser source is low energy consumption and high efficiency laser generator. The user no need to do laser alignment of the laser resonator, the laser pump source is very high service life up to 100000 hours. And maintenance free.

Product Features

• Fiber Laser Source: The latest generation of fiber lasers' photoelectric conversion efficiency up to 30%, It is the traditional YAG lamp pump Laser 10 times. While electricity consumption is only one-third to one-fifth that before. The laser does not have supplies, no need to replace the lamp.it has stable performance, and guarantee the whole machine quality.


• Automatic Focusing System: Imported Z axis configures capacitive contactless auto-tracking system, Full-time dynamic tracking plate height, which can automatically adjust the best focus, to ensure the best cutting effect of the whole plate and avoid material scrap caused by changing focus when the material is uneven.


• Machine Structure: Machine tool adopts gantry structure. It has high precision, good rigidity, smooth operation. It also configures universal wheels to be energy saving, convenient and efficient.


• Drive System: Adopts imported bilateral gear-gear stripe transmission, imported linear guide, and imported double servo motor drive system, import high-precision linear module, to effectively guarantee the cutting speed and high precision.


• Control System: Dedicated software enables graphic or text to be instantly designed or processed, flexible and easy operation. Using professional PC industrial computer with graphical interface, professional cutting software is easy to design all kinds of graphics and text and achieve real-time processing. This software supports all CAD, CorelDraw and other professional drawings.


• Cooling System: LN-FLC is equipped with the latest 3P external water-cooling system with low running noise, high temperature control precision, to provide a reliable guarantee for a long time works.


• Red Indicator: LN-FLC is equipped with a red collimator, which can help the operator to calibrate laser cutting head flexibly.


• Gas Shielded: Industrial air conditioning is configured in laser power control cabinet, to ensure laser power supply and control system working under constant temperature environment, to reduce the ageing-failure of electronic components caused by high temperature and extend the service life of laser power supply.


• Use the appropriate auxiliary gas, making the slits neat and smooth, do not need secondary polishing.

Excellent Cutting Quality by Highly Efficient Metal Cutting

Application

Applicable materials: Carbon Steel, Silicon Steel, Stainless Steel, Aluminum Alloy, Titanium Alloy, Galvanized Sheet, Pickling Plate and Aluminum Zinc Plate, Copper and Other Metal Materials.

Application Scope: Widely Used in Sheet Metal Processing, Aviation, Aerospace, Electronics, Electrical Appliances, Tube Fittings, Automobile, Machinery, Precision Parts, Ships, Metallurgical Equipment, Elevators, Household Appliances, Craft Gifts, Decoration, Advertising, Metal Processing Tools, Various Cutting Processing and Manufacturing Industry.

Product Parameters:

Appliction Samples:
