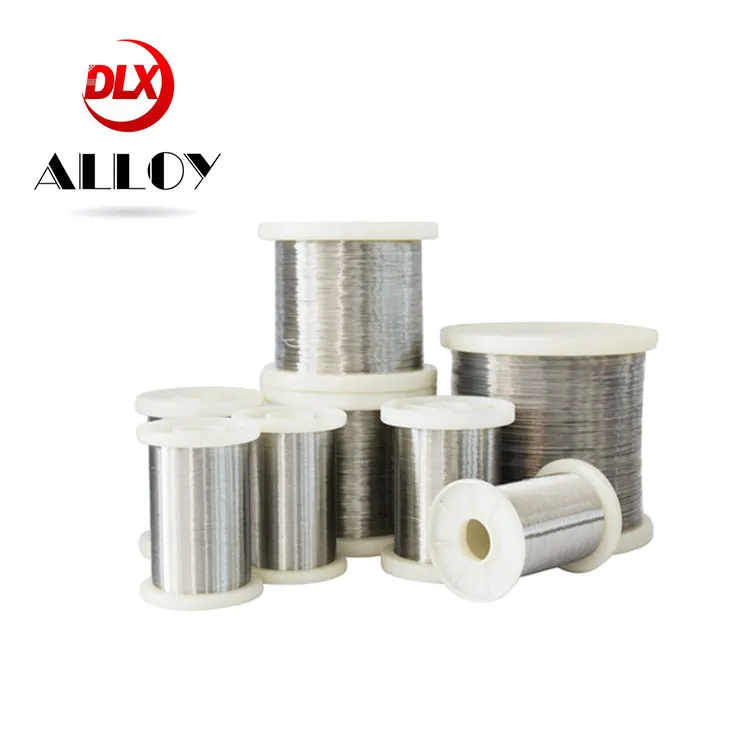

main product.jpg

You are here:Home >>Thermocouple bare wire

Product Description

Type K Thermocouple (Nickel-Chromium / Nickel-Alumel): The type K is the most common type of thermocouple. It’s inexpensive, accurate, reliable, and has a wide temperature range. The type K is commonly found in nuclear applications because of its relative radiation hardness. Maximum continuous temperature is around 1,100C.

Type K Temperature Range:

Thermocouple grade wire, –454 to 2,300F (–270 to 1260C)

Extension wire, 32 to 392F (0 to 200C)

Type K Accuracy (whichever is greater):

Standard: +/- 2.2C or +/- .75%

Special Limits of Error: +/- 1.1C or 0.4%

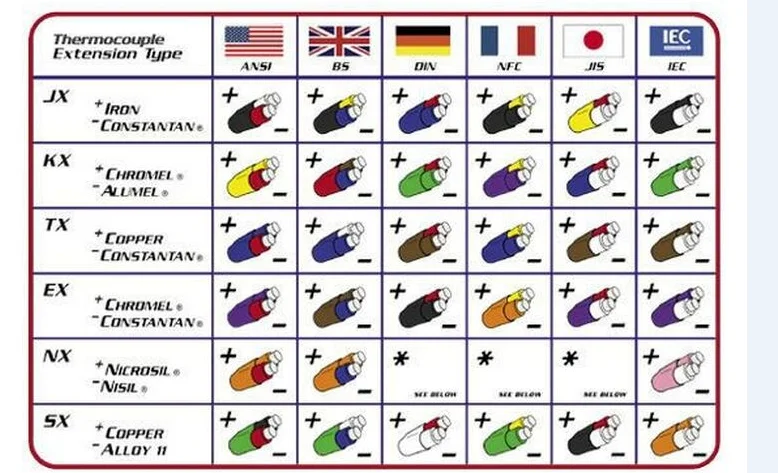

Type of K Thermocouple

Consideration for bare wire type K thermocouple applications:

In industrial installations where the recorder and control instruments are located remotely from the thermocouples, compensating cable or extension Cable must be used between the thermocouple and instrument to reduce costs.

Extension cables use the actual thermocouple materials. This is achieved by using cheaper insulations, wider tolerance alloys and thinner conductors. They are produced in multi-stranded forms for ease of installation. Calibration: NX , KX , EX , JX , TX

Compensating cables use completely different alloys that happen to exhibit very similar thermo-electric properties up to a limited temperature (usually 250 °C ).

Size dimension range:

Wire: 0.01-10mm

Ribbons: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm

Bar:10-50mm

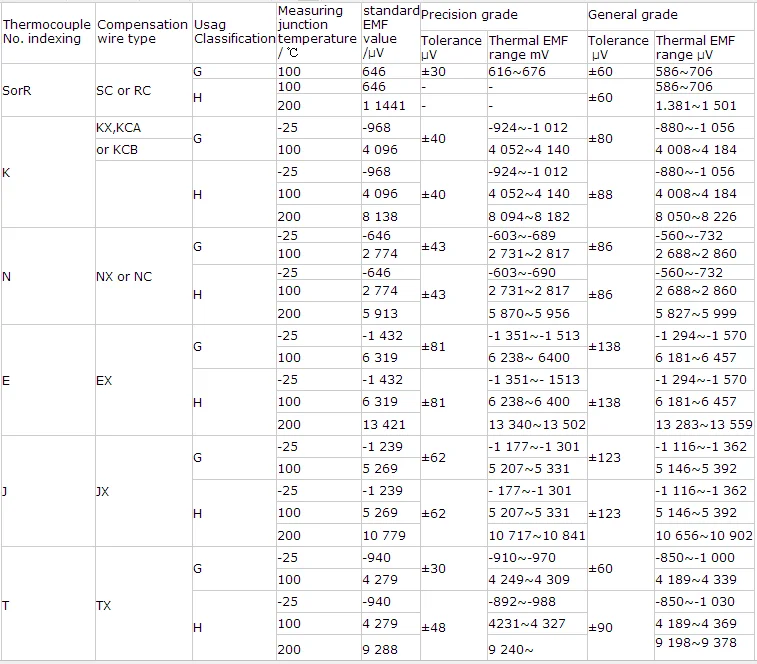

Specification

thermocouple K

.jpg

You May Like:

More Products

more product.jpg

Other product series :

FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.Go to Review

NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.Go to Review

CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/.Go to Review

Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.Go to Review

Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.Go to Review

Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.Go to Review

Incoloy alloy: Incoloy 800,800H,800HT,825,925.Go to Review

Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.Go to Review

Monel Alloy: Monel 400,K500.Go to Review

High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.Go to Review

Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.Go to Review

Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.Go to Review

Product Process

Packaging & Shipping

packaging&shipping

Our Services

Company Information

_15

FAQ

How can I contact with your company?

We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile phone.
Phone:+86-18951230953
Whatsapp:+86-18951230953
Skype: ++8618951230953

Contact Person: Johnny Chan

What is your working time?

Monday-Saturday : 7:30AM-17:00PM (Beijing time, GMT+08.00)

We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . For detail,

please see our update holiday notice. During these period, if you have a demand, Please

send me an email.

Do you provide free samples?

Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.

What is your payment terms?

T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal

We are doing the best to match your demand.

What is the lead time?

Usually sample lead time is 7 days after payment has been confirmed.

Normal order is 10-30days,it depends on customers' quantity.

Anyway,we try to offer good-quality products as soon as possible.
