Акция 10% скидка IPG листовой металл 1000 Вт 2000 пластина и трубка лазерный резак волоконный режущий станок для мягкой стали 10 мм
- Категория: Станки лазерной резки >>>
- Поставщик: Jinan Jinqiang Laser Cnc Equipment Co. Ltd.
Сохранить в закладки 62010396041:
Описание и отзывы
Характеристики
Product Description

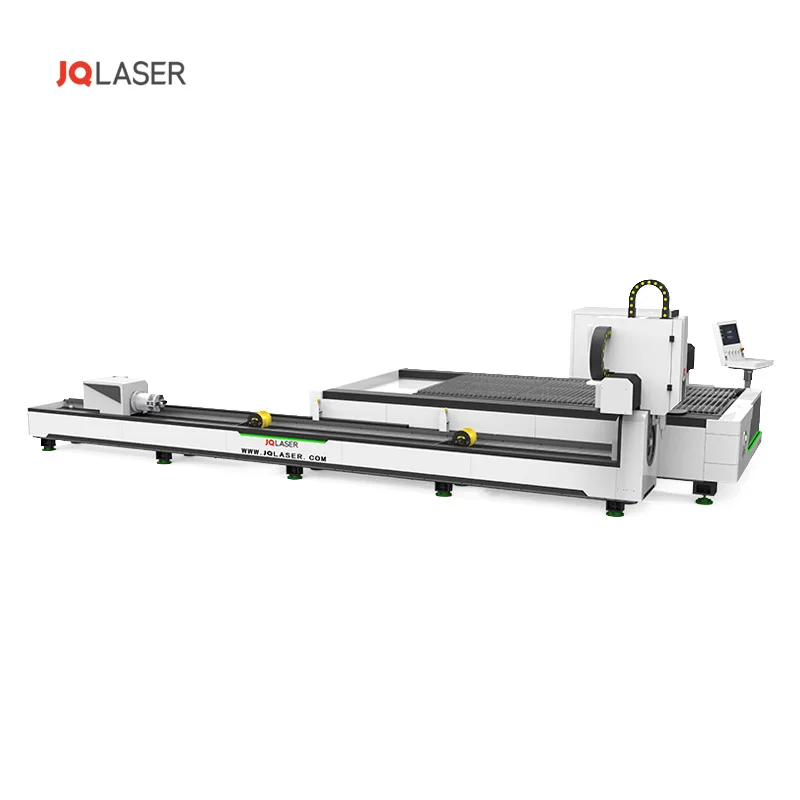

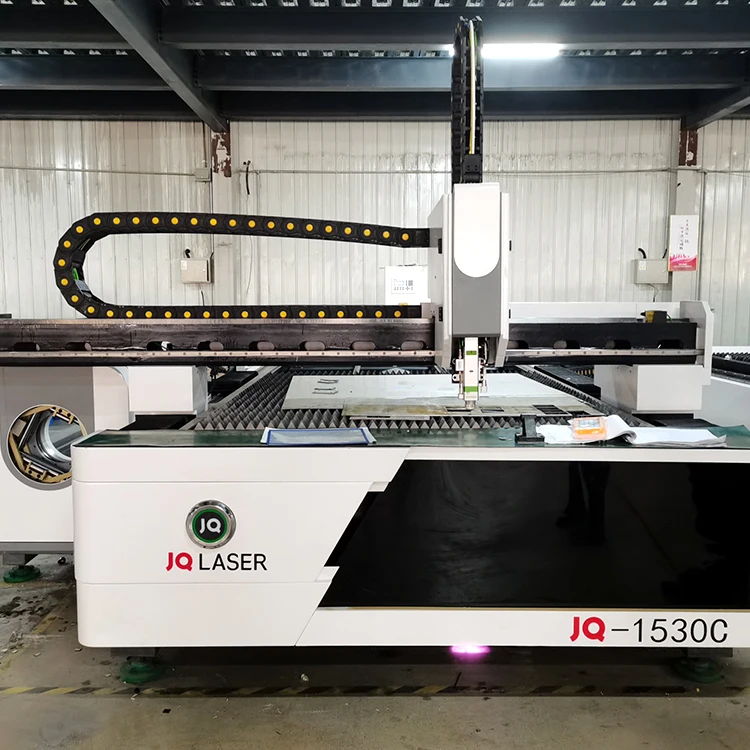

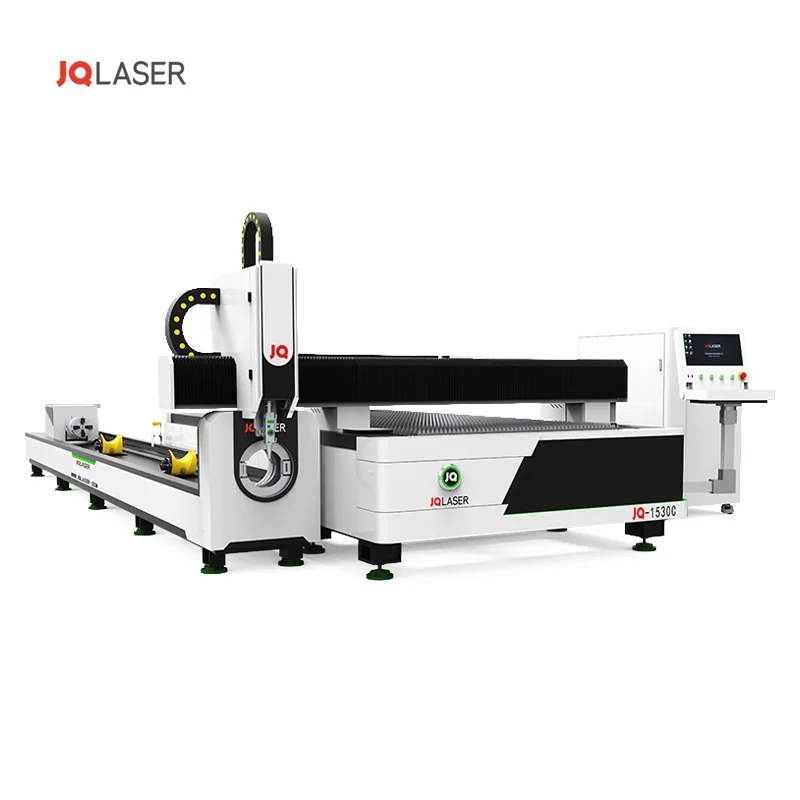

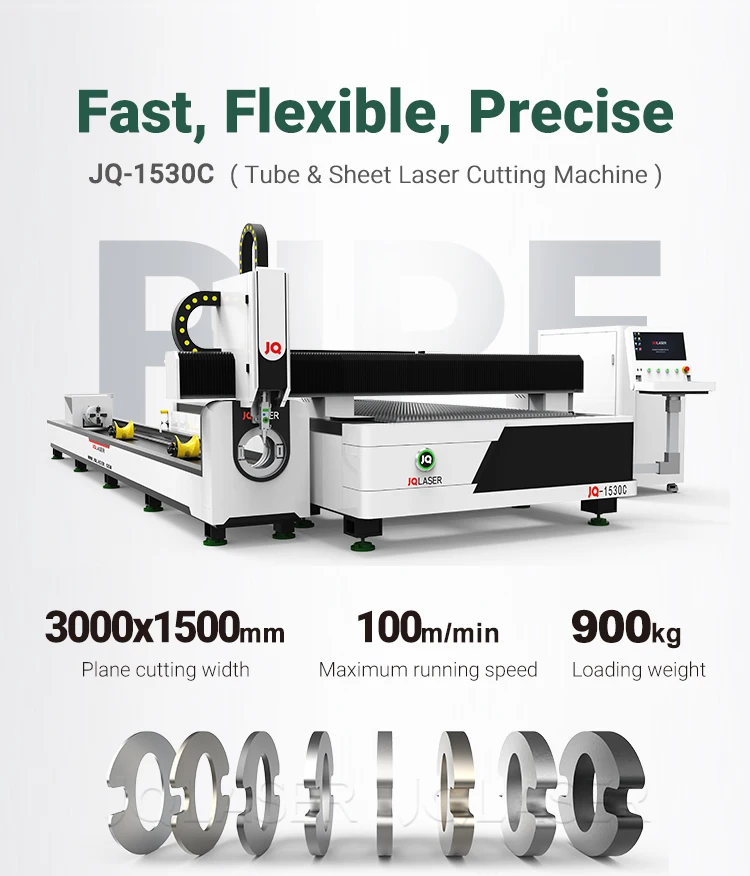

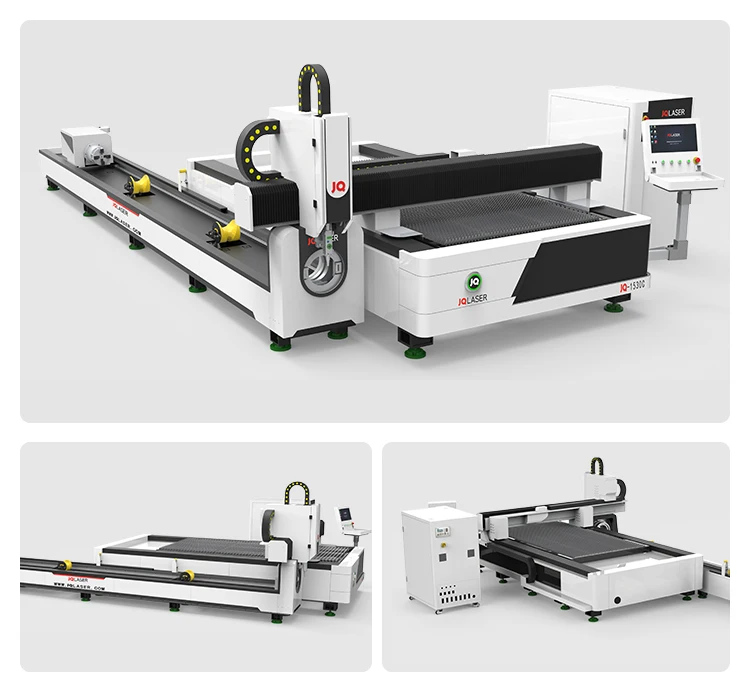

JQ1530C Plate And Tube Integrated Laser Cutting Machine
For metal processing industry, JQ developed a special type of multifunctional fiber laser cutting machine--JQ1530C, and obtained the national inventive patent of this machine. This type is mainly for plate cutting and partly for tube cutting.
Product Parameters
NO. | Item | Parameter | Unit |
1 | Working area | 3000×1500 | mm |
2 | Tube Diameter | Φ12-φ220,L=6000;(Square and rectangle tube diagonal≤200mm) | mm |
3 | X-axis travel | 2350 | mm |
4 | Y-axis travel | 3050 | mm |
5 | Z-axis travel | 240 | mm |
6 | X,Y positioning accuracy | ±0.05/1000mm | mm |
7 | X,Y repeat positioning accuracy | ±0.03/1000mm | mm |
8 | Acceleration | 1G | m/s² |
9 | Max running speed | 80 | m/min |
10 | Rear chuck max rotating speed | 100 | rpm |
11 | Tailing length | ≥90(will have little difference according to different tubes) | mm |
12 | Table max load | 900 | kg |
13 | Machine size (length x width x height ) | 7600×3500×1700(include rotary ) | mm |
14 | Laser power | 1000 | w |
15 | Control system | Fscut | kw |
16 | Total power | 14 | Kw |
17 | Machine voltage | 380v/50Hz | |

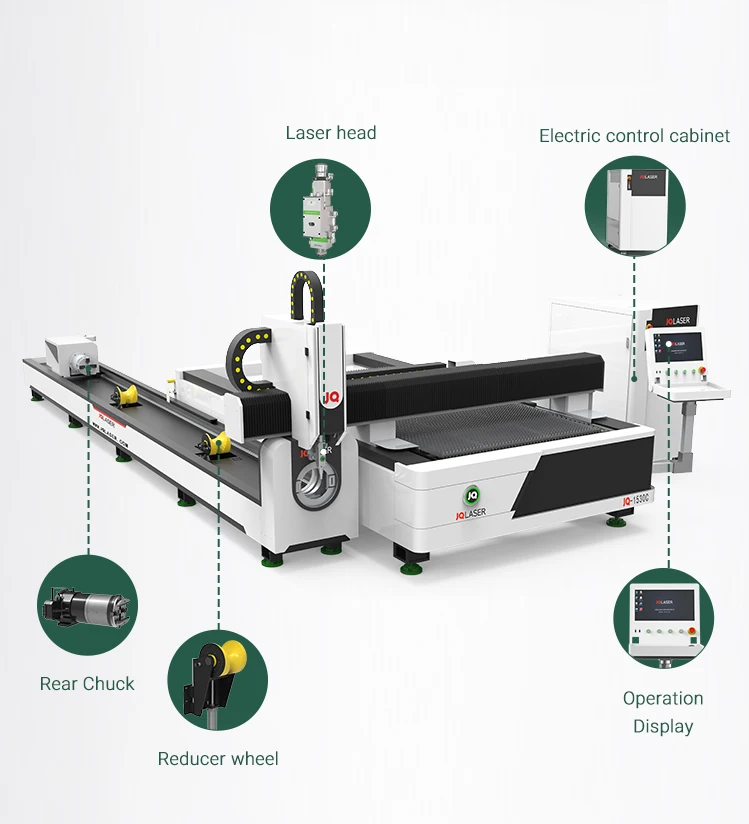

Details Images

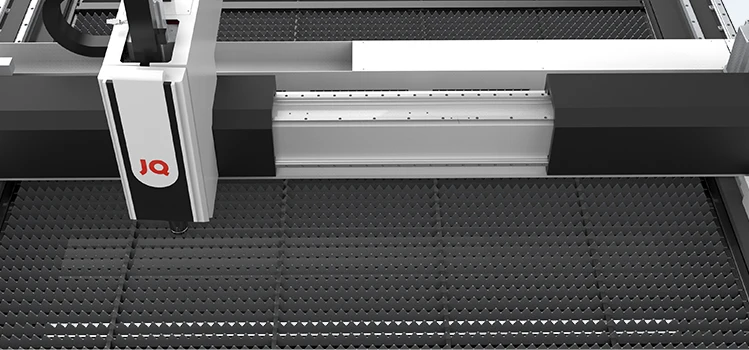

Welded Bed Structure
The bed is welded as a whole, annealed to eliminate internal stress, anti-deformation and more stable.

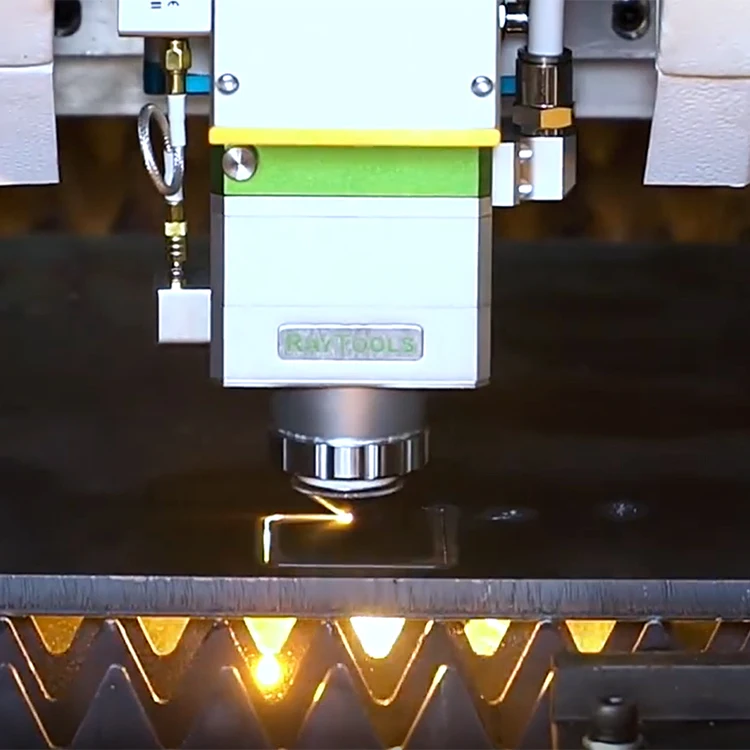

Laser Head
Auto-focus laser head - no manual operation, automatic control of up and down height, thus achieving different sheet thickness cutting operations

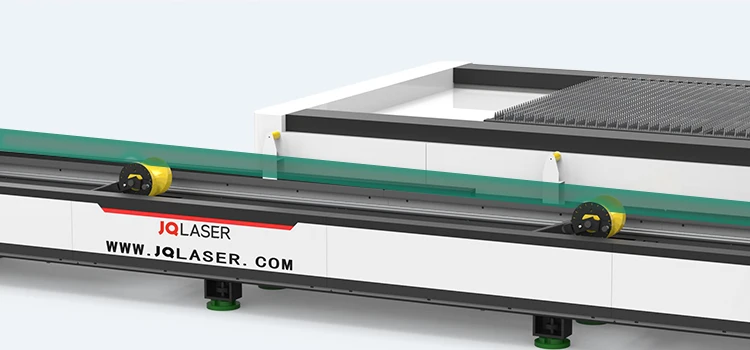

one machine dual use
Equipped with pneumatic full stroke chuck which can catch tubes with diameter of 15-220mm , the 1530c can achieve a great cutting result collaborated with high precision servo deceleration system.

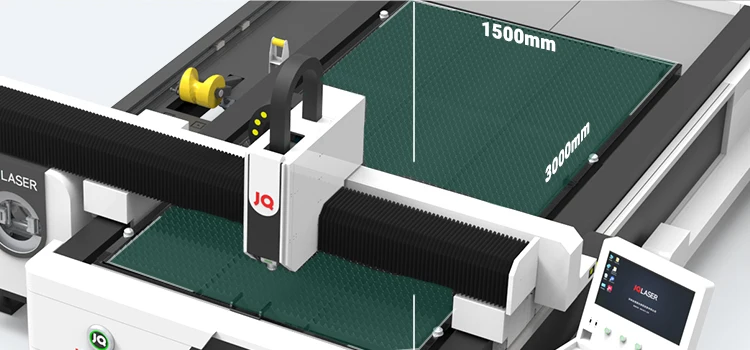

Bed size
Accepting customization of plate cutting area and size of work platform
*Control System
Friendly and interactive interface for users, to create more intelligence and easier manufacturing.

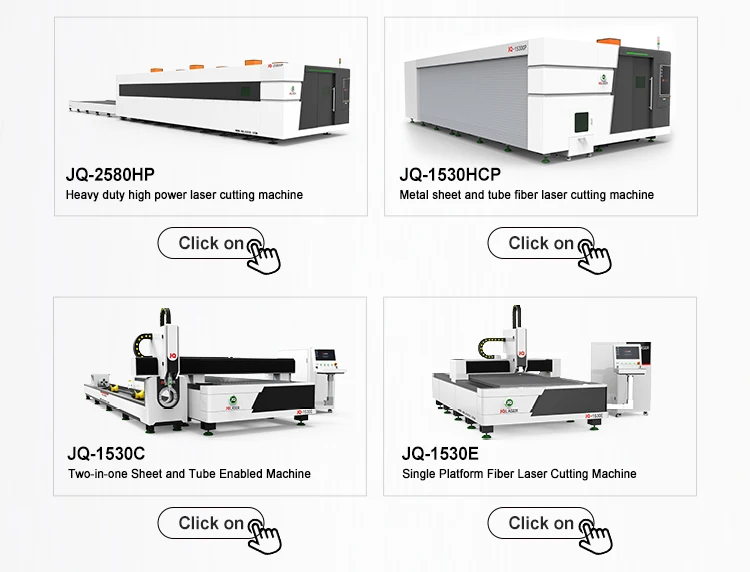

Related Products

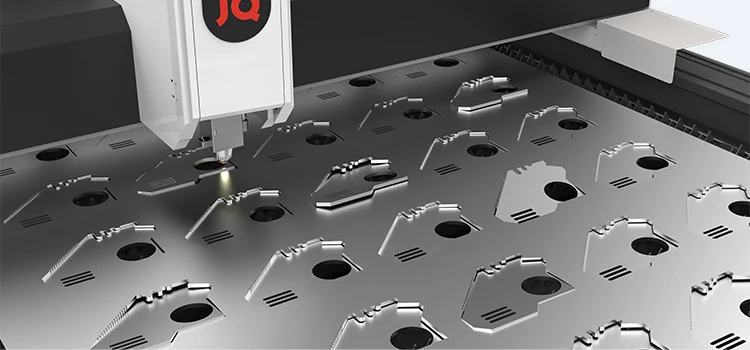

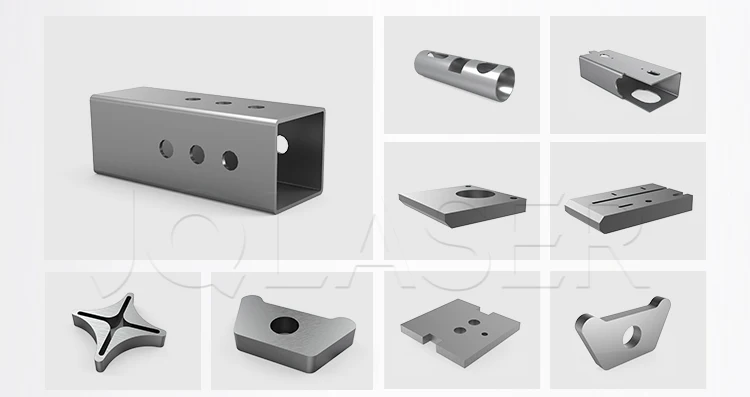

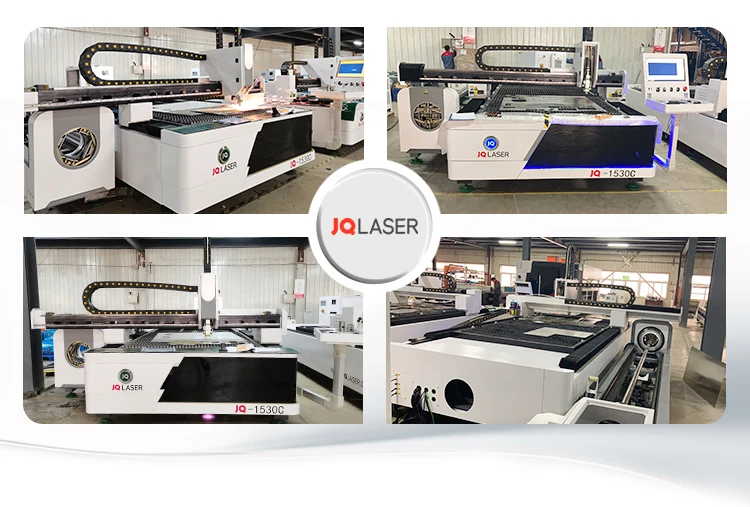

Sample Display
Our Service
Company Profile
Certifications & Exhibition
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running
