Горнодобывающая машина для обезвоживания осадка концентрат керамический диск фильтро Rotatorio De Vacio роторный вакуумный фильтр
- Категория: Другие фермы для майнинга >>>
- Поставщик: Jiangxi Province County Mining Machinery Factory
Сохранить в закладки 62010559568:
Описание и отзывы
Характеристики
Product Description
Brief Introduction of Rotary Vacuum Filter:
disc filter is a mechanical and electrical machine, porous filter plates, automatic control, ultrasonic cleaning and other high-tech machine. unique design, compact structure, advanced indicators, performance is excellent, economic and social benefits significantly.
Can be widely used in non-ferrous metallurgy, chemical, pharmaceutical, food, environmental protection, power plants, coal treatment, sewage treatment and other industries.
Features of Rotary Vacuum Filter:
1. high vacuum (degree of vacuum 0.09 ~ 0.098MPa), low cake moisture.
2. filtrate solids content <50ppm. It can be repeatedly used to reduce emissions.
Compared with the conventional filtration equipment energy savings of about 90%, low energy consumption, low running costs.
Main structure of Ceramic vacuum disc filter:
1. the rotor (roller) 2. the distribution head
3. blender 4. scraper
5. the slurry tank 6. the spindle gear
7. vacuum pump 8. the filter
9. ultrasound equipment 10. water system
11. the gas system
Technical Data
Model | PGT10-2 | PGT15-3 | PGT20-4 | PGT25-5 | PGT30-6 | PGT35-7 | PGT40-8 | PGT48-4 | PGT60-5 | ||||||||
Filtering Area (M2) | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 48 | 60 | ||||||||
Drum Dia (mm) | 2100 | 3100 | |||||||||||||||
Drum Qty (Pc) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 4 | 5 | ||||||||
Filter Fan Qty (Pc) | 20 | 20 | |||||||||||||||
Filter Cell Volume(M3) | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.7 | 7.1 | ||||||||
Axis Motor (KW) | 4 | 5.5 | 7.5 | ||||||||||||||
Stir Motor (KW) | 5.5 | 7.5 | |||||||||||||||
Discharge cake way | Inverted ventilation | ||||||||||||||||
Weight | 10.4 | 11 | 11.6 | 12.2 | 12.8 | 13.4 | 14 | 18 | 21 | ||||||||
Size (L*W*H) | 2535 | 2920 | 3315 | 3705 | 4095 | 4485 | 4875 | 4175 | 5175 | ||||||||
2480 | 4205 | ||||||||||||||||
2690 | 3740 | ||||||||||||||||
Capacity | 0.6-1M3/H | ||||||||||||||||
Packing & Delivery
Why Choose JXSC
Jiangxi Shicheng Mine Machinery Factory
Jiangxi Shicheng Mine Machinery Factory is an experienced supplier of complete set mining equipments, professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our Core Advantages as below
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing equipment
4.Provide Sample testing service in factory lab for free
5.Provide One-stop mining solutions
6.Provide professional flowchart design and layout drawing
JXSC Main product including: trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, jaw crusher, hammer crusher, ball mill, wet pan mill flotation machine, spiral classifier. as well complete set small laboratory mining equipments
Certificates
JXSC Mine Machinery Factory has obtained ISO9001:2008 standard certificate, most mining machines obtained CE, SGS and BV certificate.
Customers visit JXSC
\t\t\t\t\t\t\t\t\tOur Service \t\t\t\t\t\t\t
Pre-Sales Service
*Inquiry and consulting support
*Ore sample testing support
*View our Factory
*Design Flowchart
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* 1 year warranty
* Engineers available to service machinery overseas.
Related Products
FAQ
Q: Are you mining machinery manufacturer? can I visit your factory?
A: Yes, we are mining machinery manufacturer, our factory is located in Ganzhou City Jiangxi province, it has direct flight to Beijing,Shanghai,Guangzhou,Shenzhen Airport. Welcome to visit our factory!
Q:Can you produce as specific size?
A: Yes, most of our products are customized as per customer's requirements.
Q: What is the leading time?
A: For shaking table and laboratory mining equipment ,we can send out within 7 days after receiving full payment.
For large scale mining equipment and customized machine, the lead time is about 30-35 days.
Q: Do you supply oversea service?
A: Yes, we do. Engineers available to service machinery overseas.
Q: How about the warranty?
A: We will supply you one year warranty and lifelong technical support.
A: Yes, we are mining machinery manufacturer, our factory is located in Ganzhou City Jiangxi province, it has direct flight to Beijing,Shanghai,Guangzhou,Shenzhen Airport. Welcome to visit our factory!
Q:Can you produce as specific size?
A: Yes, most of our products are customized as per customer's requirements.
Q: What is the leading time?
A: For shaking table and laboratory mining equipment ,we can send out within 7 days after receiving full payment.
For large scale mining equipment and customized machine, the lead time is about 30-35 days.
Q: Do you supply oversea service?
A: Yes, we do. Engineers available to service machinery overseas.
Q: How about the warranty?
A: We will supply you one year warranty and lifelong technical support.
Q: What is the payment term?
A: 100% TT or 40% advanced payment before factory production,60% balance shall be paid before factory delivery.
Q: Do you have office abroad?
A: Yes,we have office in Tanzania. There are some regular machines in stock for sale.
JXSC Factory not only can provide you efficient equipment,but also can provide you professional solution and turn-key service!
Похожие товары
EBZ160 дорожная машина для выемки туннелей EBZ160

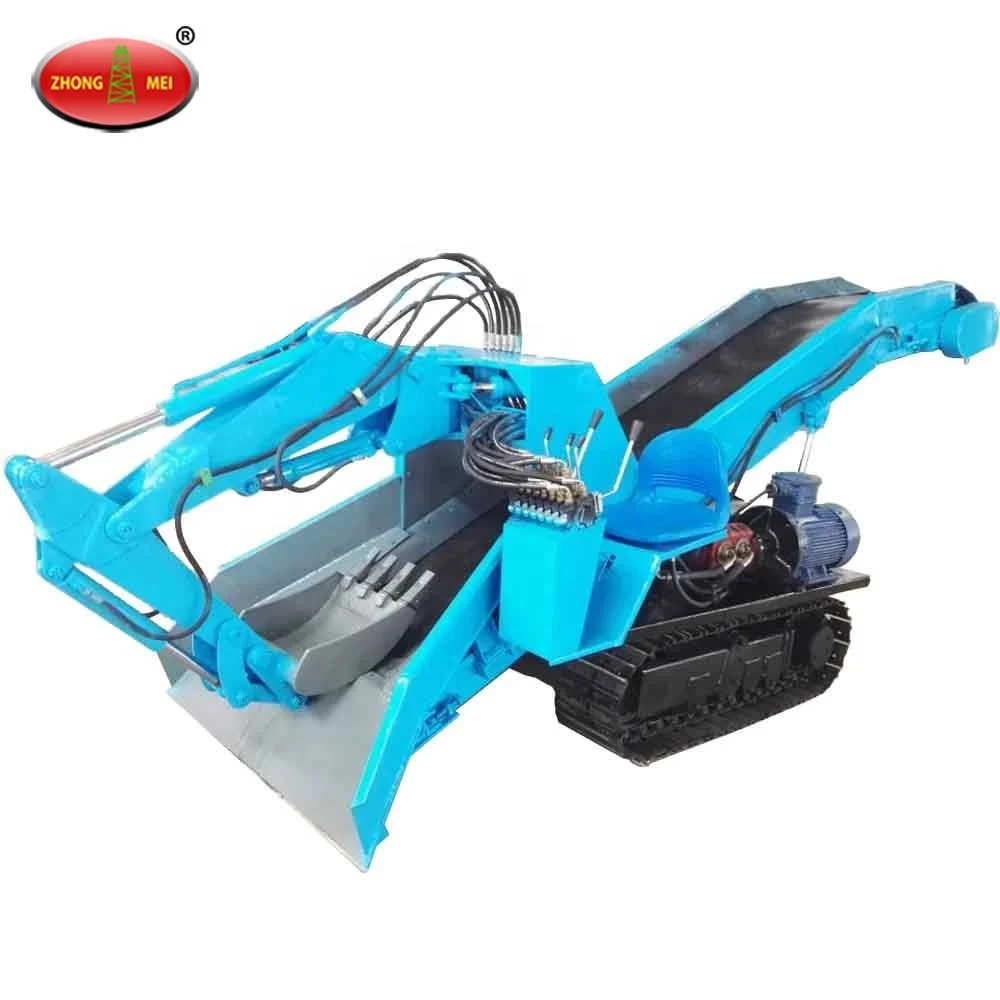

ZWY подземная машина для скалы, гусеничный погрузчик на продажу Параметры ZWY подземный рок слизистая машина гусеничный слизистый погрузчик на продажу
