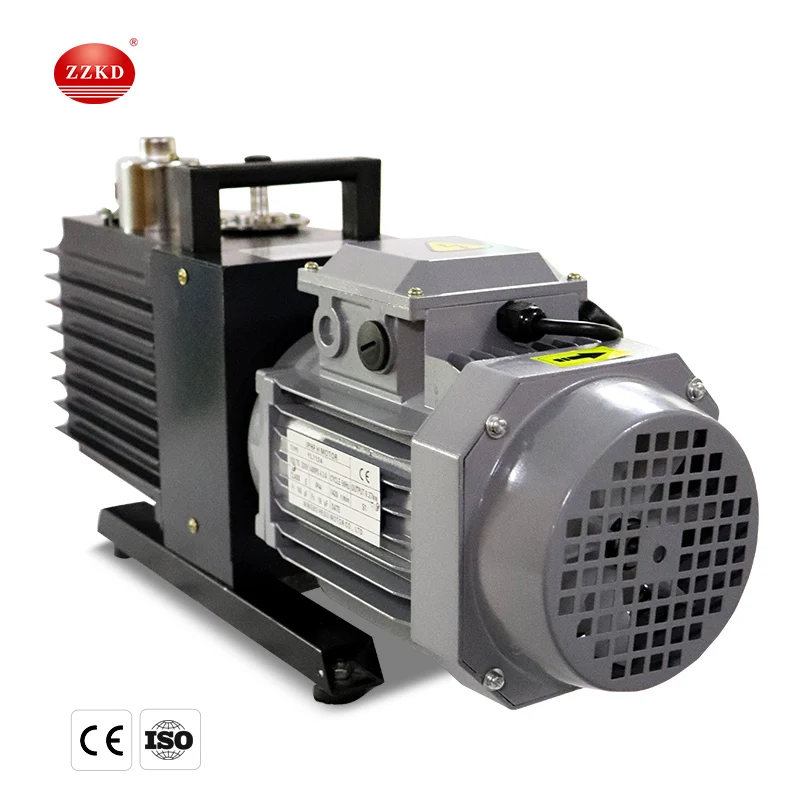

Миниатюрный Электрический вакуумный насос с вращающейся лопастью
- Категория: >>>
- Поставщик: Zhengzhou Keda Machinery And Instrument Equipment Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 62011296319:
Описание и отзывы
Характеристики

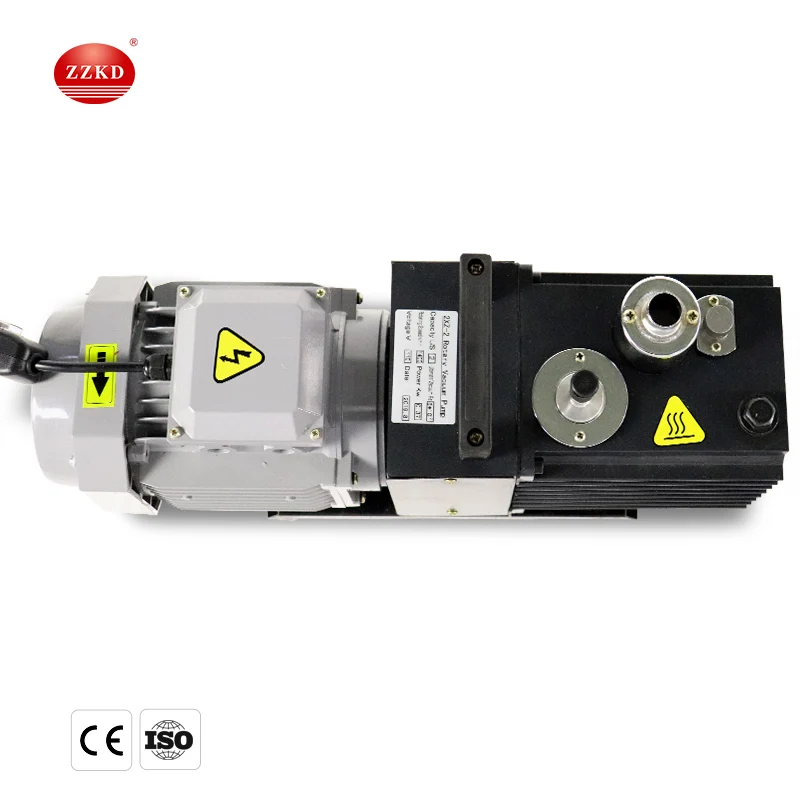

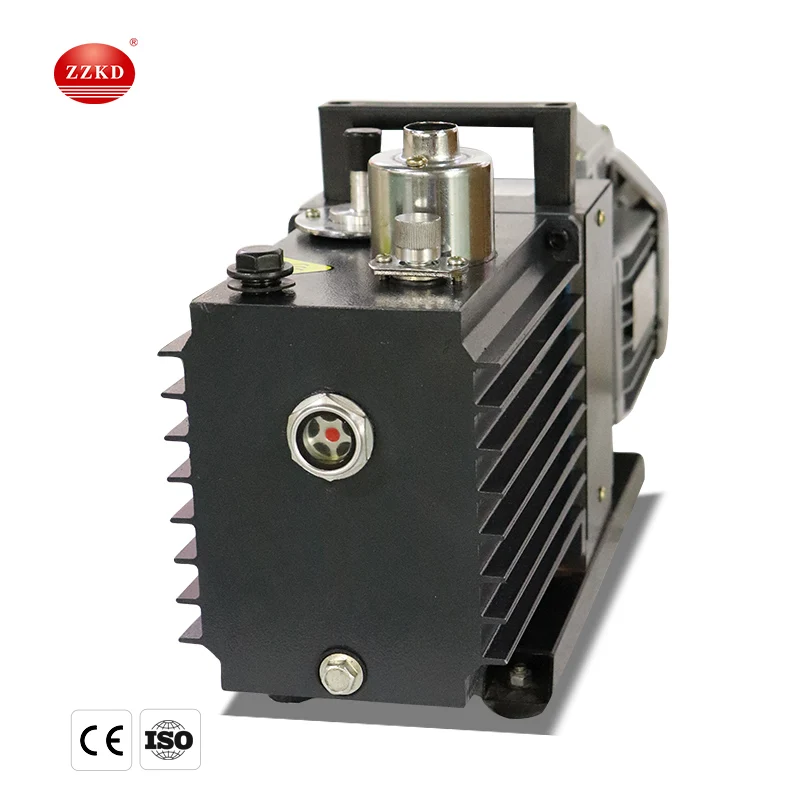

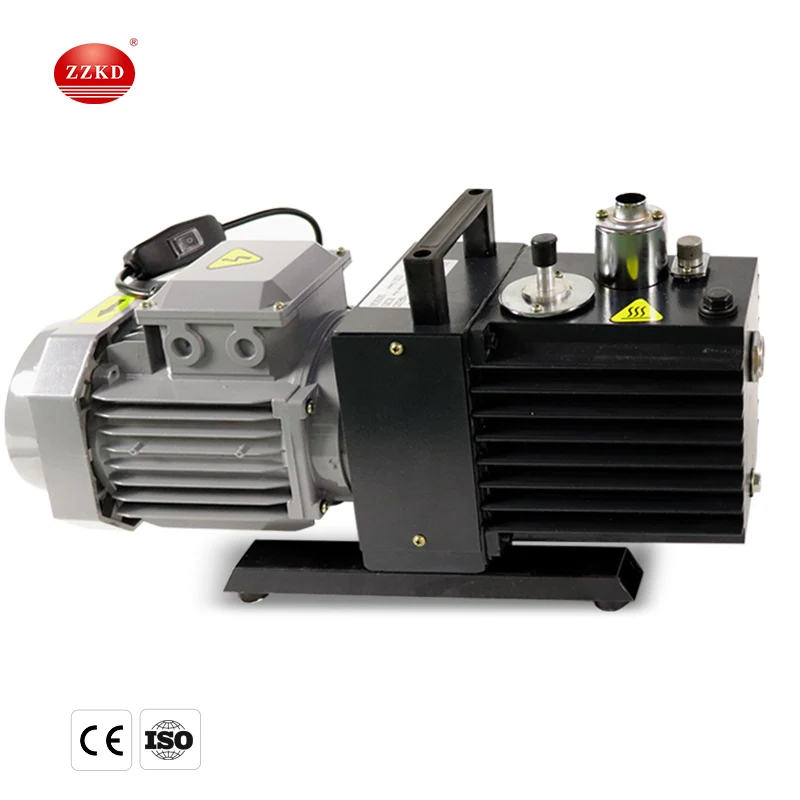

Mini Electric Rotary Vane Air Vacuum Pump
Product Description
The rotary vane vacuum pump is an oil-sealed rotary displacement pump. The outlet valve is oil-sealed. The inlet valve is designed as a vacuum safety valve that is always open during operation. It can be used independently ,which also can be as booster pump, diffusion pump , molecular pump and titanium pump's pre-pump. Also used as electronic devices produce, vacuum drying, filtration ,welding, metal smelting, etc.
Features of Rotary Vane Vacuum Pump:
1. The 2XZ series rotary vane vacuum pump belongs to two stage direct connection structure rotary vane vacuum pump, which can be used for drying, sealing the container and other ancillary pumping air or net vacuum equipments.
2. It has the advantages of small size, light weight, low noise, convenient for using and more.
3. The 2XZ series Rotary Vane Vacuum Pump can not be used as the compression type delivery pump.
2XZ series rotary vane vacuum pump have many models, here are main parameters.
Model | 2XZ-0.5 | 2XZ-1 | 2XZ-2 | 2XZ-4 | 2XZ-8 | 2XZ-15 | |
Pumping speed (L/S) | 0.5 | 1 | 2 | 4 | 8 | 15 | |
Ult. vacuum (Pa) | Without gas ballast | ≤6*10-2 | |||||
With gas ballast | ≤6.5 | ≤1.33 | |||||
Rotary speed (r/min) | 1400 | 1410 | 1410 | ||||
Working Voltage (V) | 220 | 220/380 | |||||
Motor power (Kw) | 0.18 | 0.25 | 0.37 | 0.55 | 1.1 | 1.5 | |
Inlet diameter (mm) | Φ16 | Φ16 | Φ25 | Φ25 | Φ40 | Φ40 | |
Temp. rise of pump oil (℃) | 40 | ≥45 | ≥65 | ≥70 | |||
Oil capacity (L) | 0.5 | 0.55 | 0.8 | 0.1 | 2.5 | 4.0 | |
Size | L (mm) | 450 | 467 | 488 | 528 | 572 | 703 |
| W (mm) | 130 | 130 | 145 | 145 | 172 | 338 | |
| H (mm) | 254 | 254 | 280 | 280 | 350 | 453 | |
| Weight (kg) (with 3-phase motor) | 13.5 | 15 | 20 | 23 | 48.5 | 77.5 | |
| Noise (db) | ≤60 | ||||||
| Vibration reference number (u) | ≤80 | ||||||
The 2XZ series rotary vane vacuum pump belongs to two stage direct connection structure rotary vane vacuum pump, which can be used for drying, sealing the container and other ancillary pumping air or net vacuum equipments.
Features of Mini Electric Rotary Vane Vacuum Pump:
It has the advantages of small size, light weight, low noise, convenient for using and more.
The 2XZ series Rotary Vane Vacuum Pump can not be used as the compression type delivery pump.
2XZ series rotary vane vacuum pump can be used independently ,which also can be as booster pump, diffusion pump , molecular pump and titanium pump's pre-pump. Also used as electronic devices produce, vacuum drying, filtration ,welding, metal smelting, etc.
The roatary vane vacuum pump is used for pumping vacuum for other machines.
Such as: vacuum drying oven.
Packaging & Shipping
Packing:
- The product will be packed in wooden case, and also can be packed by others ways as your request.
- Both neutral and cuistomized packing are available.
Shipping:
- We can ship the goods to you by international express,such as DHL, UPS, TNT and so on. And you can choose the appropriate way based on your timeline and budget. Besides, you can choose to use your own shipping agent.
| Shipping method | Note |
| Express | Door to door, very convenient, don't need to clearance or pick-up |
| By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport,which you can have a local shipping agent to do for you. |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you. |
FAQ
1.What's the minimum order quantity?
One set at present.
2.What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term will be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4.How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
5.Can you accept OEM terms?
Sure.
Our company
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is a famous manufacturer of lab equipment located in the central China.
The main product is high temperature circulating water/oil bath,rotary evaporator, short path distillation, glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), cooling chiller,drying oven, high-pressure reaction kettle, freeze dryer, water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc.
Our company has become a pacesetter of the lab instruments in China.
We are confident in providing professional products and service you want,
Click the picture below to enter our website to learn more information.
Our Service
We are confident in providing professional products and service you want.
For more details, welcome to contact us! Click "Send" now!
Mini Electric Rotary Vane Air Vacuum Pump
Mini Electric Rotary Vane Air Vacuum Pump
Mini Electric Rotary Vane Air Vacuum Pump
Похожие товары
110 В ~ 240 электрический воздушный насос надувная подушка Надувной переменного тока
5,00 $

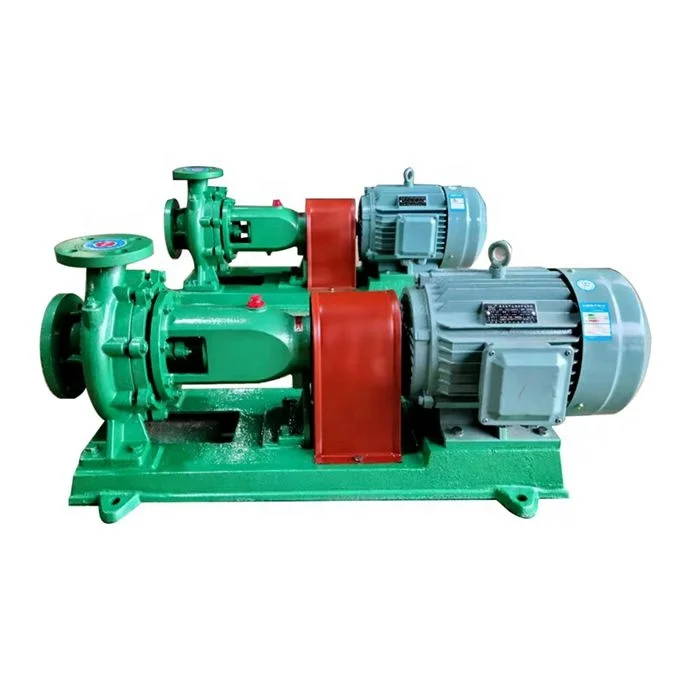

Самовсасывающий насос серии Zw бытовой самовсасывающий незабивающий канализационный центробежный
200,00 $
Насос для автомобильных шин
28,87-30,93 $

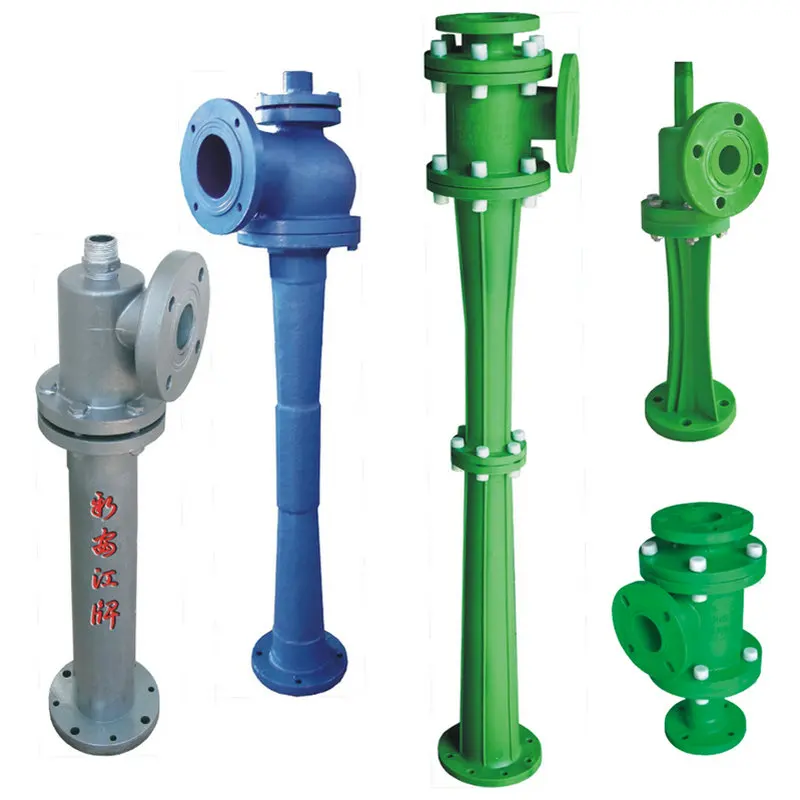

Вакуумный водяной насос hangzhou xinanjiang
699,00-1 699,00 $
Высококачественный и мощный VD-8 взрывозащищенный смазочный масляный циркуляционный воздух Китай вращающийся бесшумный вакуумный насос
189,00-251,00 $

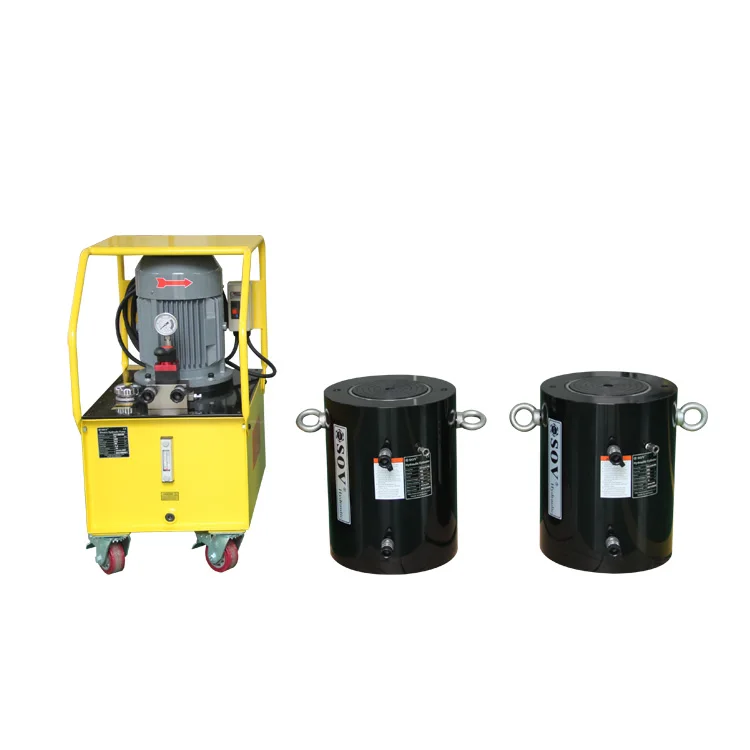

700 бар 2 кВт Электрический гидравлический насос ручной клапан для однократного/двойного действия гидравлического домкрата блок питания цилиндров DSB/SSB-220
1 299,00-1 435,00 $

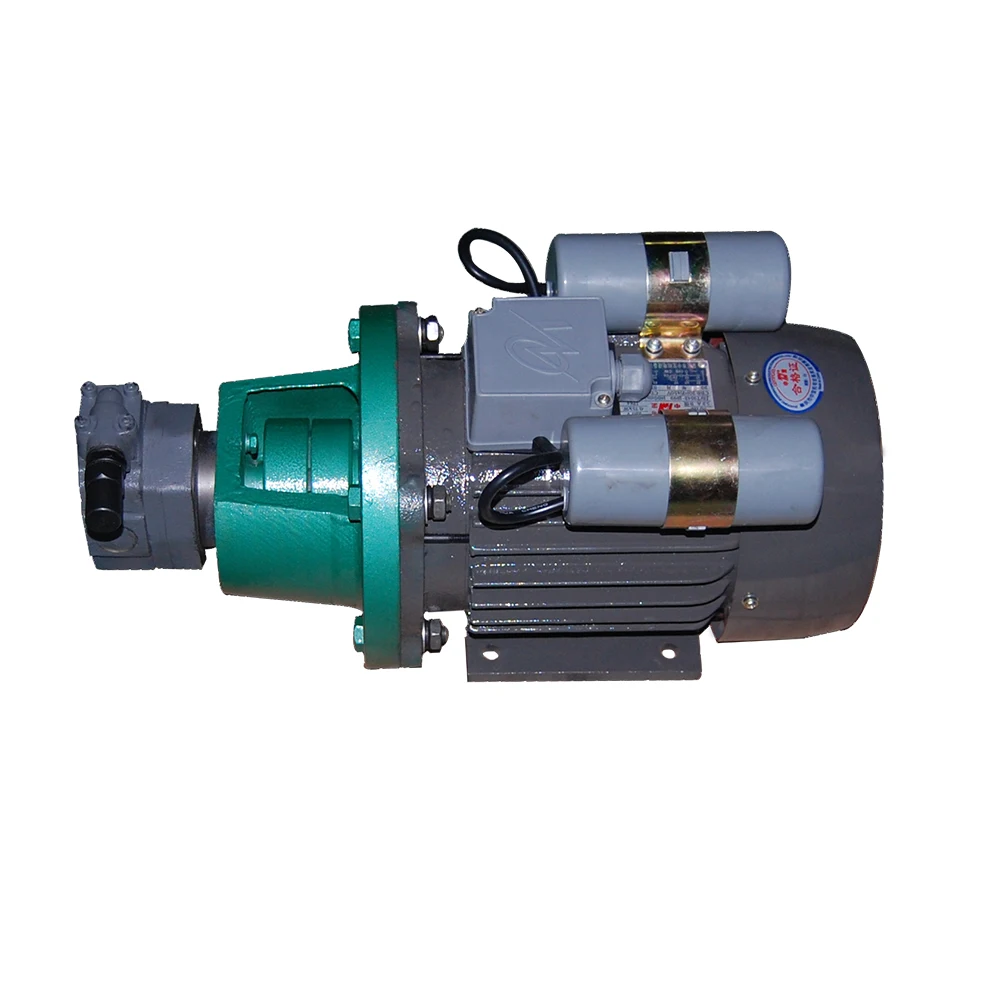

Гидравлический шестеренный насос BBG
