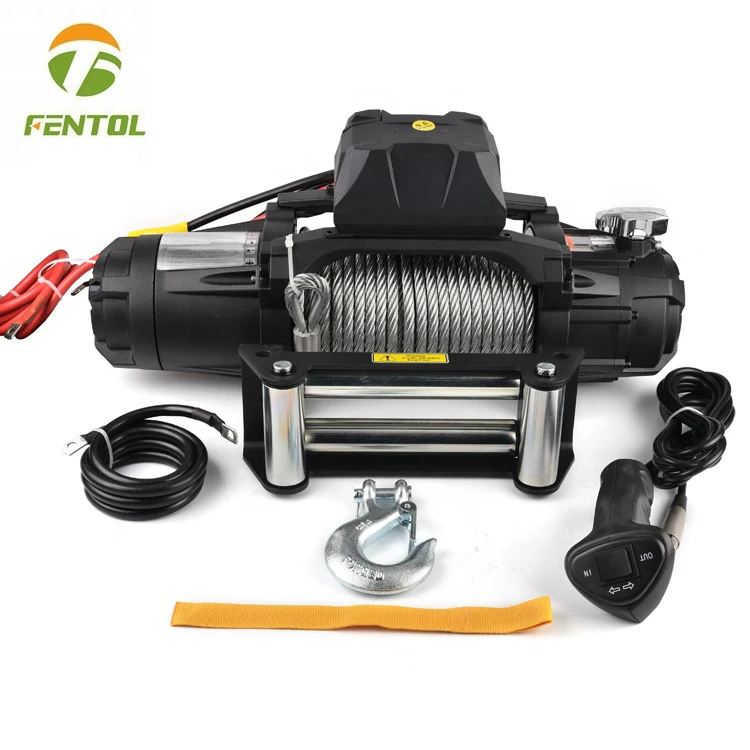

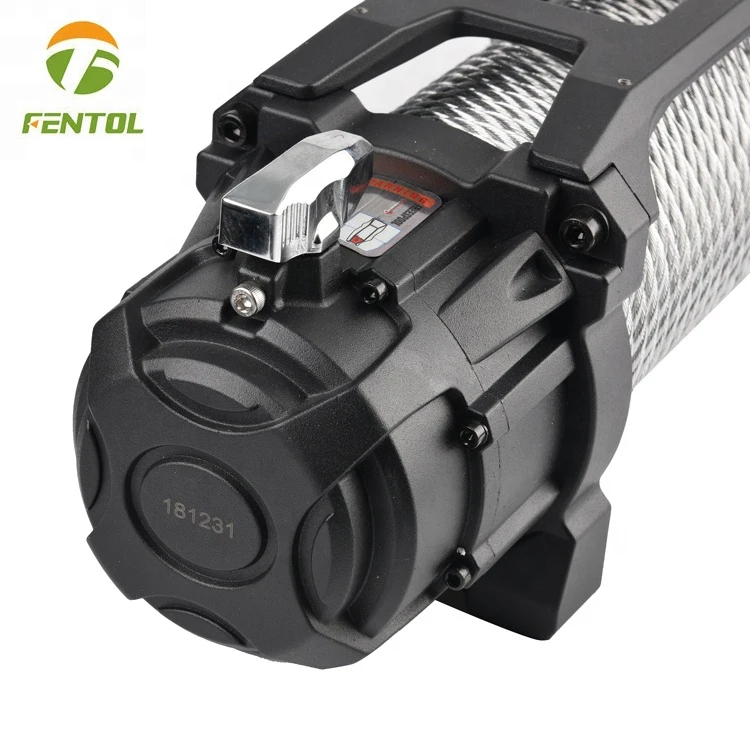

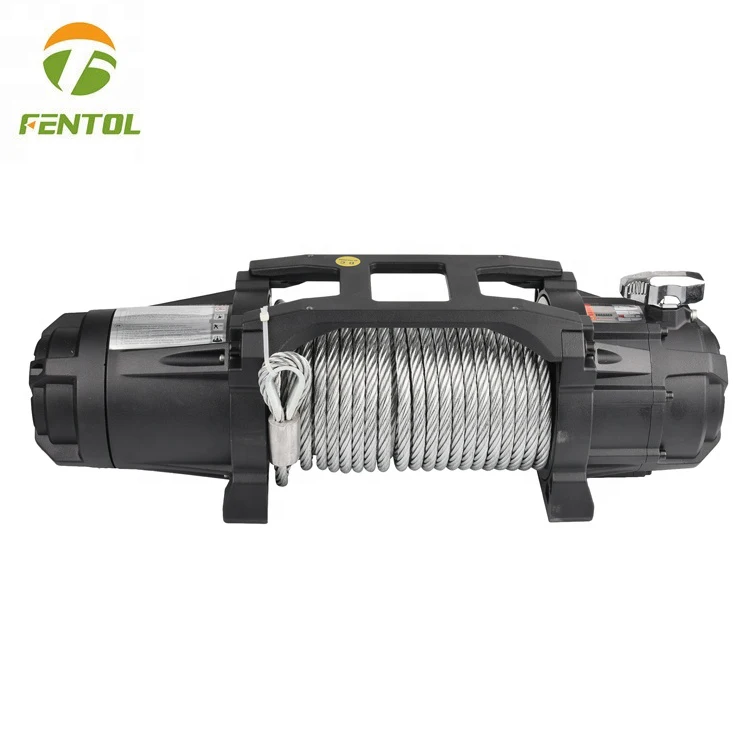

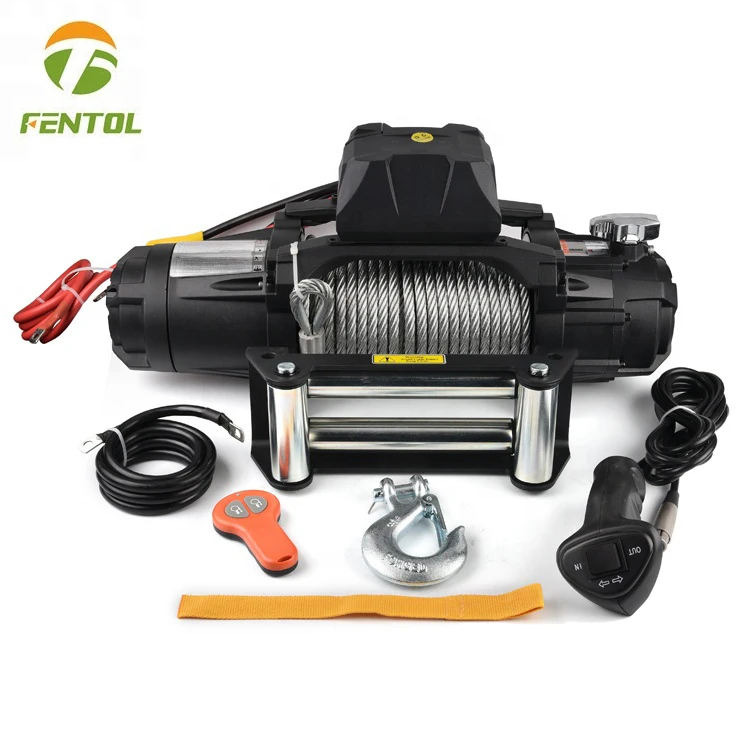

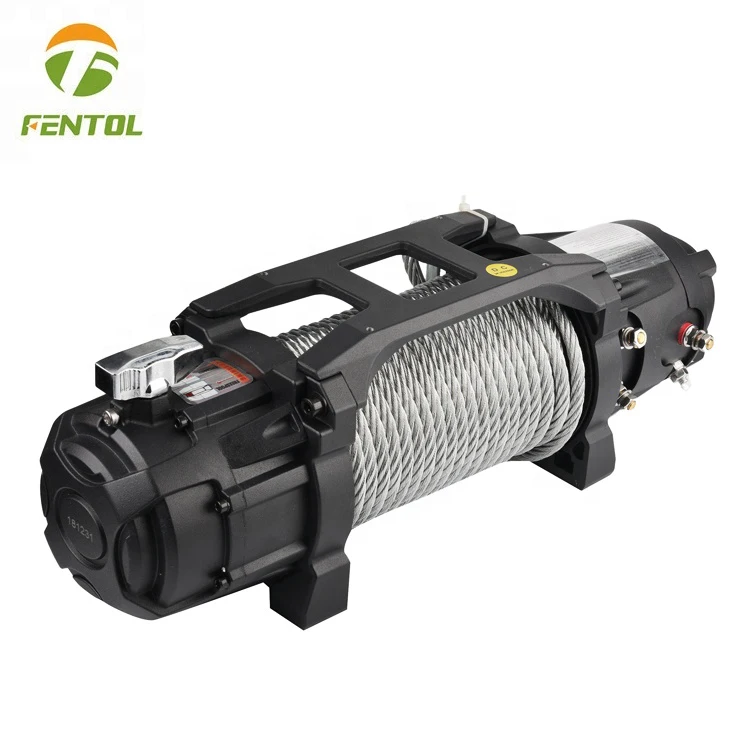

9000 12500lbs электрическая лебедка для

Категория: Winches >>>
Поставщик: Ningbo Fentol International Commerce And Trade Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики


FT-D9000

SPECIFICATIONS	FT-D9000
Performance	12VDC/24VDC
Rated line pull	9000lb(4083kg)
Motor	5.5HP/4.0KW,Series Wound
Control	Remote switch 12ft(3.7m)lead
Gear train	3 Stage Planetary
Gear reduction ratio	218:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The Drum
Drum size	Diameter 2.5" (63.5mm)Length 9" (228mm)
Cable	92ft of 21/64" diameter(28m of 8.3mm diameter)
Fairlead	4-Way Roller Fairlead
Remote Control	Included
Battery	Recommended:650CCA minimum for winching
Finish	Black/Dark Grey
Weight	N.W.92lbs(42kg)G.W.94lbs(43kg)
Overall dimensions	(LXWXH)21.3" X6.3" X8.6" (540X160X218mm)
Mounting Bolt Pattern	10.00±0.015" X4.50±0.01" (254X114.3mm)

Line Pull(lbs/kgs)	Line Speed FPM(m/min)	Motor(Amps)
0	23.6ft(7.2m)	77A
2250(1022)	11.2ft(3.42m)	150A
4500(2045)	9.4ft(2.85m)	200A
6750(3068)	7.1ft(2.16m)	263A
9000(4083)	5.6ft(1.72m)	360A

Layer	Rated Line Pull(lbs/kgs)	Total Rope On Drum(ft/m)
1	9000(4083)	18.32(5.59)
2	7310(3323)	40.89(12.47)
3	6154(2797)	67.69(20.63)
4	5314(2415)	92(28)

FT-D10000

SPECIFICATIONS	FT-D10000
Performance	12VDC/24VDC
Rated line pull	10000lb(4536kg)
Motor	5.6HP/4.2KW,Series Wound
Control	Remote switch 12ft(3.7m)lead
Gear train	3 Stage Planetary
Gear reduction ratio	218:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The Drum
Drum size	Diameter 2.5"(63.5mm)Length 9"(228mm)
Cable	85ft of 23/64"diameter(26m of 9.1mm diameter)
Fairlead	4-Way Roller Fairlead
Remote Control	Included
Battery	Recommended:650CCA minimum for winching
Finish	Black/Dark Grey
Weight	N.W.94lbs(43kg)G.W.96lbs(44kg)
Overall dimensions	(LXWXH)21.3"X6.3"X8.6"(540X160X218mm)
Mounting Bolt Pattern	10.00±0.015"X4.50±0.01"(254X114.3mm)

Line Pull(lbs/kgs)	Line Speed FPM(m/min)	Motor(Amps)
0	22.30ft(6.8m)	74A
2500(1136)	11.5ft(3.7m)	125A
5000(2268)	9.1ft(3.2m)	187A
7500(3400)	6.9ft(2.26m)	217A
10000(4536)	4.9ft(1.75m)	308A

Layer	Rated Line Pull(lbs/kgs)	Total Rope On Drum(ft/m)
1	10000(4536)	16.9(5.15)
2	7995(3634)	38.07(11.6)
3	6661(3028)	63.5(19.36)
4	5708(2595)	85(26)

FT-D12000

SPECIFICATIONS	FT-D12000
Performance	12VDC/24VDC
Rated line pull	12000lb(5443kg)
Motor	6.0HP/4.5KW,Series Wound
Control	Remote switch 12ft(3.7m)lead
Gear train	3 Stage Planetary
Gear reduction ratio	265:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The Drum
Drum size	Diameter 2.5"(63.5mm)Length 9"(228mm)
Cable	88ft of 3/8"diameter(27m of 9.5mm diameter)
Fairlead	4-Way Roller Fairlead
Remote Control	Included
Battery	Recommended:650CCA minimum for winching
Weight	N.W.44KG/G.W.45KG
Overall dimensions	(LXWXH)21.3"X6.3"X8.6"(540X160X218mm)
Mounting Bolt Pattern	10.00±0.015"X4.50±0.01"(254X114.3mm)

Line Pull(lbs/kgs)	Line Speed FPM(m/min)	Motor(Amps)
0	22.30ft(6.8m)	74A
3000(1361)	10.2ft(3.1m)	150A
6000(2720)	8.8ft(2.68m)	224A
9000(4083)	6.2ft(1.89m)	260A
12000(5443)	4.8ft(1.46m)	350A

Layer	Rated Line Pull(lbs/kgs)	Total Rope On Drum(ft/m)
1	12000(5443)	16.25(5.4)
2	9522(4328)	36.7(11.2)
3	7892(3587)	61.5(18.8)
4	6738(3063)	88.0(26.8)

FT-D12500

SPECIFICATIONS	FT-D12500
Performance	12VDC/24VDC
Rated line pull	12500lb(5670kg)
Motor	6.6HP/5KW,Series Wound
Control	Remote switch 12ft(3.7m)lead
Gear train	3 Stage Planetary
Gear reduction ratio	265:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The Drum
Drum size	Diameter 2.5"(63.5mm)Length 9"(228mm)
Cable	88ft of 3/8"diameter(27m of 9.5mm diameter)
Fairlead	4-Way Roller Fairlead
Remote Control	Included
Battery	Recommended:650CCA minimum for winching
Weight	N.W.44KG/G.W.45KG
Overall dimensions	(LXWXH)21.3"X6.3"X8.6"(540X160X218mm)
Mounting Bolt Pattern	10.00±0.015"X4.50±0.01"(254X114.3mm)

Line Pull(lbs/kgs)	Line Speed FPM(m/min)	Motor(Amps)
0	22.30ft(6.8m)	74A
3125(1417)	9.77ft(2.98m)	156A
6250(2835)	8.43ft(2.57m)	233A
9375(4252)	5.9ft(1.8m)	270A
12500(5670)	4.59ft(1.4m)	364A

Layer	Rated Line Pull(lbs/kgs)	Total Rope On Drum(ft/m)
1	12500(5670)	16.25(5.4)
2	9918(4498)	36.7(11.2)
3	8820(3729)	61.5(18.8)
4	7019(3183)	88.0(26.8)

FT-D13000

SPECIFICATIONS	FT-D13000
Performance	12VDC/24VDC
Rated line pull	13000lb(5897kg)
Motor	6.6HP/5KW,Series Wound
Control	Remote switch 12ft(3.7m)lead
Gear train	3 Stage Planetary
Gear reduction ratio	265:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The Drum
Drum size	Diameter 2.5"(63.5mm)Length 9"(228mm)
Cable	88ft of 3/8"diameter(27m of 9.5mm diameter)
Fairlead	4-Way Roller Fairlead
Remote Control	Included
Battery	Recommended:650CCA minimum for winching
Weight	N.W.44KG/G.W.45KG
Overall dimensions	(LXWXH)21.3"X6.3"X8.6"(540X160X218mm)
Mounting Bolt Pattern	10.00±0.015"X4.50±0.01"(254X114.3mm)

Line Pull(lbs/kgs)	Line Speed FPM(m/min)	Motor(Amps)
0	22.30ft(6.8m)	77A
3250(1474)	9.38ft(2.86m)	163A
6500(2948)	8.1ft(2.47m)	242A
9750(4423)	5.67ft(1.73m)	281A
13000(5897)	4.43ft(1.35m)	378A

Layer	Rated Line Pull(lbs/kgs)	Total Rope On Drum(ft/m)
1	13000(5897)	16.25(5.4)
2	10315(4879)	36.7(11.2)
3	8550(3878)	61.5(18.8)
4	7300(3311)	88.0(26.8)

FT-D13500

SPECIFICATIONS	FT-D13500
Performance	12VDC/24VDC
Rated line pull	13500lb(6136kg)
Motor	6.6HP/5KW,Series Wound
Control	Remote switch 12ft(3.7m)lead
Gear train	3 Stage Planetary
Gear reduction ratio	265:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The Drum
Drum size	Diameter 2.5"(63.5mm)Length 9"(228mm)
Cable	88ft of 3/8"diameter(27m of 9.5mm diameter)
Fairlead	4-Way Roller Fairlead
Remote Control	Included
Battery	Recommended:650CCA minimum for winching
Weight	N.W.44KG/G.W.45KG
Overall dimensions	(LXWXH)21.3"X6.3"X8.6"(540X160X218mm)
Mounting Bolt Pattern	10.00±0.015"X4.50±0.01"(254X114.3mm)

Line Pull(lbs/kgs)	Line Speed FPM(m/min)	Motor(Amps)
0	22.31ft(6.8m)	77A
3375(1530)	9.06ft(2.76m)	169A
6750(3062)	7.81ft(2.38m)	251A
10125(4593)	5.48ft(1.67m)	292A
13500(6136)	4.27ft(1.3m)	392A

Layer	Rated Line Pull(lbs/kgs)	Total Rope On Drum(ft/m)
1	13500(6136)	16.25(5.4)
2	10712(4869)	36.7(11.2)
3	8878(4035)	61.5(18.8)
4	7581(3446)	88.0(26.8)


1.What is your MOQ?

A: Usually our MOQ is 54-100PCS per item. But we accept lower quantity for your trial-order. Please feel free to tell us how many pieces you need, we will calculate the cost correspondingly, hoping you can place large orders after checking the quality of our products and know our service.

2. Can I get samples?

A: Sure. We usually provide the existing sample for free. But a little sample charge for custom designs. Sample charge is refundable when the order is up to a certain quantity. We usually send samples by FedEx, UPS, TNT or DHL. If you have card account, it will be fine to ship with your account, if not, you can pay the freight charge to our account, we will ship with our account. It takes about 2- 4 days to reach.

3. How long is the sample lead time?

A: For existing samples, it takes 35-40 days. They are free. If you want your own designs, it takes 5-7 days, subject to your designs whether they need new printing screen, etc. Anyway, we will respond fast to your request.

4. How long is the production lead time?

A: It takes 35-40 days for MOQ. We have large production capacity, which can ensure fast delivery time even for large quantity.

8.What is your payment term?

A: Our normal payment term is 100% deposit after order signed for MOQ, payment term is TT 30% deposit after order signed and 70% against copy of B/L for large quantity.We also accept LC at sight.

Новые поступления

Новинки товаров от производителей по оптовым ценам

9000 12500lbs электрическая лебедка для

Описание и отзывы

Характеристики

Похожие товары

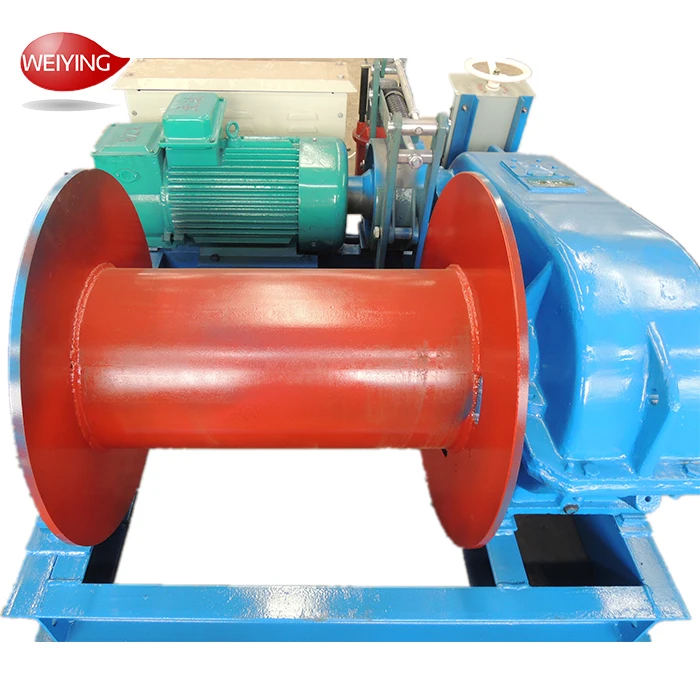

Высокоскоростная электрическая лебедка 380 В 5 т 3 2 15 20 тонн цена в
