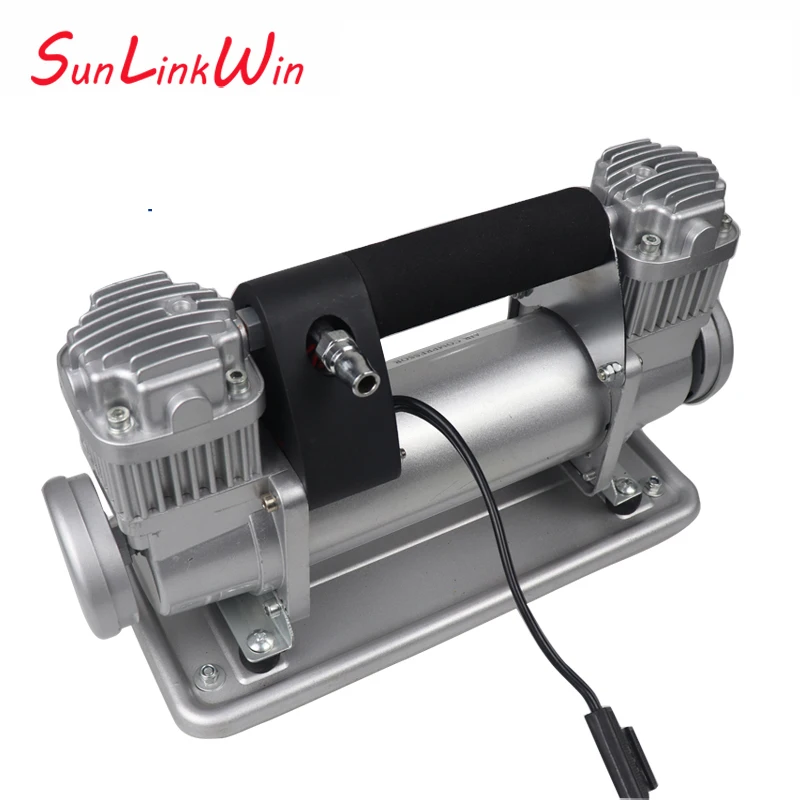

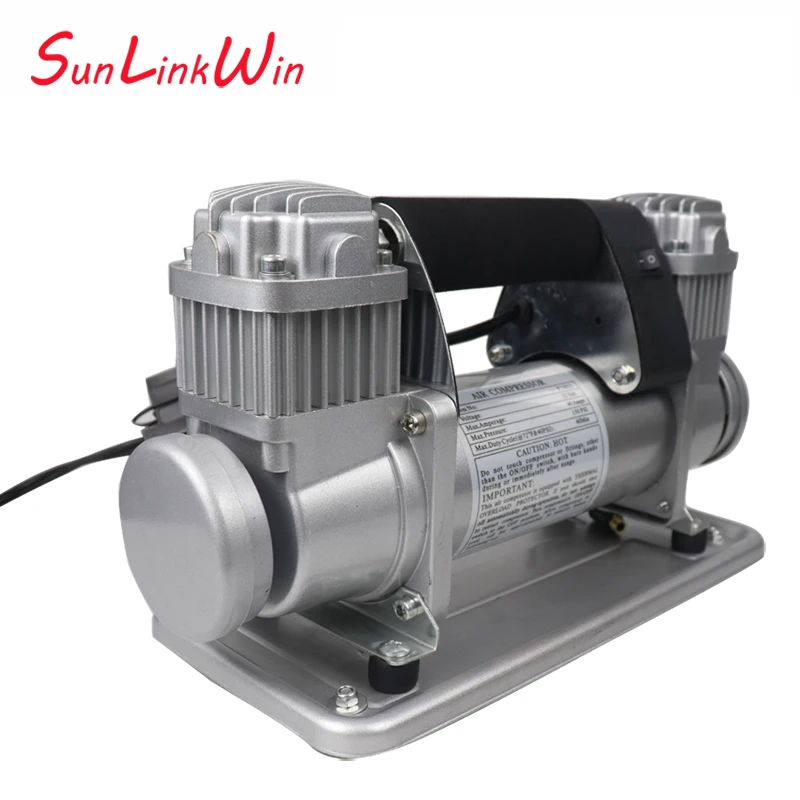

DC 12 Volt Dual Cylinder Vehicle Big Tyre Air Compressor Kit Heavy Duty
Product Description
Product Specification:
Model No.:
CAC-008
Product size:
345x141x190mm
Unit weight:
5200g
Rated volt:
DC12V
Max pressure:
150PSI
Output of airflow:
120L/MIN
Diameter of cylinder:
dual 40mm cylinder

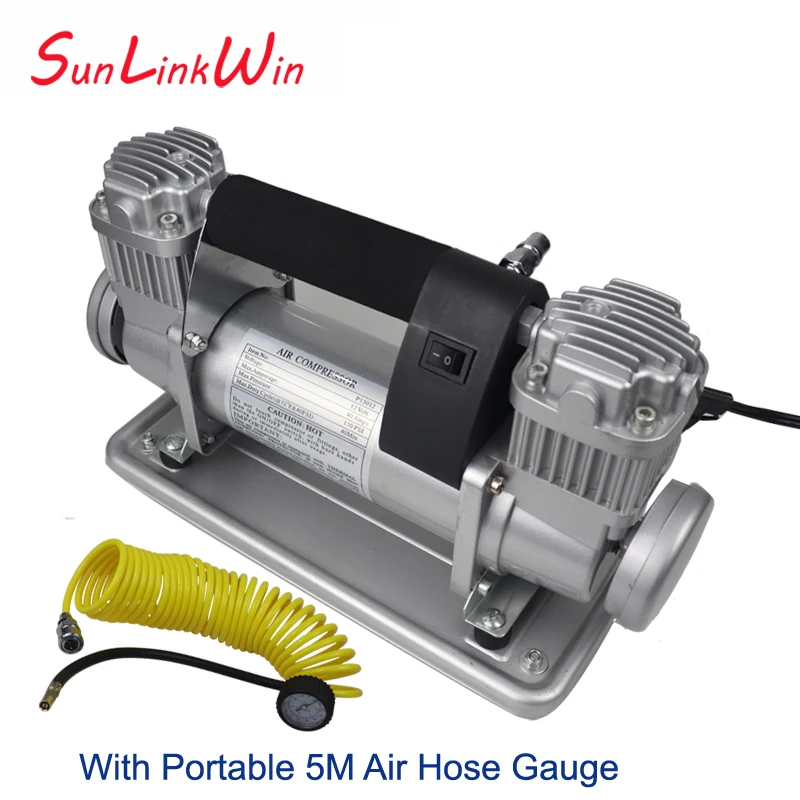

Air hose:
5M PU rubber hose with pressure pointer
Power type:

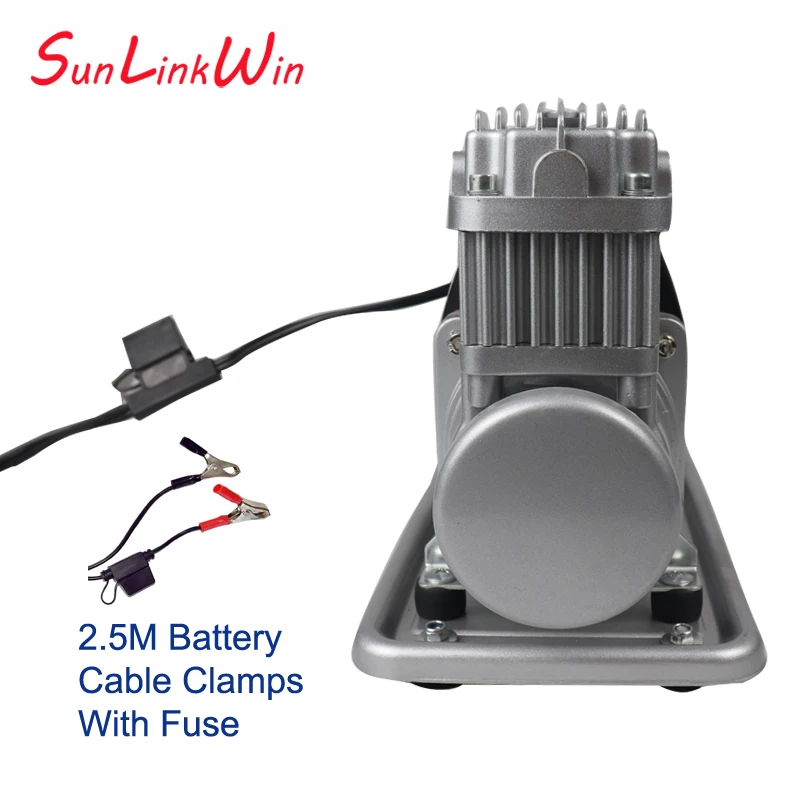

3M cord with battery clamps and fuse
Accessory:
2 nozzle and 1 sports neddle
Applications:
vehile tyre,ball,rubber dinghy,tyre tube etc.
Packing
Packing way:
Plastic case
Master carton size:
44x34,5x34cm
Q'TY/CTN:
2pcs
G.W/CTN:
15.5kgs
Volume per carton
0.05161cbm
Core Parts
Feature & Manual
Feature: 1,Potable and mini size,easy to handle and store 2,Fast inflating,it can inflate a insufficient tire to full status(2.3-2.5kg/cm²) about 5-7 minutes. 3,Accessory with 3 kinds of needles,to inflate motorbike tire,bicycle tyre,toy aircushion,doll,all kinds of ball etc.
4,It can help your car survive in expressway and outside, for any emergency needs.
5,It will emit heat when inflating because of motor working. This is normal condition.
Operator manual:

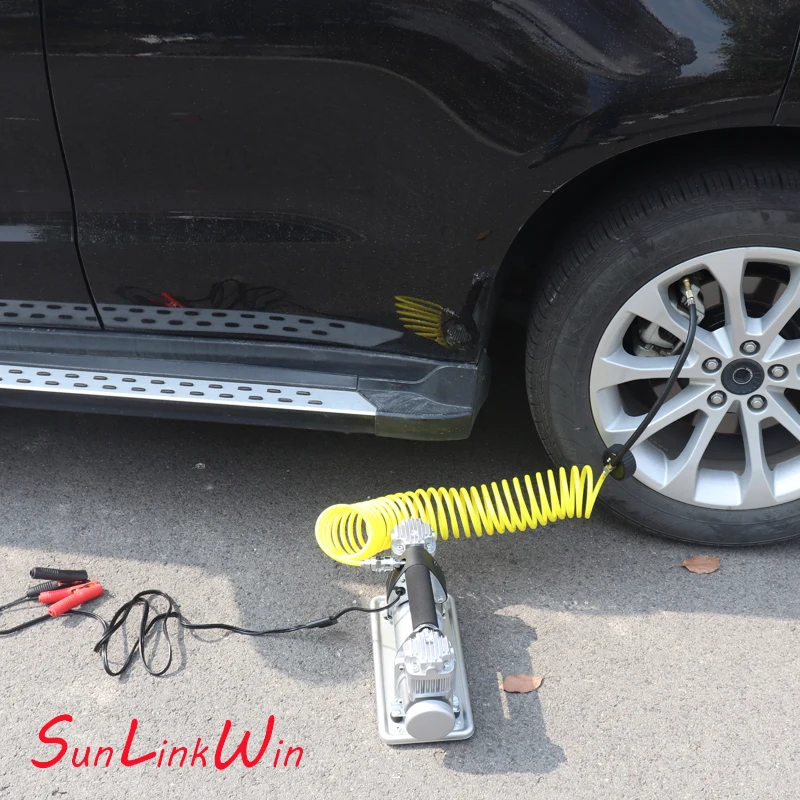

1) Insert the cigarette plug into car cigarette socket .Or use the alligator clip to the car battery positive and Negative.Pay attention to clip right cathode and anode.
2) Connect air hose gas nozzle to car tire valve by thread rotating.
3) Start the car engine and turn on the switch.
4) The inflatable should pay attention to the pressure gauge pointer, after reaching rating, turn off the switch and disconnect gas nozzle.
Important Tips
Important Tips:
1,Air compressor must be used DC 12 volt, if use AC 110V / 230 V voltage, please use the voltage converter.
2,The air compressor is not suitable for truck or lorry tire inflating.
3,Pay attention to tire pressure gauge when it works. Do not depart from air compressor when it works.
4,Pls stop using air compressor and check reason when there is a abnormal sound in working.
5,Please keep this product out of touch of children.
6,Avoid use in humid or flammable environments.
7,Avoid heavy falls or sun exposure
8,Continuously use no more than 15 minutes at a time. When it works more than 15 minutes, it should be cooled down for 5 minutes before it is used again.
9,There is a DC motor built-in the air compressor, which may generate electric sparks when it works. Please do not let the inflatable pump close to flammable liquid and gas.
Common troubleshooting methods:
1,Turn on the power switch, the machine can not start:
Methods:Check whether the power cord is in good condition and the connection is reliable.
Check whether the power supply is on,whether the cigarette plug is plugged in and in position.
Check the fuse in cigarette plug is fused or not.
2,The machine is working properly and the air pressure can't enter the substitute goods
Methods:Check whether the trachea hand is intact and the connection is reliable;
Check the trachea is bent or not, whether there is leakage at the joint of the trachea;
Check the sealing ring in the connecting head is out or not.
3,Turn on the power switch and the machine will stop working after seconds.
Method:Please use alligatorclip directly to get power from car battery.
Comparison table of pressure unit:
1MPa=145psi=10bar
Lb/in²(PSI)
kg/cm²
Kpa(BAR)
26
1.8
176
28
1.95
191
30
2.1
206
32
2.24
220
34
2.4
235
36
2.5
245
38
2.65
260
40
2.79
274
