Cankey Automatic Packaging Raisin Packing Machine For Dried Fruit

Skype&Email: Una @machinehall.com   Whats app:008618503852196   QQ:3463803071

Product Description

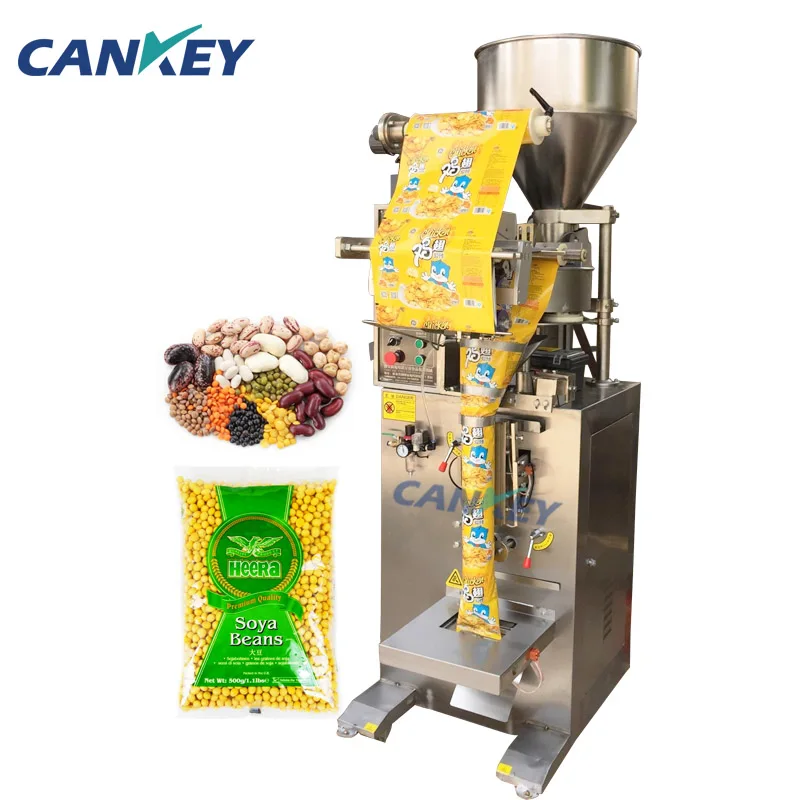

Introduction of Dried Fruit Packaging Machine

This dried fruit packing machine adopts PLC and touch screen control, with high reliability and stable performance. The operating parameters of the device can be arbitrarily changed through the touch screen, and the operation is convenient and fast.It can fish all the work automatically: forming bag—measuring--material filling—sealing—counting.

Introduction of Dried Fruit Packaging Machine

Application of Automatic Dried Fruit Packaging Machine

This dried fruit packing machine is suitable for automatic packaging packaging granules, puffed foods, chin chin, chips snack and also for medium-dose packaging of larger items such as dried noodles, melon seeds, white sugar, peanuts, edible salt, baking soda, miscellaneous grains and dog food.

Application of Automatic Dried Fruit Packaging Machine

Parameter of Automatic Raisin Packing Machine

ModelCK-LK320CK-LK350
Power220V/1.8KW220V/1.8KW
Measurement Range10-100ML50-300ML
Membrane Width Range80-300MM80-300MM
Packing SizeL:30-180MM,W:30-140MML:30-280MM,W:30-140MM
Packing Speed40-110 Bags/Min30-40Bags/Min
Machine Dimensions820*980*1680MM820*980*1980MM
Weight320KG350KG
Film Thickness0.03MM-0.07MM0.03MM-0.07MM

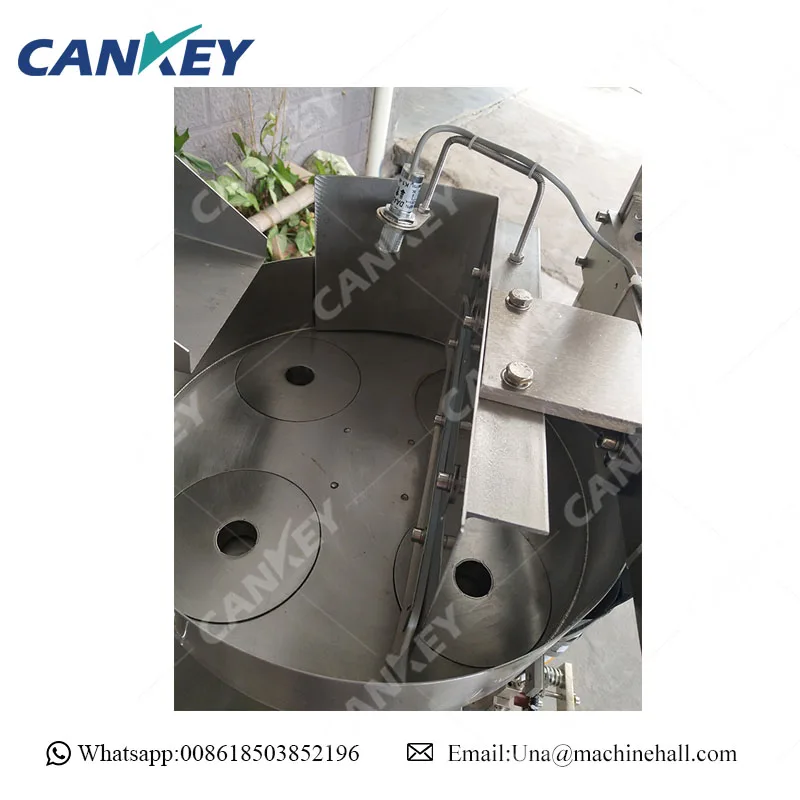

Main Parts of Dried Fruit Packing Machine

Main Parts of Chips Snack Packaging Machine

Features of Vertical Raisin Packaging Machine
1. The whole machine uses frequency converter and variable frequency motor to realize frequency conversion speed regulation, which reduces the noise of the whole machine.
2. The machine adopts the stepping motor pulling film system. When the length of the bag is changed, only the length dimension is set on the touch screen, no need to replace (need to adjust the eccentric mechanism), the structure is simple and the precision is high and easy to maintain.
3. The machine adopts the metering structure of the adjustable measuring cup.
4. The parts in contact with the material and the surface of the frame are made of stainless steel.
5. Increase the jog and emergency stop functions to facilitate customers to adjust equipment and deal with problems in a timely manner.

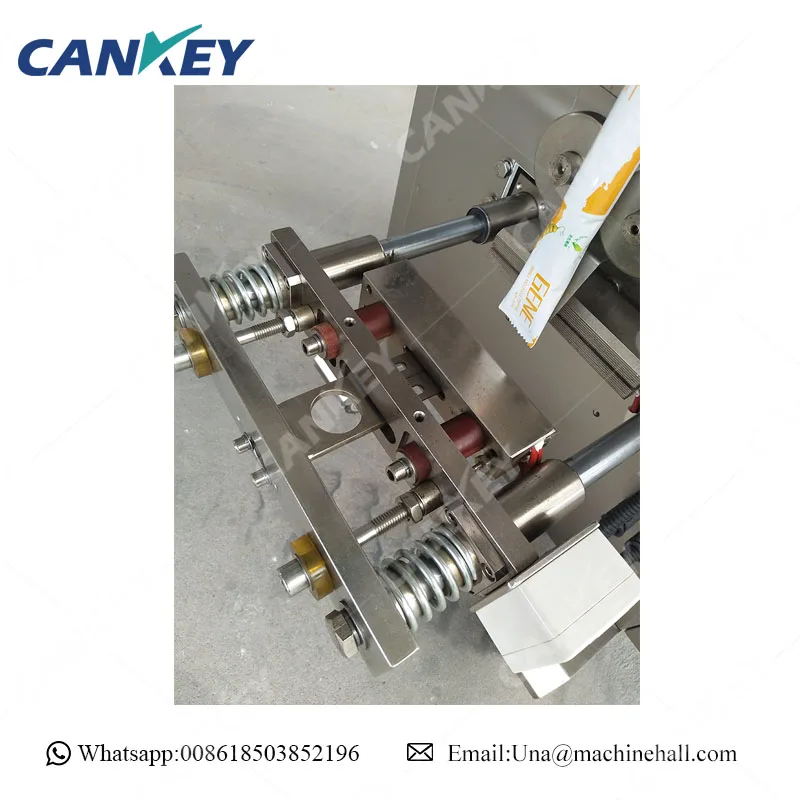

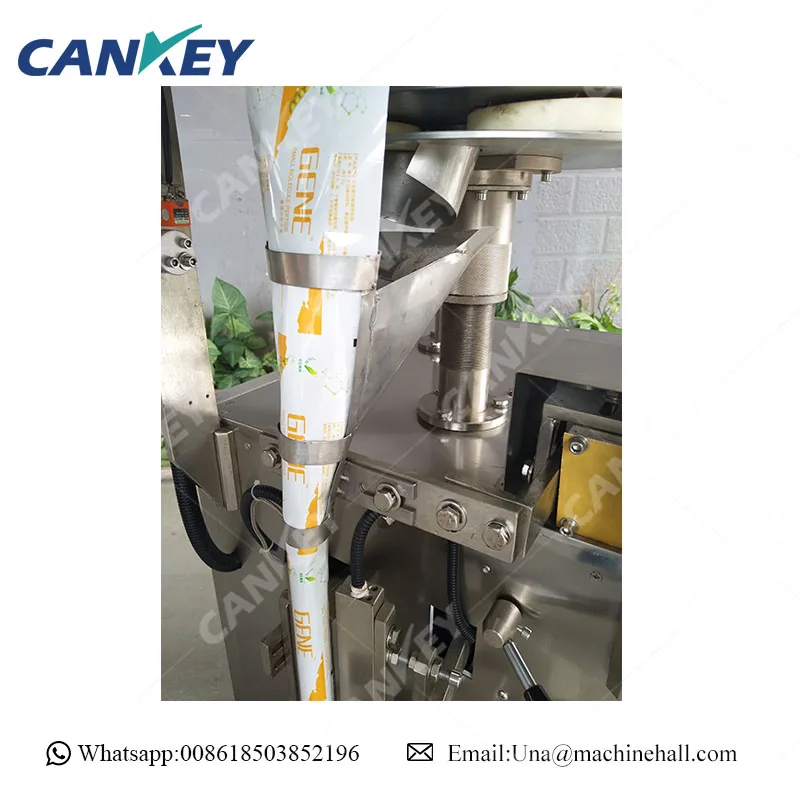

Detials of Automatic Raisin Packing Machine

Detials of Automatic Raisin Packing Machine

Detials of Automatic Raisin Packing Machine

Contact me

name card of una from Cankey.jpg

Whatsapp:008618503852196
E-mail&Skype:Una@ machinehall.com
If you are interested in Automatic Dried Fruit Packing Machine, Welcome to contact me.

Company Information

Henan CANKEY Technology Co., Ltd

We has accumulated many years of experience in the packaging machine industry. It is a limited liability enterprise integrating R and D, development, production, sales and service. Based on excellence, continuous improvement, continuous innovation, customer service and support for employees, the company has developed packaging machinery in the fields of food, medicine and chemical industry.
