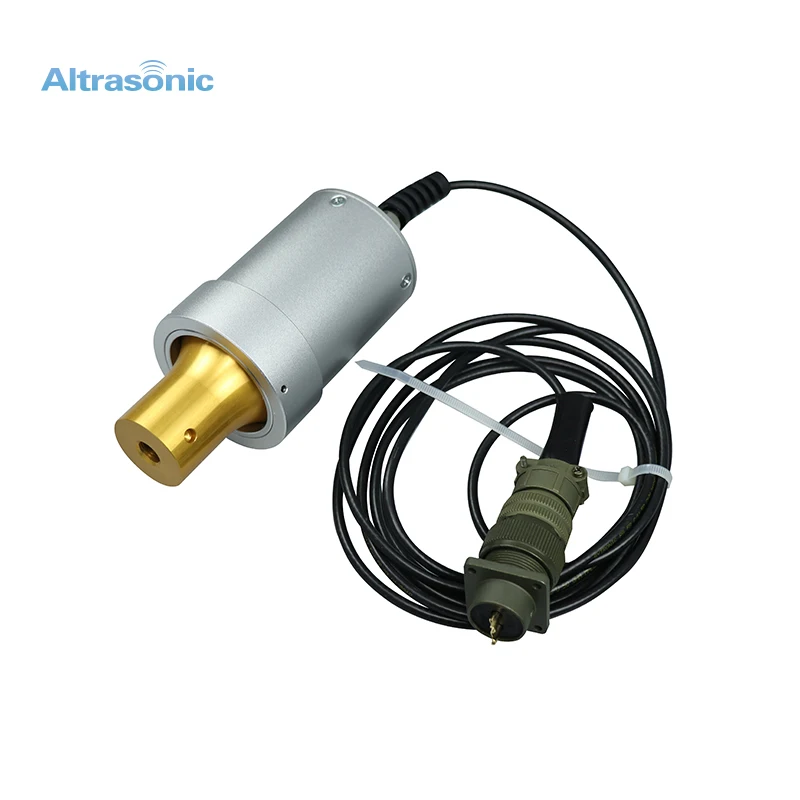

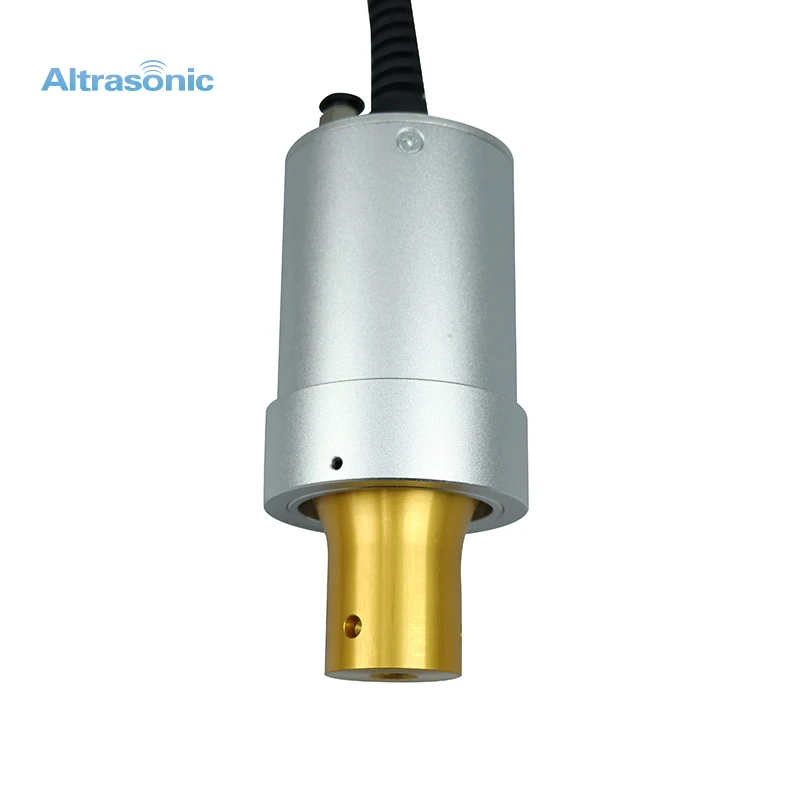

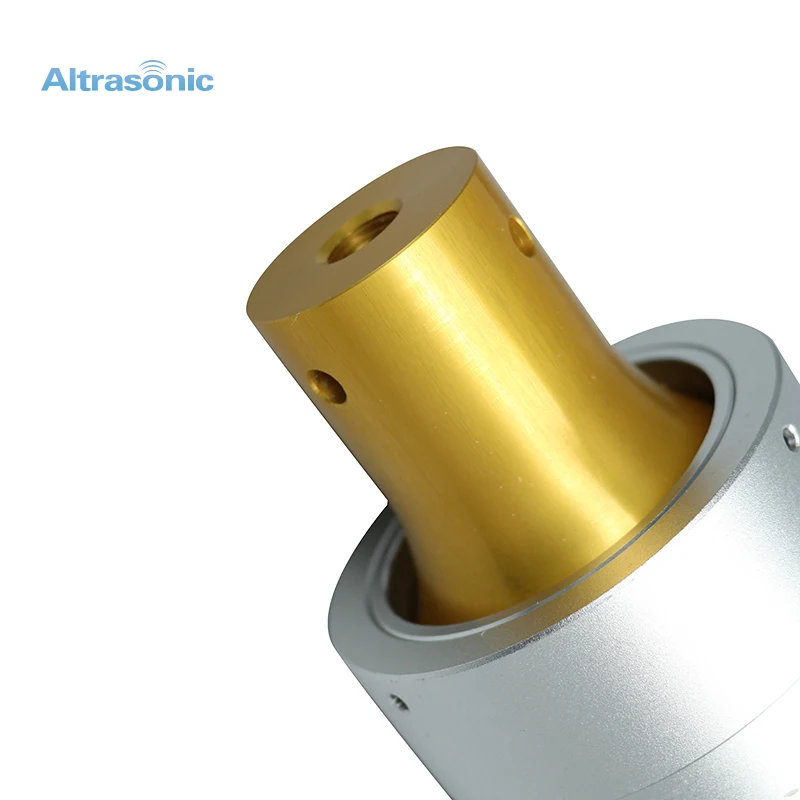

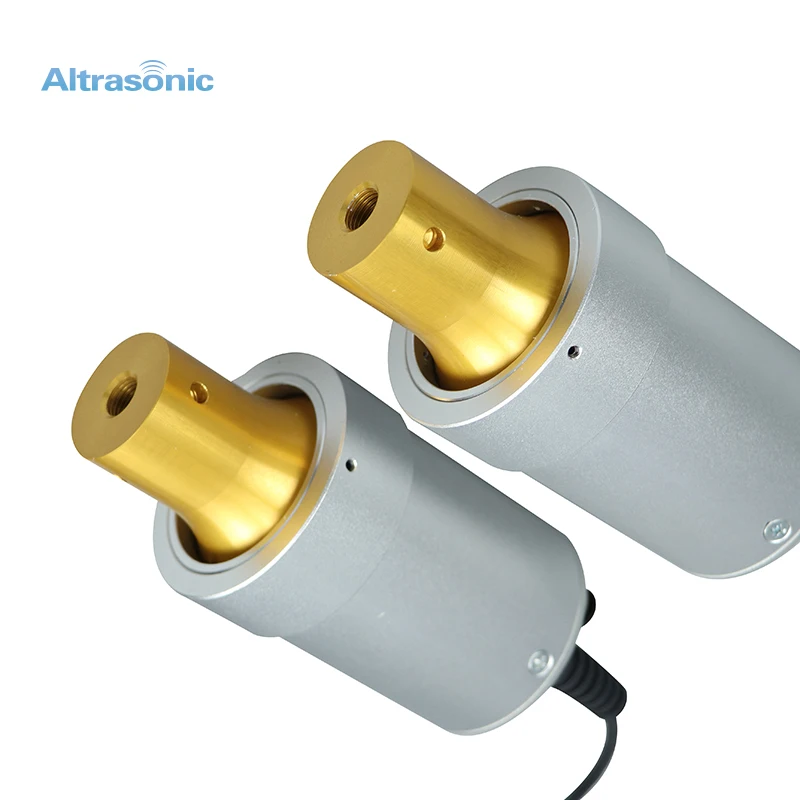

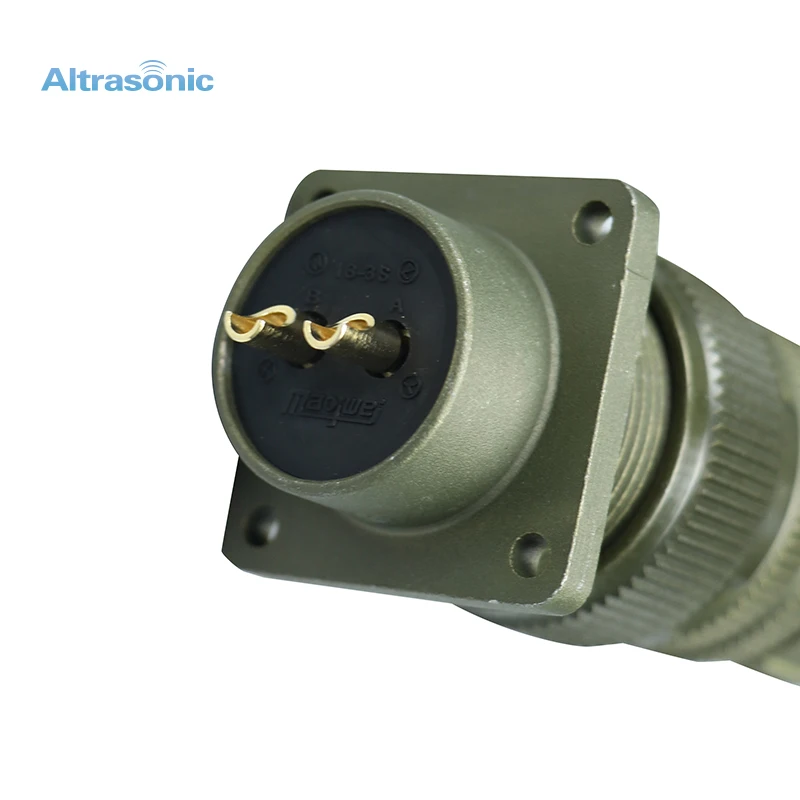

Высокомощный ультразвуковой преобразователь Dukane сменный типа 20 кГц для сварочной машины
- Категория: >>>
- Поставщик: Hangzhou Altrasonic Technology Co. Ltd.
Сохранить в закладки 62016174333:
Описание и отзывы
Характеристики
Because of national lockdown in 2020, we stay at home or office more time compare previous, Ultrasonic products more popular, pls follow us first and then click “send inquiry” or “contact supplier”, we will recommend our hot sale and suitable item to you.
If purchase as gift or personal use or interesting, also welcome, We wish develop with customer instead of look down upon, we will check best shipping with alibaba.com after received your inquiry.
If purchase as gift or personal use or interesting, also welcome, We wish develop with customer instead of look down upon, we will check best shipping with alibaba.com after received your inquiry.
Specification
Model | HSD41S30 |
Frequency | 20 khz |
Output power | 2000 watt |
Joint bolt | 1/2-20UNF |
Ceramic disc Diameter | 50 mm |
Quantity of Ceramic discs | 4 pcs |
Capacitance | 11000 pf |
Amplitude | 20 um |
Application | welding machine |
Product Description
The 20Khz high power Ultrasonic Welding Transducer , replacement converter for Dukane 41S30 is applied to Dukane type ultrasonic welding machine.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Packing & Delivery
Company Profile
FAQ
Q: Do you have it in stock?
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through communication.
Q: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q: . Do you have operating manual?
A: Of course, we will put it with the goods together.
Also we will upload video in YouTube and inform you the related link.
Q: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our main markets is USA and European etc
Q: Could you do OEM?
A: Yes, of course.Everybody like OEM,We cherish the OEM VIP buyer like you,We can produce according customers’ requirement,just send us your requirements and design of drawing and sample
Q: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q: Terms of Payment
A: We have flexible and active payment if order huge.
Q: What custom requirements can you accept?
A: LOGO, product appearance, tool head size, packaging requirements, special customized requirements will be accepted, etc.
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through communication.
Q: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q: . Do you have operating manual?
A: Of course, we will put it with the goods together.
Also we will upload video in YouTube and inform you the related link.
Q: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our main markets is USA and European etc
Q: Could you do OEM?
A: Yes, of course.Everybody like OEM,We cherish the OEM VIP buyer like you,We can produce according customers’ requirement,just send us your requirements and design of drawing and sample
Q: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q: Terms of Payment
A: We have flexible and active payment if order huge.
Q: What custom requirements can you accept?
A: LOGO, product appearance, tool head size, packaging requirements, special customized requirements will be accepted, etc.
Похожие товары
Оптовая продажа, модная дизайнерская детская обувь из коровьей кожи с леопардовым узором, ботинки для маленьких девочек
2 134,64 ₽

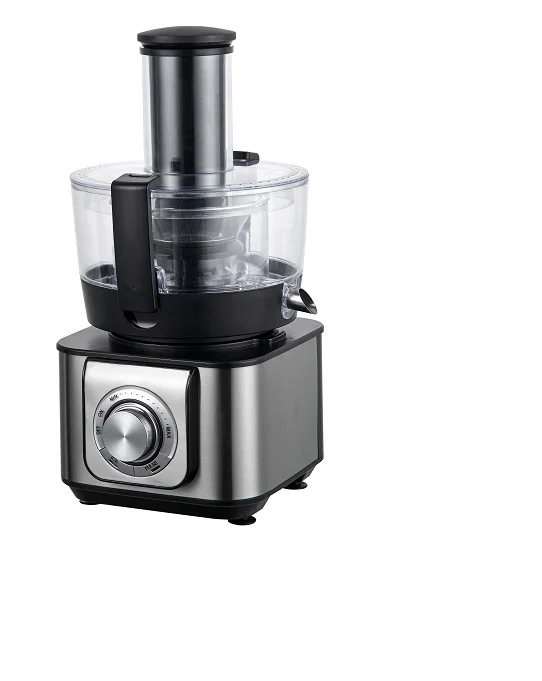

3,2 л, кухонные аксессуары большой емкости, Кухонный комбайн для домашнего использования
JM-811 650W сдвоенный энергосберегающий двигатель
1 530,21 ₽ - 3 060,41 ₽
Фигурка аниме «рассекающий демонов» Kimetsu no Yaiba Kamado Nezuko, игрушки, привидение, демонизация, разрыв крови, ПВХ Модель, сцена Луны, кукла, подарок
Светодиодный Трековый светильник Cosio Foshan в европейском стиле, 30 Вт, без ослепительного масштабируемого трекового светильника, оптом
1 377,19 ₽
Новый спортивный браслет с шагомером и цветным экраном C7, пульсометр, артериальное давление, сидячий пульт дистанционного управления, камера, силиконовые смарт-часы
590,66 ₽

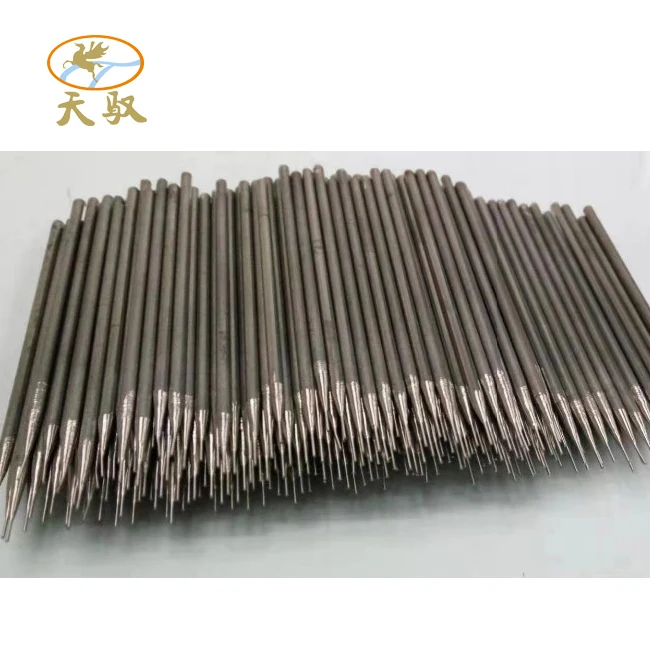

Игла для чистки отверстий Spinneret Для незащищенных частей нетканого оборудования.
