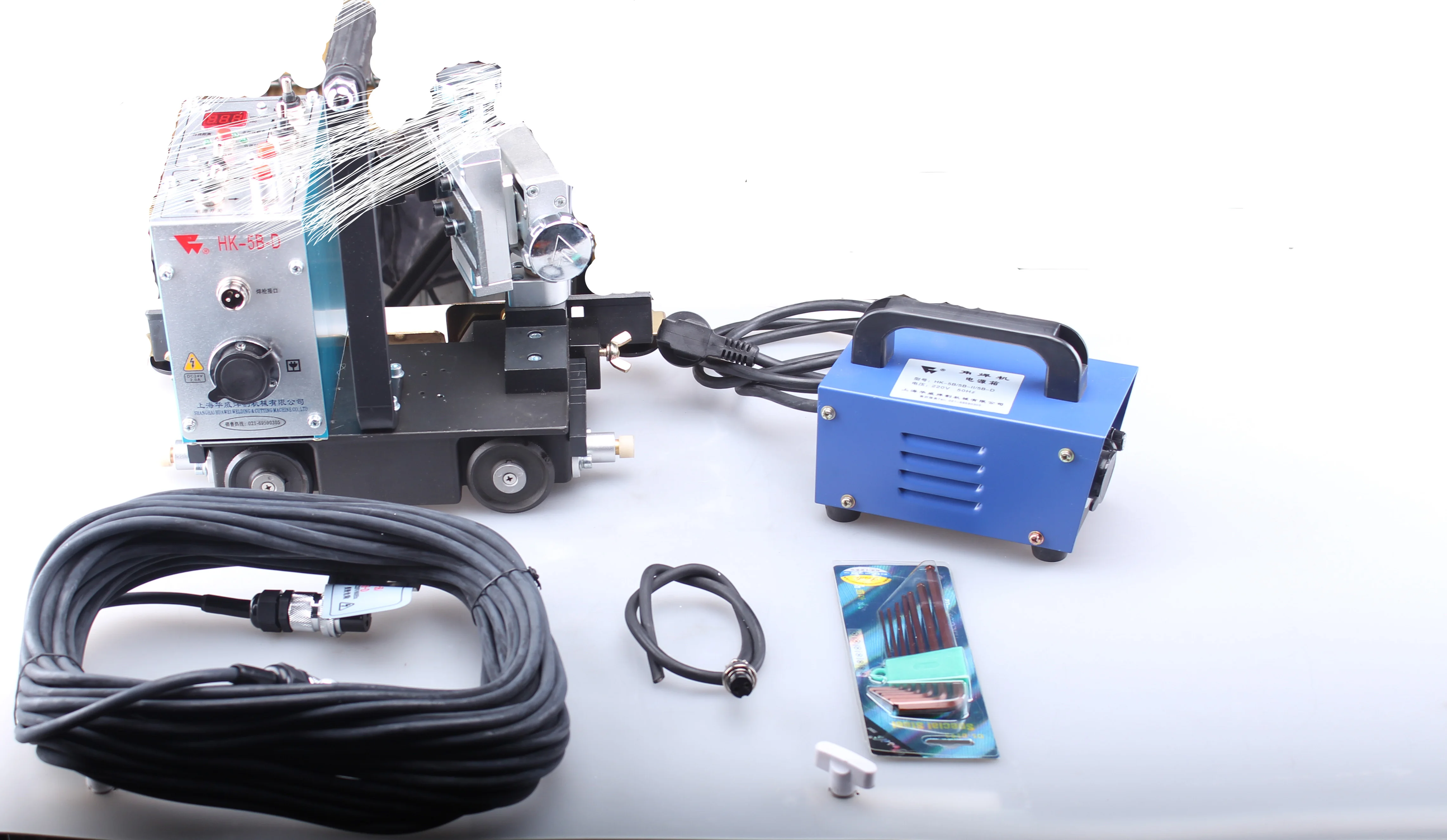

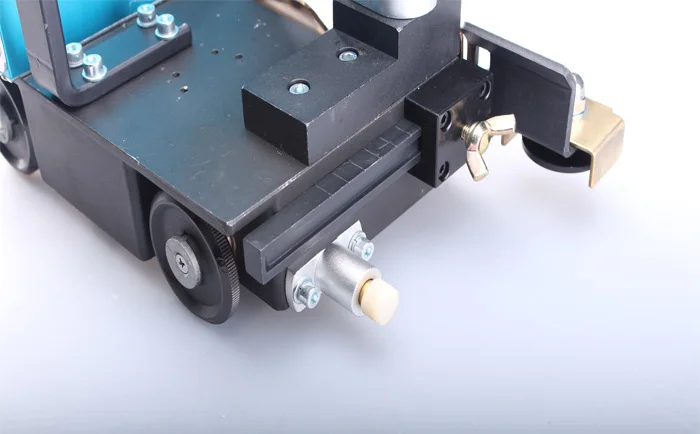

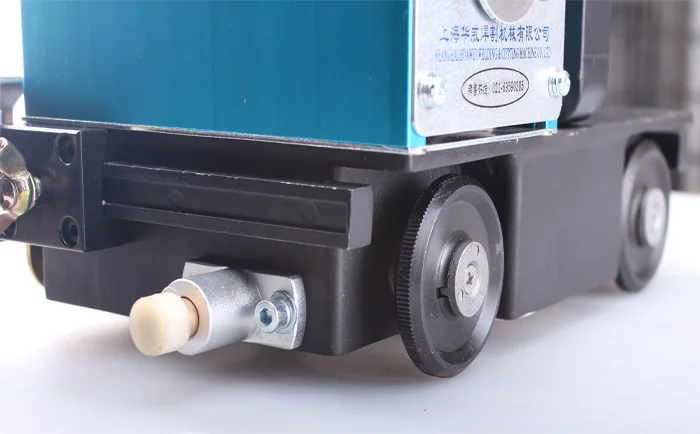

HK-5B-D Flat plate metal automatic welding carriage trolley Huawei factory

Product Description

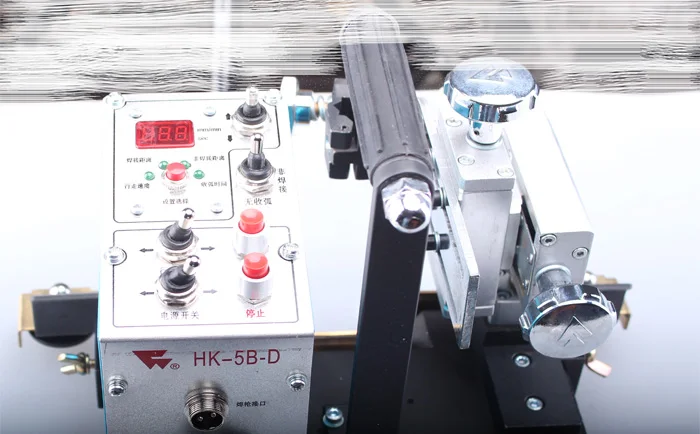

 HK-5B-D panel.jpg

Product Application

HK-5B-D is an equipment that can be used for chopping or continuous horizontal fillet welding.The actual distance of welding/non-welding can be adjusted by the waved switch,controlled by the electric engine and displays on the display screen. It can be used for accurate welding due to its homogeneous running speed and high degree of precision.. The maximum running speed of the welding barrow at the time of non-welding is 1900mm/min.

SPECIFICATIONS FOR HK-5B WELDING TRACTOR
Weight
12.5Kg
Dimension
320mm×230mm×290mm
Power source
DC 24V
Shifting
Four-wheel drive(Rubber rim)
Speed of travel
30~1900mm/min(Display on the nixie tube)


Adjustable range of the torch
Up and down                                                   60mm
Font and back                                                  60mm
Working angle range                                     ±45°
Moving angle range                                       ±10°


Operation function
Choice of moving direction                         Left and right
Setting of runoff time                                     0~3.5 S
Setting of the speed of travel                      Display on the nixie tube

For a more different model of welding carriage please click here!!!
