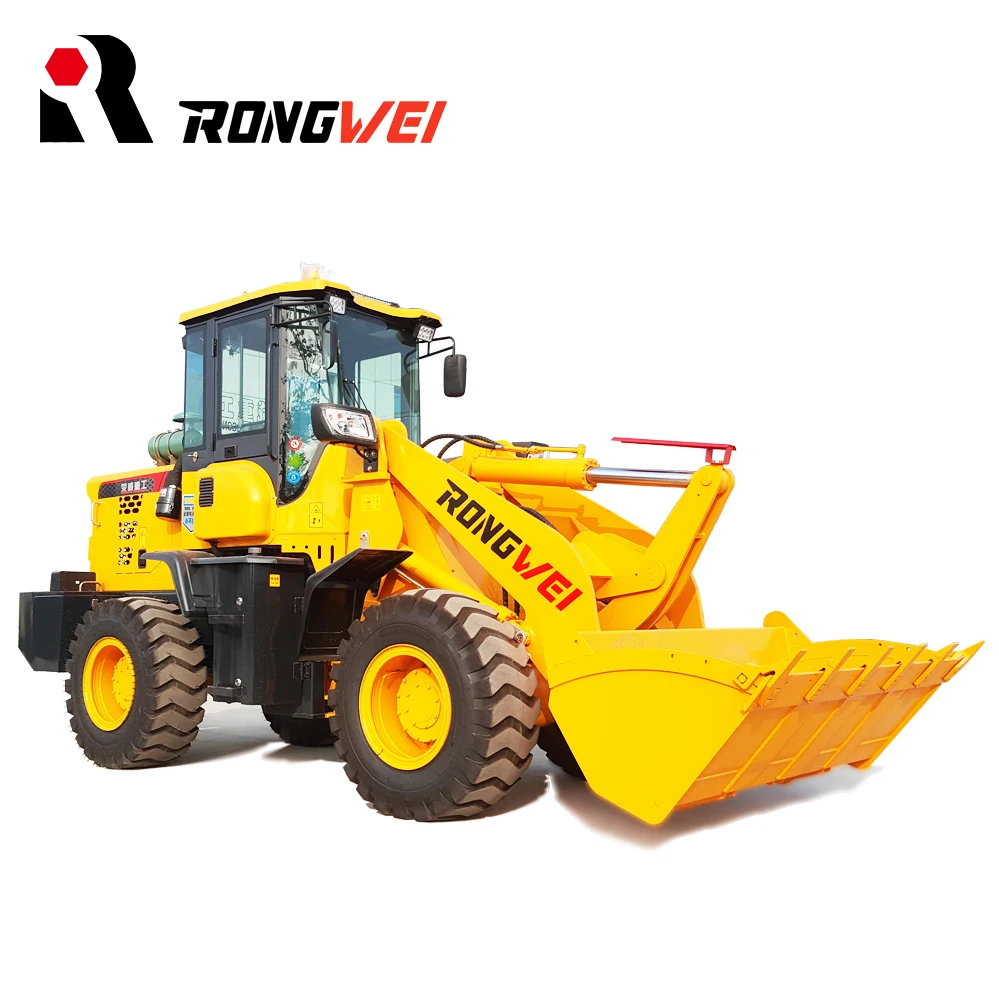

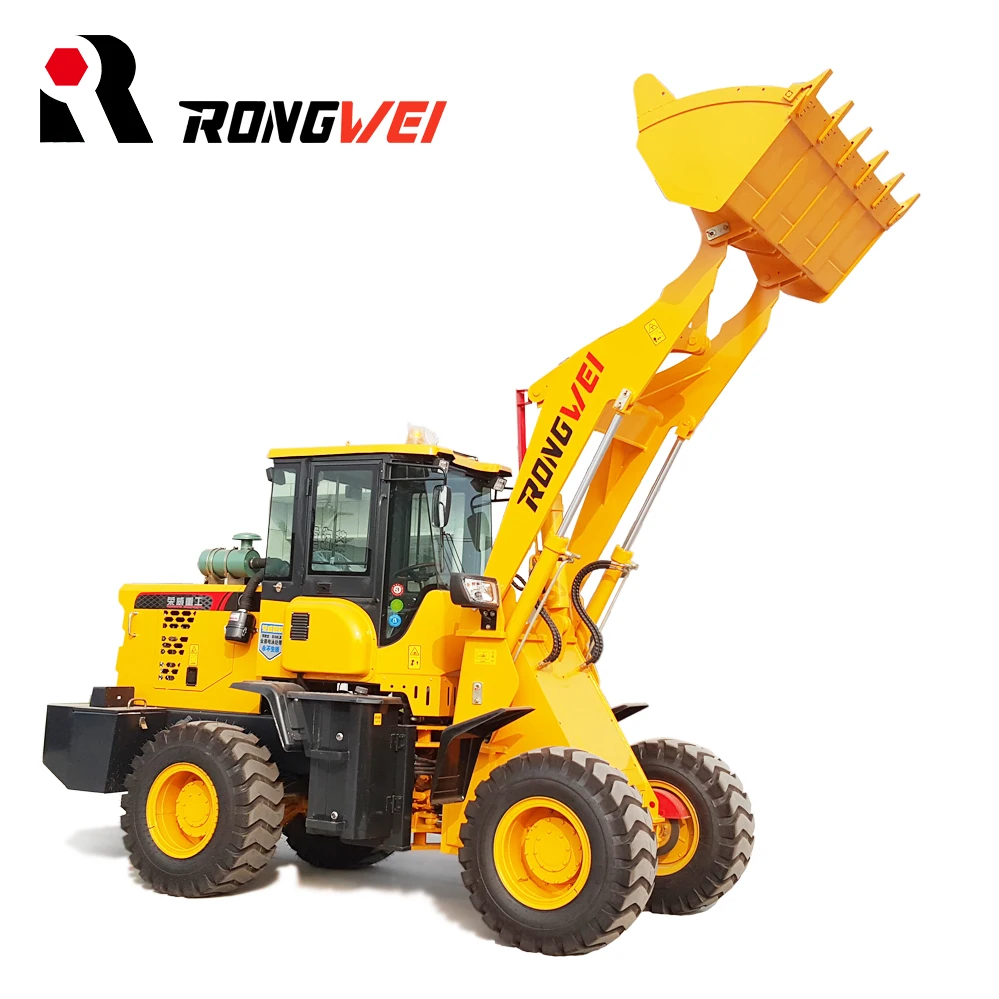

Вэйфан Кайт колесный погрузчик производитель 2 тонны мини фронтальный с быстродействующая сцепка уборочная машина паллетная вилка земельный шнек сверлы

Вэйфан Кайт колесный погрузчик производитель 2 тонны мини фронтальный с быстродействующая сцепка уборочная машина паллетная вилка земельный шнек сверлы

Категория: >>>
Поставщик: Qingzhou Rongwei Engineering Machinery Co. Ltd.

Цена:7 600,00 $ - 7 950,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

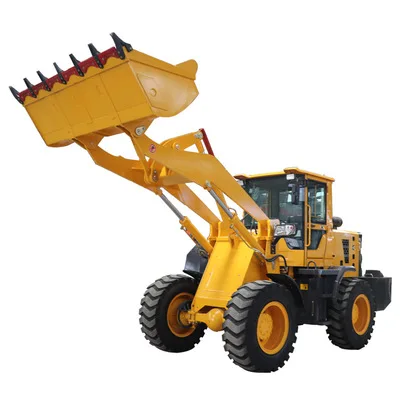

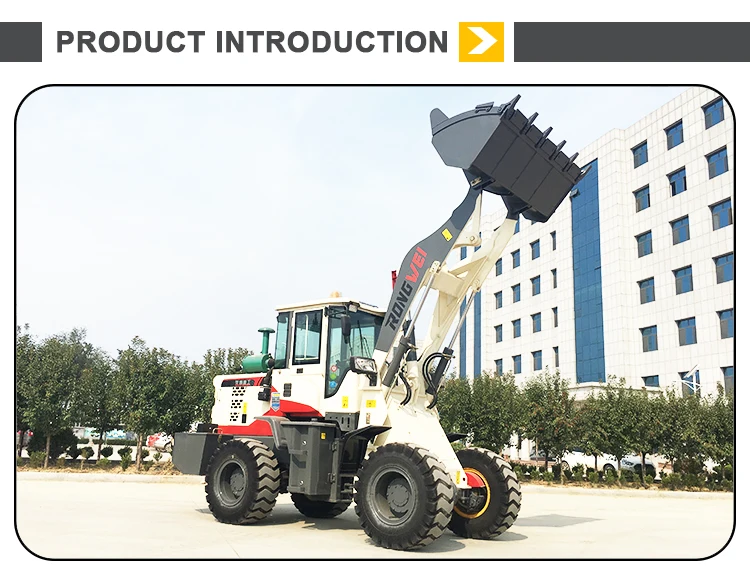

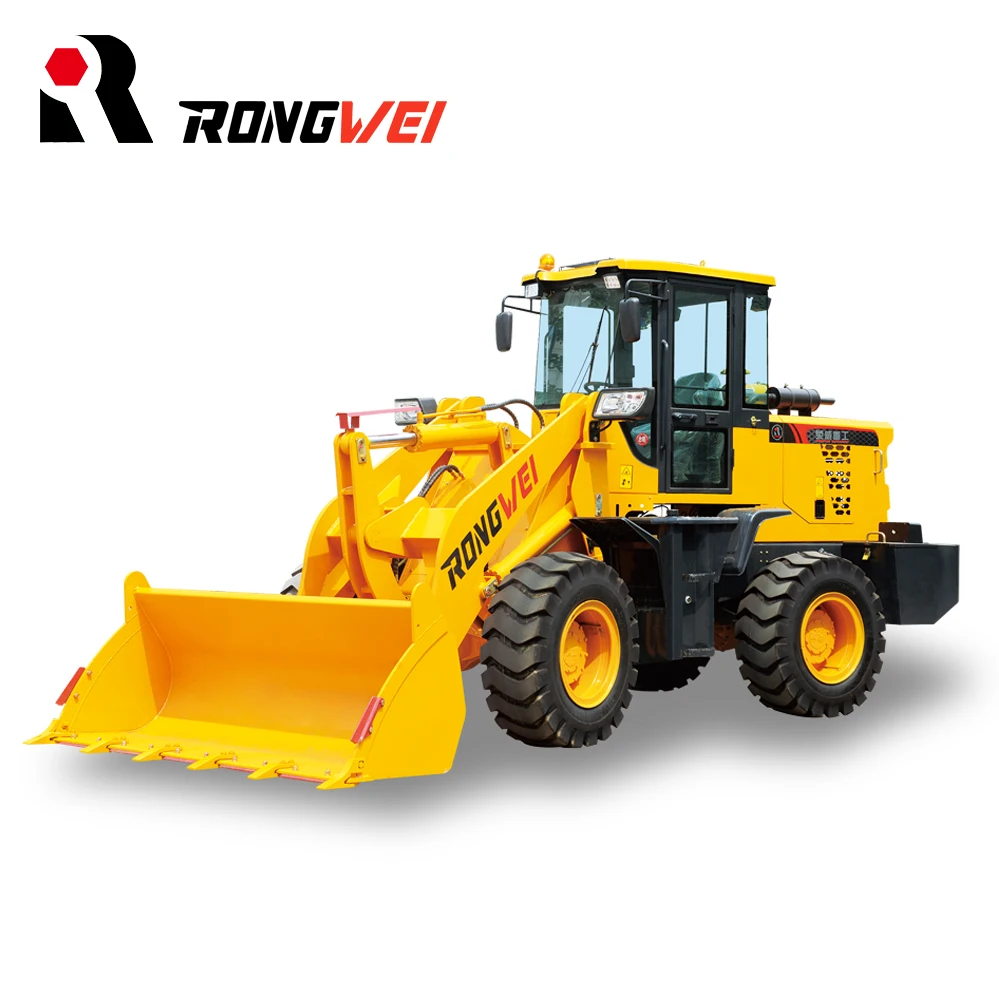

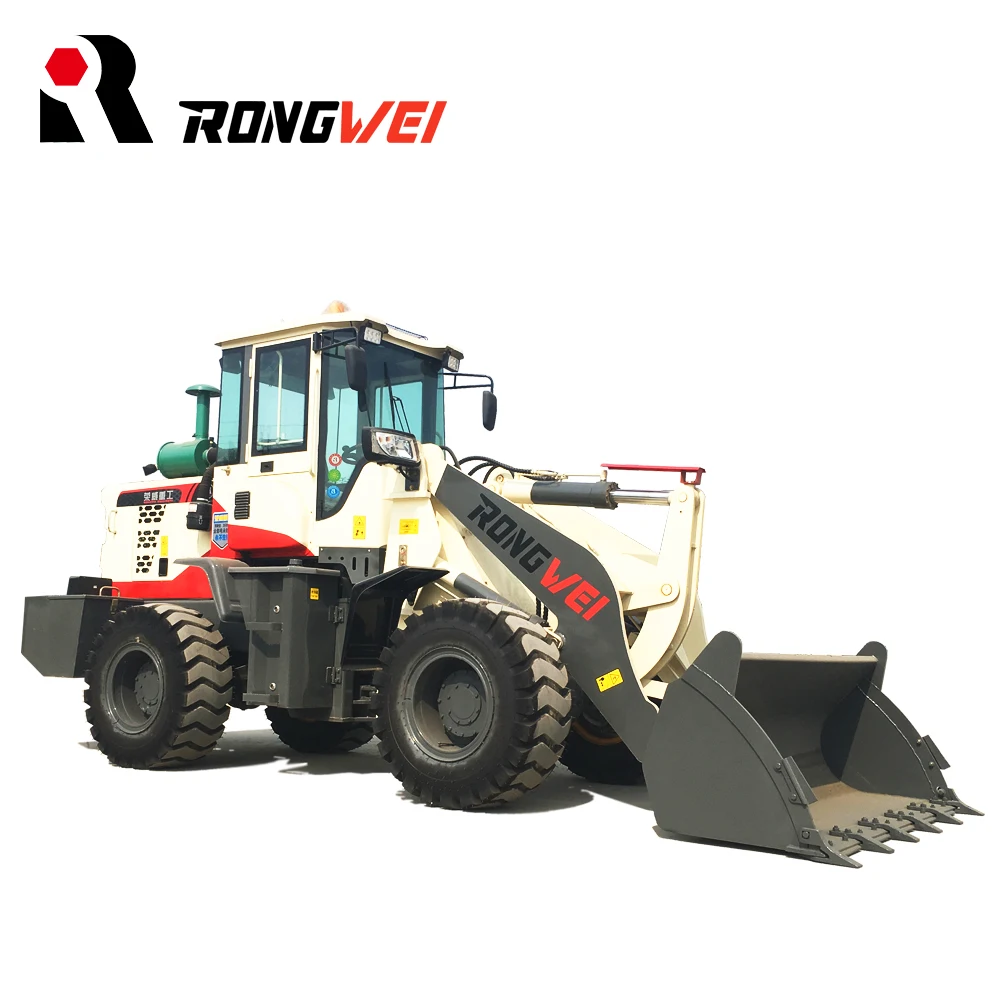

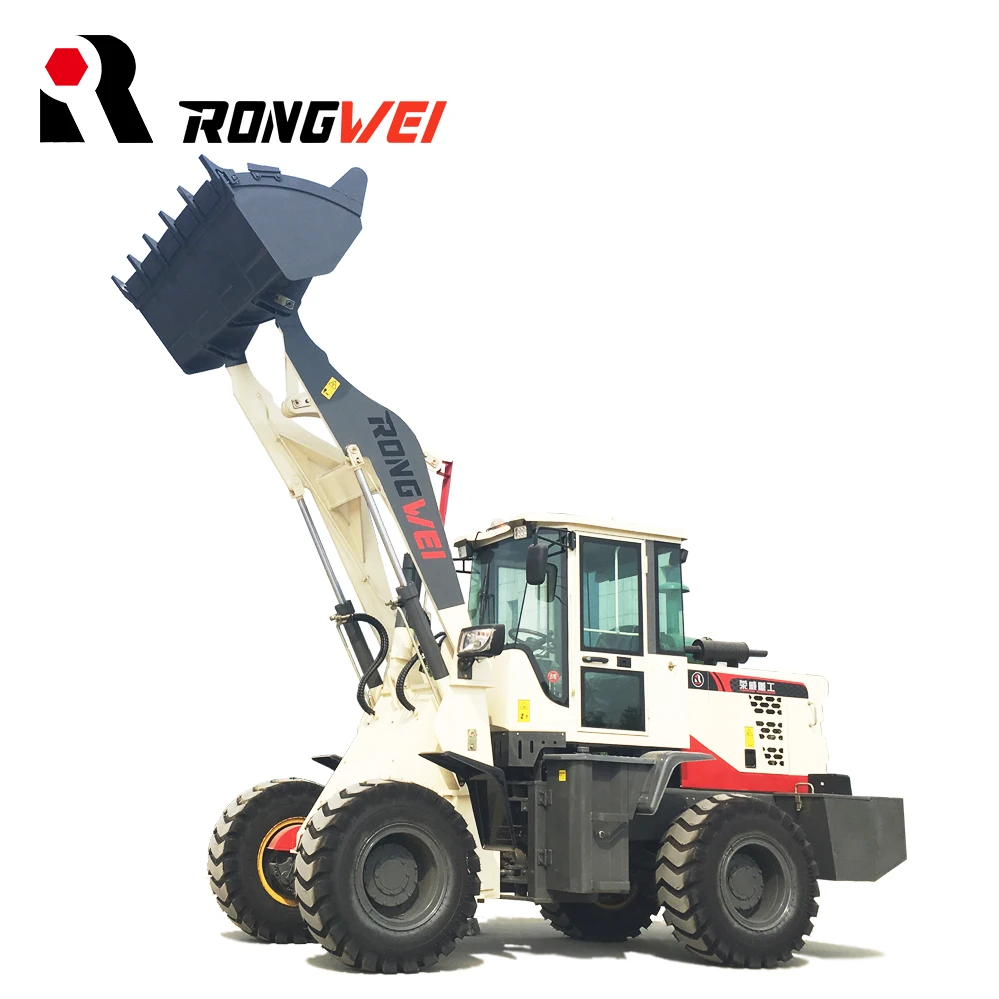

Main specification and characters of Rongwei ZL936CZ wheel loader

1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Using the central articulated frame and load-sensing hydraulic steering gear, with small turning radius and flexible turning, which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
6.Hydraulic mechanical transmission,can make full use of engine power

7.Using four -wheel -drive,low wide-based off-road tires
8.A single pipeline hydraulic brake system up for wheel brake shoe

\t SPECIFICATIONS OF ZL936CZ WHEEL LOADER
\t Performance	\t Rated load	\t 2200kg
	\t Overall weight	\t 5600kg
	\t Rated bucket capacity	\t 1.3m3
	\t Maximum tractive force	\t 61KN
	\t Maximum breakout force	\t ≥72KN
	\t Maximum grade ability	\t 30℃
	\t Maximum dump height	\t 3400mm
	\t Maximum dump reach	\t 1200m
	\t Overall dimension (LWH)	\t 5900×2100×2880mm
	\t Minimum turning radius	\t 3450mm
\t Engine	\t Model	\t YN 4102 turbo engine
	\t Type	\t In-line,arrangement,water cooling, four-stroke
	\t No. of cylinder-bore/stroke	\t 4-102×115mm
	\t Rated power	\t 76kw--2400r/min
	\t Maximum torque	\t 280N.m
	\t Min fuel-consume ratio	\t ≤225g/kw.h
\t Transmission system	\t Torque converter	\t 265
	\t Gearbox mode	\t Power shift normally engaged straight gear
	\t Gear shift	\t 4 forward shift , 4 reverse shift
	\t Maximum speed	\t 30km/h
\t Drive axles	\t model	\t hub reduction axle
	\t Decelerating mode	\t planetary reduction,grade 1
	\t Wheel base (mm)	\t 2450mm
	\t Wheel tread	\t 1750mm
	\t Minimum ground clearance	\t 300mm
\t hydraulic system	\t System working pressure	\t 16MPa
	\t bucket lifting time	\t ≤5
	\t bucket falling time	\t ≤4
	\t Total time for a single working cycle	\t ≤10.5
	\t Function of leveling automatically	\t yes
\t Brake system	\t Service brake	\t air over hydraulic disc brake on 4 wheels
	\t Parking brake	\t manual parking brake
\t Tyre	\t Type specification	\t 16/70-20
	\t Front tyre pressure	\t 0.4Mpa
	\t Rear tyre pressure	\t 0.35Mpa

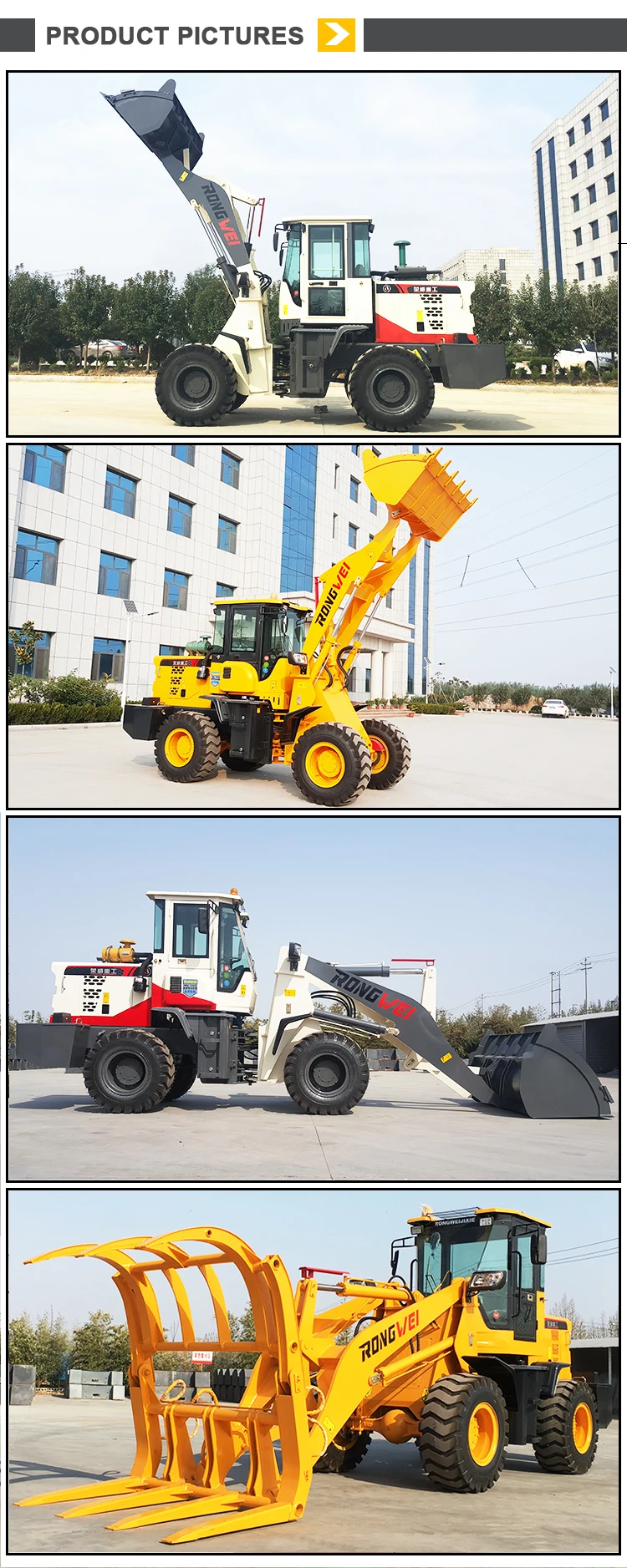

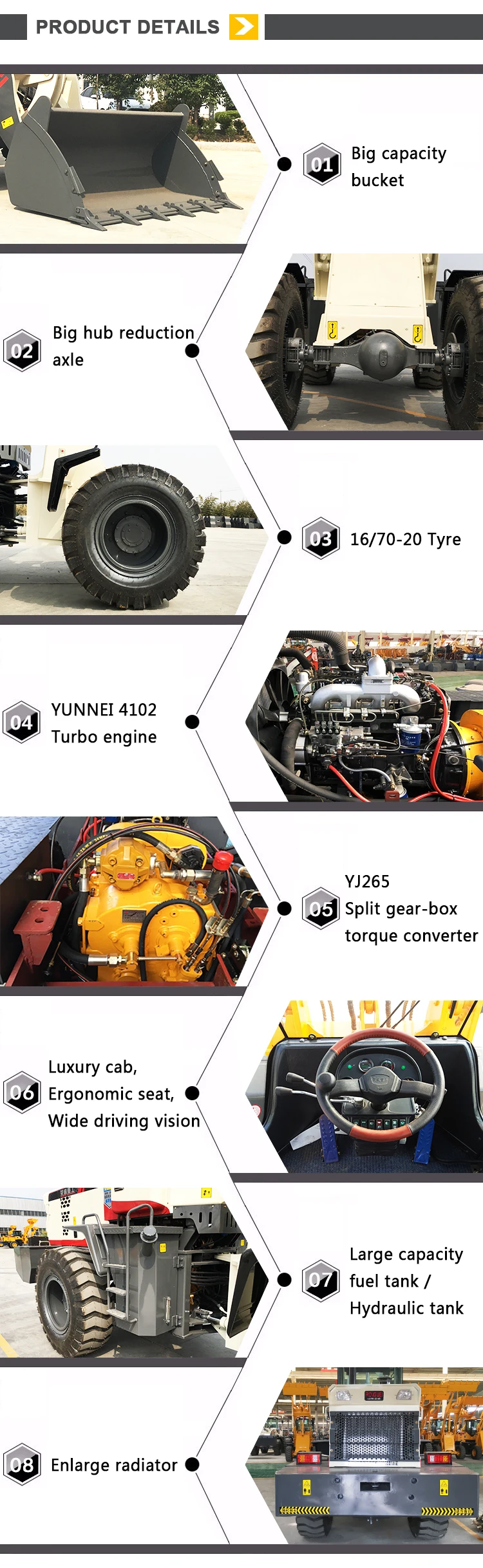

Detailed Images

Certifications

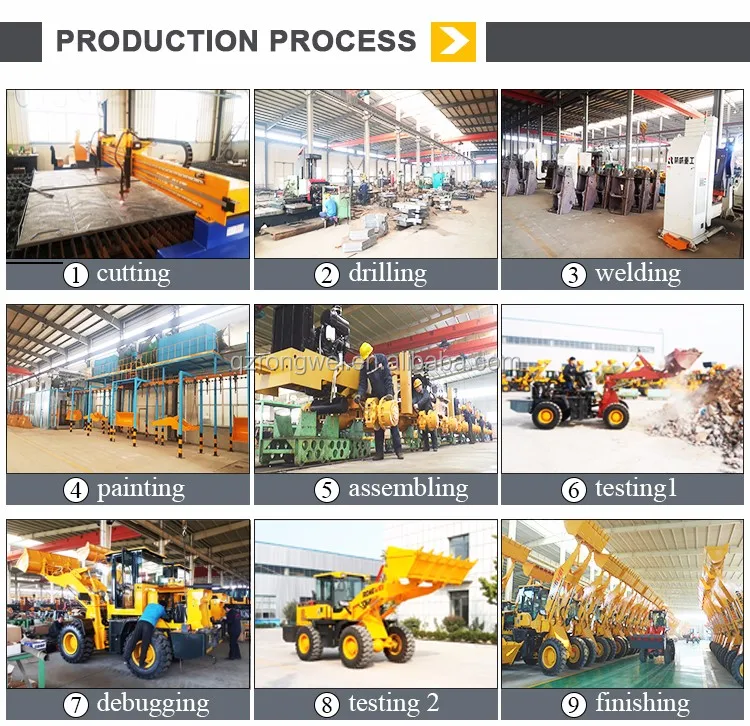

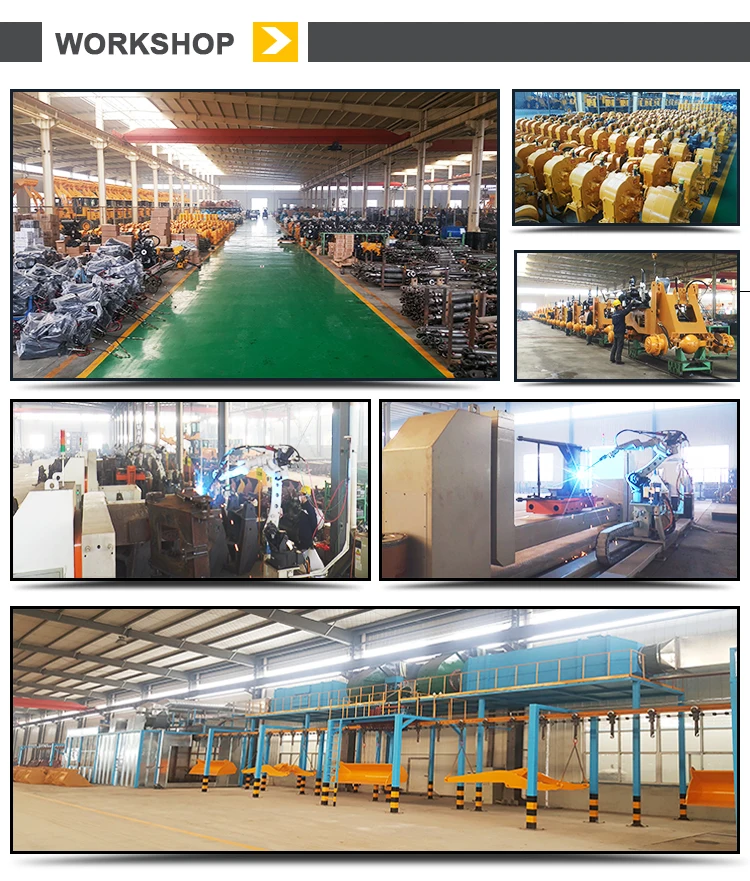

Our Company

Established in 2008, Qingzhou Rongwei Engineering Machinery Co., Ltd has be a professional manufacturer and export that is concerned with design, development and production of verity of wheel loaders from 1 ton to 5 ton capacity. Our factory located in Qingzhou, Weifang, Shandong province, with convenient transportation access. All of our products comply with international quality standards and has Approved CE Certification and SGS certification. Rongwei verity of wheel loaders has got good reputation among our domestic and foreign customers.

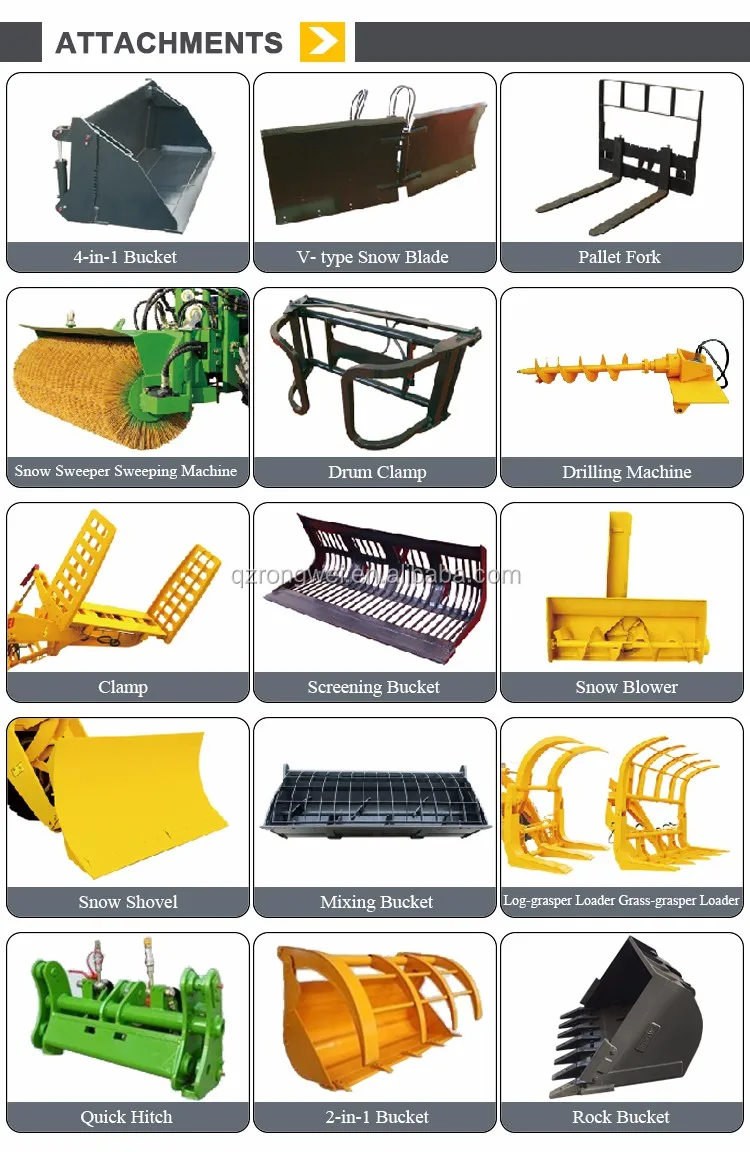

Rongwei brand wheel loader is multi-functional, with more than 30 durable, safe and effective attachments design for different kinds of job. We are looking forward to provide you the most comprehensive field solution and the most perfect products and service in the most critical time.
Welcome your inquiry and visit.
