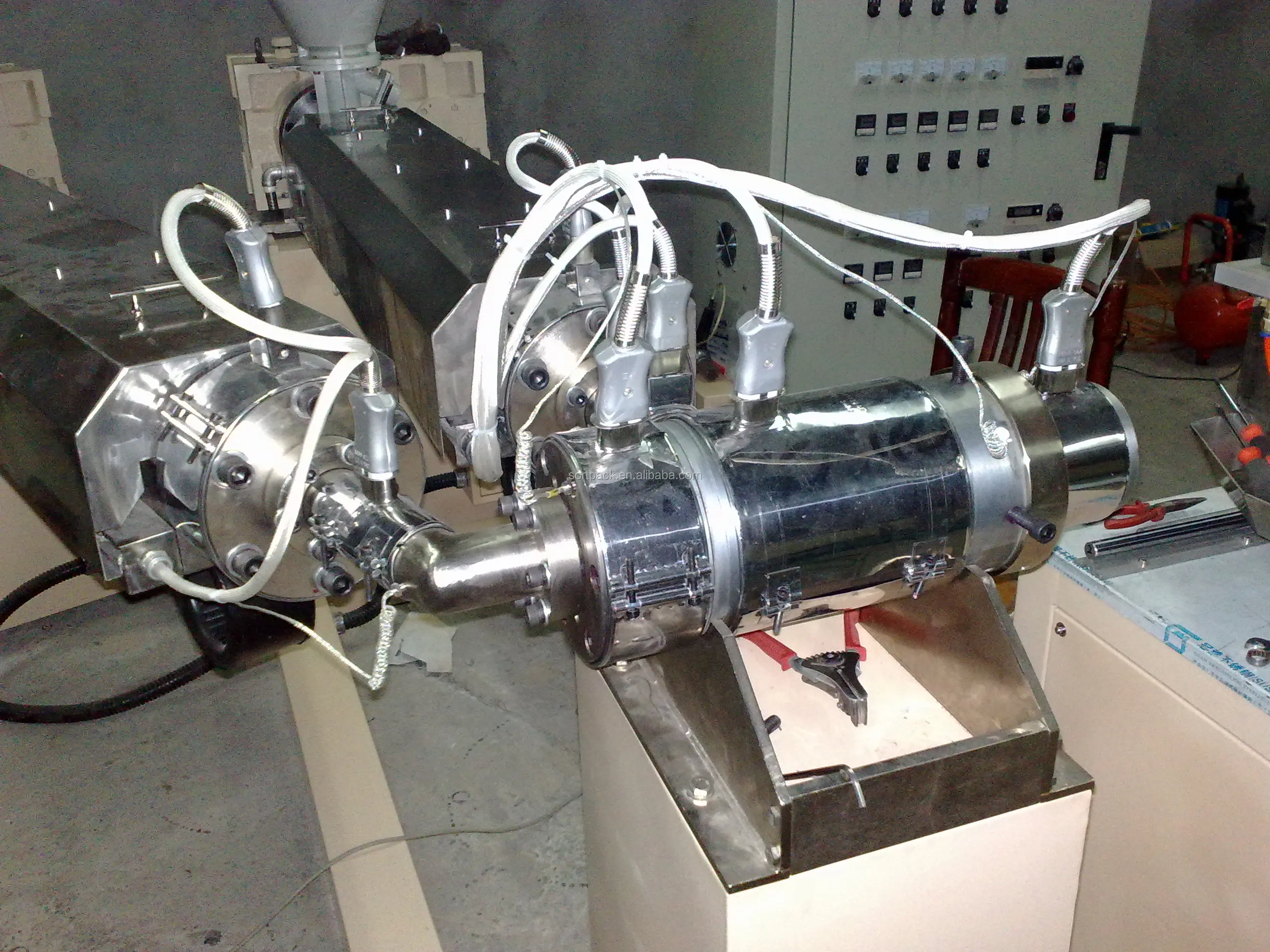

Двухслойный экструдер для пластиковых труб и машина резки полиэтиленовых

Сохранить в закладки 62017764655:


Цена:45 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Product Description

Product Application

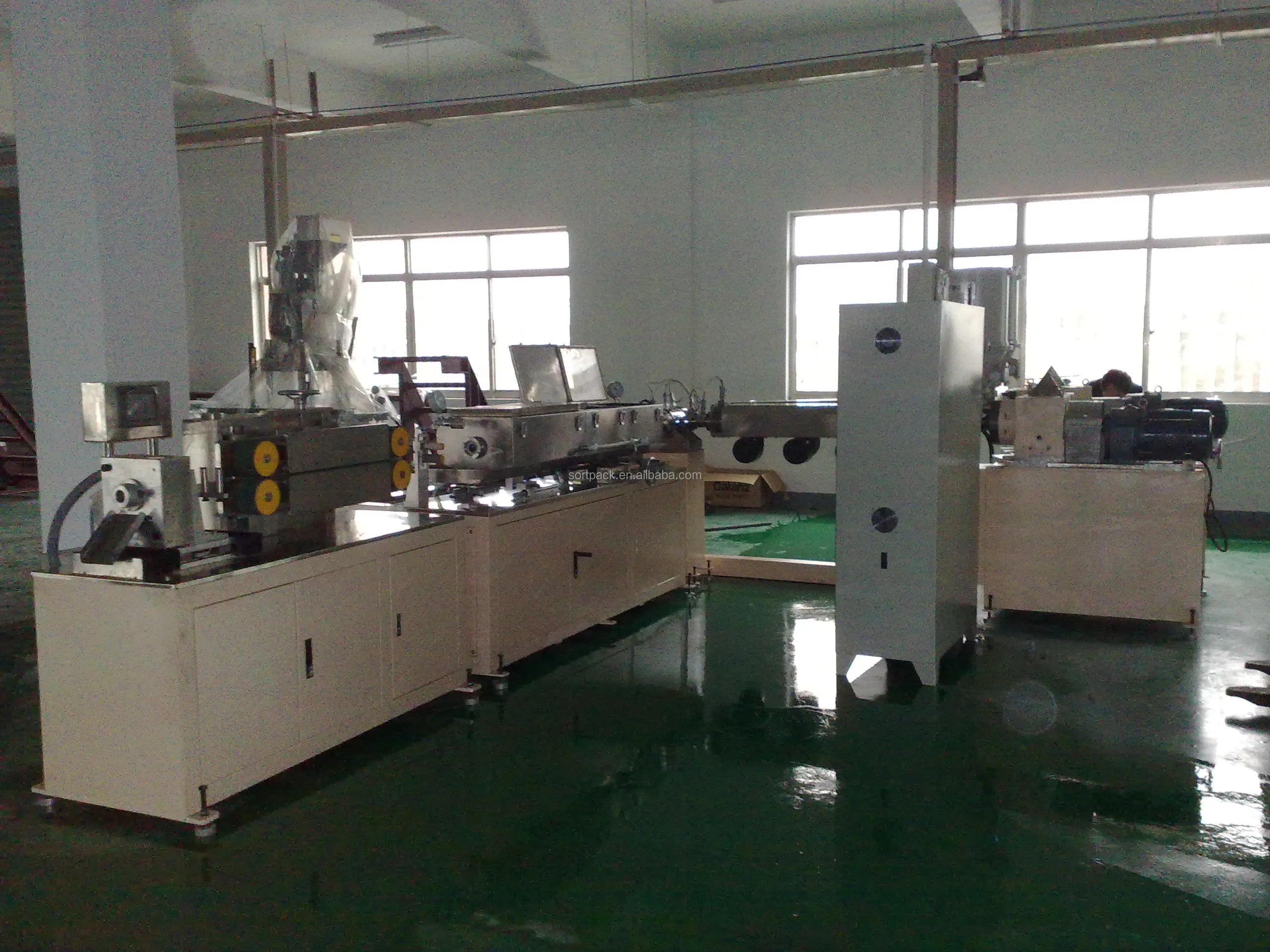

Two-layer Extruder and Cutting Machine is a fisrt step machine in plastic tube industry. It makes plastic tube body by co-extrusion, and cuts into tube length as customer's needs.

1. Two-layer extrusion tube can reduce material cost. (using: Pearl+PE/PE+pigment)
2. The temperature controllers of different materials can be controlled individually. In this way, we can find out the best running condition on the materials both in running fluency and dissolubility.
3. The surface of co-extrusion tubes made by two-layer machine is more glossy than the surface of mono-layer tubes.
4. Using the same material on two-layer co-extrusion can increase the water-resistance and anti-penetration of the materials for about 20~30%. (using: PE + Pigment. inner: recycled material.)

\t
\t
Screw dia (inner)
\t
Ø55 mm. L/D: 32/1
\t
Screw dia (outer)
\t
Ø50 mm. L/D: 32/1
\t
Screw type
\t
Full flight
\t
Motor
\t
10HP ×2pcs
\t
Cold water consumption
\t
120L/min. 5--10 ℃
\t
Air consumption
\t
none
\t
Power consumption
\t
45kw
\t
Extrusion linear speed
\t
12m/min (Ø35mm)
\t
Cutting speed
\t
160-190pcs/min
\t
Tube dia range
\t
Ø16-60mm
\t
Machine dimension(L*W*H)
\t
7650*3350*2000mm
\t
Weight
\t
approx. 4500kg

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization,no pollution.

4) Apply a linker to connect with the air conveyor ,which can directly inline with heading machine.




Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

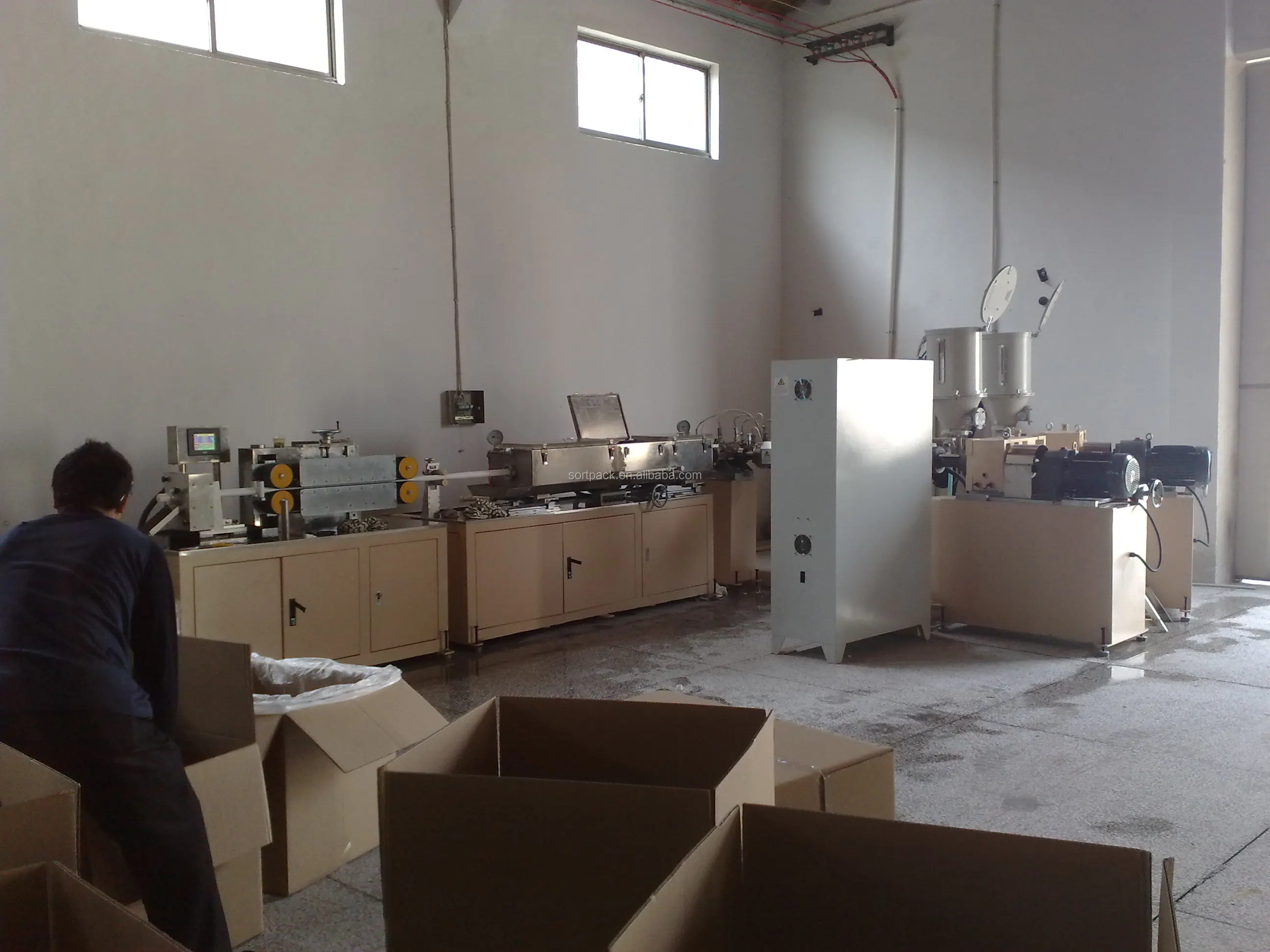

Our Workshop
