Product Description


No 1--The advantage of kurkure snacks extruder:

1.The main extruder adopts frequency speed controlling with high automation.
2.The screws are made of the stainless steel and special craft, which has the advantage of durable usage, high pressure,and longer life.
3.The forced lubrication system ,which can guarantee the equipment transmission life longer.
4.Auto-temperature control system and self-cleaning ,which makes it more convenient.



No 2--The advantage of continuous fryer:

1.World-famous Brand Electronic Apparatus ensure the Excellent and Stable performance.

2.Controller Box made of Stainless Steel or Sprayed-plastic (optional), Allow adjust Frying Time by Variable Conveying Speed as required, Alarm Oil level.

3.Double Layer Stainless Steel Belt, Preventing Products Floating, Ensure complete and Perfect Frying Effect.

4.Electric Belt and Upper Cover Lifting Setting, Make Cleaning more Easier and save Human Power.



No 3--The advantage of multi-layer dryer:

1.We have four types of dryers,  which includes fuel ovens, gas ovens, electric ovens, and high temperature inflated ovens (used to produce corn flakes).
2.The electric oven has three layers of five meters / five layers of five meters / five layers of eight meters / seven layers of eight meters / seven layers of eleven meters, etc., each layer has electric heating tubes, the purpose is to be more evenly heated.
3.Dryer is compact, has small dry area and a largesuperficial area. It also features small scale of heat elimination and high thermal effciency.
4.Mesh belt conveyors and thermal insulation boards all use stainless steel material, making the equipment clean and sanitary.
5. The speed of mesh belt conveyor is adjustable, the drying period for food in the oven can be adjusted.
6. The automatic temperature control system makes it possible to set the temperature according to your needs.




No 4--The advantage of double-roller flavoring line:

1.Spraying the oil in the roller.
2.The inside turning container is very sanitary because of adopting the stainless steel material.
3. Material touching food is stainless steel.
4. The inside of the roller is also uneven, the main purpose is to more evenly season.



No 5--The Baking processing line of kurkure snacks extruder:

1. Mixer→Screw conveyor→Kurkure machine→Air conveyor→Dryer→Oil sprayer→Flavoring line




No 6--The Frying processing line of kurkure snacks extruder:

2. Mixer→Screw conveyor→Kurkure machine→Hoister→Separating screen→Vibrating feeder→Continous fryer→Virbrating deoiling machine→Flavoring line



No 7--The introduction of kurkure snacks extruder:

1.Cheetos sticks/Nik naks are special extruded snacks with crunchy and great taste.They are made by a special extrusion processing.The corn grits are moisturized in the flour mixer with water and fed to the Rotary Head Extruder.By adjusting the raw materials, temperature and pressure etc.Due to the two rotary plates,corn grits are squeezed and twisted to curls shapes.The cutting knifes can cut into required lengths.The Kurkure/Cheetos can be fried in cooking oil or toasted in oven and then cooled before flavoring.Seasoning is sprayed on the surface to achieve different favorable taste.
2.Raw materials(kurkure snacksextruder): rice/wheat/corn or other grains powder.
3.Voltage(fried kurkure making machine price ) : Three phases: 380V/50Hz, Single phase: 220V/50Hz. we can make it according to customers' Local voltage according to different countries
4.Capacity: 100--200kg/h(Fried Kurkure making machine price kurkure snacks extruder )




Detailed Images


Kurkure machine(EXT76)


Installed Powder: 27.5kw
Powder Consumption: 23kw
Production Capacity: 100--150kg/h
Dimension: 2150*1500*2300mm
1. Material is corn grit.
2.Corn grit is twisted with high pressure and high   temperature by two plate of the machine.
3. Puffed snacks will be with different delicious flavor after drying or frying.




Separating Screen(kurkure machine)


Installed Powder: 0.75kw
Powder Consumption:0.5kw
Dimension: 2000*1500*1600mm
Capacity: according to the extruder
Material: Stainless steel
1.The part that contacts material adopts the
stainless steel material .




Vibrating feeder

Installed Powder: 0.25KW

Powder Consumption: 0.2 kw

Dimension: 2000*1500*1200mm

Material: Stainless steel

To transport food to the continuous fryer evenly




Hoister


Installed Powder: 0.37kw
Powder Consumption:0.2kw
Material: Stainless steel
Dimension: 1950*700*1460mm
Weight:50kg
It used to transport the materials into dryer.
We have different kinds of air conveyors for your choose.




Screw Conveyor(SL-I)(kurkure machine)


Installed Powder: 0.75kw
Powder Consumption:0.5kw
Material: Stainless steel
Production Capacity: 100-500kg/h
Weight:100kg
It used to transport the materials into twin screw extruder.

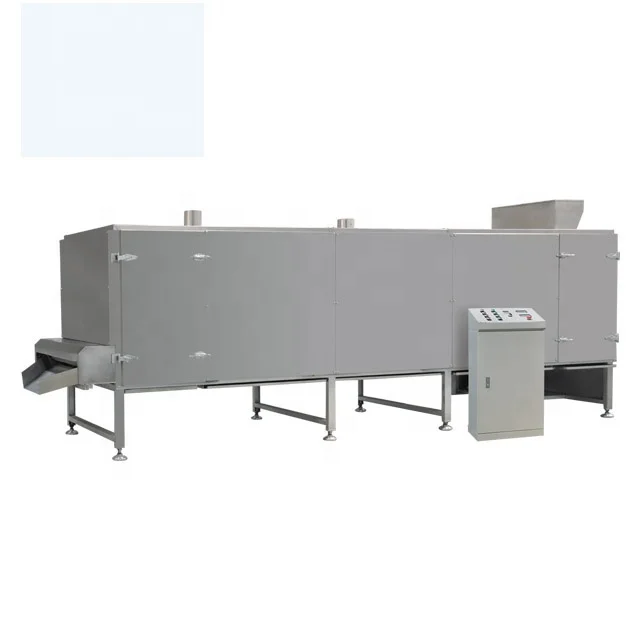

Electric dryer(three layers five meters)


Installed Powder: 27kw
Powder Consumption:18kw
Material: Stainless steel
Dimension: 5200*1300*2200mm
Weight:1500kg

Bake all kinds of puffed food/pet food/bread crumbs and so on.

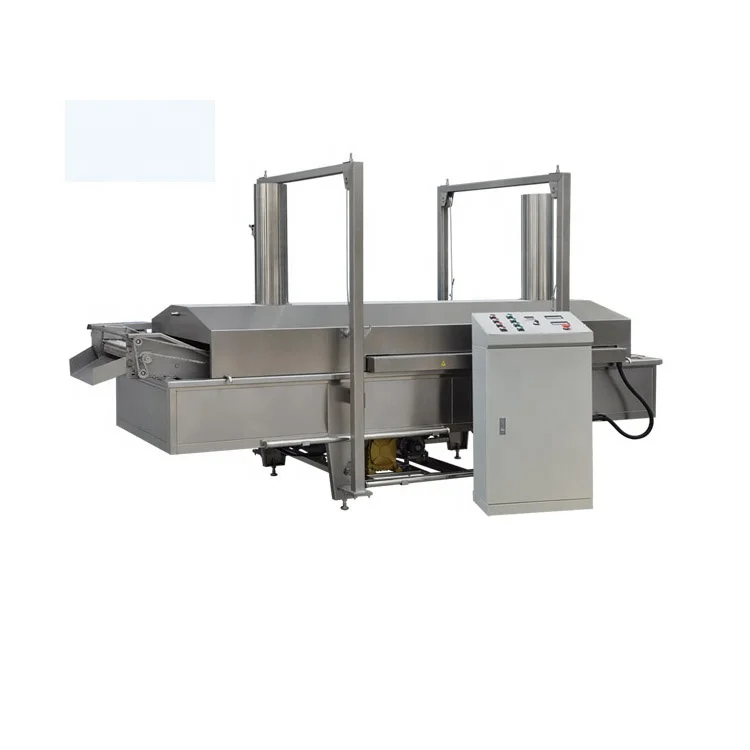

Continous fryer:


Installed Powder: 36kw
Powder Consumption:30kw
Material: Stainless steel
Dimension: 3800*1800*2000mm
Output:300kg
1. Double Layer Stainless Steel Belt, Preventing Products
Floating, Ensure complete and Perfect Frying Effect.
2.Scrapers fixed on the belt, Make the products come out easily.
3. Electric Belt and Upper Cover Lifting Setting, Make Cleaning more Easier and save Human Power
.




Vibrating deoiling machine


Installed Powder: 0.25kw
Powder Consumption:0.2kw
Material: Stainless steel
Output: according to the extruder
Weight:100kg
Dimension: 1530*750*740mm

To separate oil from the finished ones by vibrating



Mixer(BF-II)

Installed Powder: 4kw
Powder Consumption:3kw
Material: Stainless steel

Capacity: 40kg/batch
Weight:60kg
Dimension: 1030*720*1350mm

Mix the materials with water or other liquid.

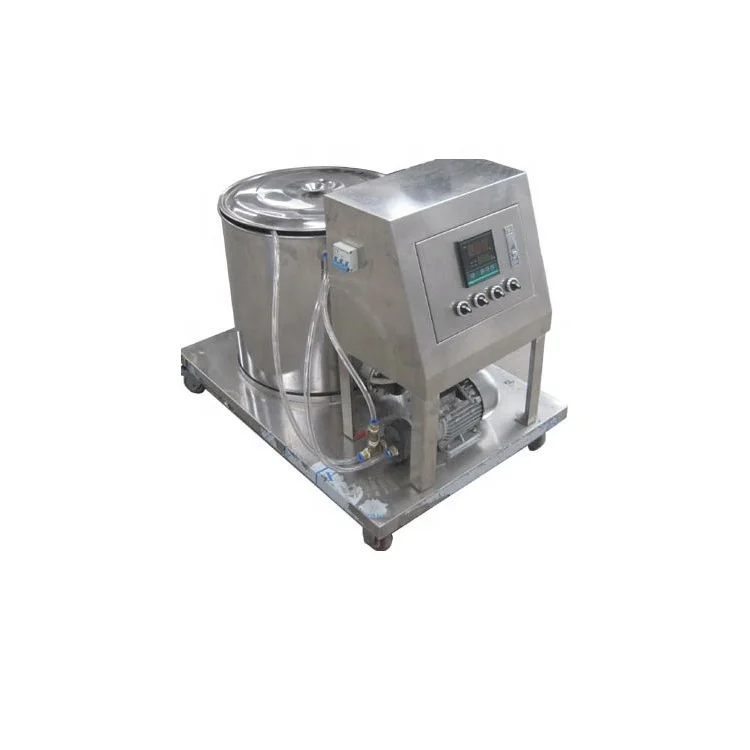

Oil Sprayer:

Installed Powder: 4.37kw
Powder Consumption:0.3kw
Material: Stainless steel

Dimension: 940*630*750mm
Weight:50kg

Adopt three layer filtering method, spraying type filter



Flavoring line:

Installed Powder: 0.75kw
Powder Consumption:0.5kw
Material: Stainless steel
Dimension: 2420*780*1420mm
Weight:150kg

1.Spraying the oil in the roller.

2.The inside turning container is very sanitary because of adopting the stainless steel material.



Double drums Flavoring line:

Installed Powder: 1.5kw
Powder Consumption:1.2kw
Material: Stainless steel
Dimension: 3750*870*1780mm
Weight:300kg

1.Spraying the oil in the roller.
2.The inside turning container is very sanitary because of adopting the stainless steel material.



Technical Parameter


Model
Frying type(EXT76)
Baking type(EXT76)
Installed powder
85kw
80kw
Production Capacity
100-200kg/h
100-200kg/h
Dimension
21000*1800*2100mm
18000*1400*2200mm
