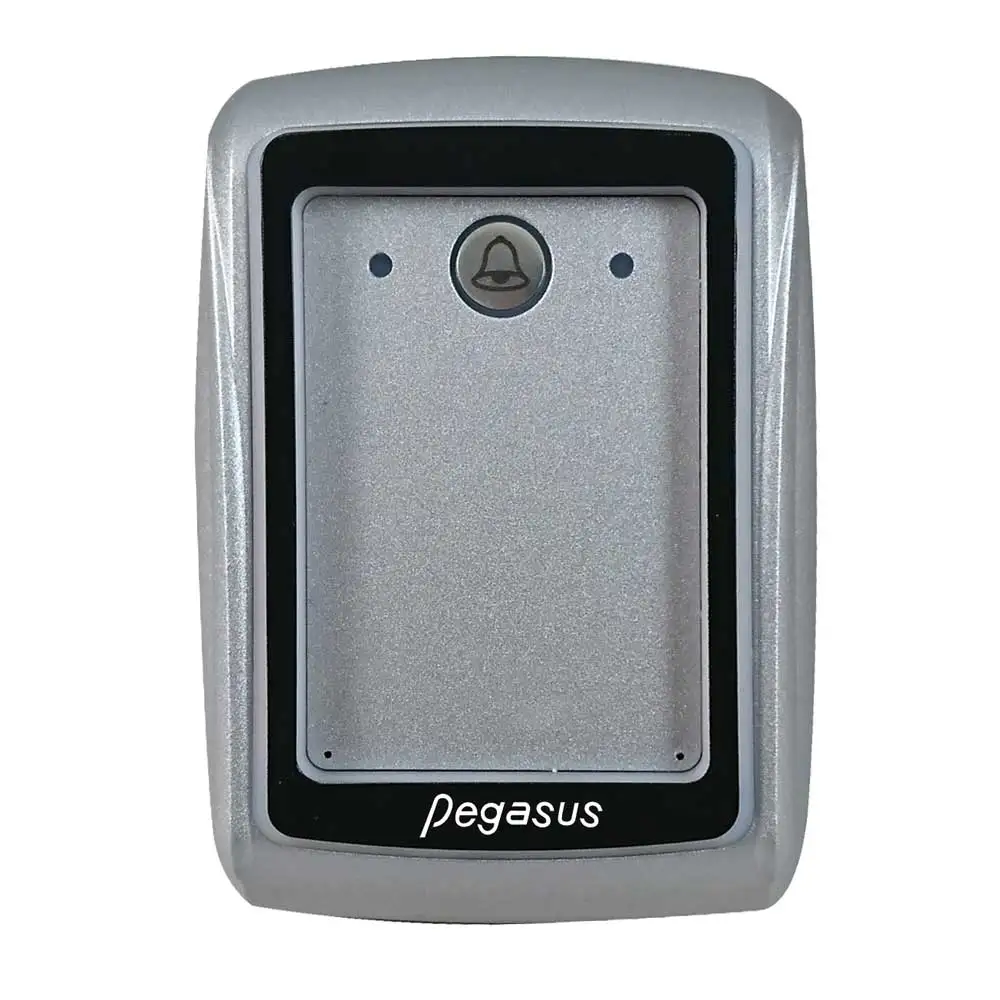

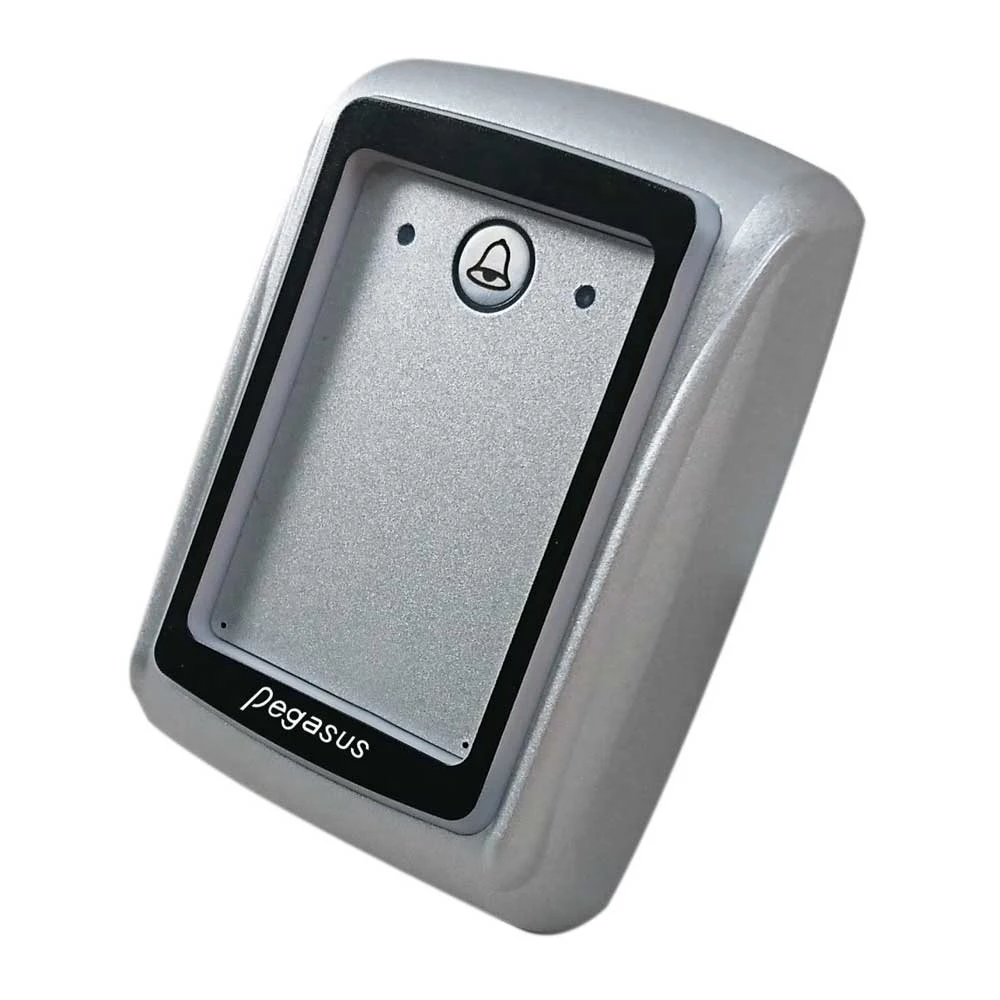

ISO 14443A 14443B 15693 18092 NFC HF 13 56 МГц TCP/ IP бесконтактный считыватель RFID карт в металлическом корпусе IC/ID кардридер

Сохранить в закладки 62018653276:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики




TCP/ IP Metal Case Contactless Card Reader


Introduction



  • Easily interfaced with access controller for management of access control, time attendance & lift access control systems.

  • LED indicators show power and operation status.

  • Built-in buzzer for sound notification.

  • Provides tamper switch.

  • Supports Multi-frequency (EM, ISO15693,ISO14443A/B)reader. (by optional)

  • With CPU watch-dog function to prevent malfunction.





Specifications
•Dimension: 119 (L) x 84(W) x 32(H) mm
•Mounting: Surface mount, waterproof
•Reading range: Max.3.5 cm
•Frequency of operation: 125 KHz / 13.56MHz
•Power supply: 12VDC±10%
•Interface: TCP/IP
•Operating Temperature: -10°C ~ 75°C

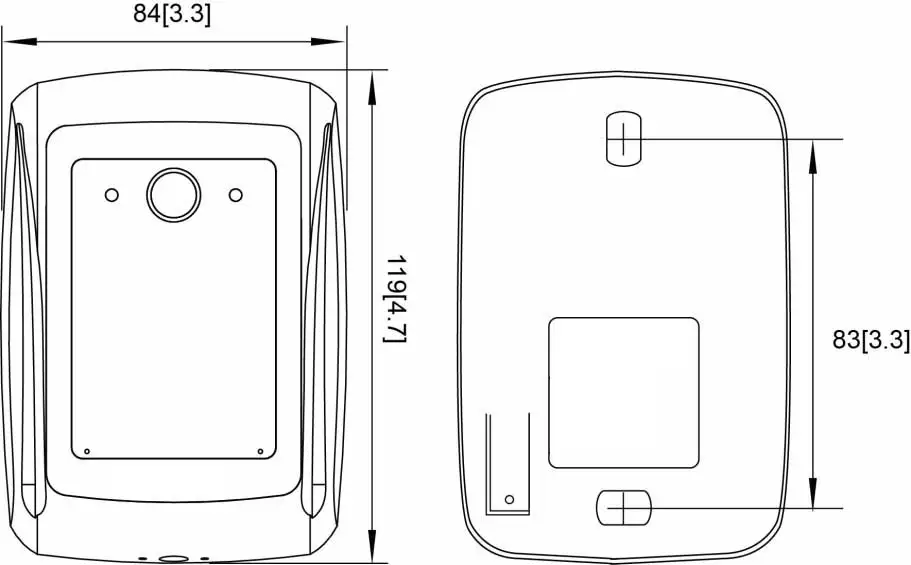

 Dimension: Unit: mm[inch]

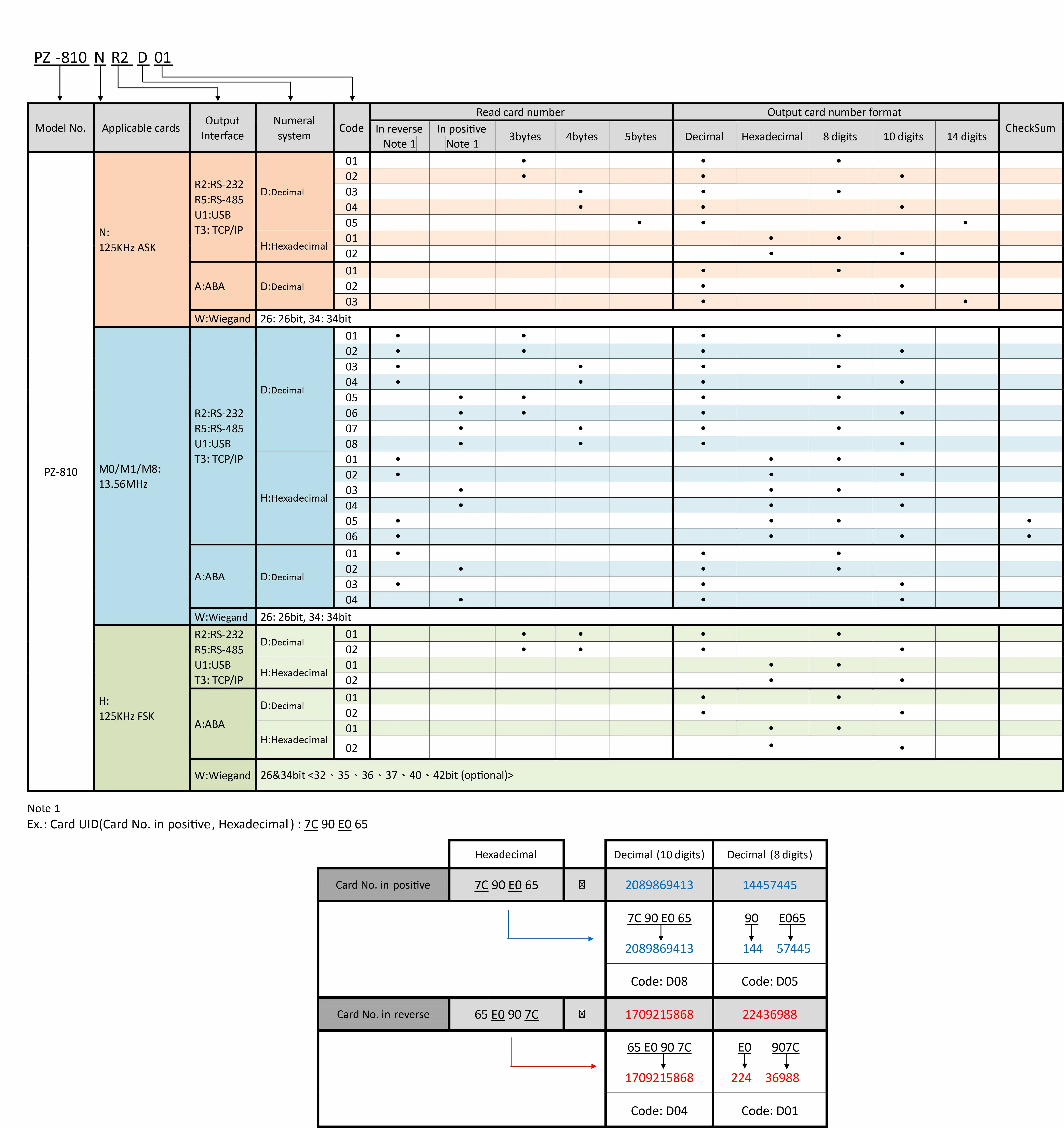

Ordering information


PZ-810NT3D05: 125KHz EM Card Reader, TCP/IP, Read card number:5 bytes,Decimal,14 digits


PZ-810M0T3H01: 13.56MHz Card Reader, TCP/IP, Hexadecimal, 8 digits










Fingerprint access controller and time attencance recorder   Fingerprint access controller and time attencance recorder


Fingerprint access controller and time attencance recorder   Fingerprint access controller and time attencance recorder


Fingerprint access controller and time attencance recorder   Fingerprint access controller and time attencance recorder



We reserve the right to change the specification without prior notice or obligation!
