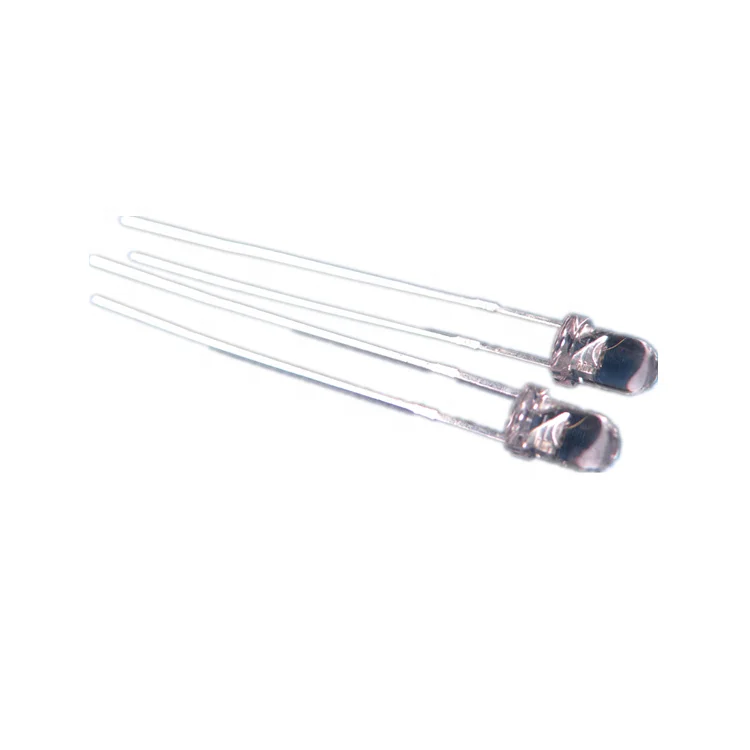

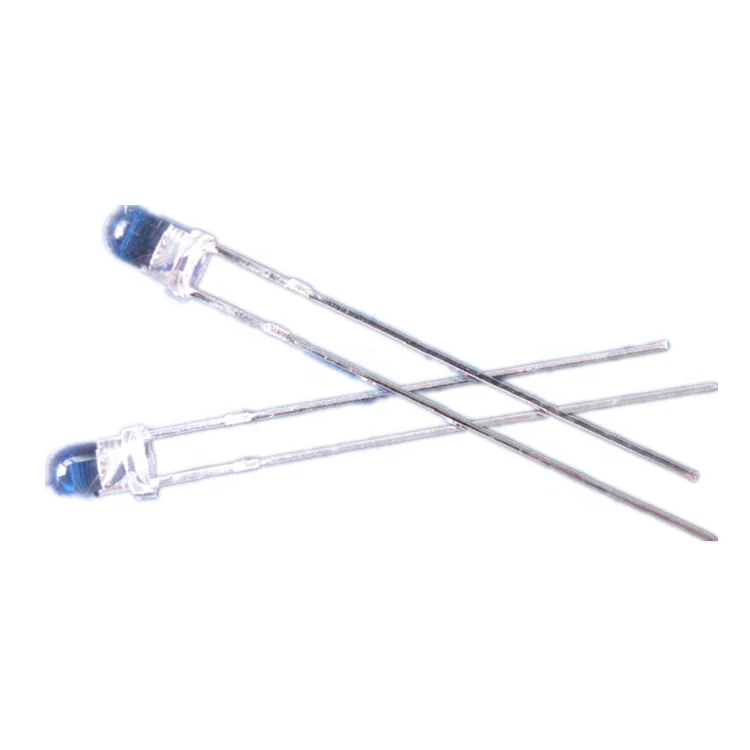

Специальное предложение от производителя светодиодов длиной волны T1 3 мм сквозное отверстие прозрачные линзы нм AlGaAs инфракрасный

Специальное предложение от производителя светодиодов длиной волны T1 3 мм сквозное отверстие прозрачные линзы нм AlGaAs инфракрасный

Категория: >>>
Поставщик: Shenzhen Starsealand Opto Electronics Co. Ltd.

Цена:5,50 $ - 7,50 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Chinese special wavelength LED manufacturer offer T1 3mm through hole water clear lens 1200nm AlGaAs infrared diode at competitive price with ROHS

Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .

20150612010024_34477

Applications:

1. oxygen meter
2.Gene testing device
3.motion capture
4. iris authentication
5.Vein certification
6.Surveillance camera
7.Color selection
8.encoder
9.Appearance inspection
10.solar simulation
11.photo therapy

Product Description

1) water clear type

2) 3mm standard

3) wavelength range:1200+-50nm ,invisible light

4) work volt"0.8-0.95v 20mA

Parameter	Test conditions	Symbol	Min	Typ	Max	Unit
Forward voltage	IF = 20 mA	VF	0.8		0.95	v
Reverse voltage	IR = 100 μA	VR		5		v
Radiant power	IF = 20 mA	Φe	1.0			mW
Peak wavelength	IF = 20 mA	λp	1150	1200	1250	nm
Spectral bandwidth at 50%	IF = 20 mA	Δλ0.5		70		nm
Viewing angle	IF = 20 mA			30		deg.
Switching time	IF = 20 mA	tr, tf		25/40		ns

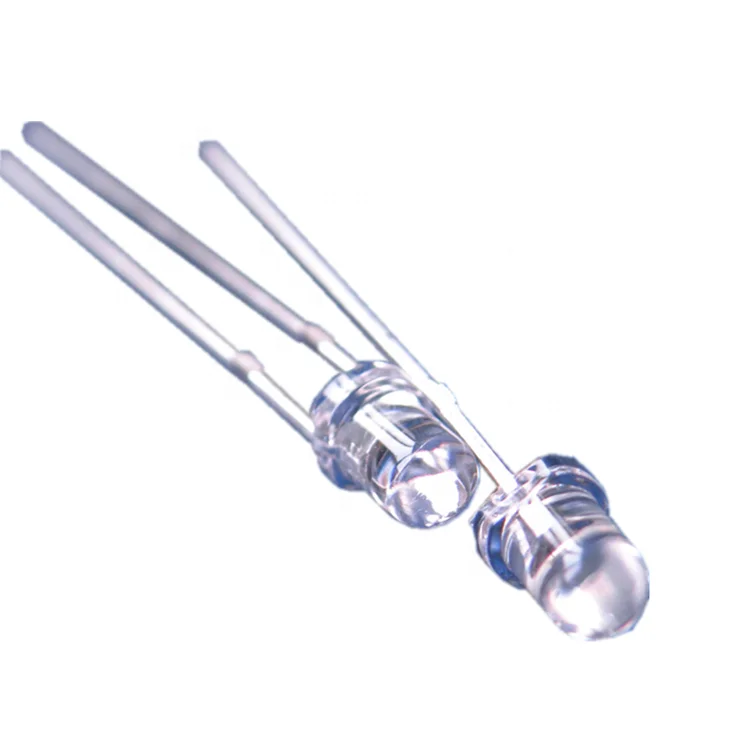

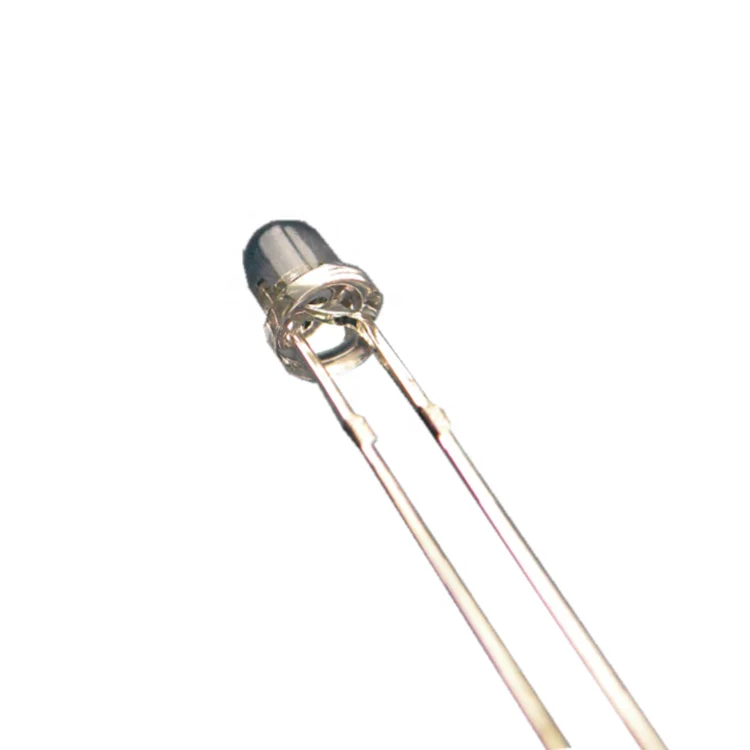

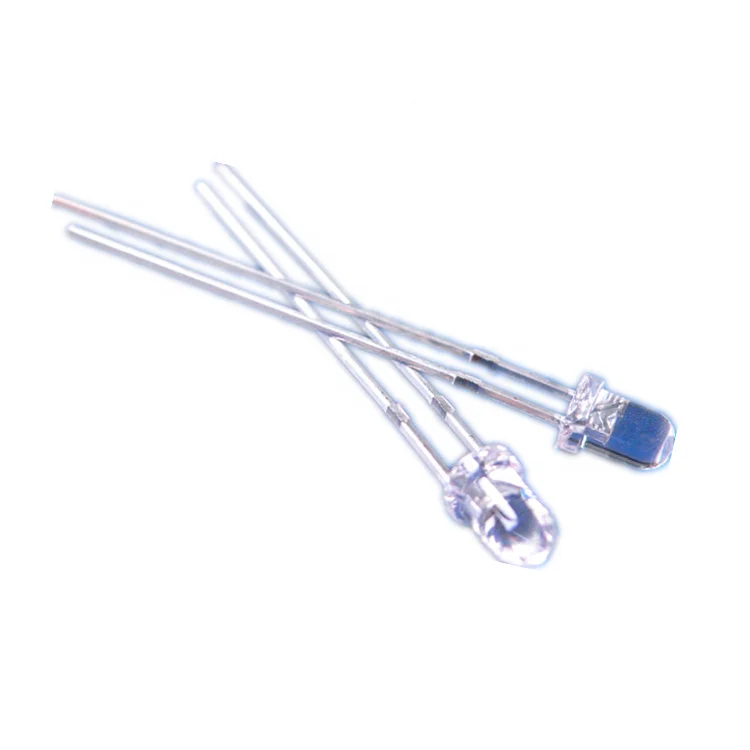

Appearance:

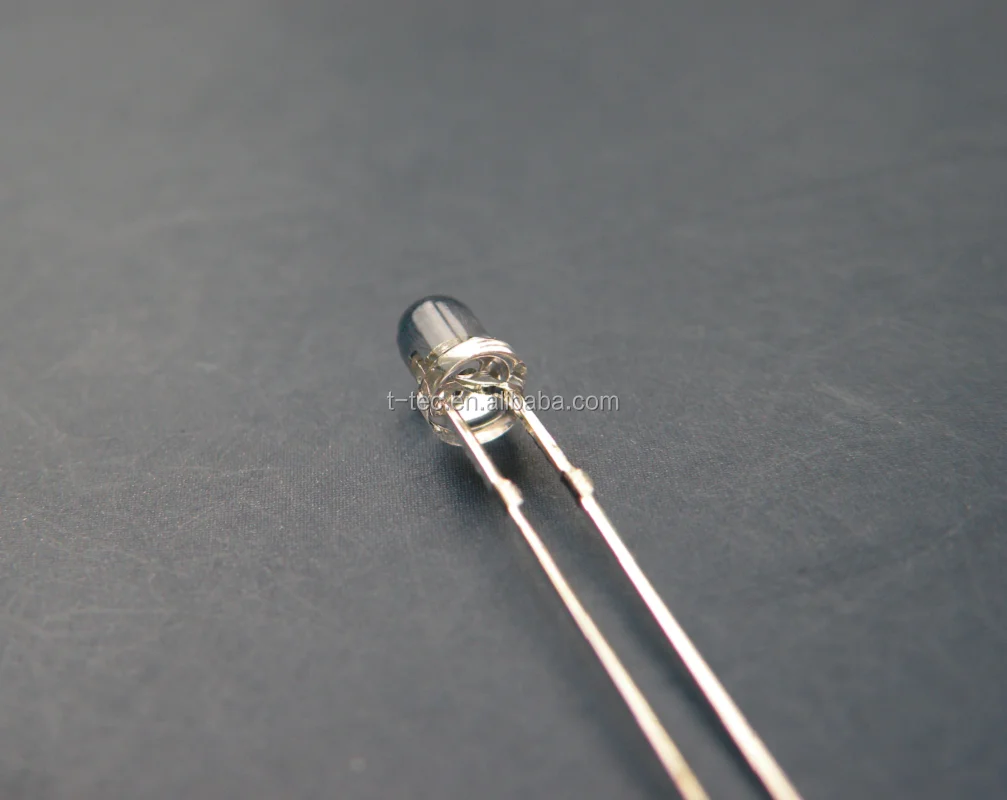

3mm dip

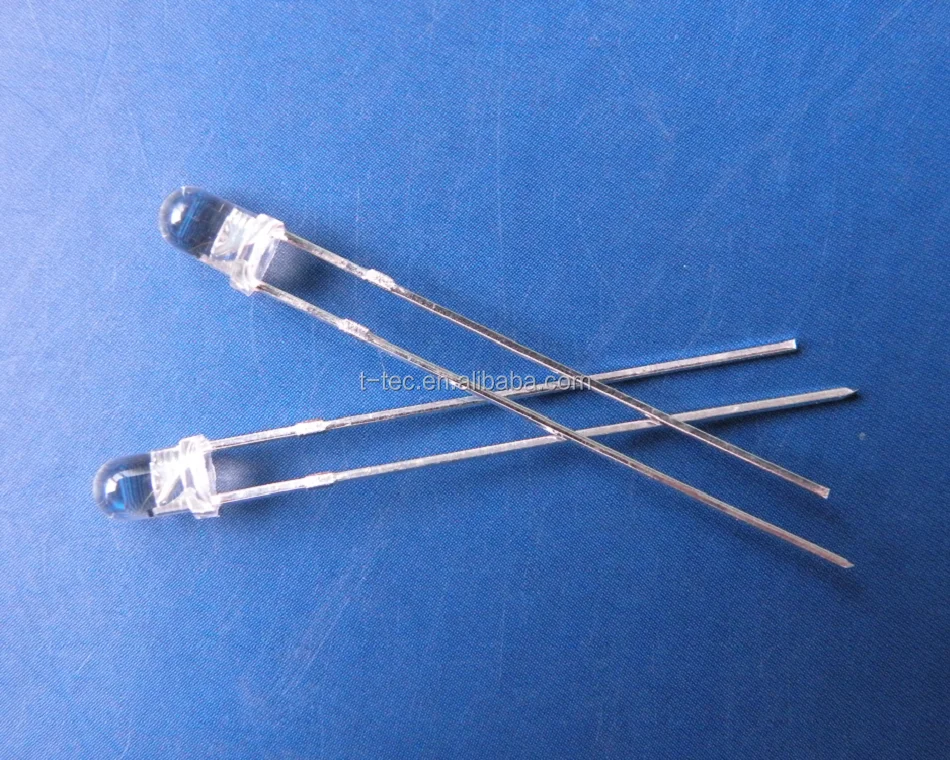

3mm dip 4

3 5 8 10mm.jpg

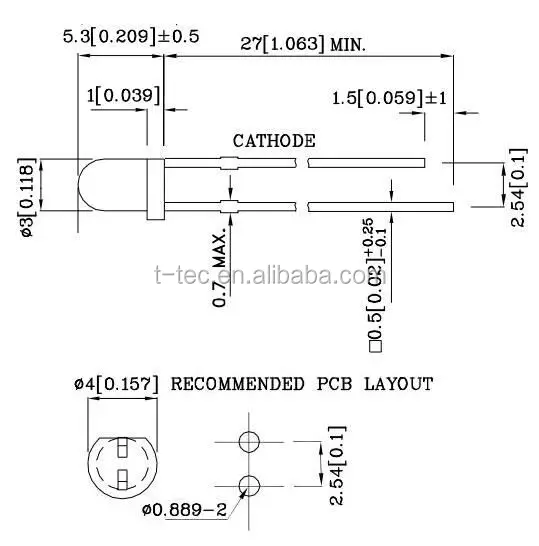

Size drawing :

3mm

Packaging & Shipping

with pp bag,in carton

Shipping way

Our Services

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.

Company Information

To view our mini web: Shenzhen Starsealand Opto Electronics Co., Ltd.

Main materials

Our other products

FAQ

Q:How can I get your pricelist?
A:Please Email us your country name, your detailed contact telephone, fax number, part# you need and how many pieces
you will buy.
Q:If I place an order, how long will it take to delivery it?
A:It usually takes about only 2-3 days on receipt of payment, depends on the quantity ordered and the stock status.
Q:How do you deliver parts to us?
A:Normally sent to you by DHL, UPS,TNT etc Worldwide Express or by shipment. Delivery charge is ofen $35.00 with packaging less than 0.5KG,more depends on its detail weight.
Q:How is the payment made?
A:There are different payment options. You may choose any of following at your convenience.
by western union: you can find your local service from www.westernunion.com.
by T/T (wire transfer) you can pay to our company account for large quality order.
