Полноцветный TFT экран JMD 0 96 дюймов 13P HD SPI 65K ST7735 Drive IC 80(RGB)160

Полноцветный TFT экран JMD 0 96 дюймов 13P HD SPI 65K ST7735 Drive IC 80(RGB)160

Категория: LCD Module >>>
Поставщик: Shenzhen Jinmading Electronics Co. Ltd.

Цена:1,20 $ - 1,50 $*

Количество:

В избранное

Описание и отзывы

Характеристики

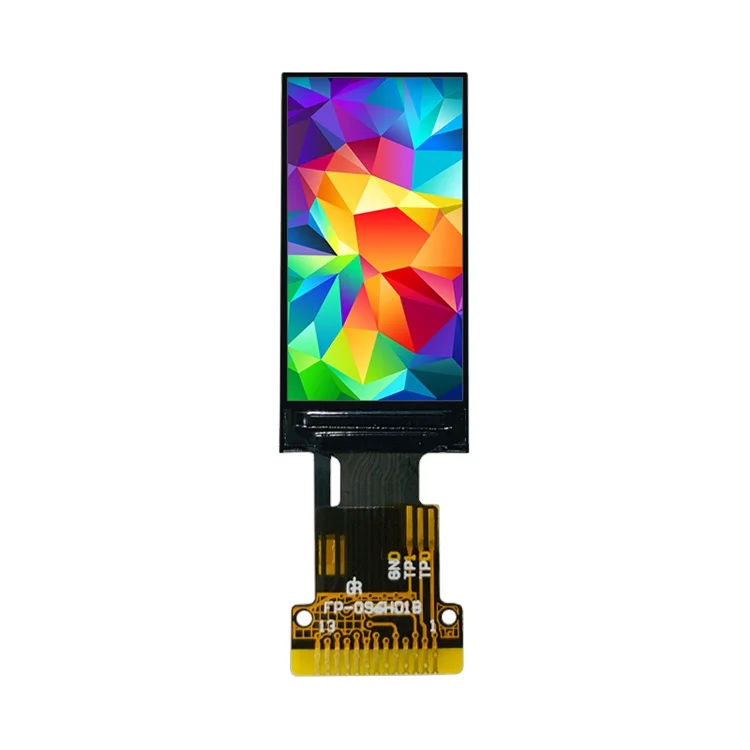

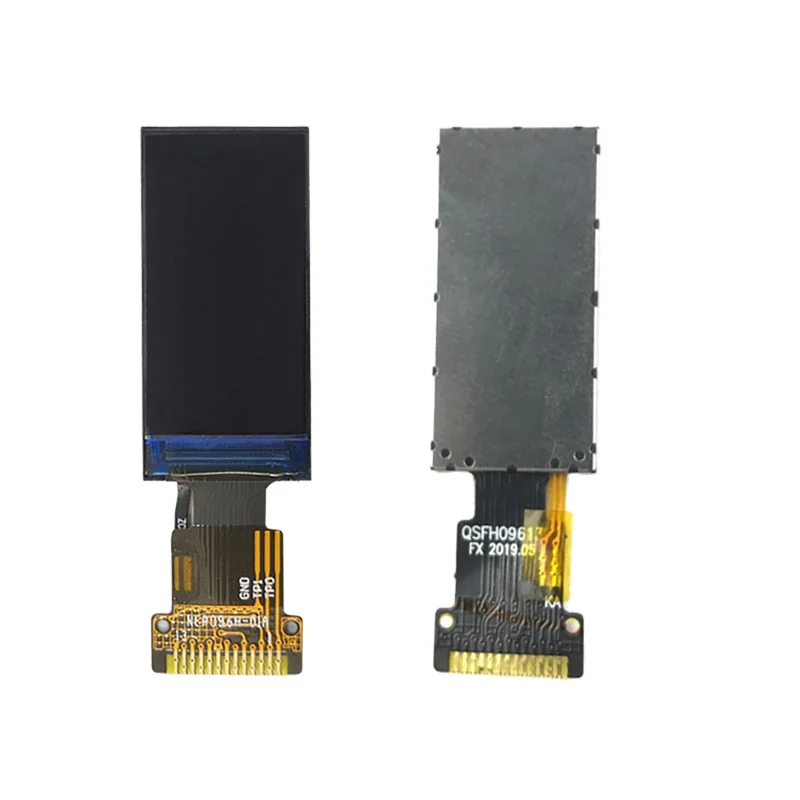

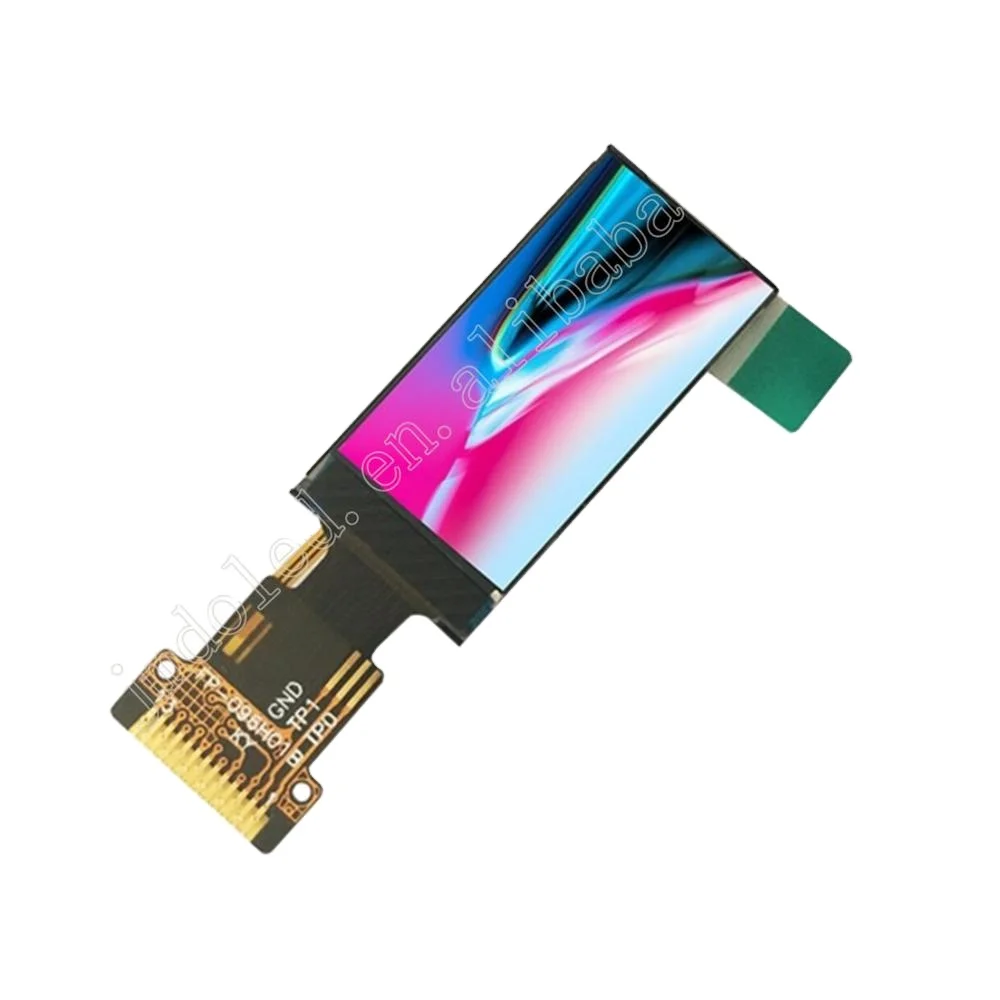

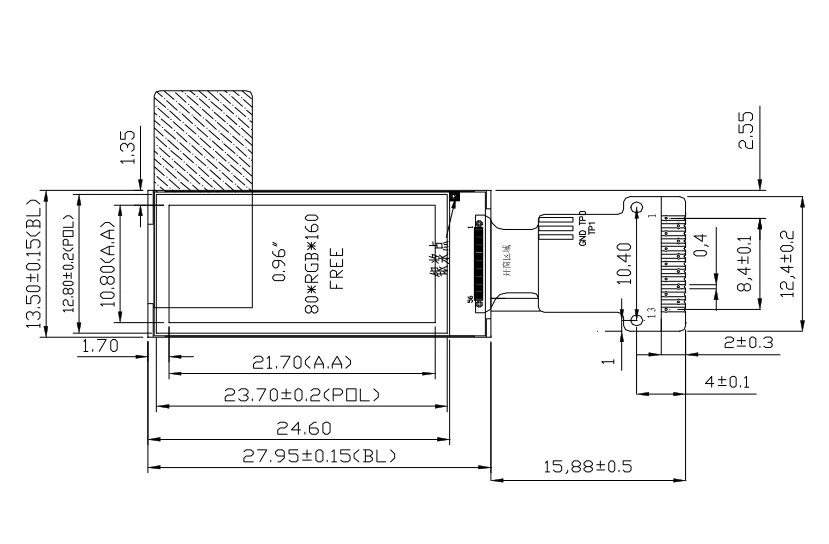

0.96 inch TFT LCD MODULE
1.General Description

1.1 Description

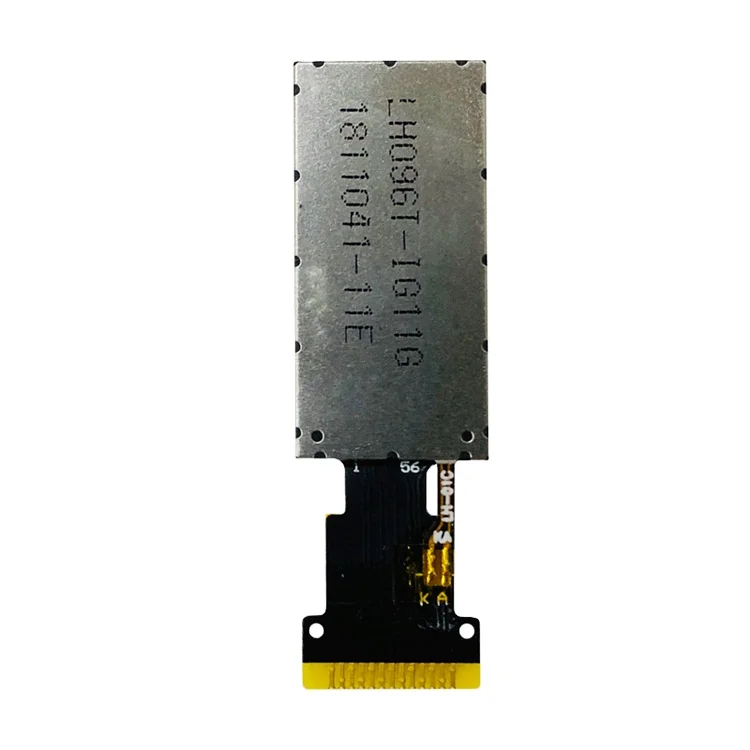

LH096T-IG01 is a 80RGBX160 dot-matrix TFT LCD module. This module is composed of a TFT LCD
Panel, driver ICs, FPC and a Backlight unit.

1.2 Features

NO.	Item	Contents	Unit
1	LCD Size	0.96 inch(Diagonal)	-
2	Display Mode	Normally black	-
3	Resolution	80(H)RGB x 160(V)	-
4	Dot pitch	0.135(H) x 0.1356(V) mm	-
5	Active area	10.8(H) x 21.7(V) mm	-
6	Module size	13.5(H) x 27.95(V) x1.5Max(D) mm	-
7	Color arrangement	RGB Vtertical stripe	-

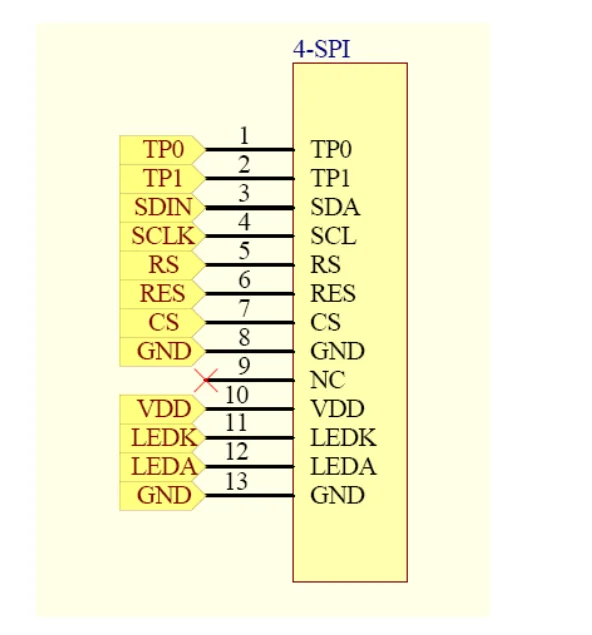

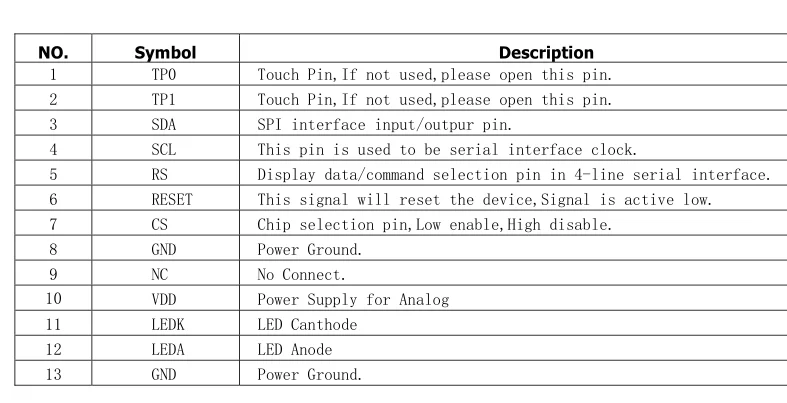

8	Interface	4 Line SPI	-
9	Drive IC	ST7735S	-
10	Luminance(cd/m2)	300 (TYP)
11	Viewing Direction	All View
12	Backlight	1 White LED
13	Operating Temp	-20℃~ + 70	℃
14	Storage Temp	-30℃~+ 80	℃
15	Weight	1.1	g


OLed

FAQ
Q1. Can I have a sample order for OLED?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:We will send it to you within 3 to 5 days after the payment is completed. Please contact customer service for details
Q3. What's the minimum order quantity?
A: We don't limit the minimum quantity. You can place orders as much as you need.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-10 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for OLED?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, Our products are strictly inspected for quality. In the case of non-artificial damage, we provide 12 months quality guarantee
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the warranty period, if the product is damaged accidentally, you can inform the customer service, and the company will send out a test report and send out the repaired products together with the order.
