100m To 2000m Geothermal Well Logging Geothermal Well Inspection Camera with 75mm Down View Borehole Camera

FLX-PH2000RECT100

The Features:

* Ø75mm high temperature camera head(down view camera), stainless steel CMOS camera, 1200TVL
* IP68 waterproof ,up to 300 Bars(30 MPA)
* The max temperature resistance of the camera head up to100°C (212ºF)
* 300m-2000m thermoplastic elastomer cable with electric winch
* Electric winch winding speed adjustable
* Depth counter, the depth shows on the display, the depth accuracy: 0.05m and it supports depth reset
* 12inch LCD display
* DVR control part with video recording function
* 16G SD card(max 32G) to storage video
* Power supply: AC220V or AC110V with a AC110V to AC220V converter.

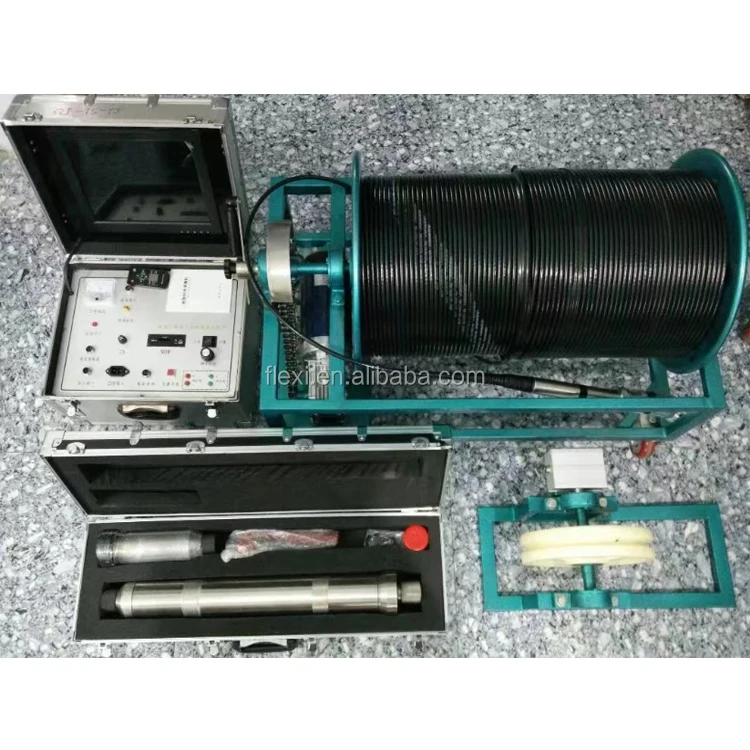

This Water Well Downhole/ Borehole Camera is a great combination of modern technology and affordable price. It is well suited for inspecting various reservoirs, wells, borehole, downhole, shafts, pipes, tanks and other objects from the top down. It is equipped with a Ø75mm down view camera head enabling operators to receive a complete detailed image of the inspection area. The Ø75mm down view camera head is equipped with CMOS sensors and 8pcs high-output long-lasting LED light allowing for capturing bright and detailed images even in poor lighting environments. The downhole camera heads are IP68 waterproof and withstand pressure up to 300 bar in water.

The Downhole Camera features a compact control unit with a high-resolution 12” LCD display. The inspection process can be viewed on the display right on site, captured as video files. All data can be saved on 16G SD card(Maximum 32G). The user-friendly interface offers various operation features.
The system works with Ø8.2mm thermoplastic elastomer cable(which can bear 350KG, the temperature resistance of the cable is from -25°C to +150°C or -13ºF to +305ºF) of different lengths (from 300m to 2000m) that can be securely coiled on an electric operated reel. The motorized winch allow to wind the cable up and down with different speeds(when 220V power supply), the cable speed can be adjusted. Besides, The users can view depth on the screen, the depth accuracy reach to 0.05m and it supports depth reset. The camera head also has temperature measurement function(Optional), the temperature of the water well will be show on the screen.

The downhole camera works on a conventional AC220V power supply, or it can work with AC110V power supply by a AC110V to AC220V converter.

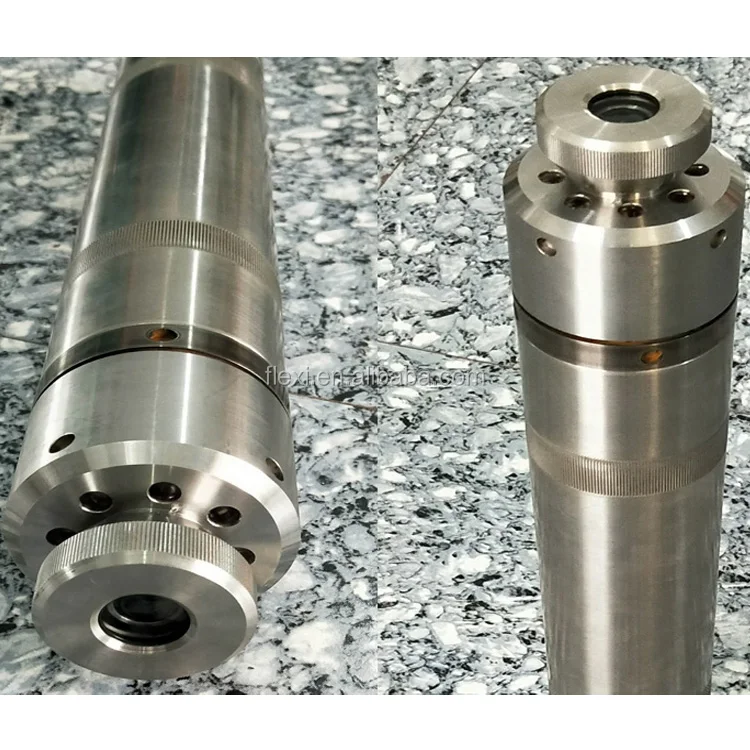

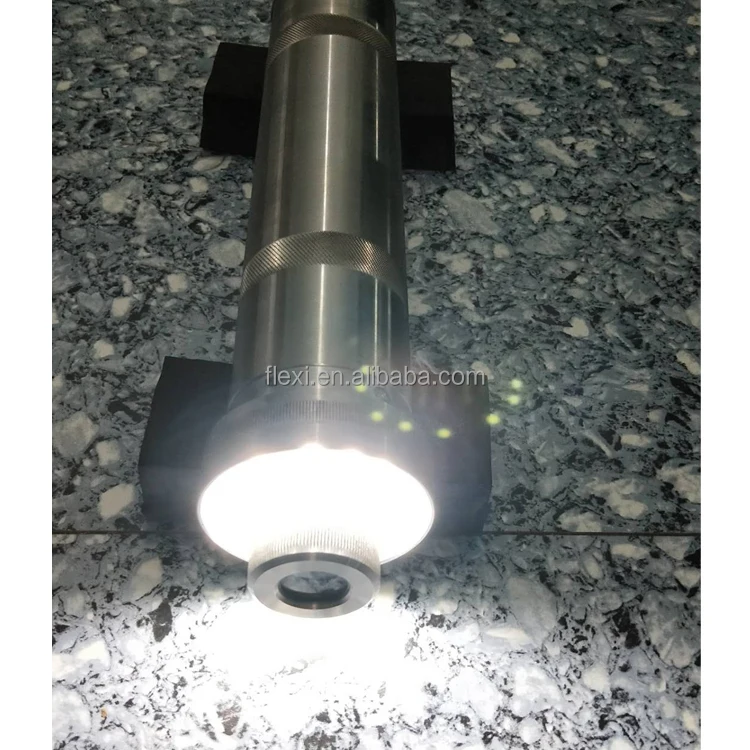

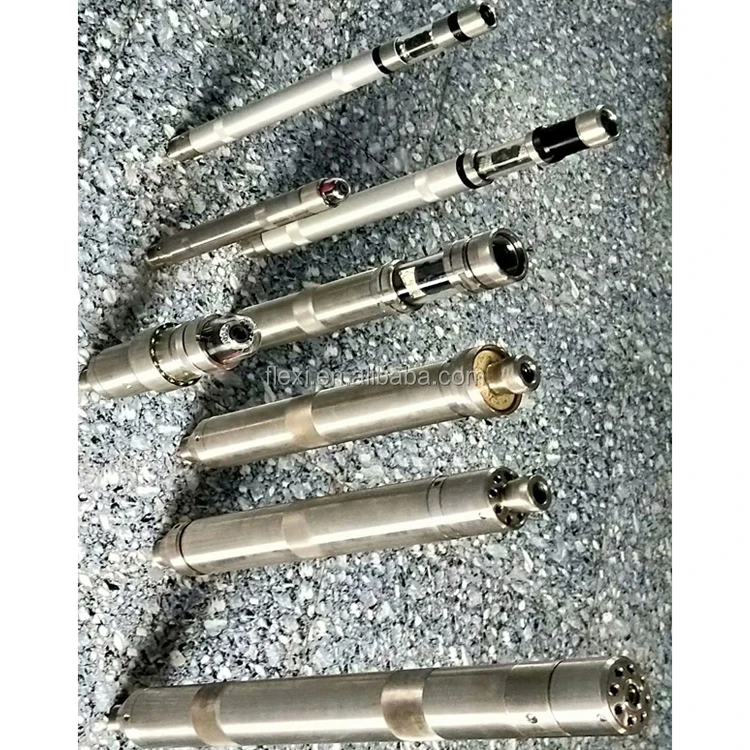

The Down View High Temperature Camera Head
IP68 waterproof ,up to 300 Bars(30 MPA)

Temperature resistance of camera: up to 100 °C (212ºF)

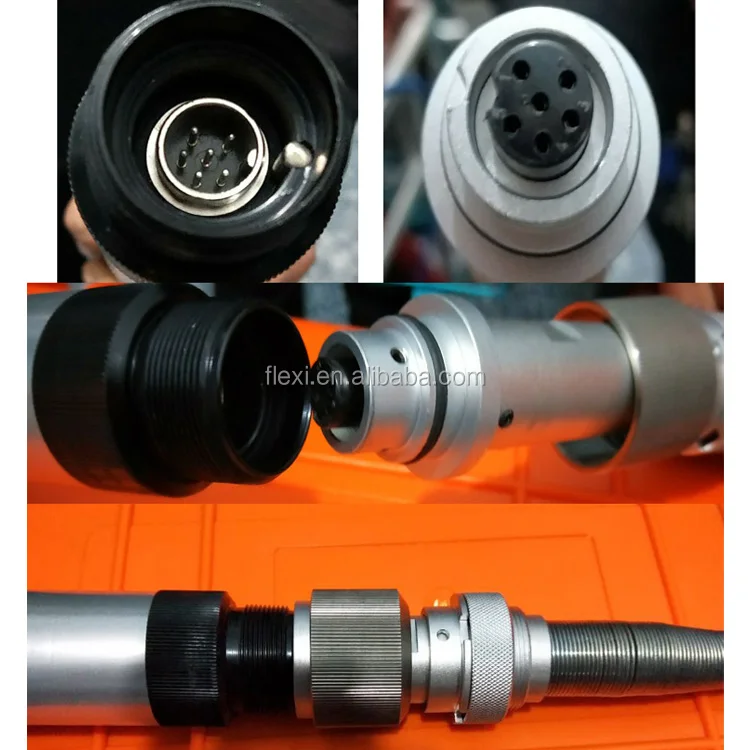

The Connector of The Camera Head and The Cable

According to the requirements of Oil well logging industry, the connector adopts axial seal and cross-section seal, two - layer waterproof design, the pressure resistant is 30MPA.

The Control Panel

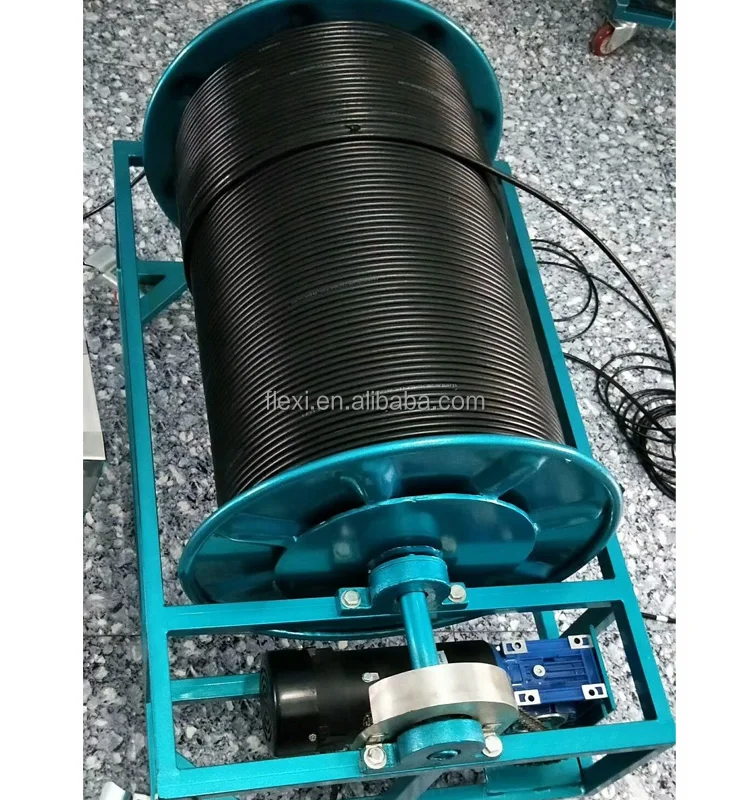

The Electric Winch

Winding speed:0~20m/min
Cable speed adjustable

100m-2000m cable option

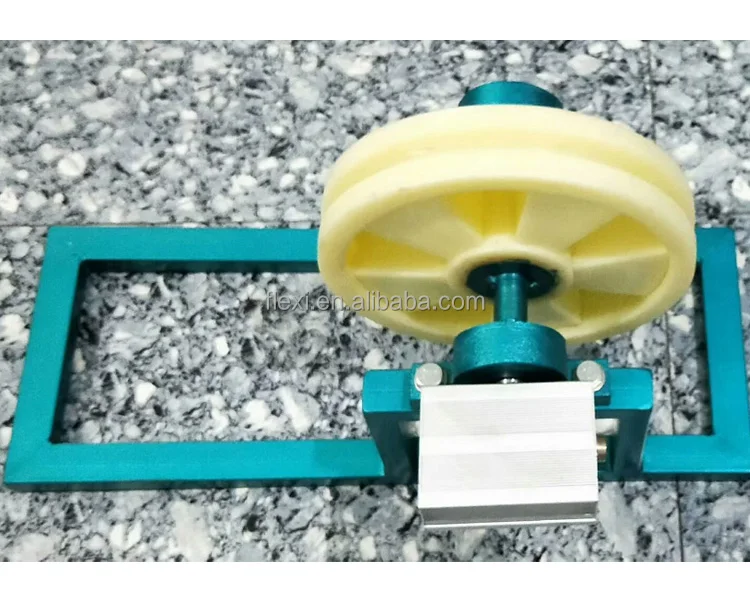

The Pulley with Depth Counter

The depth will show on the screen

The depth can be reset

The Delivery Term:

1) The product can be sent within 5 – 20 working days according to the quantity after the payment receipt.
2) The express: DHL, FedEx, TNT, UPS, The products can be received about 5-10 days after send and the tracking number will be provide;
3) Other shipping ways: air transport, ocean shipping for big quantity, the airport and the seaport will be required; The products can arrive at the airport about 1 week, and arrive the seaport about 12 - 30days;
4) The customer can also choose his own shipping agent;

After-sale Service:

1) 12months warranty; count from the shipping day;
2) Warranty spare parts-damaged by non-human factors, including camera head, screen and control part, we will be responsible for all the circuit and technique problems;
3) Warranty do not include the damages caused by man-made damage, including monitor or camera broke by no protection, cable broke by less than 90 degree bending;
