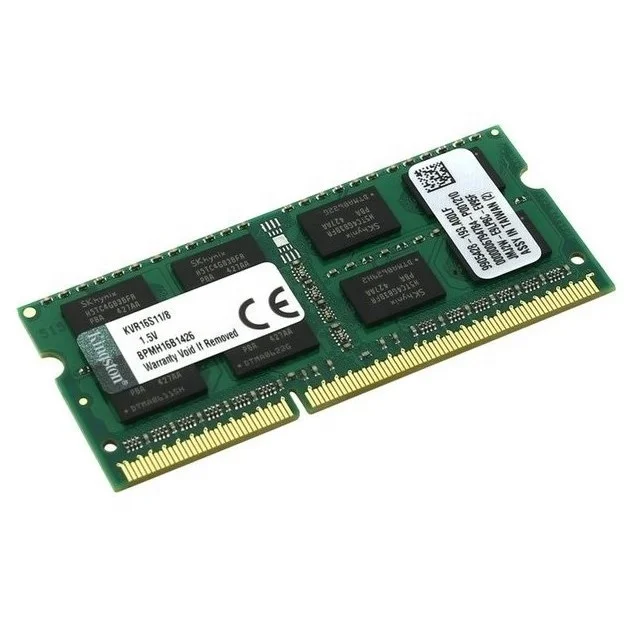

Лучшие продажи 8 Гб DDR3 PC3-12800 1600 МГц SODIMM KVR16S11/8 оперативной памяти оперативная память
35,00 $ - 42,00 $
TPE 3 ядра кабель для зарядки электромобиля Электрический провод с разъемом type 2
- Категория: >>>
- Поставщик: Shenzhen Oversea Win Technology Co. Ltd.
Сохранить в закладки 62020440742:
Описание и отзывы
Характеристики

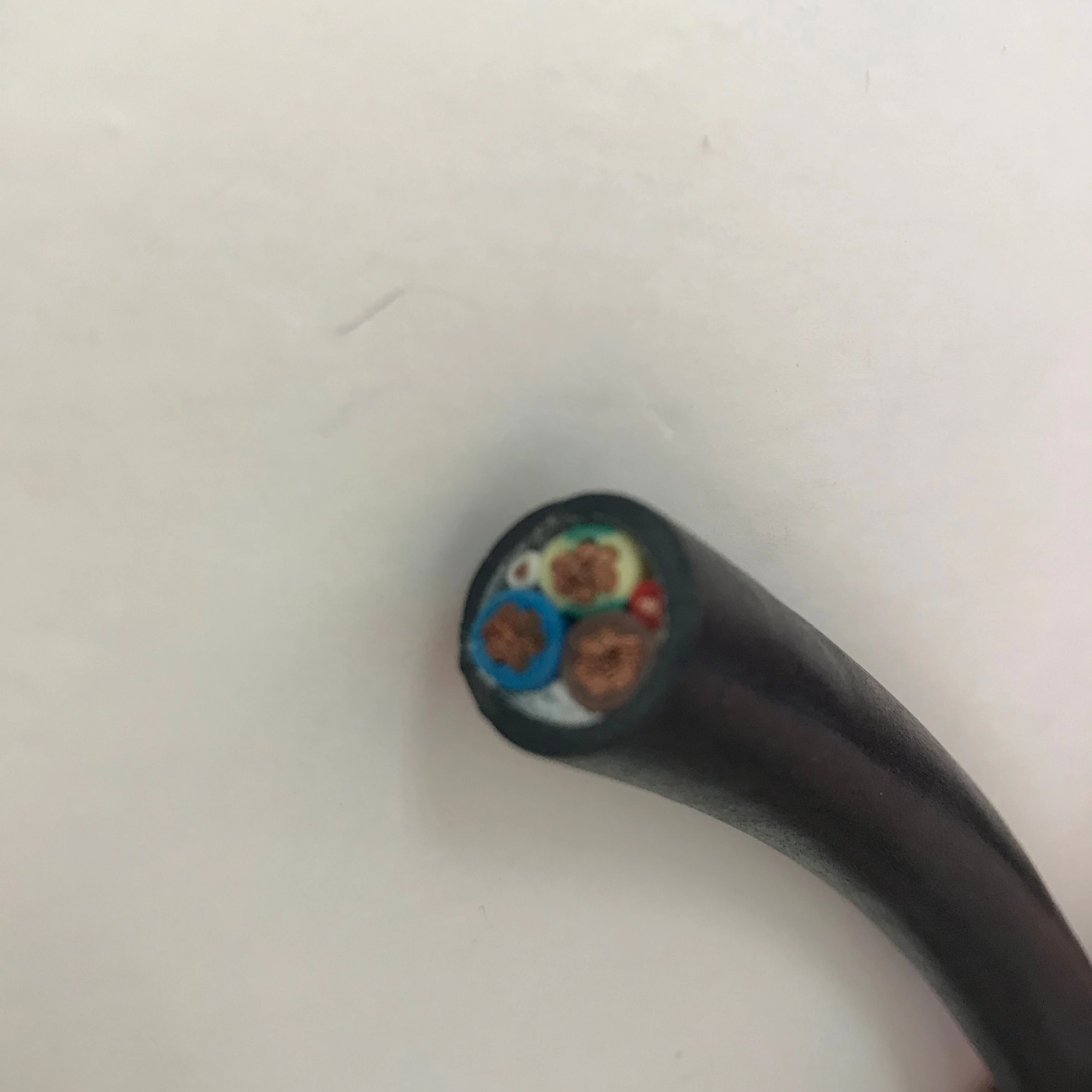

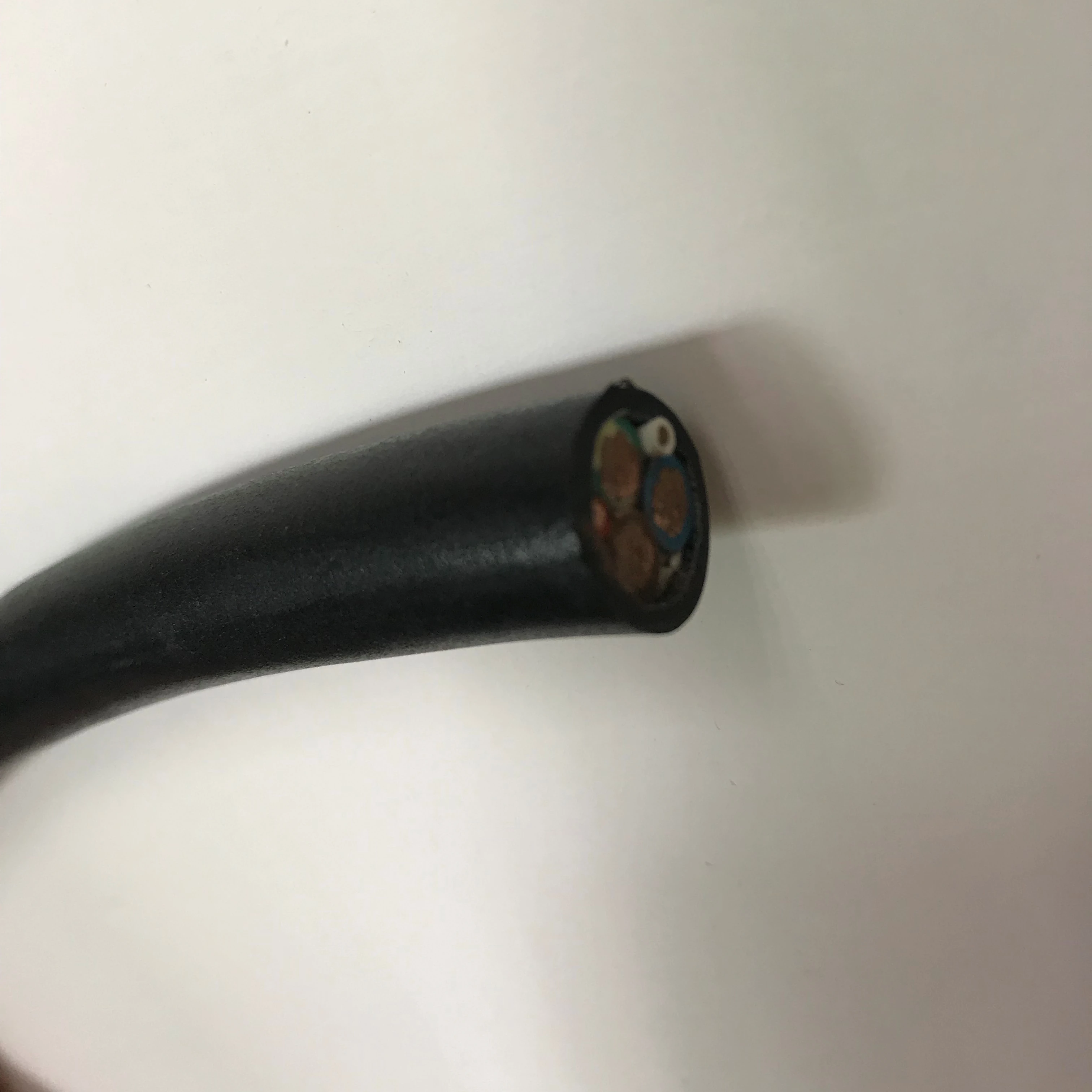

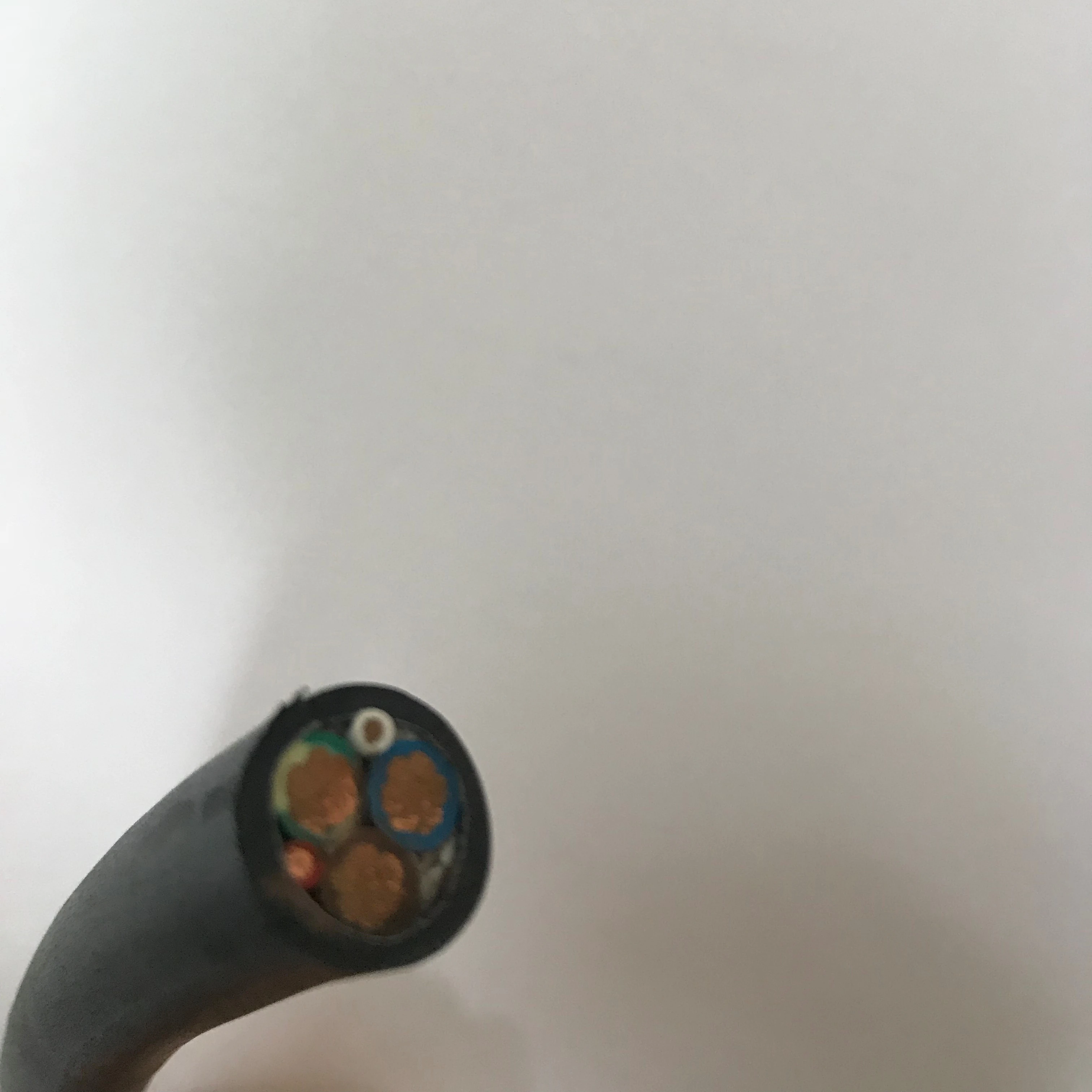

- TPE 3 core EV charging cable electrical wire with type 2
Product Description
Style | EVCZ5
| Unit A | Unit B | |
3G6mm2 | 2*0.5mm2 | |||
Conductor
| Material |
| Bare Copper | Bare Copper |
Construction |
| 196/0.20 | 26/0.16 | |
Stranded O.D. | mm | ≤3.4 | ≤1.0 | |
Insulation
| Material |
| EPR | EPR |
Diameter | mm | 4.8±0.20 | 1.8±0.10 | |
Nom./ Min.Thickness | mm | 0.7/0.53 | 0.4/0.33 | |
Wrapping | Material |
| Non-woven or paper Tape | |
Construction |
| 100% Coverage with 25% overlapping | ||
Filler | Material |
| PP or Hemp rope | |
|
|
|
| |
Jacket
| Material |
| TPU or TPE | |
Diameter | mm | 13.5±0.4 | ||
Nom./ Min.Thickness | mm | 1.2/0.92 | ||
Remark | ||||
Product Description
. Rated temperature & voltage: -40℃ ~ +90℃ 450/750V
. Bare copper stranded wire
. ERP insulation, Pass HF Standard
Unit A:C1:Yellow/Green (Strip 30~70%), C2: Blue,C3:Brown:
TPU Jacket: Black
Reference Standard
.EN 50620
Electrical Properties and Reliability Test
Item | Electrical Characteristics |
Insulation DC Resistance(min.) | 6.1M·km @ 20℃ |
Conductor Resistance(max.) /km @ 20℃ | 3.3(6mm2); 39.0 (0.5mm2); |
Dielectric Strength(kv/min) | 3.5AC/5 Minute, NO Breakdown |
Insulation Tensile Strength (135℃X168H) | Unaged: 8N/mm 2 Min. Aged: changed ratio is ±30% Max. |
Insulation Elongation (135℃X168H) |
Unaged: 200% Min. Aged: changed ratio is ±30% Max.
|
Jacket Tensile Strength (110℃X168H) | Unaged: 20N/mm 2 Min; Aged: changed ratio is ±30% Max. |
Jacket Elongation (110℃X168H) | Unaged: 300% Min. Aged: changed ratio is ±30% Max. |
Cold elongation Test | -40±2℃(insulation) Min.elongation at break:30% |
Pressure test at high temperature | 120℃±2℃/4h, 50% max.insulation 100℃±2℃/4h, 50% max.jacket |
Flame Test | Fire for 60 seconds, and Self-extinguish. |
Chemical resistance | EN 50620 AnnexD |
|
Company Information
Shenzhen Oversea Win Technology Co,. LTD was founded in 2007. Located in Guangming New District in Shenzhen. It is the company that specializes the developing producing and selling connector and wiring harness various electric couples connectors and wiring harness to provide the comprehensive connection technology solution for consumers.
WORKSHOP
EXHIBITION
Packaging & Shipping
FAQ
---Pls click here to get more infomation about us!
Q1:Are you a factory or trading company?
A: We are a factory
Q2: Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen city, Guangdong Province,China.
You can fly to Shenzhen airport directly.
All our clients,from home or abroad,are warmly welcome to visit us!
Q3:What’s the payment terms?
A:We accept T/T,L/C,Western Union,MoneyGram and so on.
Q4: What’s the transportation way?
A: By sea or by air. According to clients requirements.
Q5: How about your delivery time?
A: Generally, it will takes 7-14 days. The specific delivery time depends on the items and the quantity of your order.
Q6: What about your after sale service.
A: We will according to the international quality standards to inspect every products before delivery.
Q7: Can you provide samples? Are the samples free?
A: Yes,we can provide samples. Normally, we provide 1-3pcs free samples for test or quality checking. But you have to pay the shipping cost. If you need many items. Or need more qty for each item, we will charge for the samples.
Q8: Can you make customized products and customized packing?
A: Yes, all products can customized according to customer requirements.
About custom packing, we can put logo or other info on the packing box.
Q9: Can I become an Agent/Dealer of OWP products?
A: Welcome! But please let me know your Country/Area first, We will have a check and then talk about this. If you want any other kind of cooperation. Pls don’t hesitate to contact us.
Our Services
---Pls click here to get more infomation about us.
1. We will reply your inquiry within 24 hours.
2. T/T,Paypal,and Western Union payment terms all accepted.
3. Shipment:By air,By sea,By International express (DHL,Fedex,)
4. Delivery time:Normally 15 days after payment received.
5. Port of loading: Shenzhen
6. Guarantee Period: Within 12 months after shipment.
7. Provide operating guide (instruction)
8. Customized design,sample and packing according to clients requirements.
If have special request.
Any requirements or questions, welcome to “Send” us an e-mail Now!!!
It’s our great honor to do service for you! You also can get the FREE SAMPLES soon.
Похожие товары

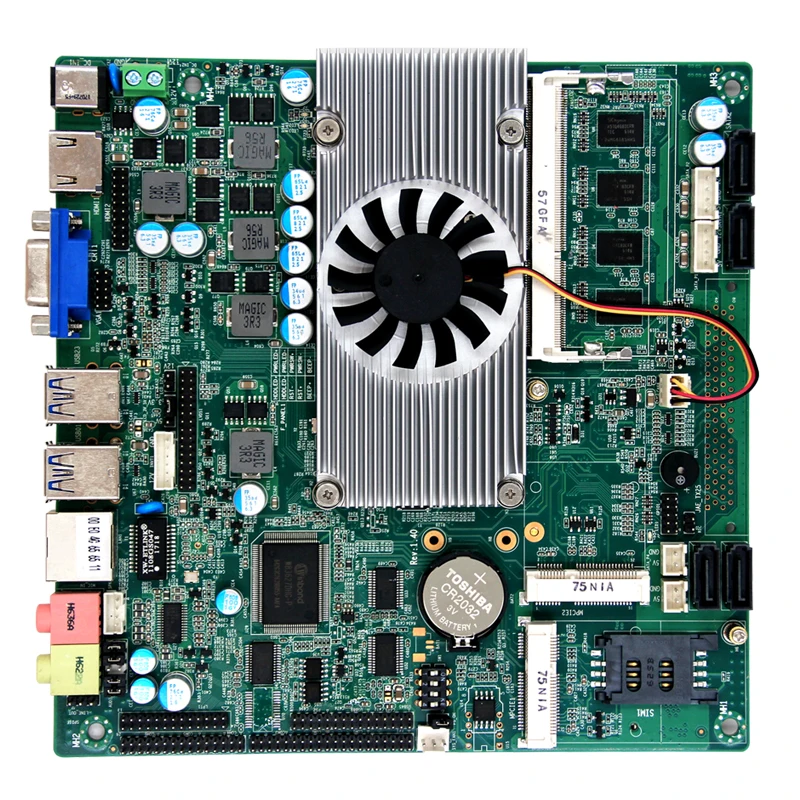

Intel HM76/HM77 чипсет i3/i5/i7 CPU материнская плата на борту DDR3 SODIMM 204 Socket Max поддержка 8GB DDR3 Ram
DDR3 4G 1066 МГц/1333 МГц/1600 МГц 1,5 в sodimm ноутбук оперативной памяти
11,00 $ - 11,10 $

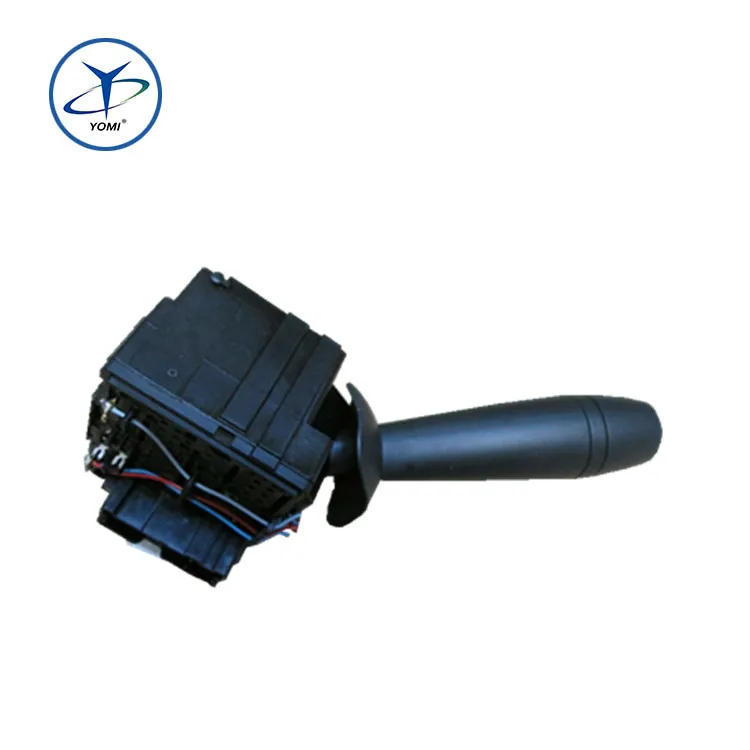

Переключатель рулевой колонки стеклоочистителя для Renault 251701
221,79 ₽ - 591,43 ₽

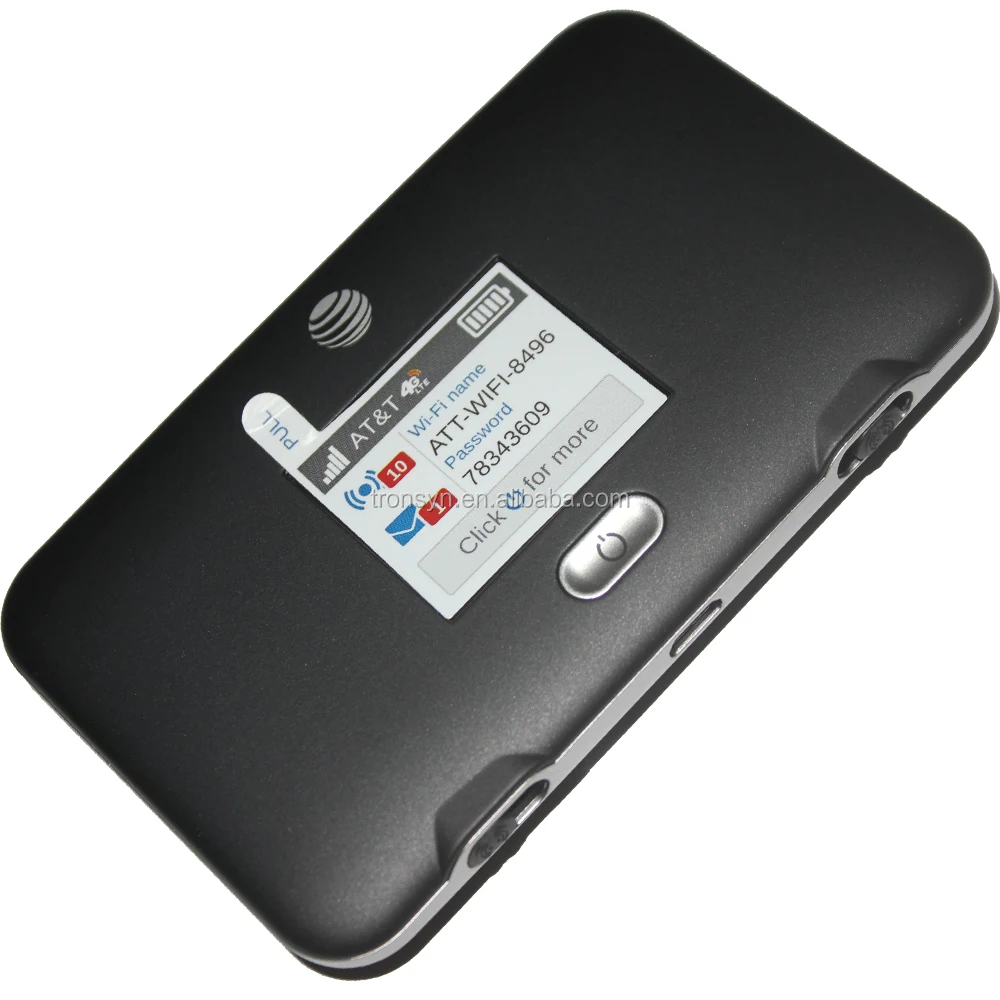

150 Мбит/с, Netgear Aircard AC779 779S маршрутизатор WiFi 4G с Sim-картой
28,00 $ - 50,00 $

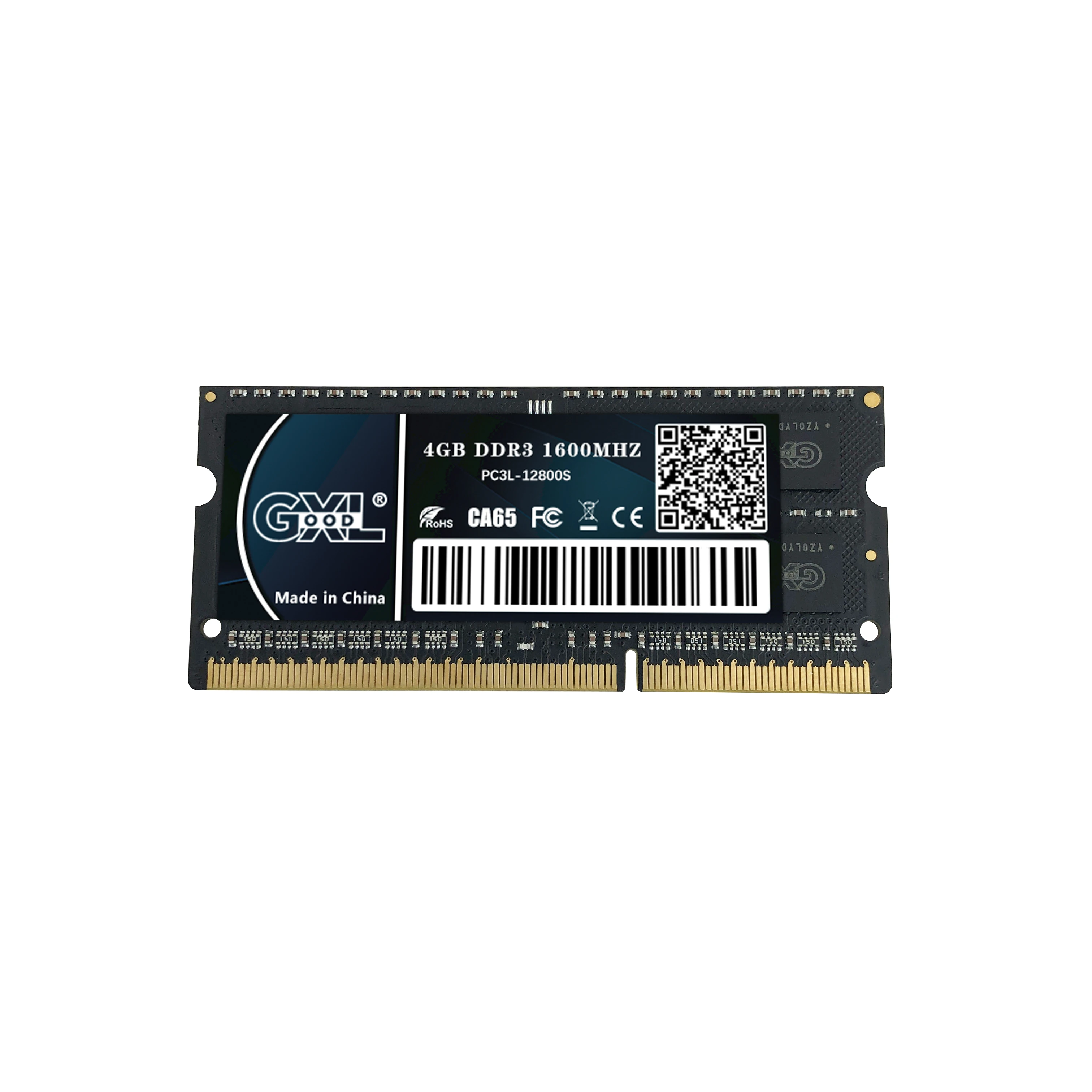

Золотая память SODIMM 204-pin 512*8 ddr3 8gb ram для ноутбука
