About Fluorocrystalline Mica

Fluorocrystalline mica, also known as fluorphlogopite mica, synthetic mica, artificial mica, synthetic mica crystal, belongs to the silicate type artificial mica crystal, is under the high temperature condition of 1500°C, through strict process conditions and material ratio, in platinum The mica crystals smelted in the yttrium have a chemical formula of KMg3(AISi3O10)F2(OH)-, and do not contain (OH)-. The (OH)-hydroxyl group is replaced by F-(fluoro), which is similar to the fluorite mica. Materials commonly used in the general industry are natural mica. Natural mica is an underground ore naturally formed and belongs to the class of silicates. Most of the industrial mica used is phlogopite (brown) and muscovite. Its ideal chemical formula is KAI2(AISi3O10)(OH)2. OH)-(Hydroxy), due to the presence of hydroxyl (water molecules), its performance in all aspects is far lower than that of fluorocrystalline mica.

The main characteristics of fluoride crystal mica:

1, high temperature: can work long-term in the 1100 °C environment.

The testing department of the Changchun Institute of Applied Chemistry, Chinese Academy of Sciences (nationally recognized testing institute) tested the thermal weight loss of 8% at 1100°C for 48 hours, and the melting and devitrification temperature was 1375°C.

2. Electrical insulation: The volume resistivity is 10 times higher than natural mica. Electrical breakdown strength is PTFE

Lean 10 times.

3, hot and cold blasting stability is very good

5 cycles of -40°C~70°C at the 5th Saibao Lab of the Ministry of Information Industry

Inspection, all qualified.

4, anti-corrosion:

Fluorophlogopite does not react with acid and alkali solutions, and does not react with water. Under the long-term (2 to 3 years) scouring of high-temperature and high-pressure water (including acid and alkali), the original clarity and transparency can still be maintained.

5, high frequency performance:

The dielectric constant of fluorite mica is 4.6 ε, and the dielectric loss is (1~4)×10 −4 tg δ, and the dielectric loss is very low. And because of the pure texture, all parameters are extremely stable.

6, optical properties

Since the fluorite mica contains less impurities, its light transmittance is compared from infrared to ultraviolet.

High, the transmittance is close to 100%.

7, Mosaic (Mosaicity):

The Mosaicite of fluorocrystalline mica is less than 0.25 degrees, which was produced in the experiment.

The neutron flame is not high enough to absorb multi-band light beams and is an ideal neutron monochromator test material.

8, vacuum deflation performance:

The evaporative volume of fluorite mica is low, and it is measured with a mass spectrometer and the trace gas released is only

O2, N2, Ar and other adsorbed gases. Since the H2O vapor is not released, this is extremely valuable for use as an electrical vacuum insulation material, which can greatly increase the service life of the vacuum device.

9, excellent physical properties:

Fluorocrystalline mica has atomicity flatness, transparency, separability and elasticity, not aging

It is not brittle and so on.

Due to the high temperature resistance, corrosion resistance, low frequency loss, and high bulk resistivity

Absorb multi-band light beam, excellent light transmittance and other advantages. Therefore it has become an ideal new material in the high-end area.

Fluorocrystalline mica Available in:

In the range of 180mm×53mm or 76mm, it can be processed into various shapes according to user requirements. Thickness within the range of 0.02mm~1.0mm can be allocated according to user requirements. The conventional thickness is 0.04~0.2mm.

Fluorine mica crystal product specification is introduced

Product’s Name:Fluorphlogopite Mica

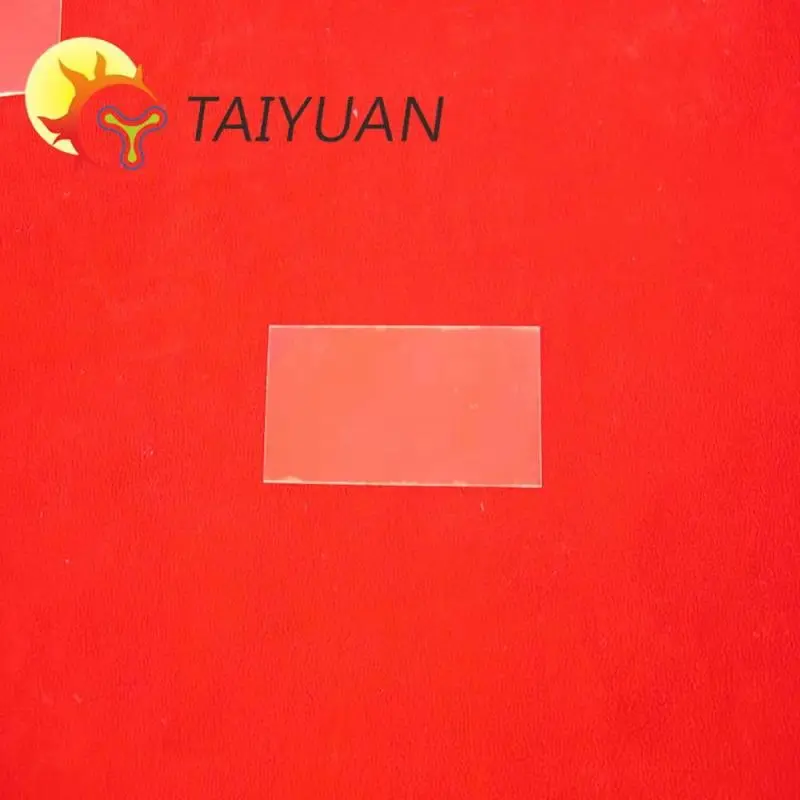

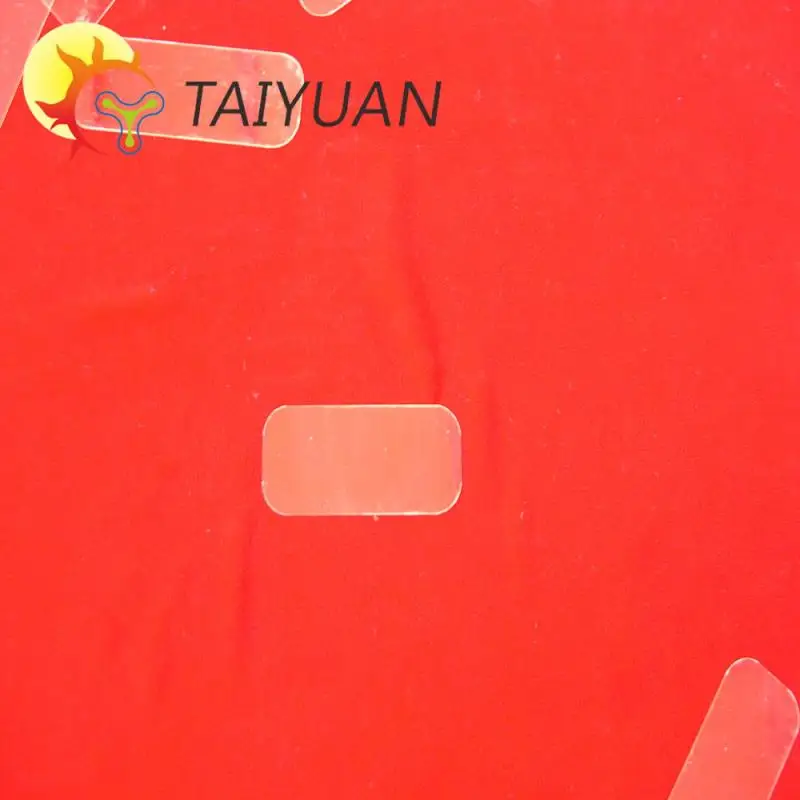

Specification:Rectangular

Length:The maximum size200 mm;The minimum size8 mm

Width:The maximum size53 mm;The minimum size8mm

Thickness:0.02mm-0.4mm

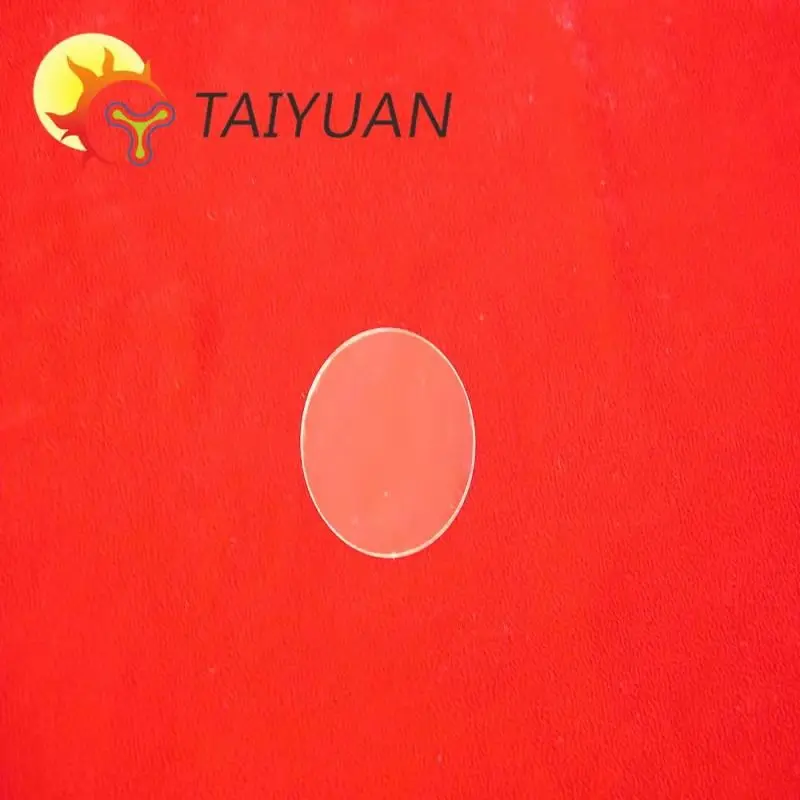

Specification:Circular The maximum size 75mm

            Circular The minimum size 5mm

According to your needs to the shape and size of processing in the largest size range

Conventional thickness of manufactured products for 0.2mm and 0.1mm, the thinnest thickness can be0.02mm.

Please tell me the size you need Specific size.

Price Terms:

The FOB price since the size of your order

Be responsible for inland transportation fees and other charges by your side.

Accept payment method: t/t or online bank transfer. All payment to account after the shipment.

Company:Changchun City Taiyuan Fluorphlogopite Co. Ltd.
Detailed Address:Jilin province Changchun city Shuangyang district The luxury of ridge changchun Cultural printing industry Development zone Nine ridge road No.777

PostCode:130000

Contact:zhangmeilin

Job title:The general manager

Telephone No:400-044-6077  0431-84160499

Fax No:0431-84160499

Mobile No:177 4311 6183 Micro letter synchronization

Website Address:www.tcyunmu.com(Chinese)

www. micaslice.com  (PC English)

micaslice.com  (mobile English )

www.micassheet.com(PC English)

Hello, thank you for your attention. Please add WeChat18843141343 for details.

The quality of our products is strictly inspected to ensure that we provide 100% qualified products. Customers can exchange goods if they have objections.

We use plastic packaging boxes for packaging and shipping by air.

Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.

Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.

Q3: Do you provide free samples ?
A3: Yes, We provide free samples.

Q4: How about the quality?
A4: We have the best professional engineer and strict QA and QC system.

Q5: Can we be your distributor?
A5: We are looking for distributor and agent all over the world.

Q6: How’s the package?
A6: Normally are cartons, but also we can pack it according to your requirements.

Q7: How’s the delivery time?
A7: It depends on the quantity you need, 1-25 days usually.
