Product Description

Product Application

2019 hot 4G LTE Router with wifi with SIM Card Slot can be used in Car

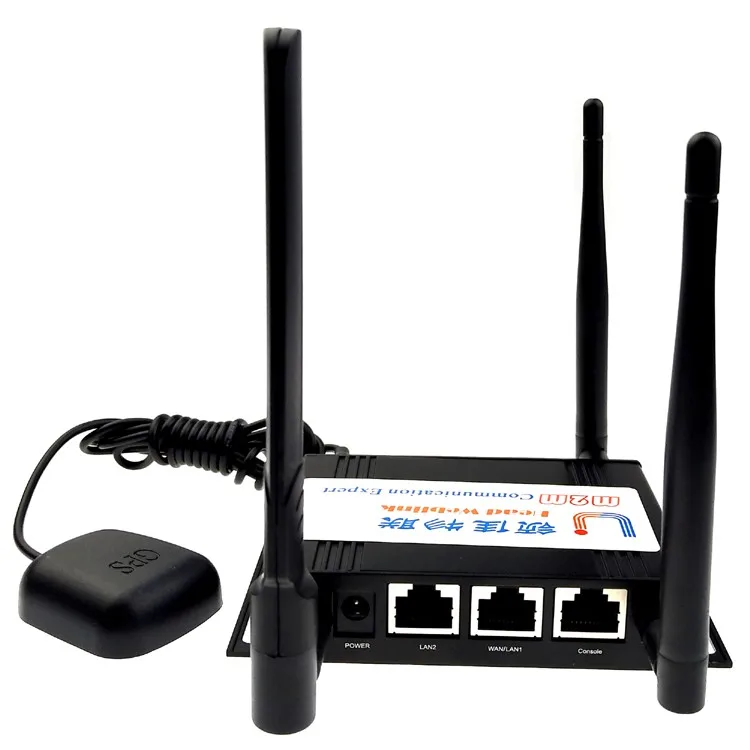

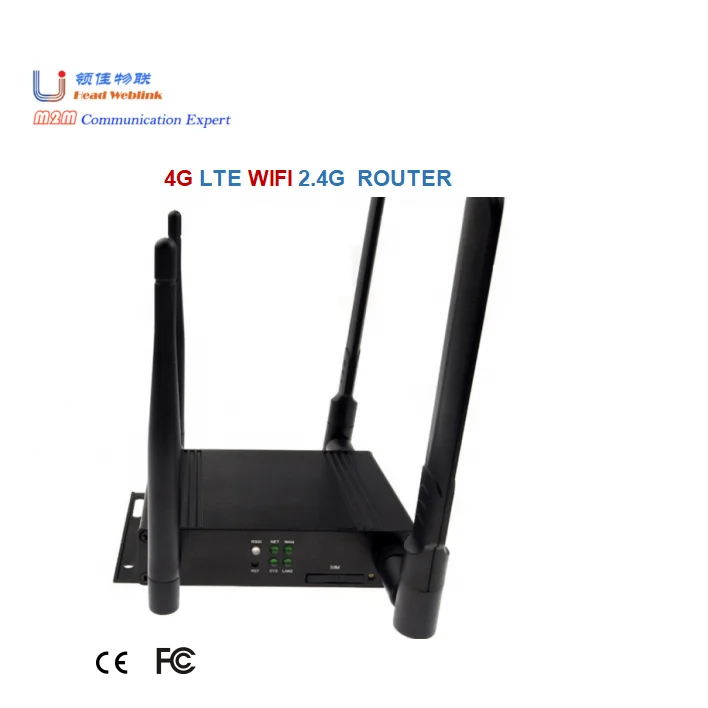

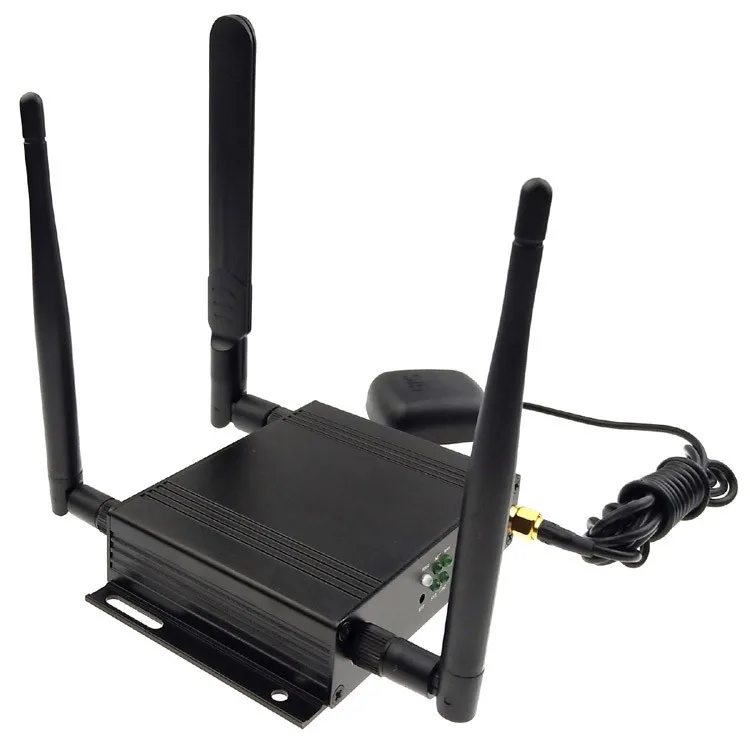

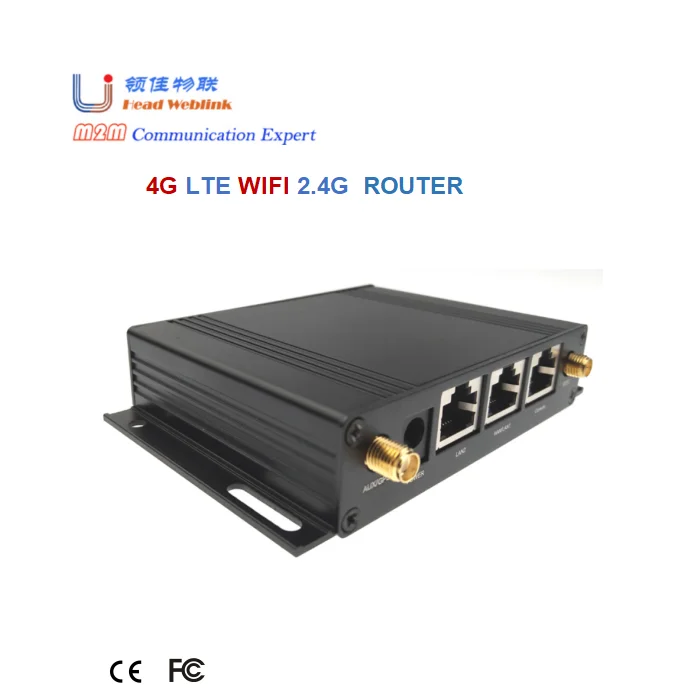

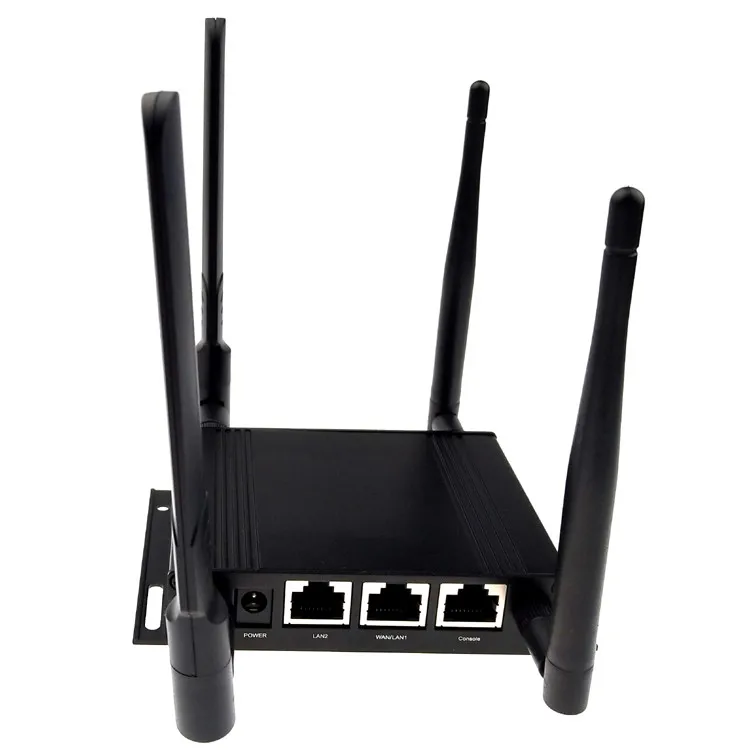

HDRM100 4G LTE Router

• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2 4G/WIFI MIMO antenna;
• Integrate 3G/4G LTE,WIFI,GPS feature;
• 1 WAN/1 LAN or 2 LAN ports, One console port;
• With SIM card slot;
• Wide power supply: +5V~+48V/1A
• Remote management platform;
• Firmware version: Linux or Openwrt;

2G/3G/4G Frequency bands:

Version C

LTE-FDD. B1,3,7,8

LTE-TDD.B38,39,40,41

WCDMA.900/2100MHz

TDSCDMA. band A and band B

GSM.900/1800MHz

Version CE.

LTE-FDD. B1,B3,B8

LTE-TDD.B38,B39,B40,B41

WCDMA.900/2100MHz

CDMA 1X/EVDO BC0 TDS

CDMA. B34,B39

GSM.900/1800MHz

Version E.

LTE-FDD. B1,3,7,8,20

LTE-TDD.B38,40

WCDMA.900/2100MHz

GSM.900/1800MHz

Version A.

LTE-FDD. B2,4,5,17

WCDMA.850/1900MHz

Version SA.

LTE-FDD. B1/B3/B4/B5/B7/B8/B28

LTE-TDD B38/B40/B41

UMTS/HSDPA/HSPA+ B1/B2/B5/B8

GSM/GPRS/EDGE B2/B3/B5/B8

Version JC

LTE FDD. B1,B3,B8,B18,B19
LTE TDD. B41

UMTS. B1,B6,B8

GSM. 900/1800MHz

Version JE

LTE FDD. B1,B8

UMTS. B1,B8

GSM. 900/1800MHz

Future question you can contact my Skype or WhatsApp: +8618565785009;

\t Item	\t Product specification
\t CPU	\t MTK7628
\t MEMORY	\t FLASH 16MByte, DDR2 64MByte
\t Embedded system	\t Linux or Openwrt
\t Network	\t FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X
\t WIFI	\t WIFI 802.11 b/g/n, 300Mbps
\t Data rate	\t 4g: CAT 3, DL 100bps , UL 50Mbps ( Or CAT 4 DL 150Mbps , UL 50Mbps) WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps GPRS DL/UL 85.6Kbps
\t WIFI Tx Power	\t 14 dBm(11g),17 dBm(11b),14dBm(11n)
\t WIFI Rx Sensitivity	\t <-70 dBm@54Mpbs
\t 2G/3G/4G Transmitting Power	\t GSM/GPRS: Class 4 (2W): GSM850,EGSM900 Class 1 (1W): DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE: Class 3 (0.25W)
\t GPS	\t GPS/GLONASS, Protocol: NMEA
\t WIFI Frequency	\t 2.4G

\t Item	\t Product specification
\t Hardware interface	\t 2*LAN 10/100Mbps, Console port(Be used as DTU, is available to connect serial devices)
\t RF connectors	\t SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω
\t Security Encryption	\t Support WEP,WPA,WPA2 encryption ways
\t Protocol	\t PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH, Open VPN,SNMP
\t LED Indicator	\t "SYS", "Net", "WAN", "LAN",RSSI
\t SIM/UIM	\t Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection
\t Key button	\t Reset
\t Standard Power	\t DC 12V/1A
\t Power Supply	\t DC 5~48V
\t Working current	\t 2A (Max Current)
\t Temperature	\t Operating Temperature -40~+75ºC Storage Temperature -45~+85ºC
\t Environment humidty	\t 95%
\t Case	\t Aluminum Alloy Shell
\t Size	\t 115mm73mm20mm
\t Weight	\t 160g

Main Features

The application fields of HDRM100 4G cover every IoT industry field in each aspect, Such as: Smart Home,Finance,Transport,Security,Environmental protection,Military,Agriculture,Forestry,Water,Coal Mine and Petrochemical and so on. HDRM1004G adopts the high performance professional router chipset and 4G wireless module. It is based on embedded real-time operating system as software support platform, meanwhile provides a console port (DTU), an Ethernet WAN port and a LAN port. It can connect serial devices,Ethernet devices and WiFi devices at the same time. It has accomplished wireless communication,WiFi function and Ethernet router function, with transparent data transmission.

Compare with Old Indoor Router(HDRM1004G):

\t No.	\t Item	\t New Indoor Router(HDRM100)	\t Old Indoor Router(HDRM1004G)
\t 1	\t Size	\t 1157323mm	\t 1349023mm
\t 2	\t Memory	\t Memory ,(Flash 16MB, DDR2: 64MB)	\t Memory: Flash 8MB, DDR2:64MB
\t 3	\t CPU	\t MTK 7628	\t MTK 7620
\t 4	\t Dual backups system	\t There is a dual backup, if the upgrade fails, the reset can restore the previous system version	\t Unique backup
\t 5	\t WIFI and 4G 2.4G band interference and congestion	\t WIFI 2.4G and 4G B38 band without interference, to solve the problem of WIFI congestion	\t WIFI 2.4G and 4G 2.4G interference, WIFI congestion problem is not resolved
\t 6	\t WIFI	\t Dual WIFI antenna, support 300Mbps	\t Single WIFI antenna, support 150Mbps
\t 7	\t Low temperature performance	\t Support low temperature start, support -40 ℃	\t Not support
\t 8	\t GPS	\t Yes, support for transmission to the specified server, you can set the transmission time	\t Not support
\t 9	\t B42,B43	\t Support, need to custom-made	\t Not support
\t 10	\t Input Voltage	\t 5V~48V	\t 5V~24V
\t 11	\t OpenWRT	\t Function more and stable	\t Imperfect function
\t 12	\t Operating temperature	\t -40℃~+75℃	\t -30℃~+70℃
