INTRODUCTION:

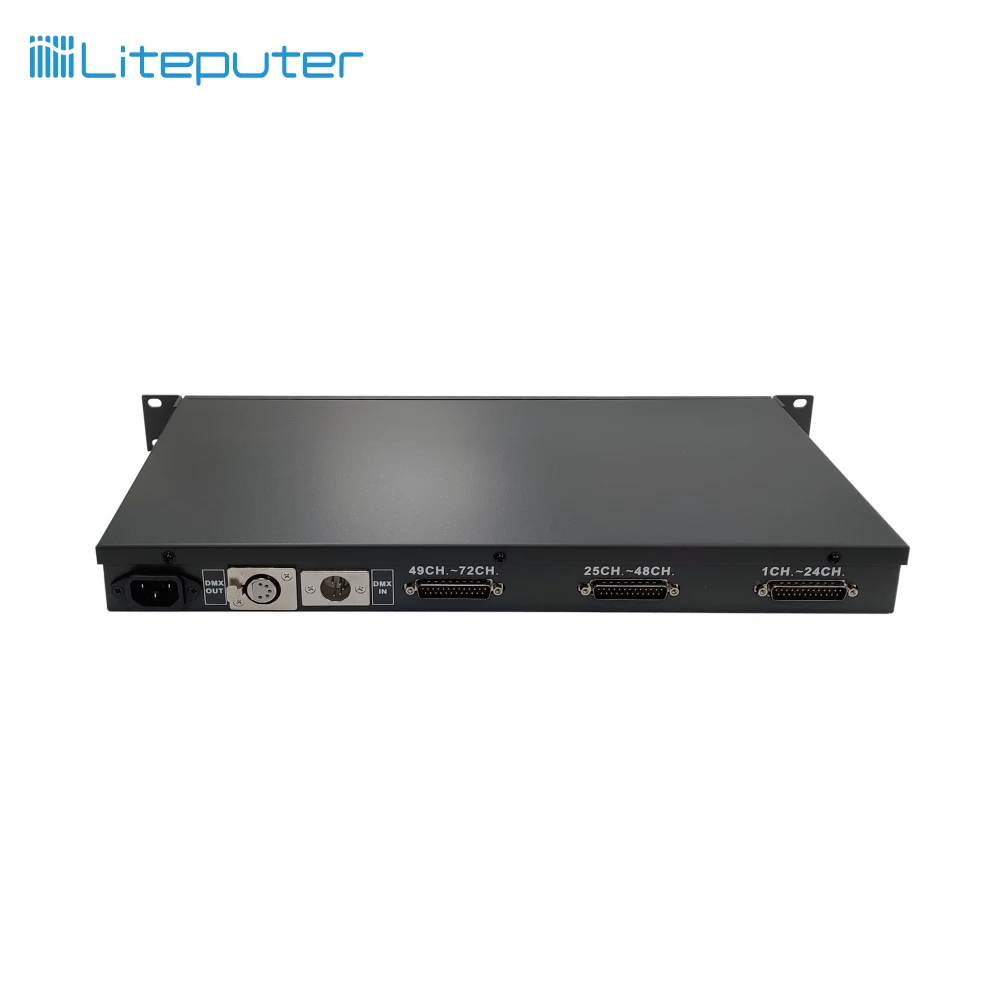

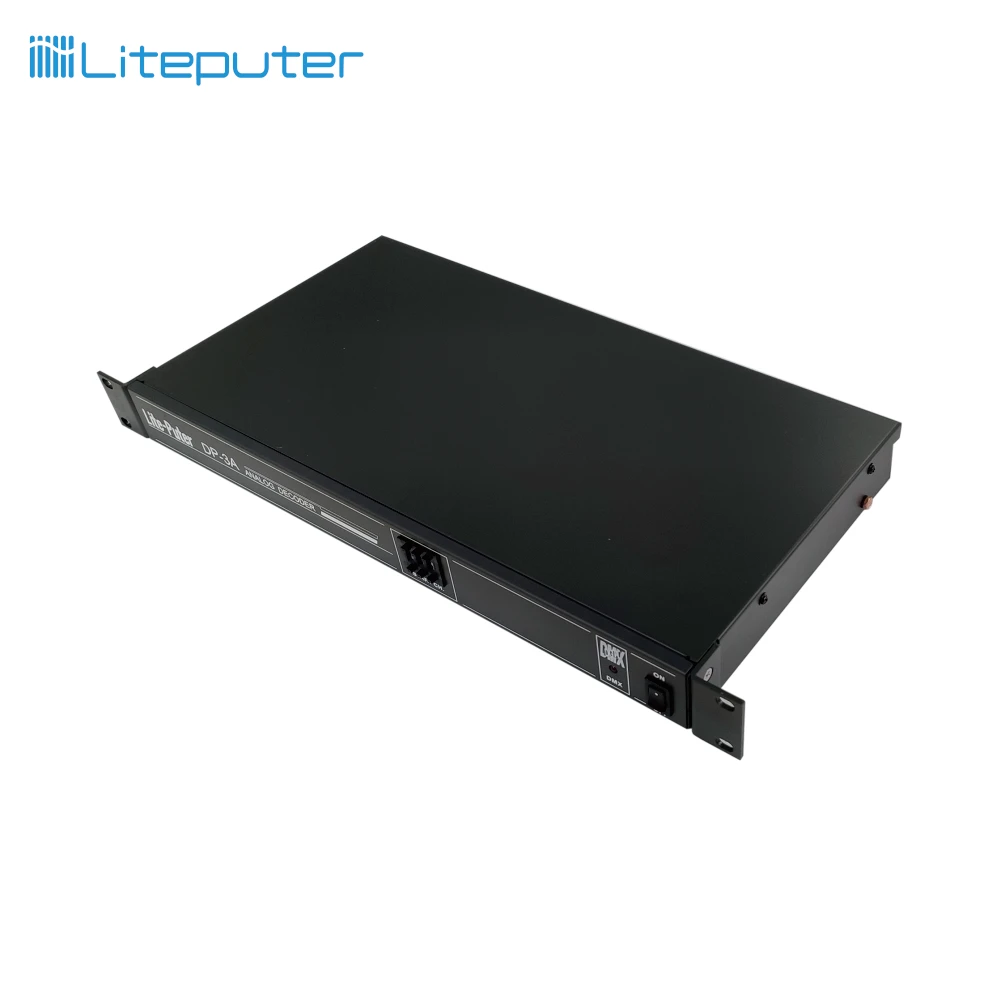

DP-3A is a DMX / Analog decoder. This new updated version is ideal and reliable for stage performance. It decodes the signals from DMX to Analog. This way, the user can use a DMX console with Analog power packs.

SPECIFICATIONS:

• AC Power input:100-240V AC. (see specification label on machine.)
• Analog output:0-10V DC.
• 72ch. Output. (analog dc 0-10v)

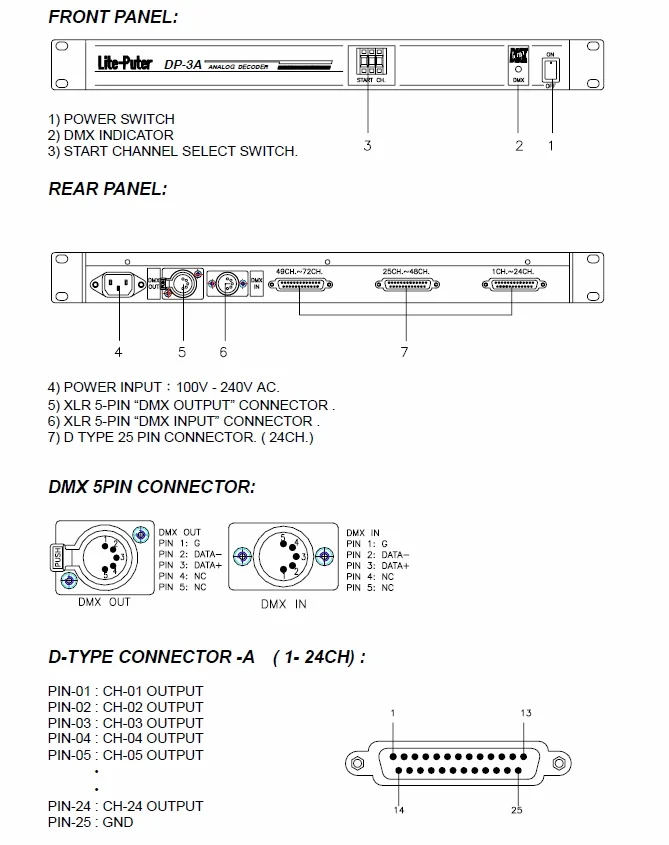

• 5 pin XLR connector for DMX-512.
• 25 pin d type connector for analog output.
• Dimension:482 x 44 x 240 mm (W.H.D.)
• Weight: 2.7kg.

OPERATION:

• Connect 5 pin XLR connector cable from your DMX console to the input connector socket of the DP-3A.

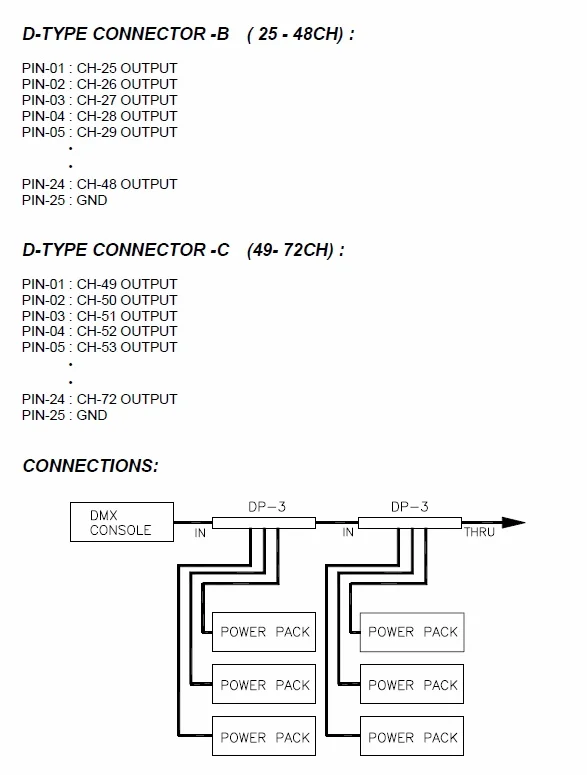

• Connect a 25 pin signal cable from the appropriate 25 pin D-TYPE connector on the DP-3A to the appropriate power pack.
• A distributor cable is required if the power pack is less than 24 channels, or more than 1 power pack is used to connect with the 24 channel signal cable.
• If more than one DP-3A is required (when more than 72 channels are used), connect a 5 pin XLR connector cable from ”out” (thru) connector mount to the next DP-3A’s “in” connector mount.
• Select the appropriate start up number on the switch for that particular DP-3A. The start up number will be same DMX channel number first used for that particular DP-3A.

• See examples below.
• START UP NUMBER.............................................................DMX CHANNEL
• 001...........................................................................................CH 1. – CH 72.
• 010...........................................................................................CH 10. – CH 81.
• 440...........................................................................................CH 440. – CH 512.
