Выпуклые сварочные позиционеры комплект для подголовника и хвостового стока
13 500,00 $
15 т Автоматический Сварочный позиционер с подшипником коробки передач двигателя для сварки трубы или фланца
- Категория: >>>
- Поставщик: Wuxi Datang Welding & Cutting Mechanical Equipment Co. Ltd.Wuxi Ltd.
Сохранить в закладки 62022140429:
Описание и отзывы
Характеристики

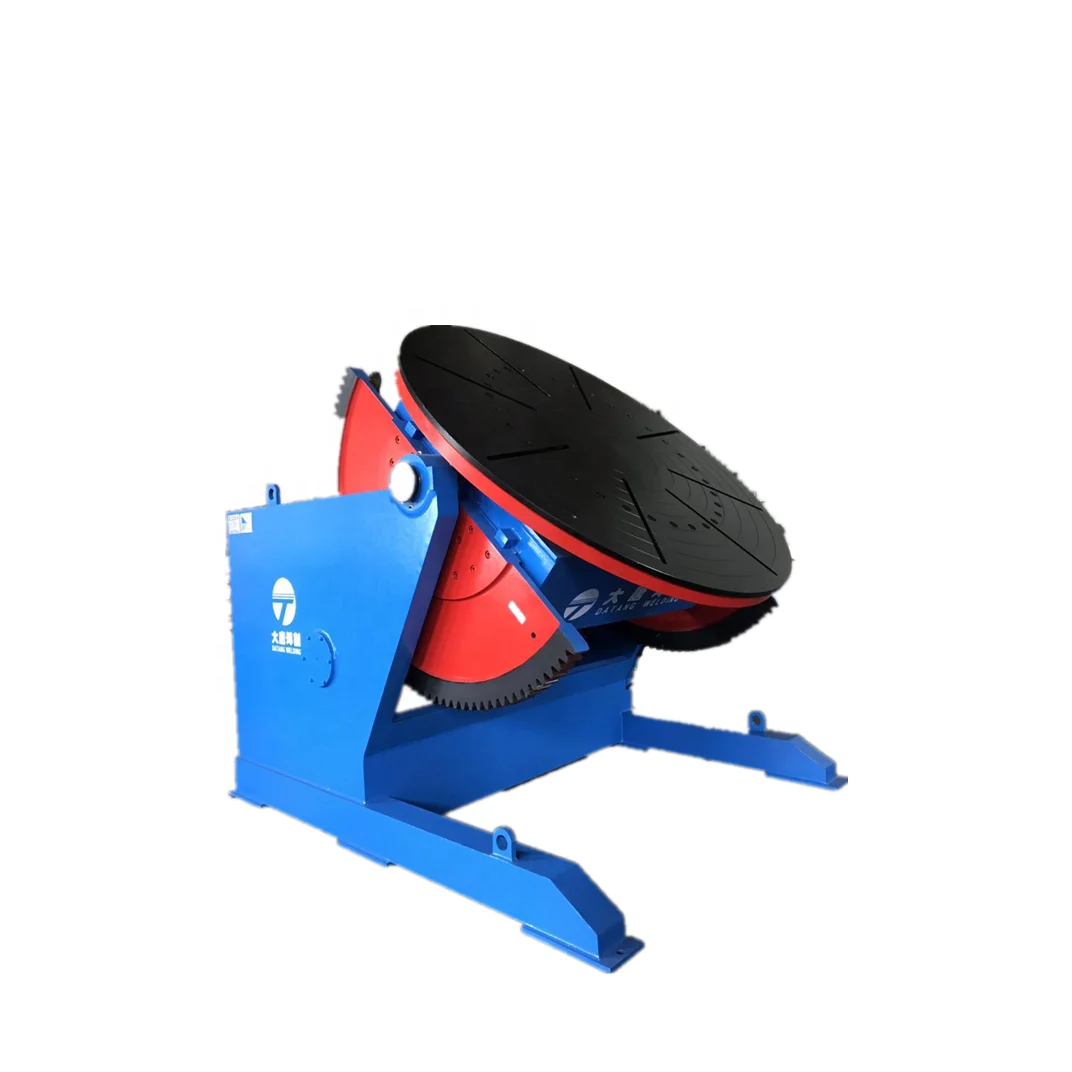

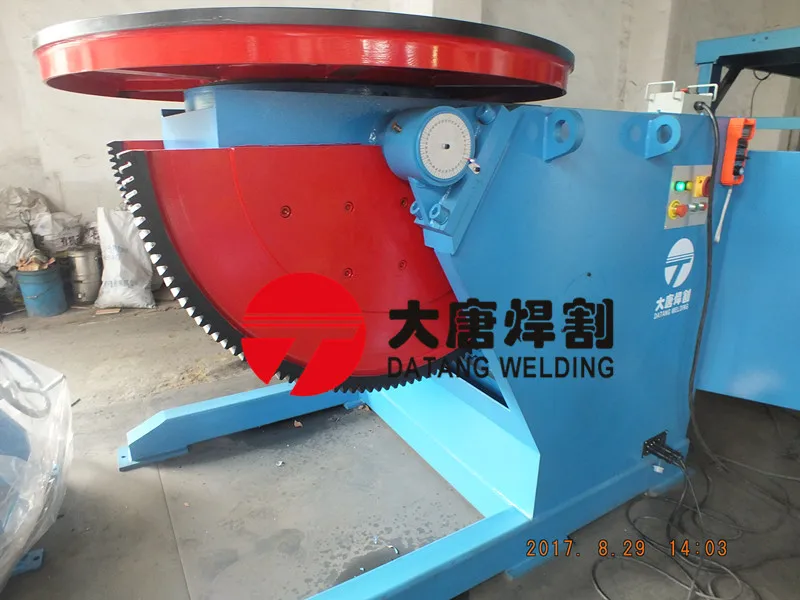

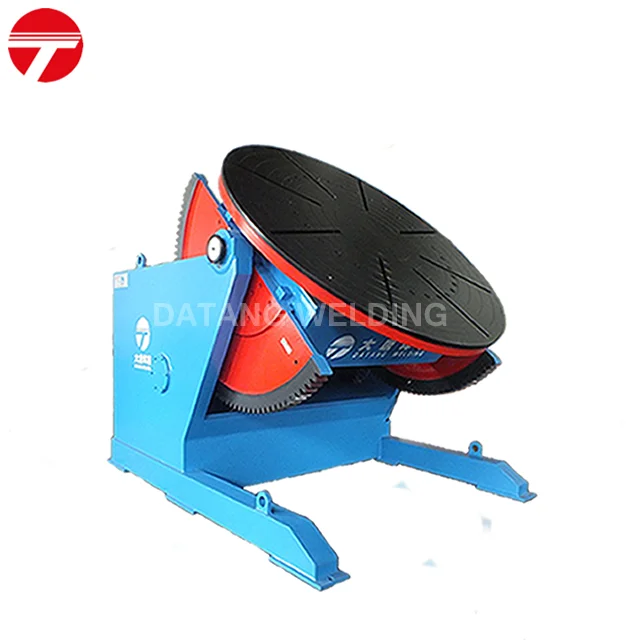

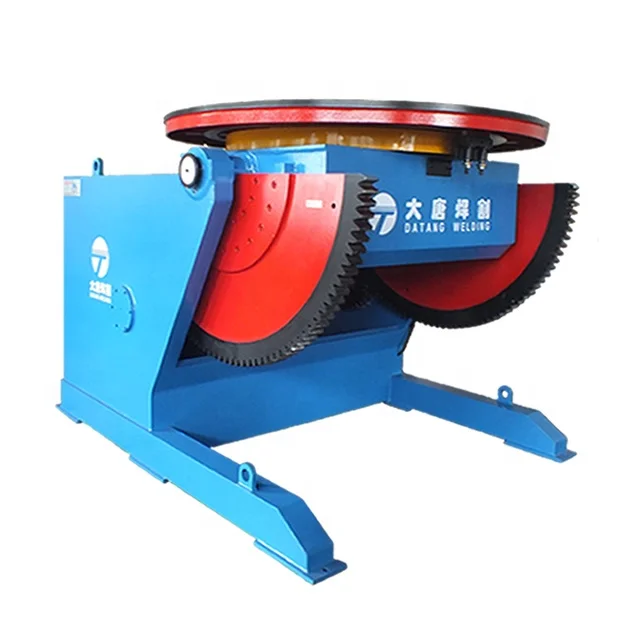

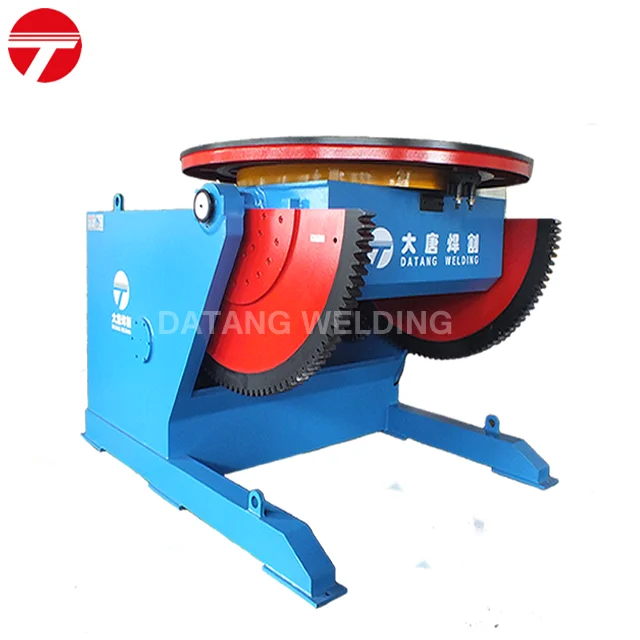

Welding Positioner
Welding positioner is mainly composed of worktable revolving unit and tilting unit. Work-piece fixed on the worktable can be placed to ideal position by elevating the worktable. Speed of worktable revolving is frequency conversion stepless to achieve satisfactory welding speed.
For the reason of eccentric-distance and gravity-center-distance. Slightly higher model should be selected for longer work-piece and work-pieces which gravity-center has greater offset. If standard welding positioner can not meet requirement for all work-pieces.,please be sure to offer us shape, weight and machining technology of work-piece, so we can design suitable proposal
for your choice.
For the reason of eccentric-distance and gravity-center-distance. Slightly higher model should be selected for longer work-piece and work-pieces which gravity-center has greater offset. If standard welding positioner can not meet requirement for all work-pieces.,please be sure to offer us shape, weight and machining technology of work-piece, so we can design suitable proposal
for your choice.
TechnicalParamete | Model | ||||||||||||||||
HB05 | HB1 | HB3 | HB6 | HB12 | HB30 | HB50 | HB100 | HB150 | |||||||||
Rated loading (Kg) | 50 | 100 | 300 | 600 | 1200 | 3000 | 5000 | 10000 | 15000 | ||||||||
Max eccenteric Distance (mm) | 50 | 100 | 200 | 200 | 250 | ||||||||||||
Max distance of Gravity center (mm) | 150 | 200 | 300 | 400 | 500 | ||||||||||||
Worktable size (mm) | Φ300 | Φ400 | Φ600 | Φ1000 | Φ1200 | Φ1400 | Φ1500 | Φ1800 | Φ2000 | ||||||||
Tilting angle (°) | 0°~+90° | 0°~+120° | |||||||||||||||
Rotating speed (rpm) | 0.4~4 | 0.12~1.2 | 0.1~1 | 0.05~0.5 | 0.03~0.3 | ||||||||||||
Rotating Power (Kw) | 0.09 | 0.18 | 0.18 | 0.75 | 0.75 | 1.5 | 2.2 | 3 | 4 | ||||||||
Tilting speed (rpm) | 0.8 | 0.5 | 0.3 | 0.14 | |||||||||||||
Tilting Power ( kw ) . | 0.75 | 1.1 | 2.2 | 3 | 4 | 5.5 | |||||||||||
Speed adjusting way | Rotating speed VFD | ||||||||||||||||
Tilting speed constant | |||||||||||||||||
Easy Operate
![]()
Welding positioner with tilting and rotating function, which can make Work piece mounted on the worktable to ideal position for welding or assembling
Precise Positioning
Worktable rotating speed by VFD
(inverter)to achieve satisfactory
welding speed.
Custom design
![]()
For the reason of eccentric-distance and
gravity-center-distance, longer work pieces and bigger gravity-center work pieces should choose large models. If standard welding positioner cannot meet the jobs, please contact us for special design.
gravity-center-distance, longer work pieces and bigger gravity-center work pieces should choose large models. If standard welding positioner cannot meet the jobs, please contact us for special design.
FAQ
1,Customer:Can your machines be customized?
We: Yes,we have a professional design team.If you have any special requirements,we can customize for you.
2,Customer:How does your factory do regarding quality control?
We:Quality is priority,we always attach great importance to quality controlling from the very beginning to the very end.
3,Customer:What about the packing ?
We:Usually we use wooden case,container or as per customers' requirements.
4,Customer:What about the transportation?
We:We usually take seaway because it is convenient and cheap.Also we can take train,it is
up to the destination.
5,Customer:What about the warranty?
We:Our company's machines are all of high-quality.And our products' warranty is 1 year.
We: Yes,we have a professional design team.If you have any special requirements,we can customize for you.
2,Customer:How does your factory do regarding quality control?
We:Quality is priority,we always attach great importance to quality controlling from the very beginning to the very end.
3,Customer:What about the packing ?
We:Usually we use wooden case,container or as per customers' requirements.
4,Customer:What about the transportation?
We:We usually take seaway because it is convenient and cheap.Also we can take train,it is
up to the destination.
5,Customer:What about the warranty?
We:Our company's machines are all of high-quality.And our products' warranty is 1 year.
