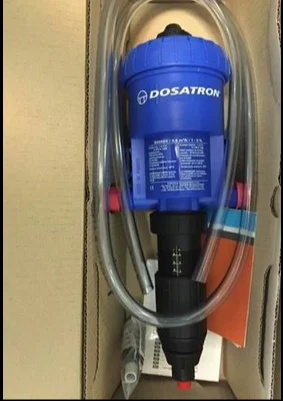

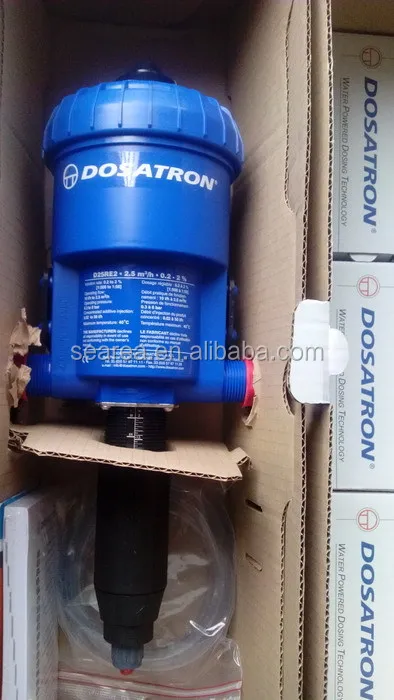

WATER POWERED DOSING D25RE2 Dosatron
A unique technology associating all dosing functions Dosing Technique: Non-electric proportional Energy Source: Water flow and pressure Integrated functions: - Metering: volumetric hydraulic motor - Injecting: continuous proportional injection of liquid or soluble concentrate - Regulating: proportionality servo-controlled by the water flow - Mixing: integrated mixing

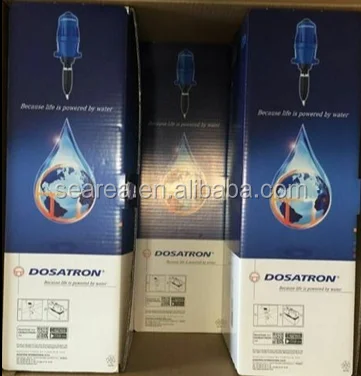

Package contents: 1 Dosatron, 1 wall bracket, 1 Suction tube 175 cm [69”], 1 Owner’s manual



SPECIFICATIONS
Injection Range: 0.07 – 10 %
[1 : 1500 - 1 : 10]
Water flow range*: 10 l/h - 2.5 m3 /h**
[0.16 l/mn - 41.66 l/mn] [1/3 US Pint/min - 11 US GPM]
Operating pressure: 0.3 - 6 bar** [4.3 PSI - 85 PSI]
Concentrated additive injection: 0.007 - 200 l/h
[0.004 US Fl oz/min – 0.88 US GPM]
*For other fluids than water, please contact us
