EDUP Hot Sales 2.4GHz 5W EP-AB003 WiFi Booster Signal Amplifier With YP242034

Model No EP-AB003

amplifier
RF Output Power: 39dBm(8W)
Frequency: 2400-2500Mhz
IEEE 802.11b/g/n
Working Voltage:6-18VDC,12V/2V

Specification of amplifier :

1. Brand new and high quality.
2. Low-noise receive gain.
3. Signal activity LED indicates
4. High Gain, High Value, High Performance.
5. Maximum output power of 8000mW by the Booster.
6. Plug-and-play, Easy installation, no driver needed.
7. Ideal for increase the 2400-2500Mhz frequency devices.
8. Increase the effective range and coverage area of your Wi-Fi network.
9. Simply attach the booster in between the standard antenna on a wireless router or wireless access point and watch your range grow.
10. The amplified wireless signal may even penetrate complex environments with many walls and obstacles.
11. Ideal for use with 2.4GHz Wireless LANs, Support 802.11b, 802.11g, 802.11n (2.4Ghz mode only).
12. NOTE: The item need connect with the Access Point Router together ,then it can work and the Access Point Router is NOT included.

Description of amplifier :

1. Operation Range: 2400-2500 MHz.
2. Operation Mode: Bi-directional, half-duplex, Auto-Switching via carrier sensing.
3. Frequency Response: ± 1dB over operation range.
4. Input Power: 3dBm (Min.)-20dBm (Max.).
5. Input Power 5 ~ 20 dBm.
6. Optimal Input Power 9 ~ 13 dBm.
7. Output Power: 8000mW/39dBm nominal for 802.11b/11Mbps.
8. Connector: SMA Receptacle, 50 ohm.
9. Transmit Gain: 17dBm nominal.
10. Receiver Gain: 11dBm.
11. Receive Noise Figure: 3.0dBm nominal.
12. Operating Temperature: -40 to 70 degree.
13. Operating Humidity: Up to 95% relative humidity.
14. Material: Cast Aluminum.
15. Size:10.3cm x 7.7cm x 2.1cm
16. Weight: 785g

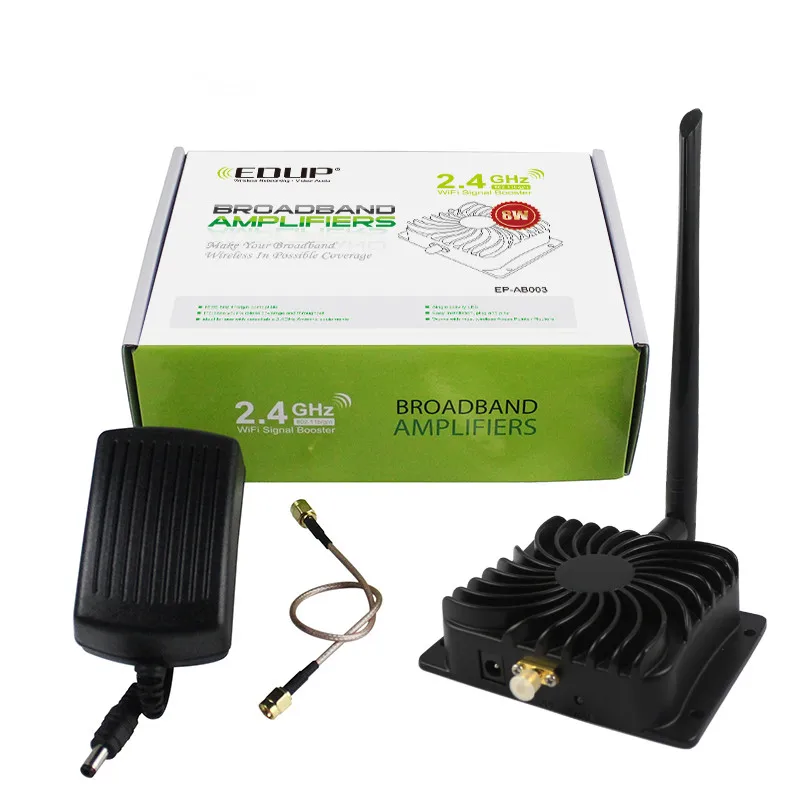

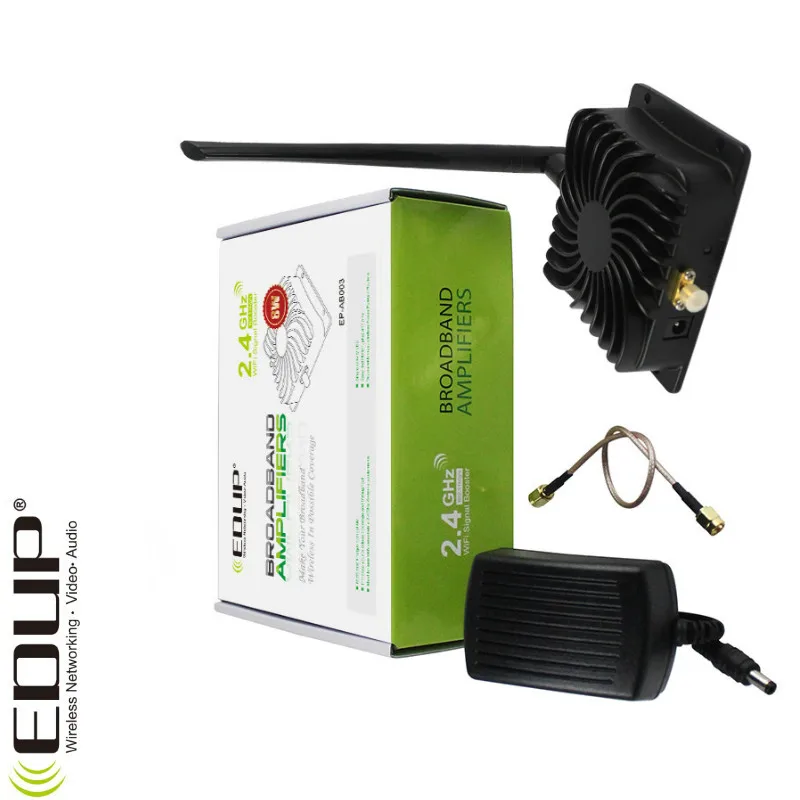

Package of amplifier :

1 x Booster
1 x Power plug
1 x SMA cable
1 x 6Dbi antenna

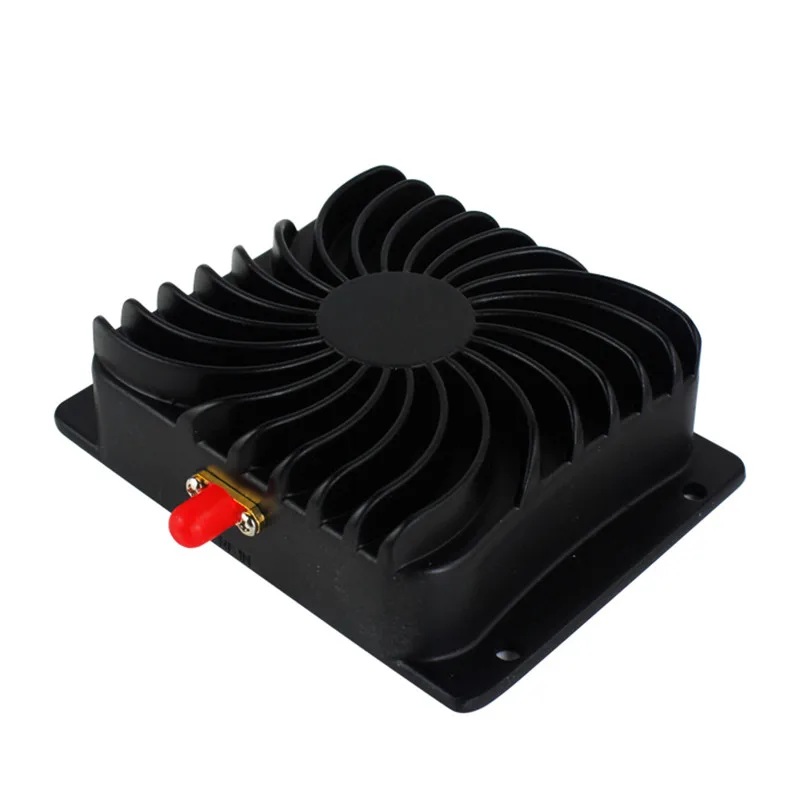

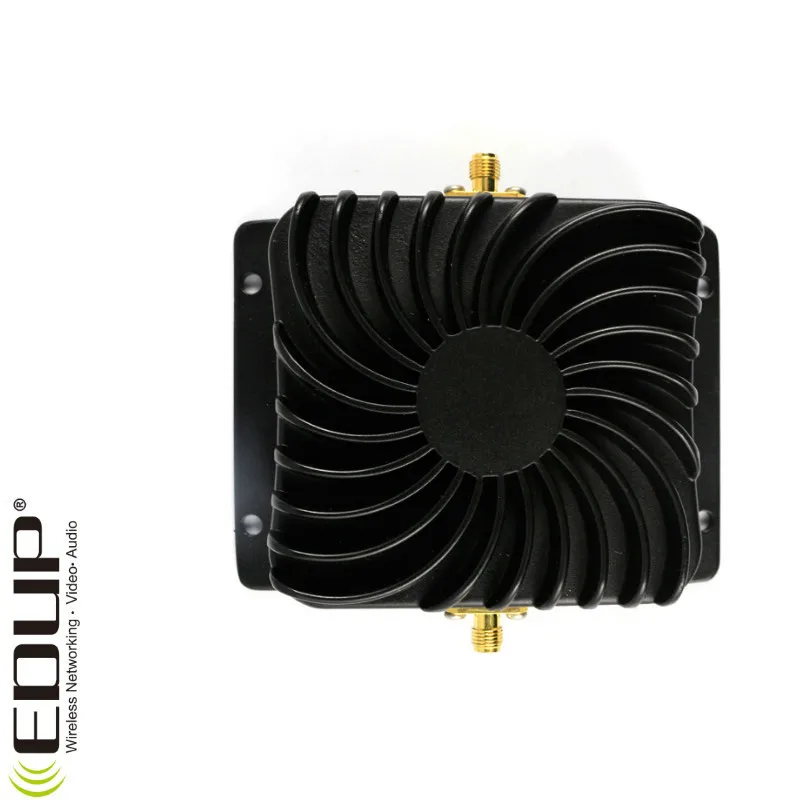

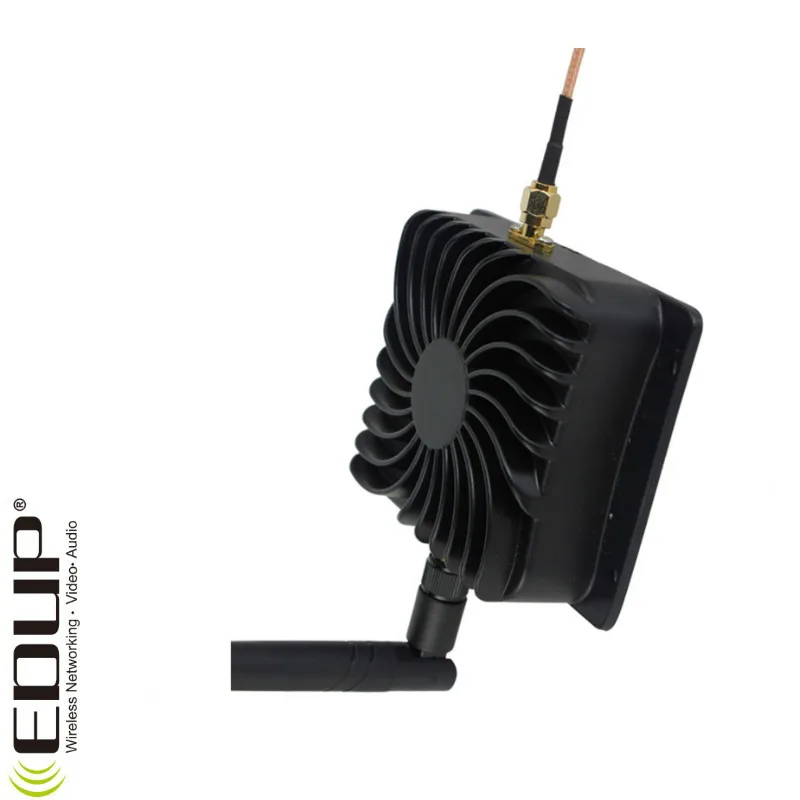

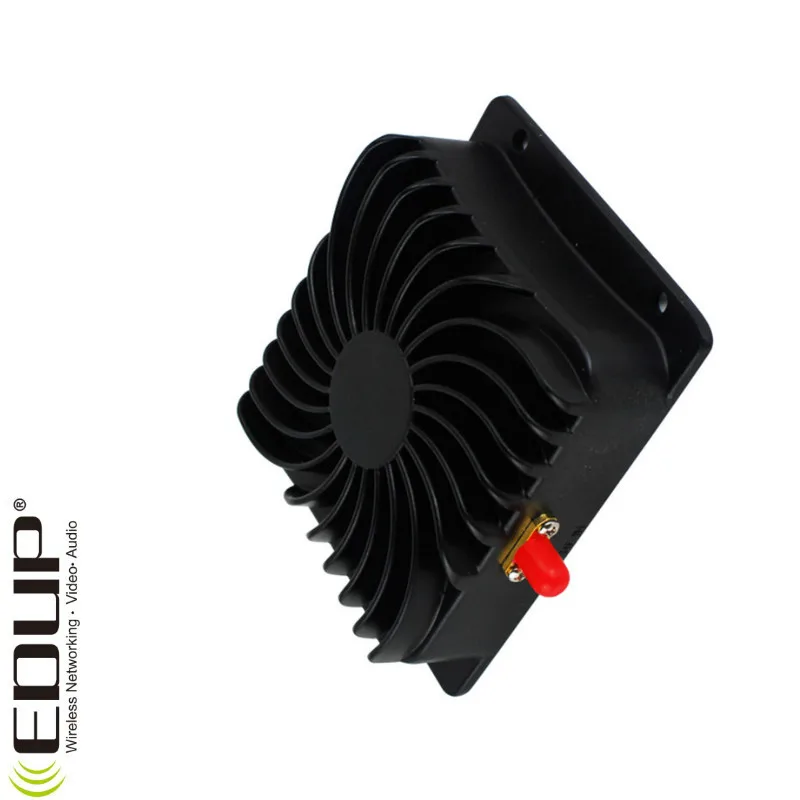

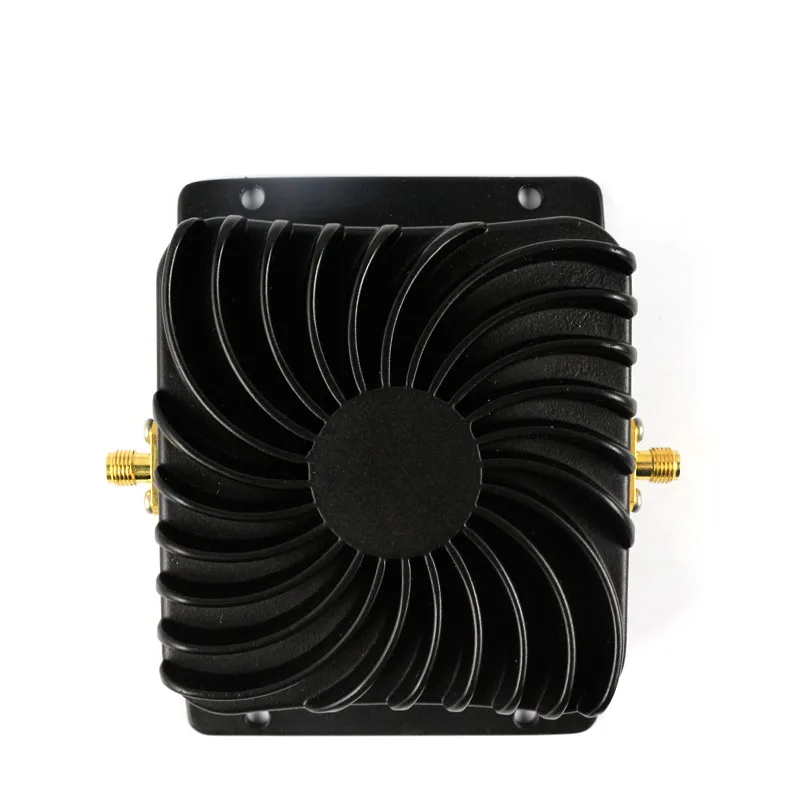

Product pictures of amplifier :
