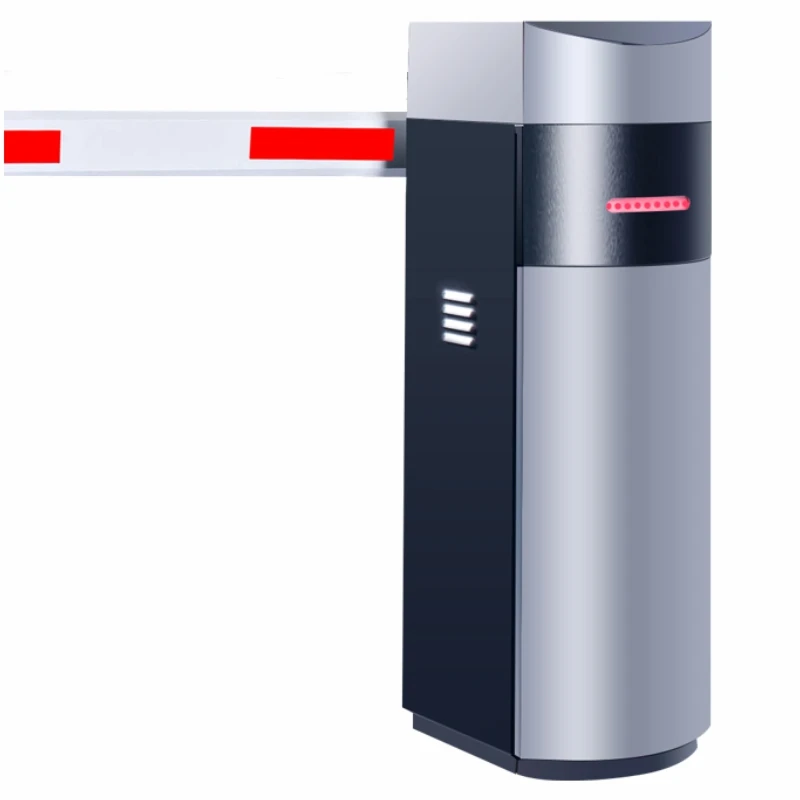

Автоматическая интеллектуальная система парковки автомобилей с бесщеточным двигателем 24 В постоянного тока барьерные ворота со светодиодной стрелой и регулируемой

Автоматическая интеллектуальная система парковки автомобилей с бесщеточным двигателем 24 В постоянного тока барьерные ворота со светодиодной стрелой и регулируемой

Категория: >>>
Поставщик: Shenzhen Thinkpark Technology Co. Ltd.

Цена:26 434,97 ₽ - 31 829,86 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

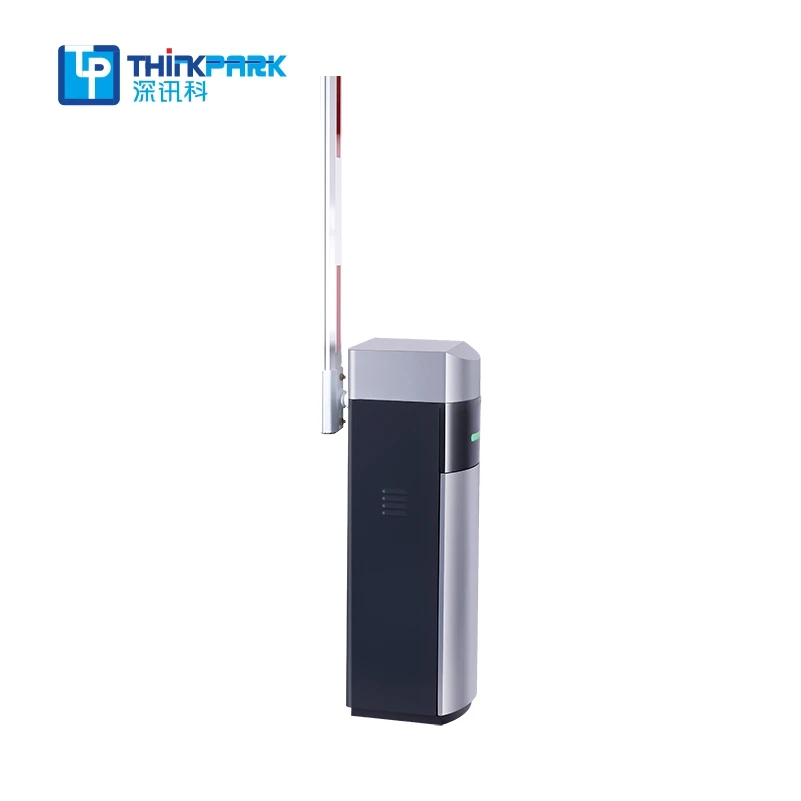

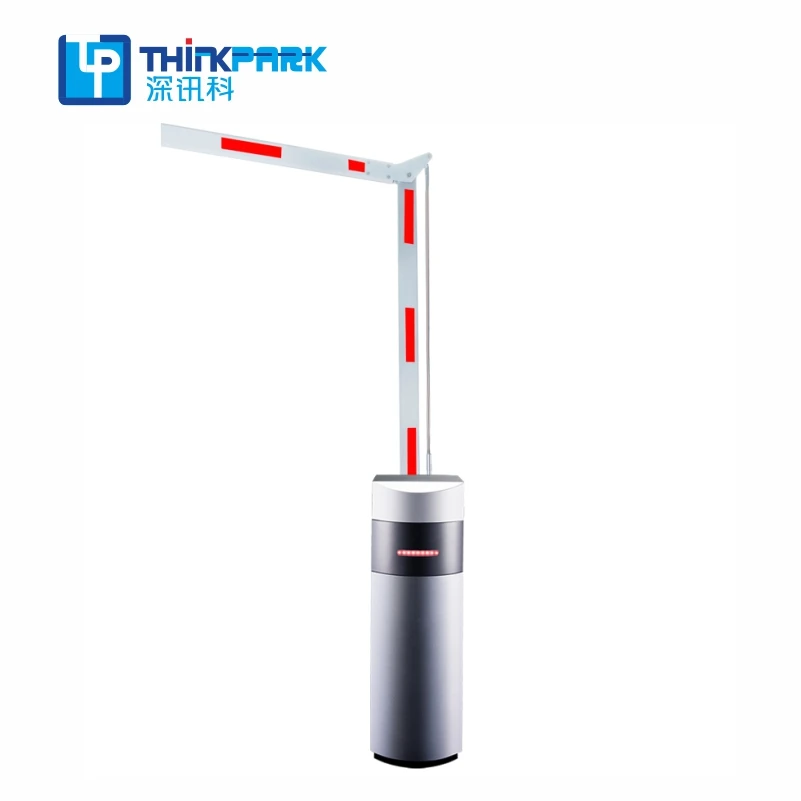

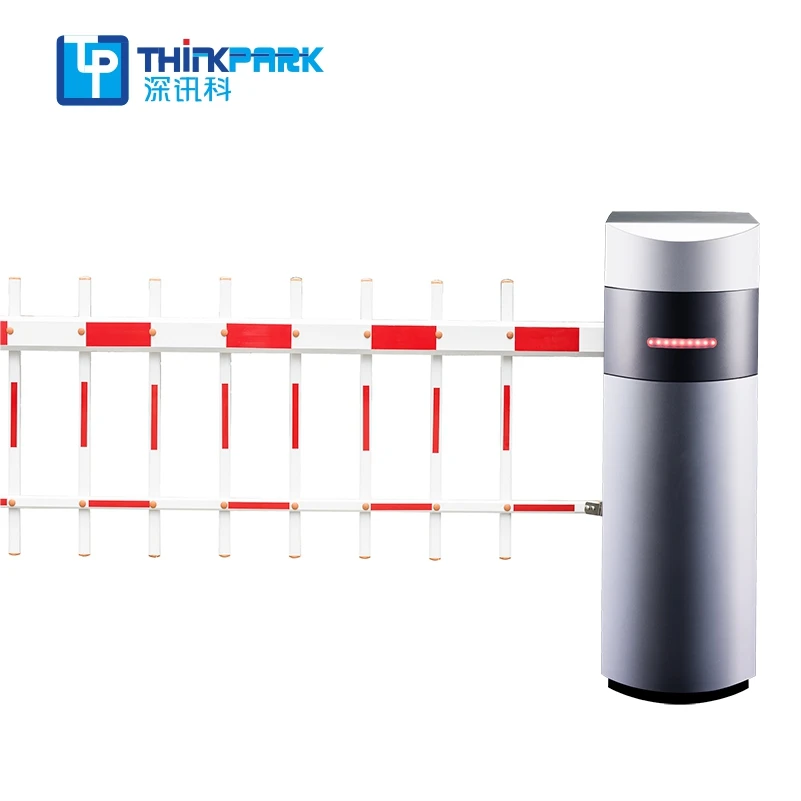

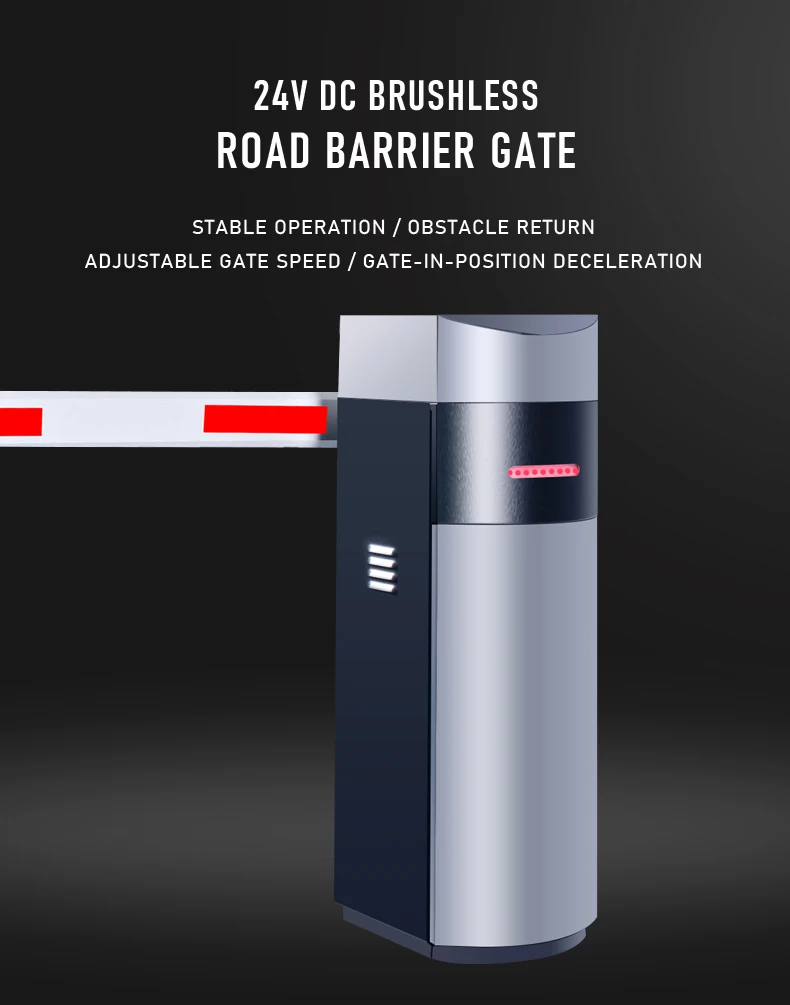

Automatic 24V DC Brushless Motor LED Boom Barrier Gate with Speed Adjustable

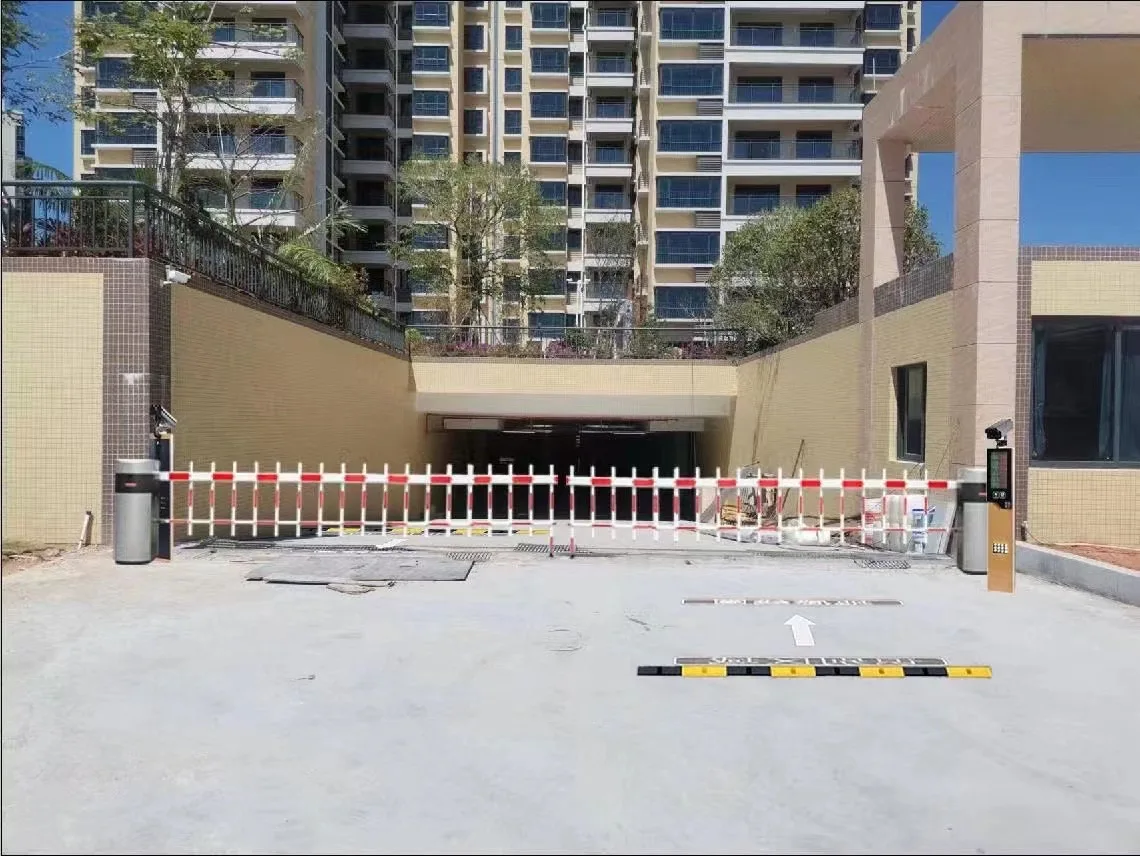

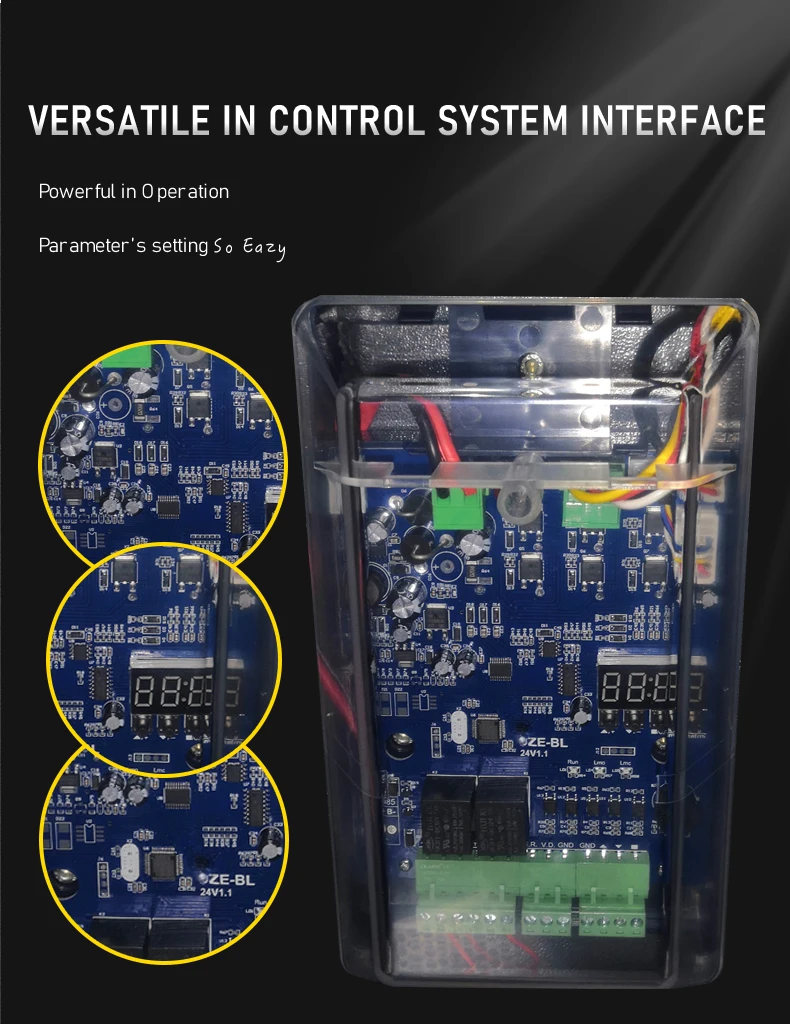

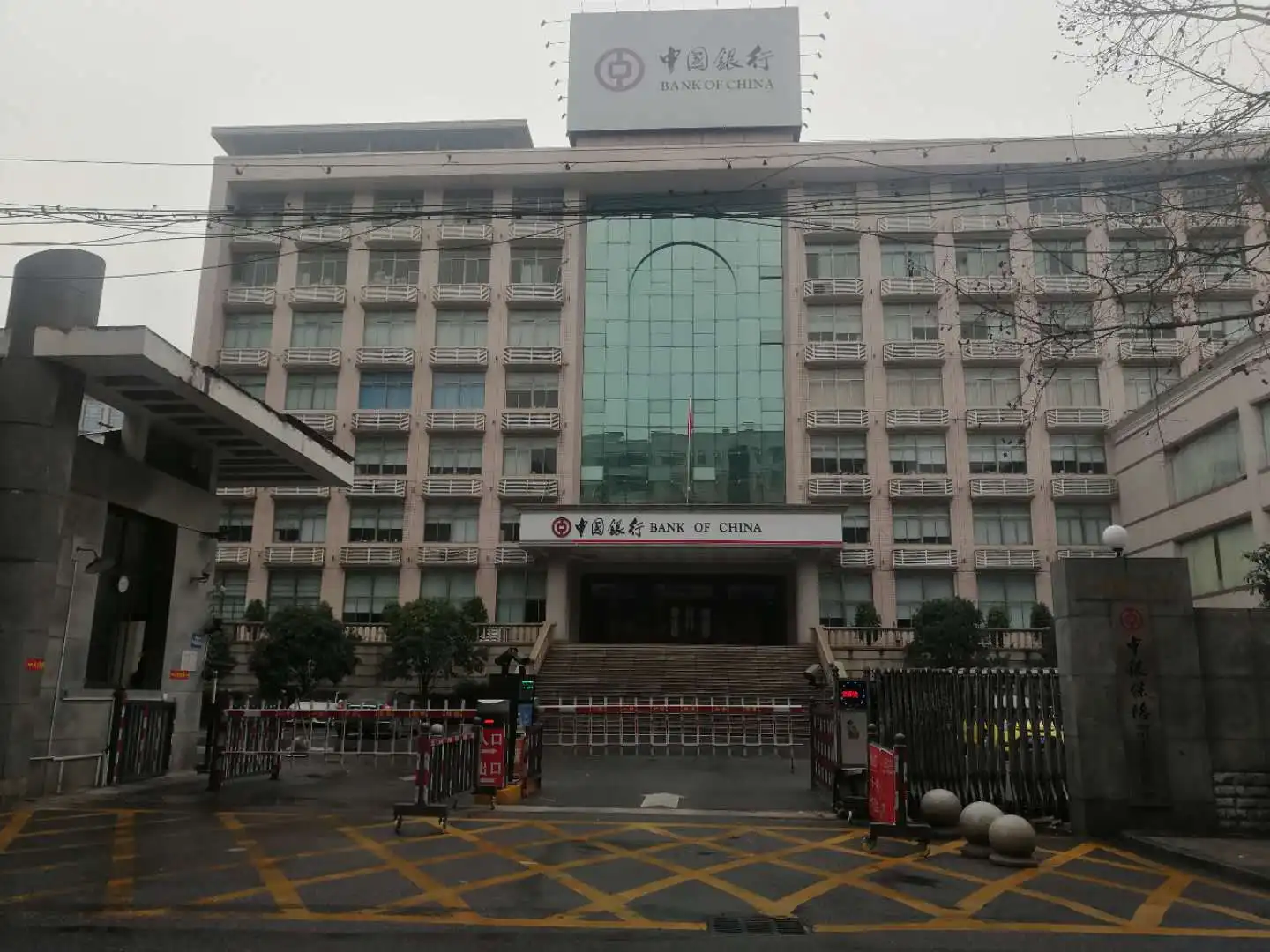

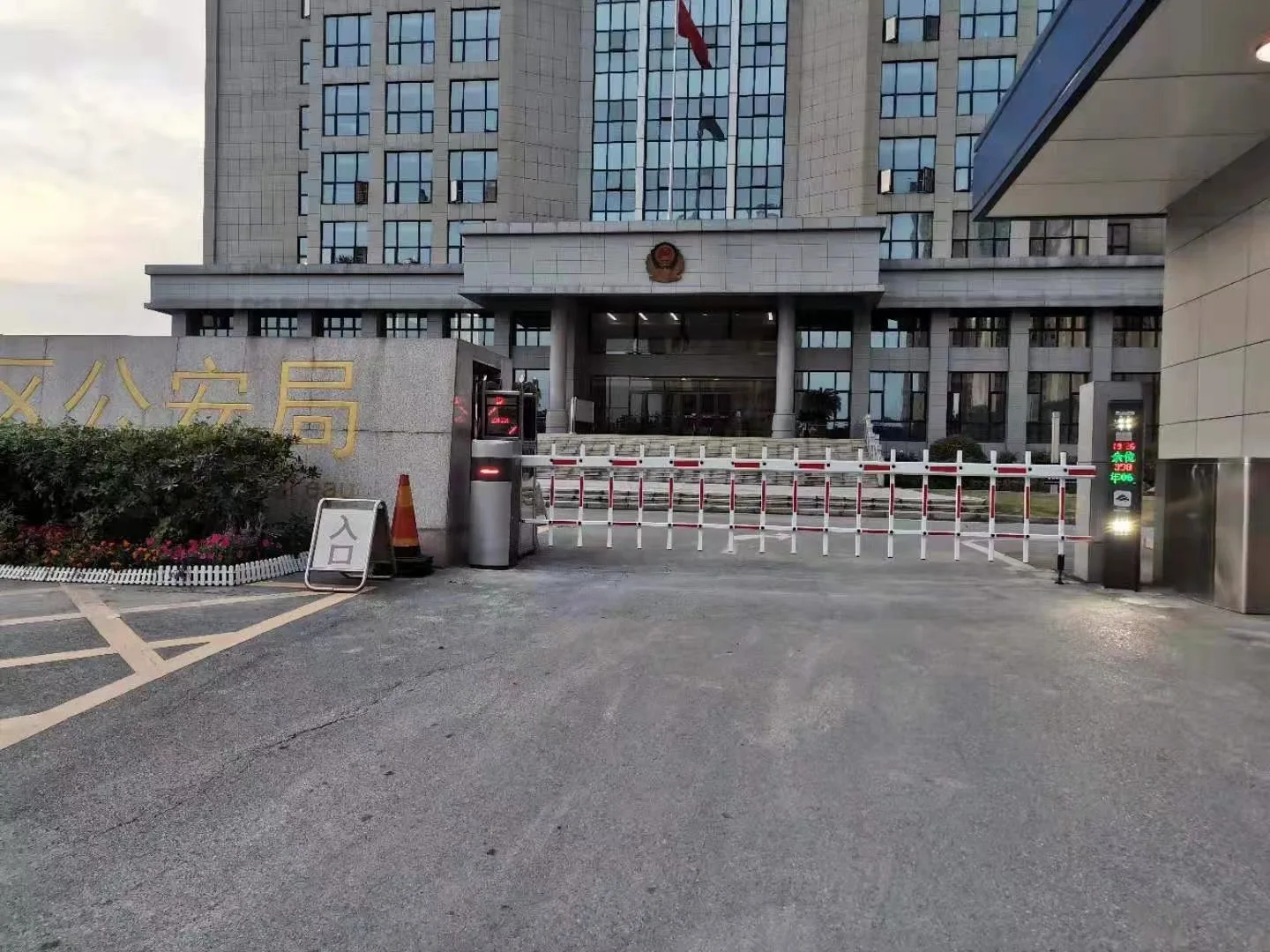

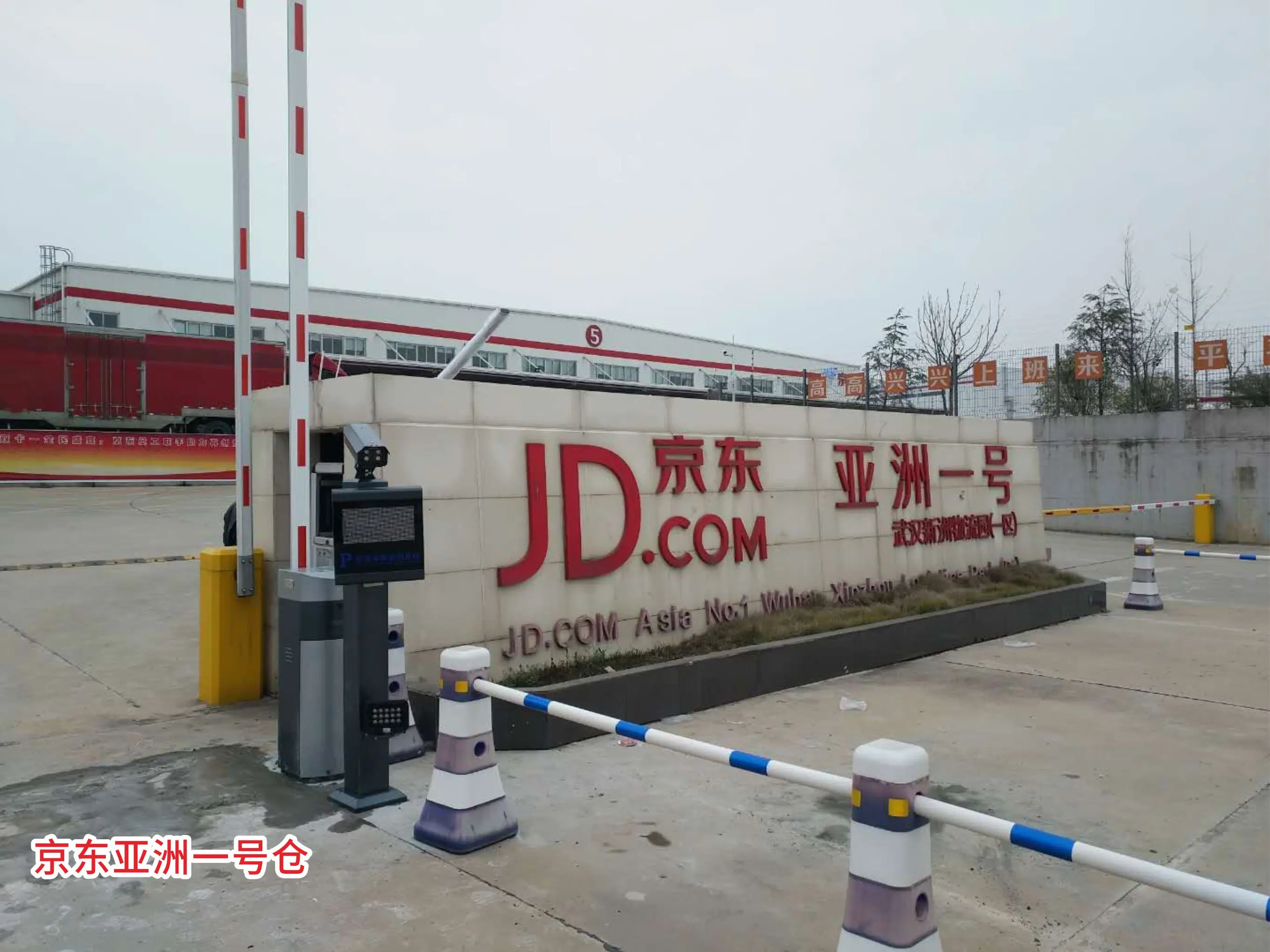

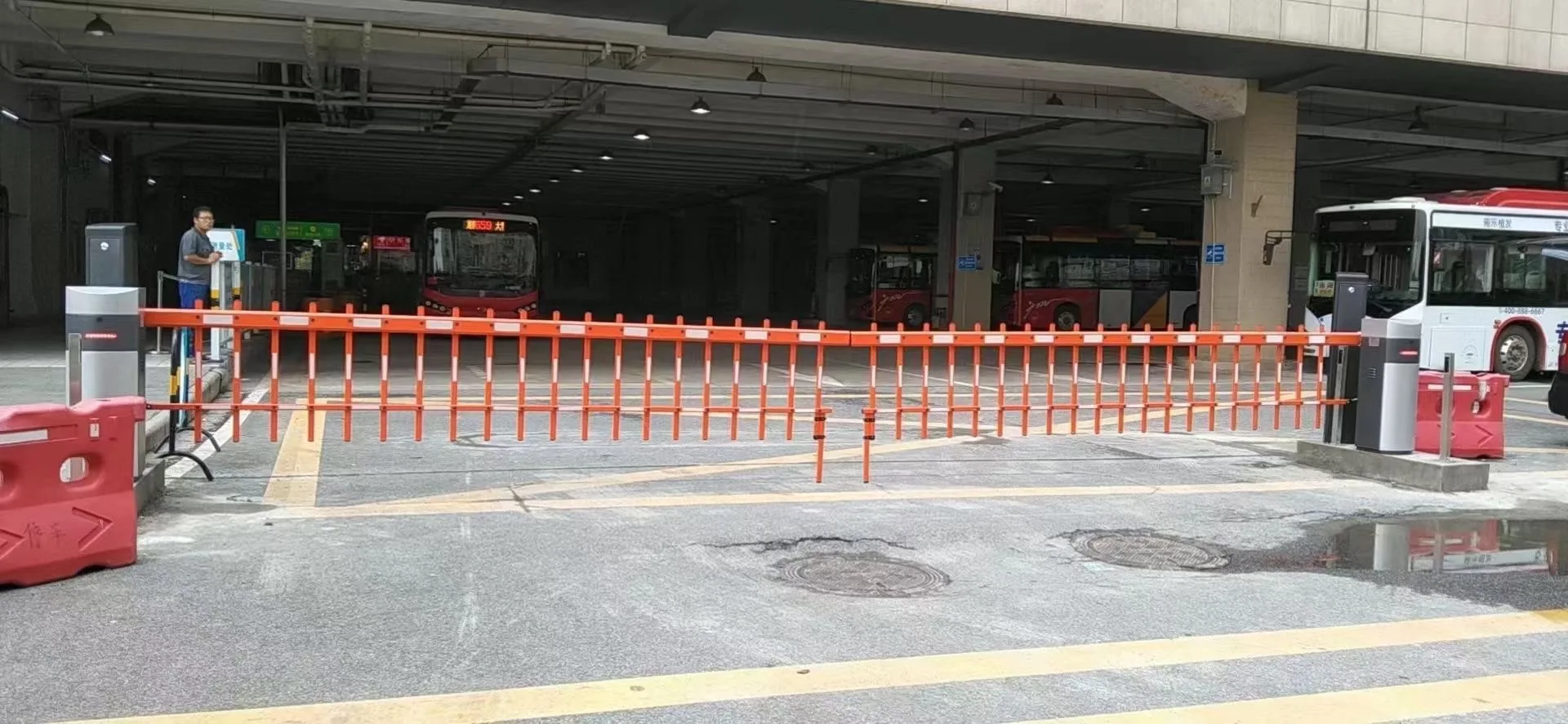

SXK-D01 DC brushless barrier gate is carefully designed and manufactured by Thinkpark. The product is driven by a brushless DC motor, which runs stable in operation, low noise, adjustable lift/drop speed, diversified control system interfaces, simple and fast parameter setting. The equipment adopts 24V safety voltage, safe and reliable, the movement is made of aluminum alloy die-casting, with reliable mechanical strength and beautiful appearance. It is widely used in various parking lots for 24/7 use.

Features&Specs

* Inbuilt red/green LED signal and streamlines design, the overall appearance is dignified and atmospheric.

* Brushless DC motor, adjustable lift/drop speed, gate-in-position buffer design, smoother operation and quieter motor.

* 24V safety voltage, more guarantee for personal safety.

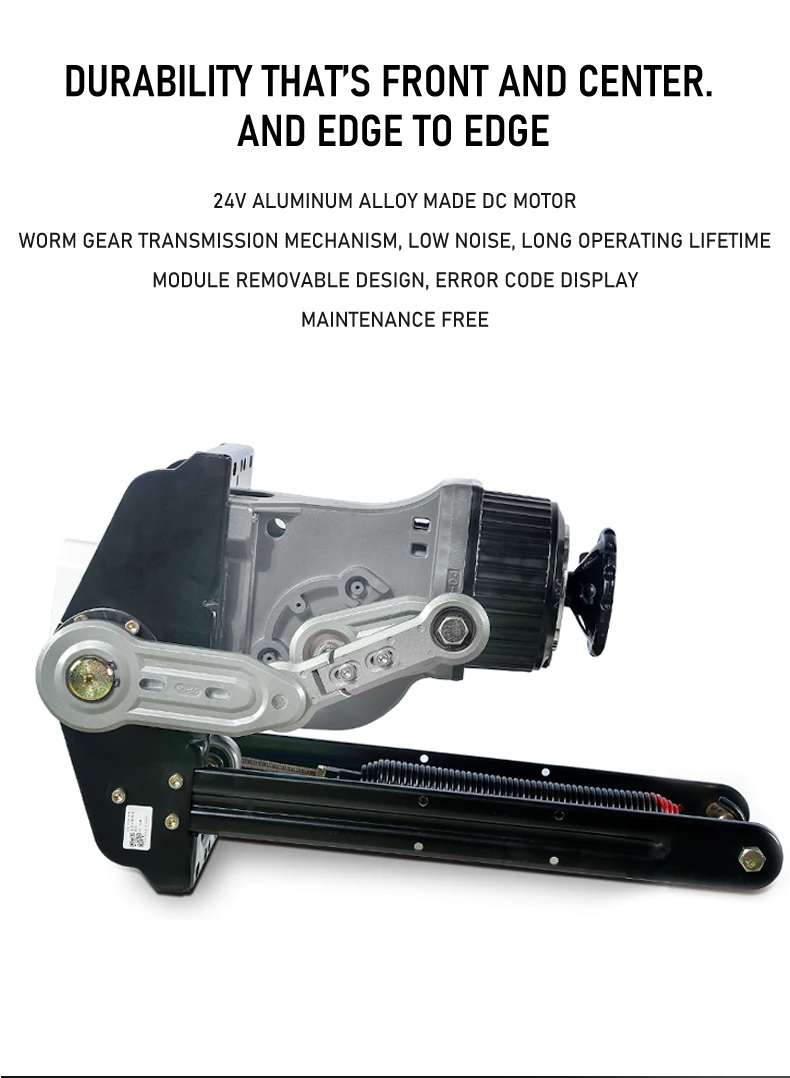

* Worm gear transmission mechanism, low noise, long operating lifetime.

* The main body of the movement is made of aluminum alloy, manufactured by die-casting,with reliable mechanical strength, beautiful-looking appearance, precise size and good heat dissipation.

* Using gear reduction transmission, high transmission efficiency, low power output loss.

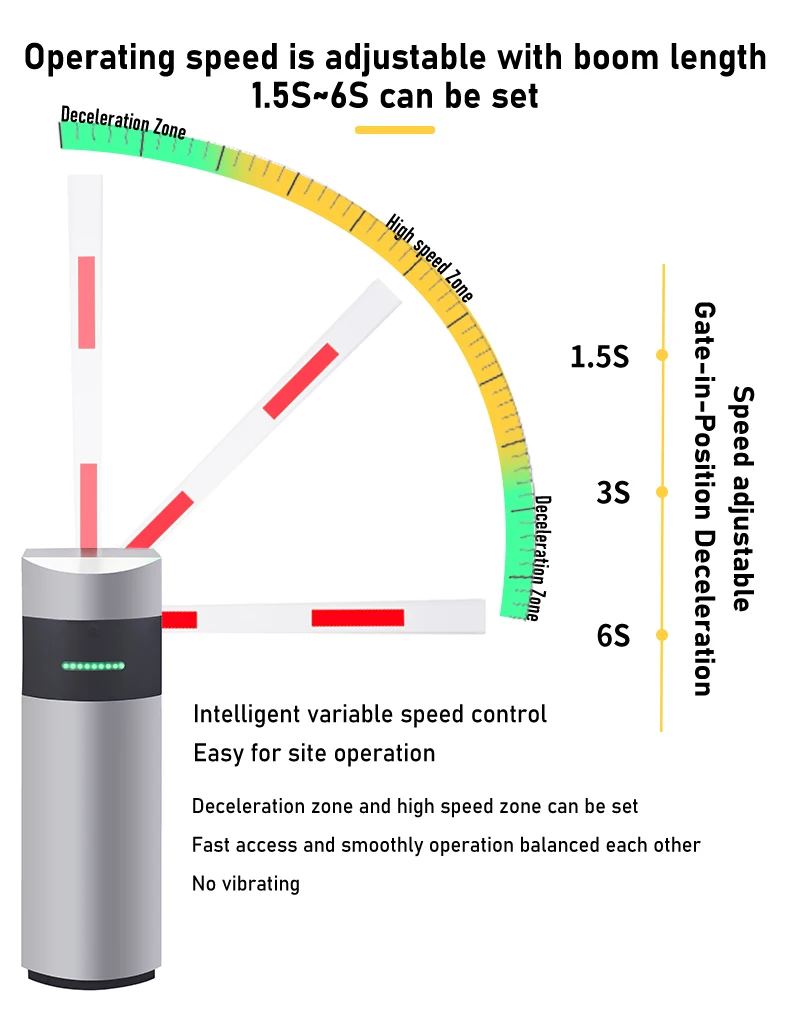

* 1.5-6 seconds speed control * When the barrier falls, it will automatically return when it encounters obstacles. The anti-smashing force can be adjusted

* With extra backup power supply, automatic gate open can be realized when power is off.

* Low temperature antifreeze design to ensure normal operation of the equipment in an environment of -40℃.

* 24V backup power supply optional

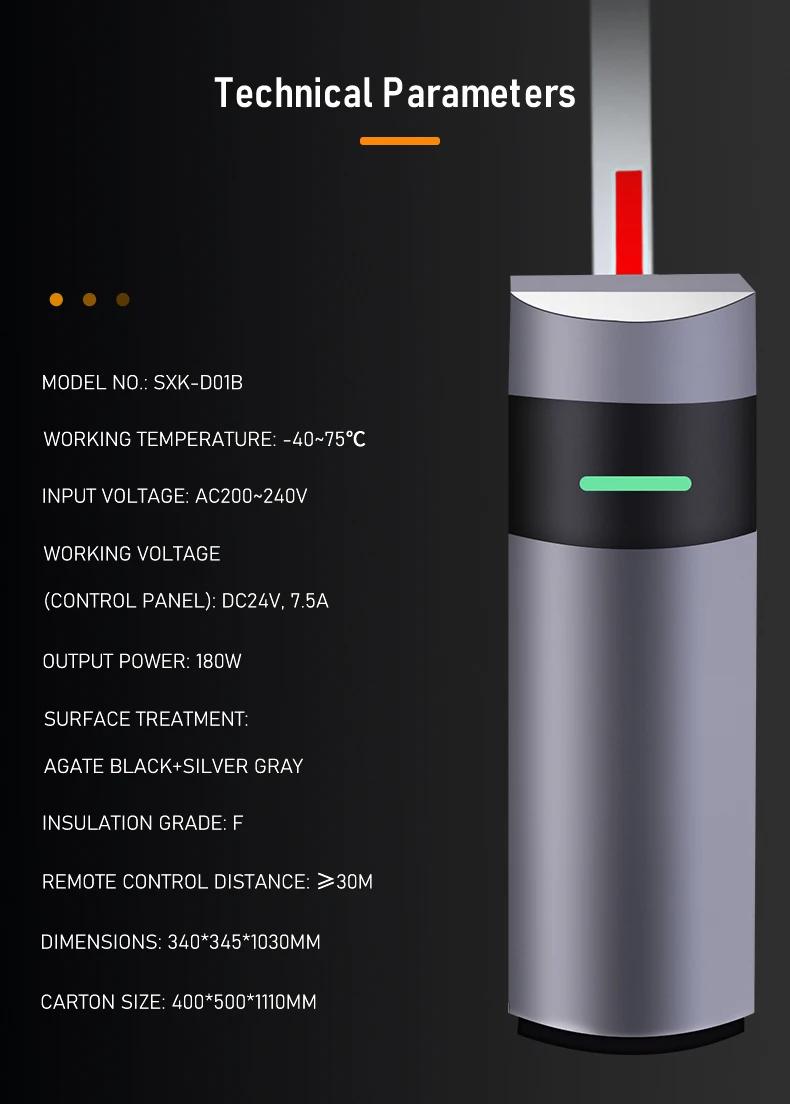

Car Parking System Barrier Gate Specifications

Open/close time	1.5~6s speed adjustable
Boom Length	3~6m
Supply Voltage	DC24V, 7.5A
Motor Rated Power	180W
Moter Speed	No load: 780r/min, Rated 600R/min.
Insulation Grade	F
Work Temp.	-40℃~+75℃
Housing Dim.	1030340345 (mm)
MTBF	>5million times
Weight	54kg
Protection Degree	IP54

Barrier Gate Highlights

Gate open/close time Adjustment	YES
Gate open/close Speed Adjustment	YES
Gate-in-position Sensitivity Adjustment	YES
Anti-Smashing Sensitivity Adjustment	YES
Anti-Smashing Strength Adjustment	YES
Motor Strength Adjustment	YES
Gate Position Adjustment	YES
Test Mode Adjustment	YES
Intelligent Obstacle Return	YES
Red/Green Light	YES
Power off and gate opening	Power off and gate opening
