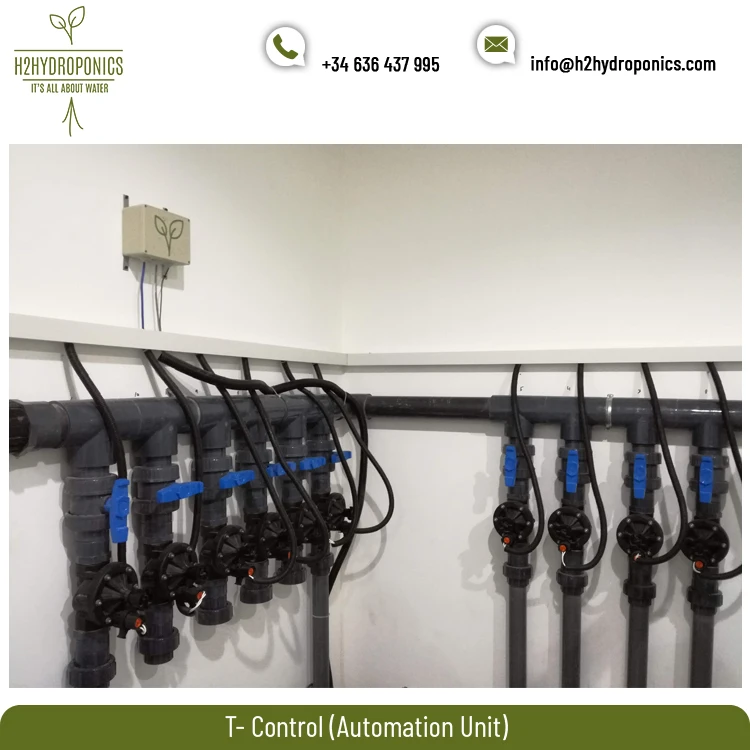

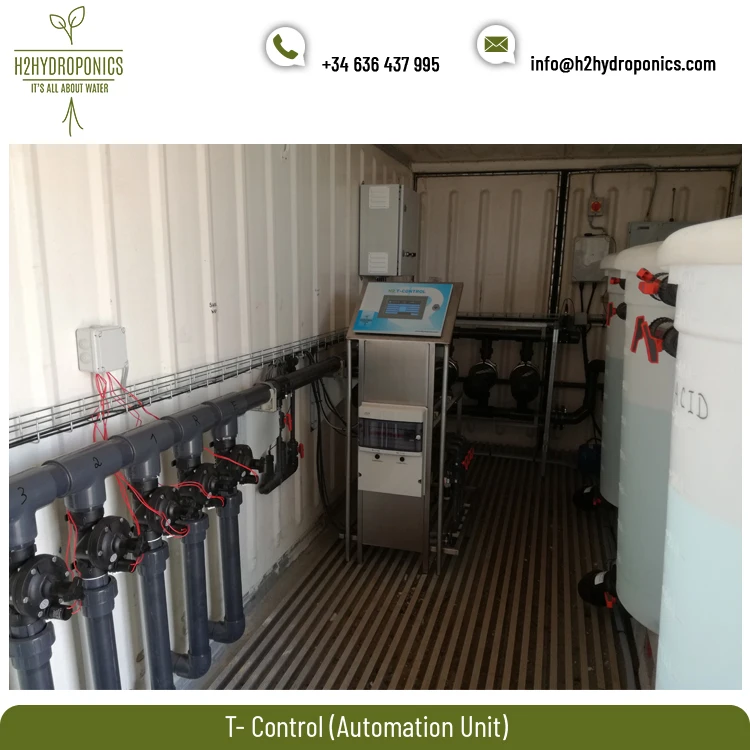

Biggest Dealer of Configurable T Control Hydroponic Equipment at Reliable Market Price

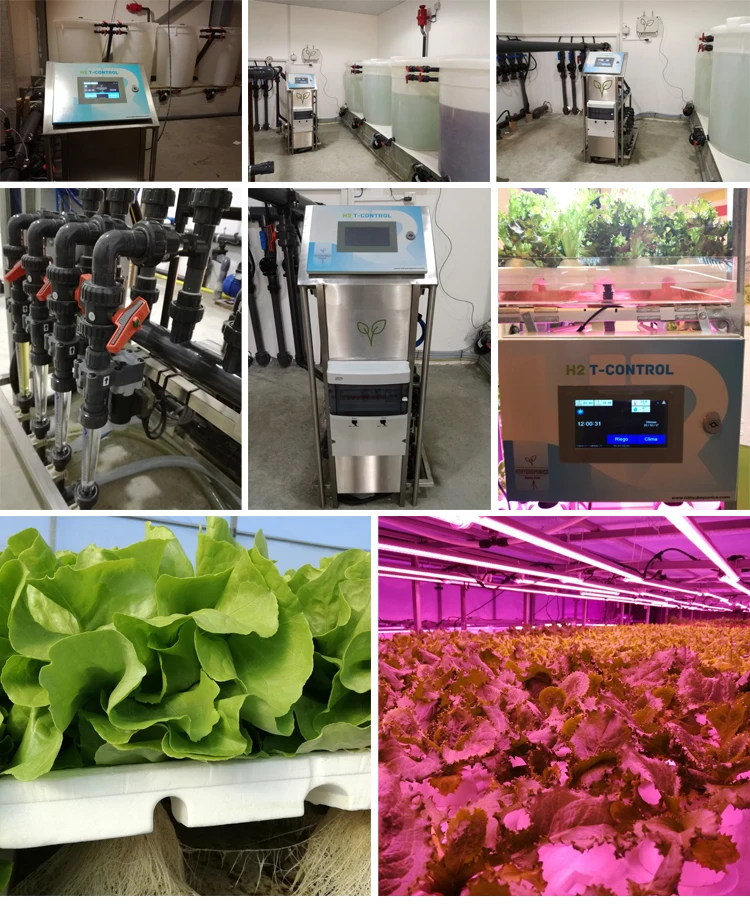

T-CONTROL is a powerful tool 100% configurable and ready to operate all climatic, irrigation and hydroponic equipment. It has analogic and digital open ports to connect as many sensors/probes as required to control your hydroponic project.

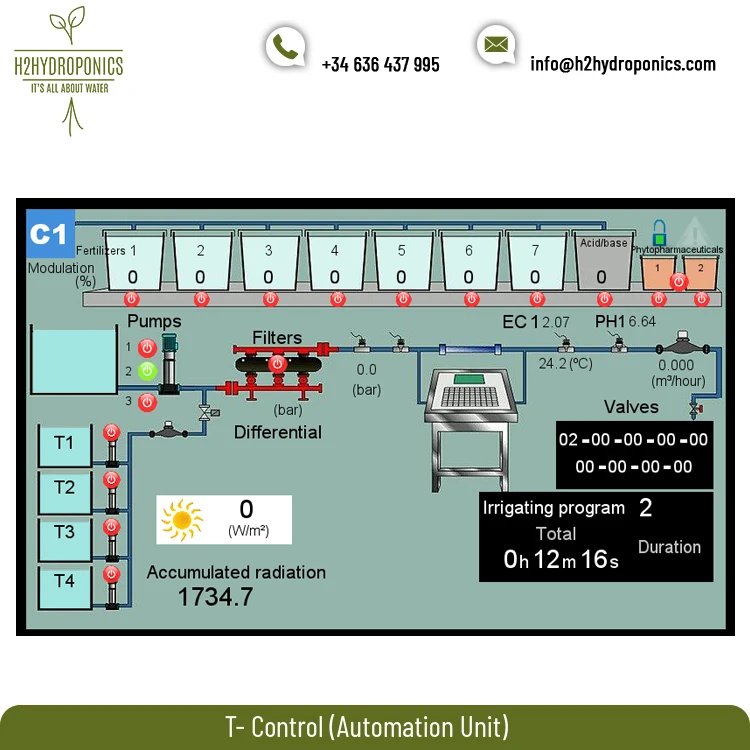

Programming our T-CONTROL is very easy and intuitive thanks to its 7” color touch-screen. All programs are divided into 2 main categories: Climate and Irrigation.

Internet and remote access delivers a plus to the unit; after initial setup, the T-CONTROL can be operate remotely; it also includes sending email alarms if any parameter falls out of range.

T-CONTROL has capacity to operate up to 3 EC/pH receivers, which magnifies its capacity to handle up to 3 independent nutrient solution with different EC and pH.

T-CONTROL comes as standard with 24 exits to relay, 24 VAC. It can be expanded any time upon client request to meet the project needs and further expansions.

T-CONTROL has the power to operate ALL your installed equipment in your project, ranging from irrigation sector, irrigation frequency, fertigation station, CO2 generator to climate control strategies with cooling pads, heaters and circulation fans.

T-CONTROL has 100% configurable open ports for your convenience, so you can attach any sensor needed to it.

T-CONTROL features a 7” touchscreen which is really easy to operate. T-Control has a modular architecture to keep up with your needs and future growth:

• 24 Configurable 24VAC exits, expandable
• 16 Analogic open ports, expandable
• 16 Digital open ports, expandable
• 2 Expansion RS485 ports
• Internet access option
• Saving electricity built in functions

T-CONTROL manages and operates irrigation and fertigation cycles:

• Control and adjustment of EC in nutrient solution
• Control and adjustment of pH in nutrient solution
• Control and adjustment of water pressure delivered by irrigation pump
• Control of irrigation cycles by day, period of day, time, solar radiation, water volume, selected program and combination
• Management of multiple irrigation pumps and independent nutrient solutions
• Mixing of different water sources (fresh water + recycled water) to reach desired EC and pH
• Adjusted dose from every fertilizer tank (100%, 85%, 50%)
• Dosage of fertilizer and acid/base by target or flow (programmable)
• Management and cleaning for automatic filter batches

Specifications

Product Name	T-Control (Automation Unit)
Technology	Water Saving Technology
Safety	Food Grade Raw Materials
Application	Intensive Vegetable Production
24 Configurable 24VAC exits, expandable 16 Analogic open ports, expandable 16 Digital open ports, expandable 2 Expansion RS485 ports Internet access option Saving electricity built in functions

Company Information

Click Here to Learn More about Our Company >>>

Our Services

In a very competitive world, we have the technology, the expertise and experience to deliver reliable solutions for a successful start.

H2HYDROPONICS provides consultancy services for all the stages required in planning, strategy and construction; from early stages to the implementation and setup of your project:

• Design of your project
• Research and analysis of your land and resources
• Project Footprint
• Selection and Procurement of equipment
• Construction and commissioning of the project
• Production Planning and management

Please feel free to contact us for a personal assessment on your plans and projects.
