Высокоскоростная полуавтоматическая машина для намотки пряжи с несколькими

Описание и отзывы

Характеристики

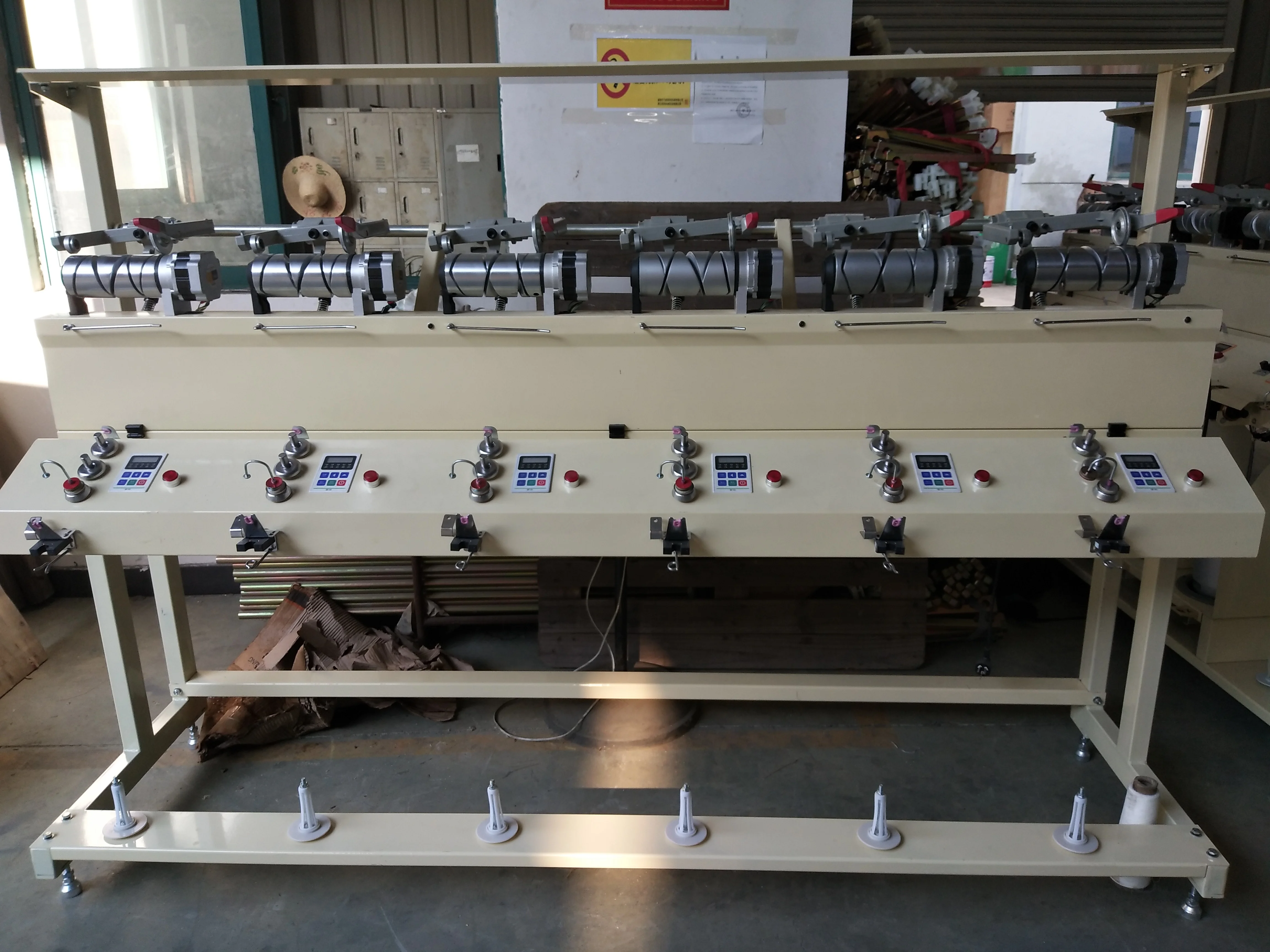

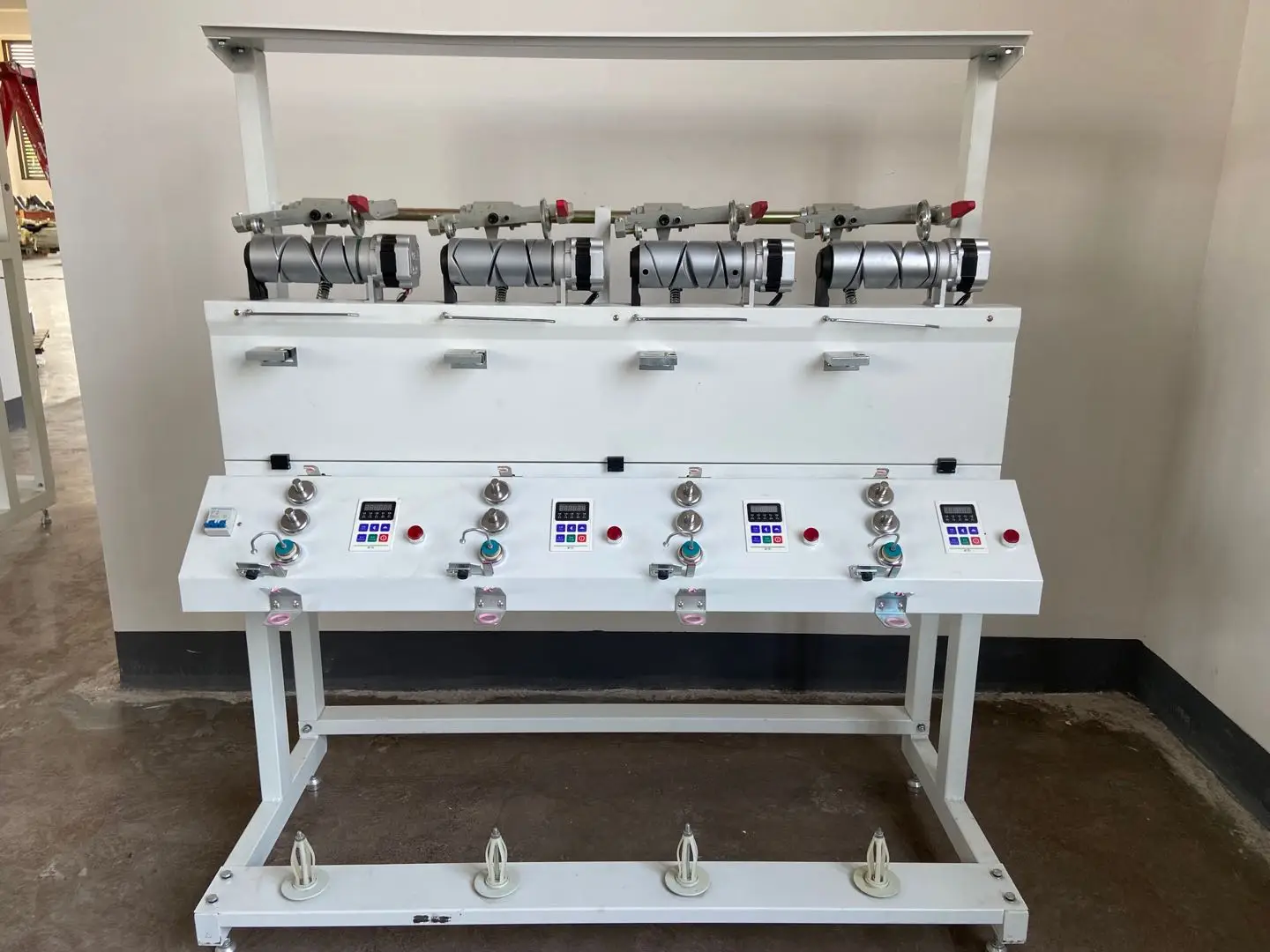

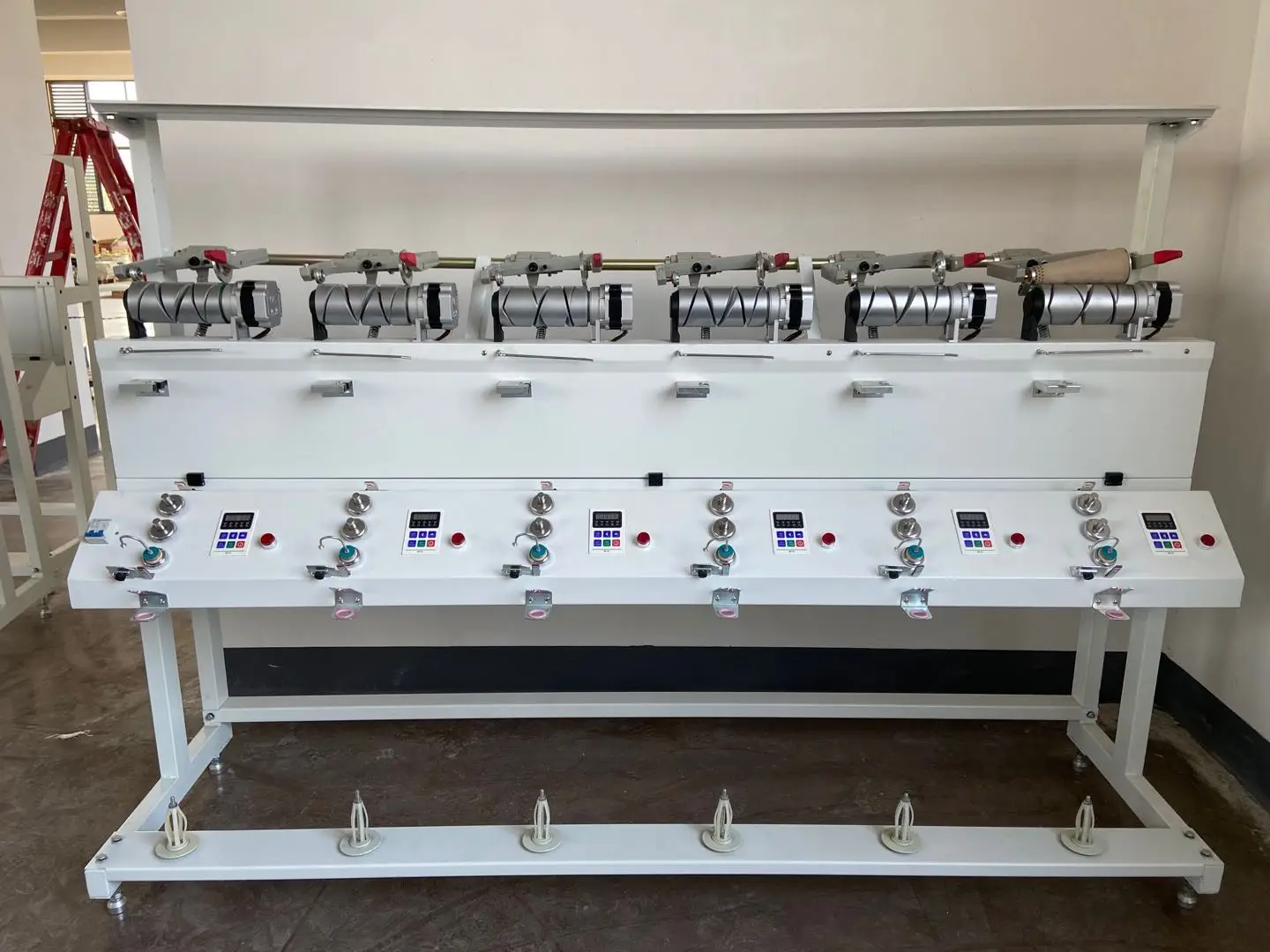

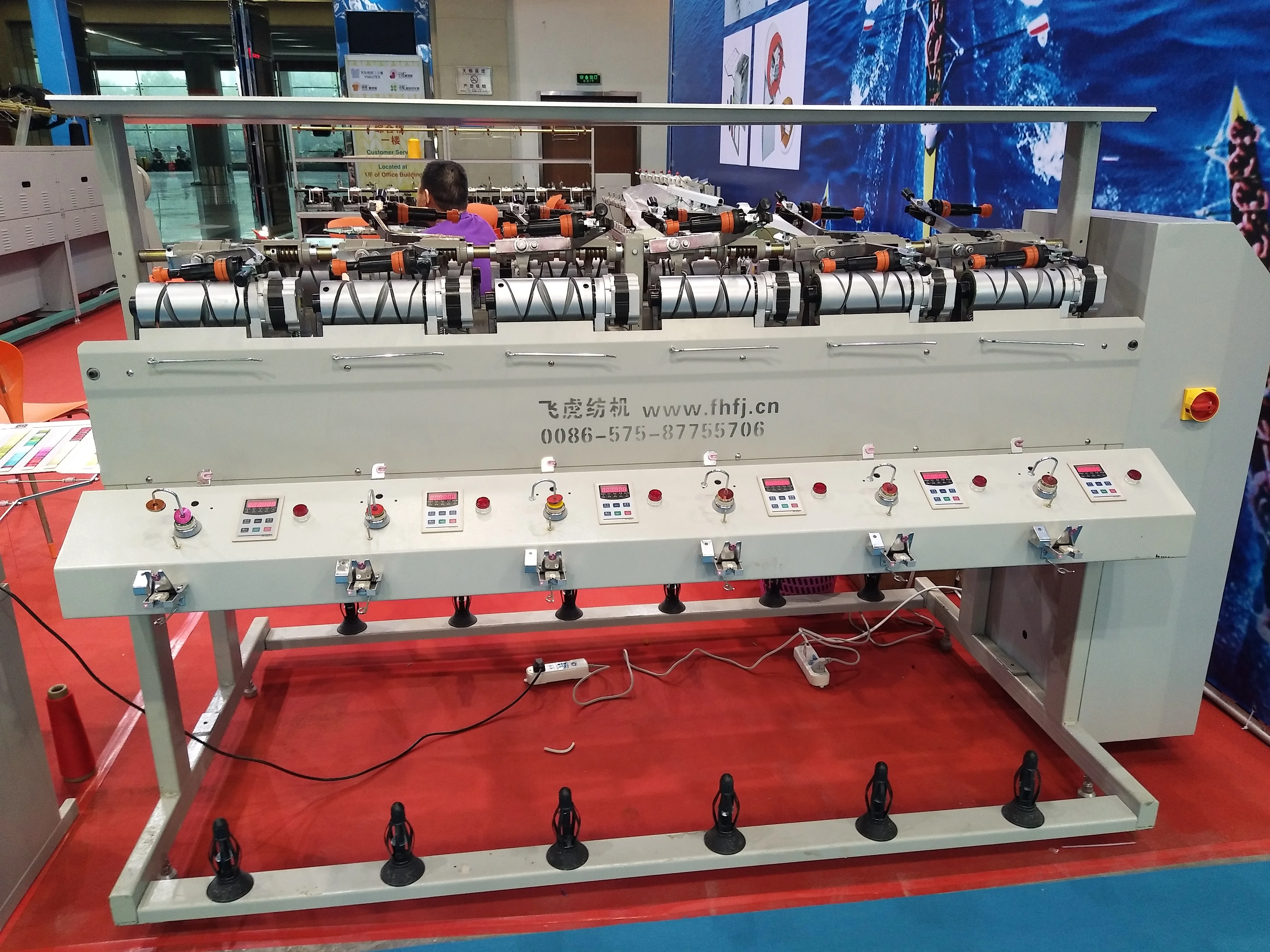

FH-2 spindles /4 spindles /6 spindles drum winding machine

I. the uses and characteristics of FH-2 spindles /4 spindles /6 spindles drum type winder

This series of grooved drum winder is suitable for barrel dyeing process of cotton, linen, wool, chemical fiber and blended yarn, or soft or tight winding in back weave.

The machine adopts single spindle to control AC motor or DC motor drive, and has functions of spinning, counting and breaking yarn.

Two.

The main technical parameters

1. spindles number: one side, 2 spindles / set, 4 spindles/ set, 6 spindles / set. According to user needs.

2. winding form: high quality alloy tank (loose type, compact type selected by customers), random winding.

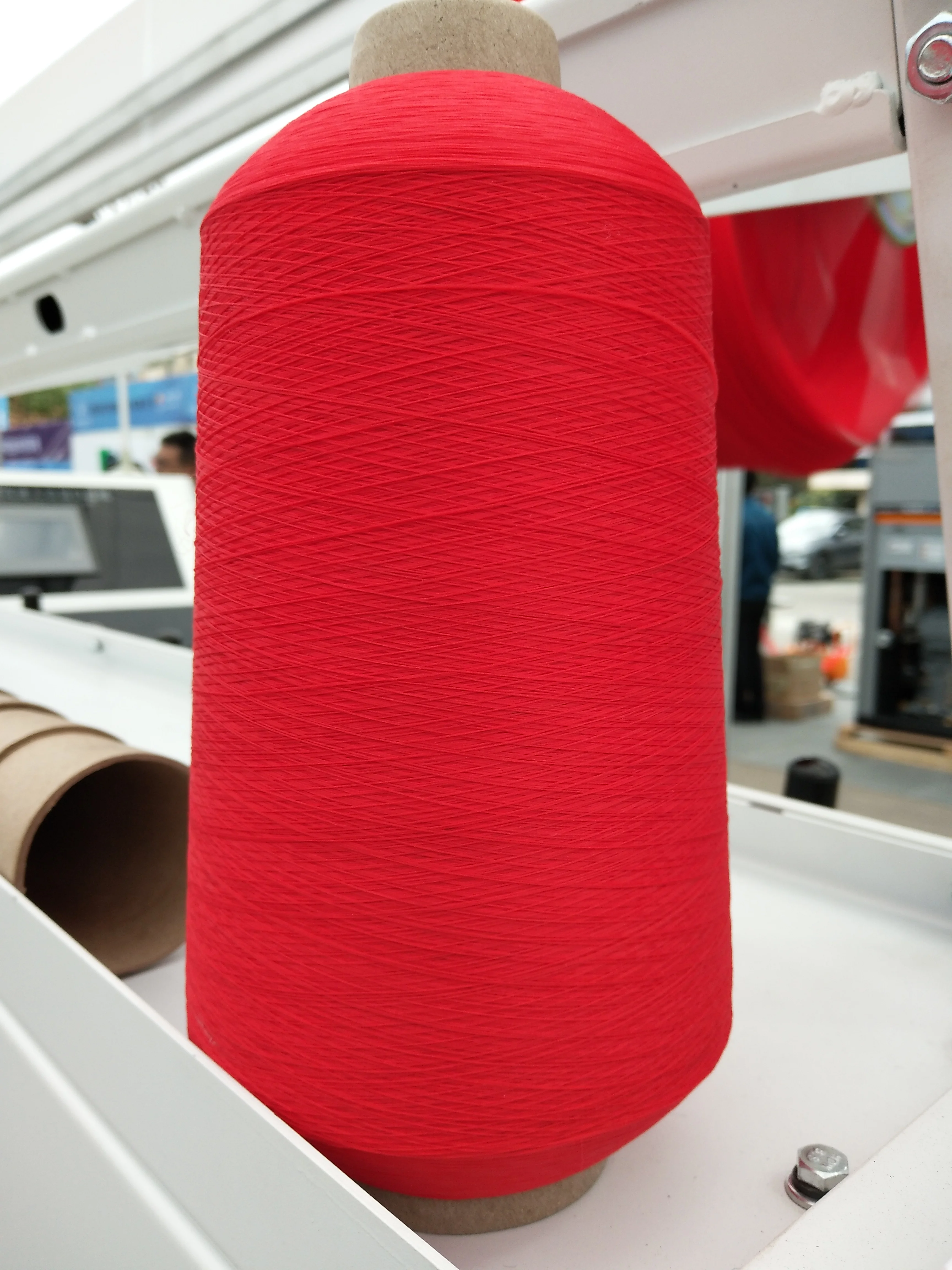

3. bobbin form: flat bobbin and pagoda bobbin, selected by users according to needs.

The diameter of

4. maximum yarn blank is less than 230mm

5. The speed of winding speed is less than 1000m/min

6. Single spindle motor and power: AC motor and BLDCM are selected by customers, and the two machines are 90W/spindle

7. voltage: 220V 50HZ

8. external dimensions (L x W x H):

2 spindles: 720x650x1400mm

4 spindles machine: 1400x650x1400mm

6 spindles machine: 2210x650x1400mm

9. Weight: 2 spindles machine 52KG

4 spindles machine 84KG

6 spindles machine 138KG
