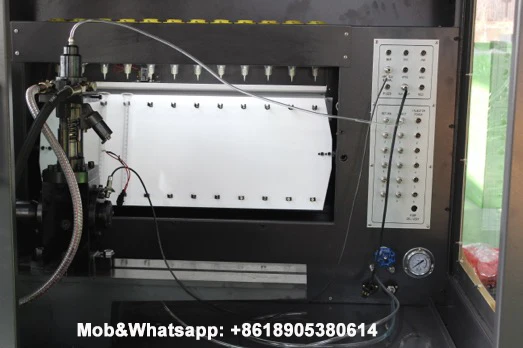

Электронный Топливный насос XIANAN XNS815A EPS815 с компьютерным дисплеем Калибровочная машина для дизельного

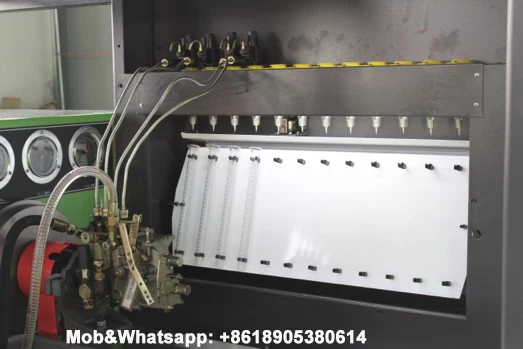

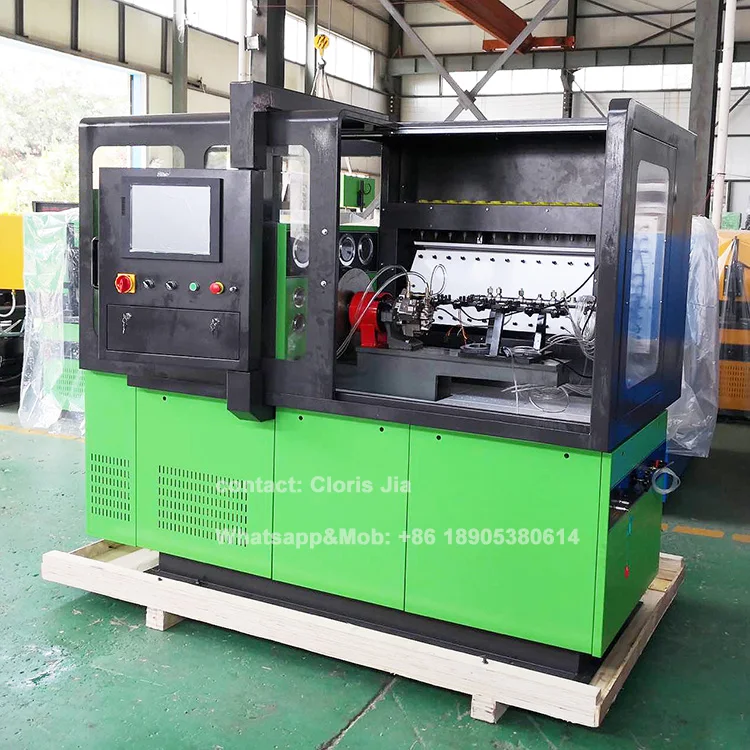

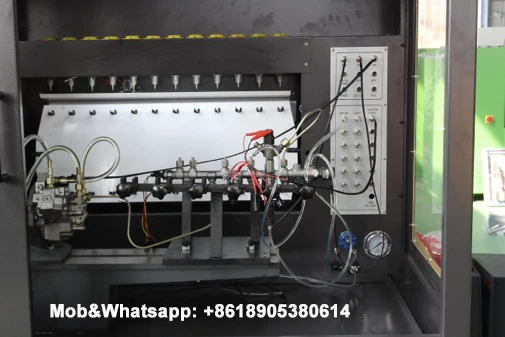

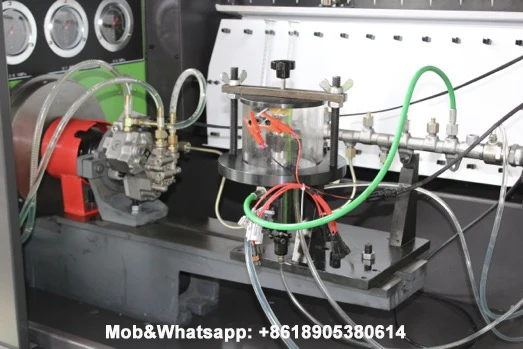

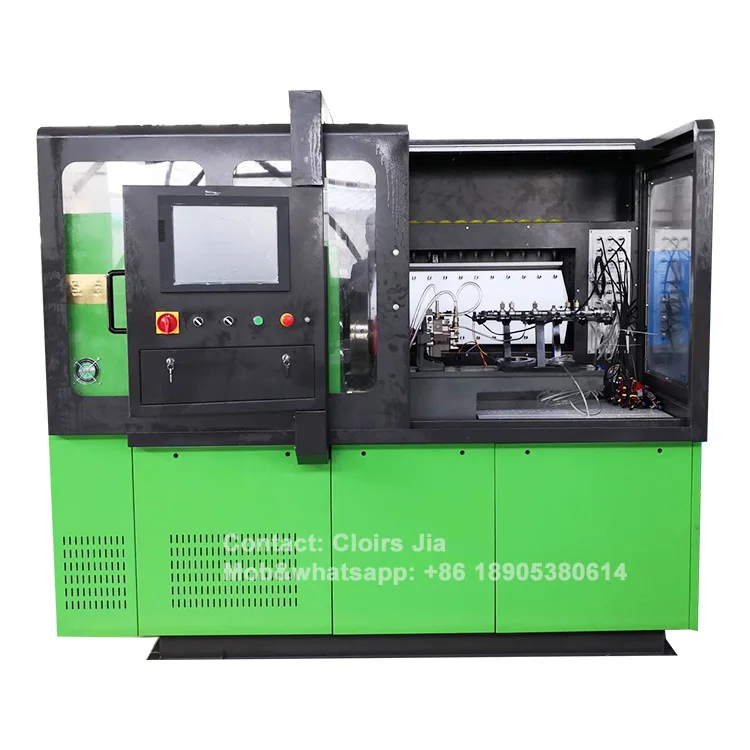

XNS815A (Common Rail System XNS815A ,also called NTS815, EPS815) common rail control system by controlling the operation of the common rail test bench to complete the common rail pumps, common rail injector, high-pressure fuel rail test. Wide range of equipment, can be widely measurement Bosch, Denso, Delphi, Siemens and other common rail pump and injector, the injector system is equipped with more than 1600 injectors data, in maintenance and inspection can be used as a reference value or reference value, allowing users repair work more convenient.

XNS815A common rail control system components can be flexibly matching, to form different control platforms to meet the functional, cost, size, and many other needs, to achieve the highest price. In addition the device driver parameters can be flexibly adjusted to suit the pump and injector testing special models, ease of maintenance personnel working status Common Rail System judge and maintenance. The system can also be extended, such as centralized management of multiple devices, unified data reporting, especially for common rail device manufacturers batch testing.

1.\tprovide Bosch, pre-calibrated value Delphi, Denso, JIER rail pressure sensor

2.\tusers can add new sensor type oil pump, and a pressure sensor for different display value recalibration

3.\trail pressure automatic control

4.\trail pressure is too high will active the automatic protection

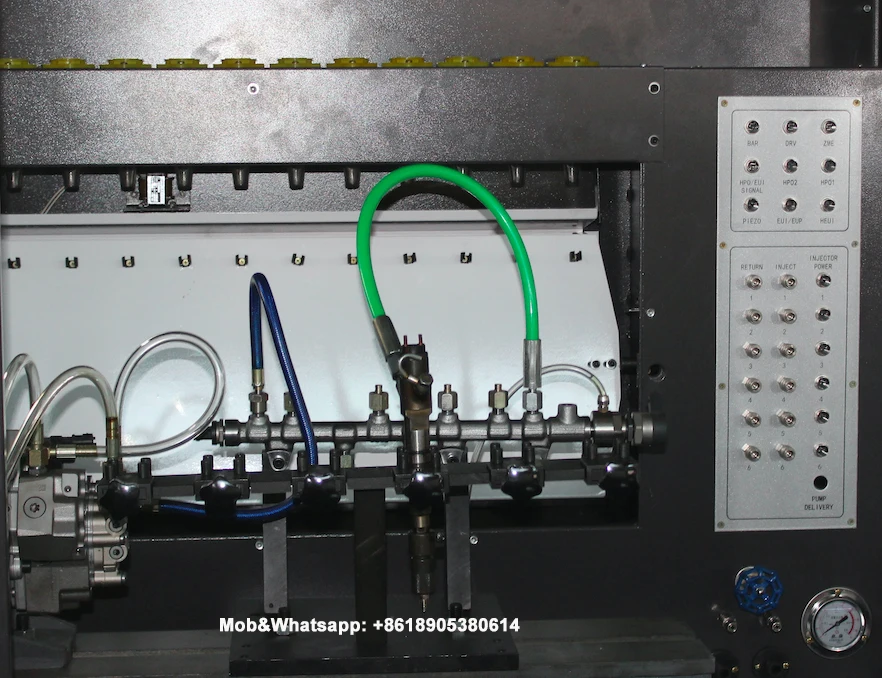

1.\tMeasure up to 6-channels solenoid valve injector

•\tHigh Voltage - Bosch, Denso injector

•\tLow Voltage - Delphi injector

2.\tMeasure 1 channel Siemens, Bosch piezoelectric crystal (PIEZO) Injector

3.\tall channels solenoid and piezoelectric crystal drive with short circuit protection, will not damage the controller and measured injector

4.\tprovide standard test steps and conditions for each standard fuel injection and back data, synchronized display. Users can also customize the working steps, add or change the experimental data, the system comes with more than 1,600 pieces of standard data (and in continuous update)

1.\tmulti-channel PWM (pulse width modulation signal) for driving the pumps;

•\tsingle-channel pump drive signal adjustment

•\tBosch CP1 / CP2 / CP3

2.\tDelphi CRSP

3.\tDenso HP3 / HP4

4.\tdrive a road DRV, designed to test the ability to pump oil pump

5.\ttwo separate drives combine Denso HP0 pump (ECD-U2) speed sensor on the timing signal, synchronized Control HP0 two oil pump control solenoid valve;

6.\tAll channel drivers with short circuit protection, will not damage the controller and test the pump;

7.\tprovide standard test steps and conditions for each standard fuel pump data, synchronized display. Users can also customize the working steps, add or change the experimental data.

1.\tSupport 10-inch / 15-inch / 17-inch / 19-inch touch-screen operation;

2.\tMulti-language-friendly interface display, user-friendly operation;

3.\tReal-time working status feedback, allowing users to make decisions faster;

4.\tpowerful database management features more than 1,600 injectors standard data;

5.\tcan be accessed by a standard keyboard and mouse;

6.\tequipped with ultra-compact industrial computer, SSD solid state drive for data backup, system software updates and data upgrade;

7.\tsystem functions cropping flexibility can be combined into a variety of control systems;

8.\tprecision digital dipstick to ensure test accuracy;

9.\tDifferent injector with a different adapter, connects users to a different injector

In the case of the device is powered, non-swap XNS815A control system plug and the connecting cable, the control system may cause damage or loss of data, so that the device can not run. Should connect the device to check before energizing the system is correct, confirmation and then do the following steps.

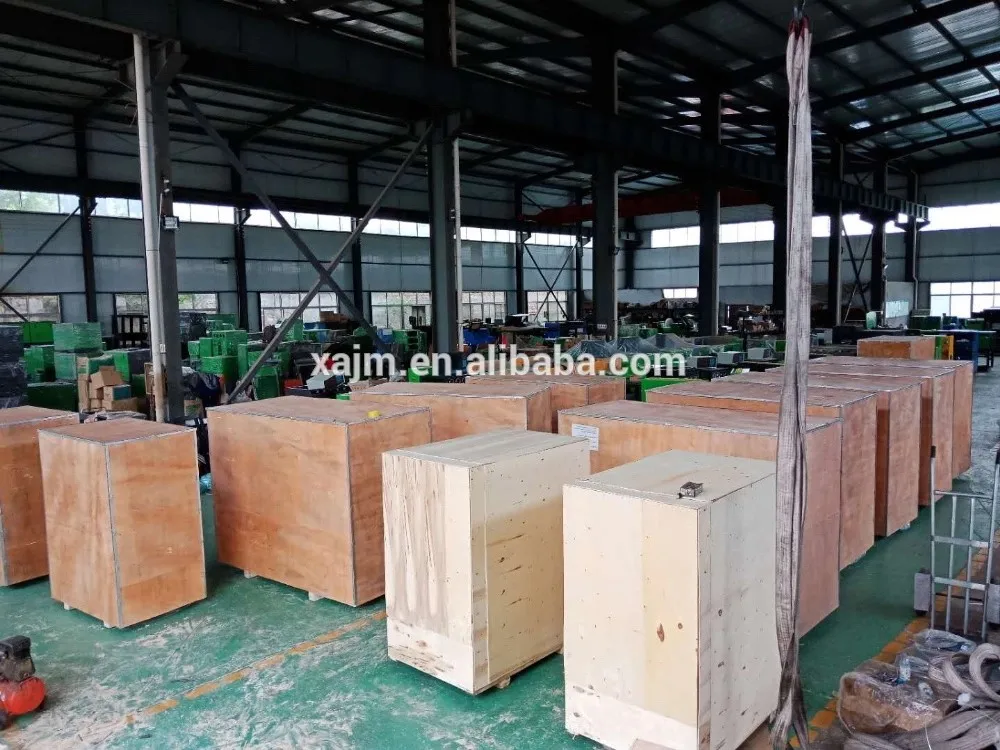

Standard export plywood packing.

3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.

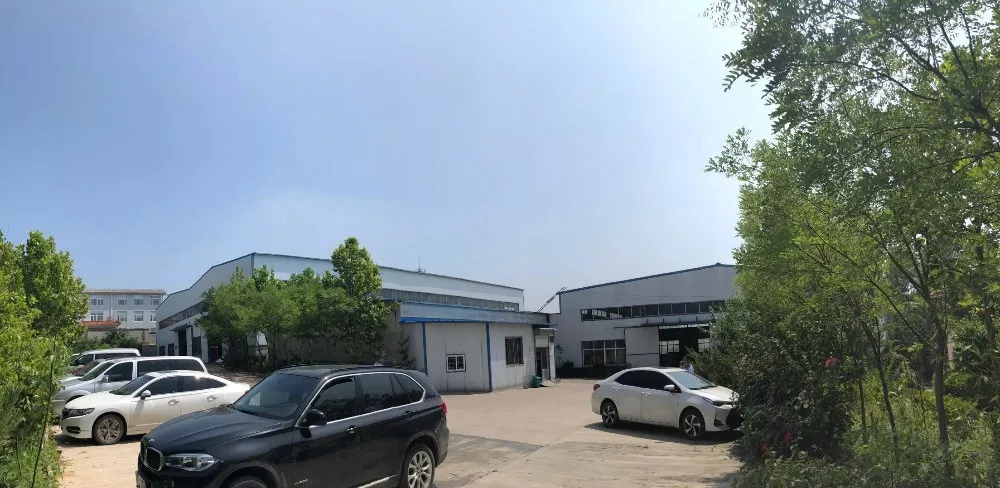

Taian Xinan Precision Machinery Co., Ltd. located in Taian City Shandong Province China. Which is the leading manufacturer specialized in Diesel Fuel Injection System Tester. Available of Mechanical pump test bench, common rail injector and pump test bench, PT pump and injector test bench, HEUI test bench, EUI EUP test bench. EDC( Electronic Diesel Controller), Nozzle Tester. All kinds diesel pump and common rail tools, injector and pump spare parts etc.

There are over thirty kinds of test machine, with advanced production process and international leading level technology, which can meet users' different demands.

Taian Xinan Precision Machinery Co., Ltd earns professional research and development capabilities, strictly quality control team and rich production workers to make sure product quality and service for all customers.
