Product Description

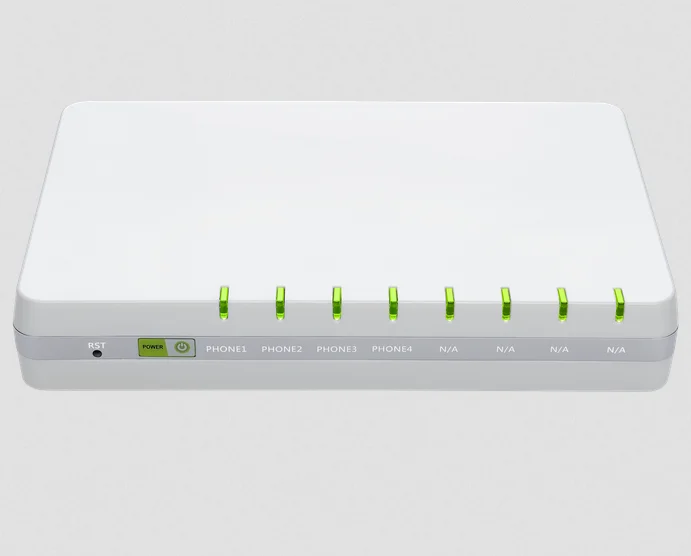

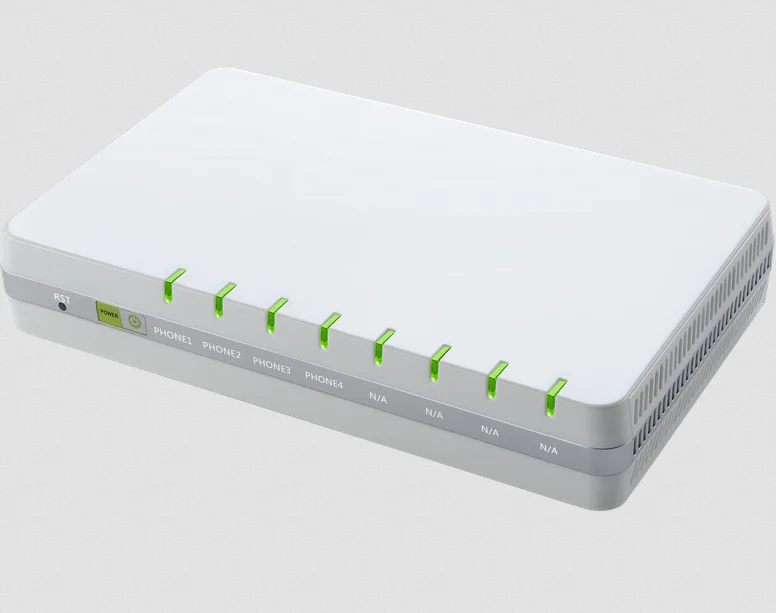

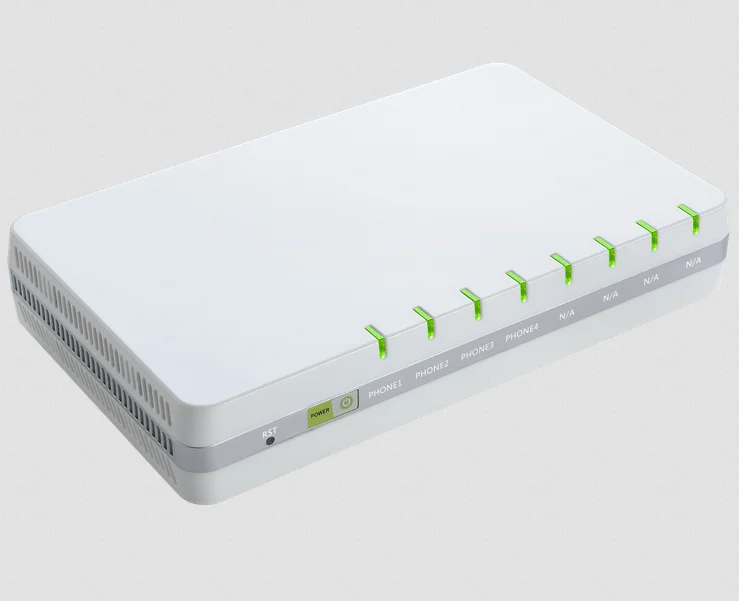

4 FXS Ports VoIP Phone Adapter (ATA)
G504

   What this product does

A powerful VoIP Analog Telephone Adapter with Router function

 G504, which has 4 FXS ports , one LAN port and one WAN port, is one of the most popular VoIP ATAs researched and produced by FlyingVoice. This product can not only provide 4 SIP lines for users to make calls, but also it is a wire-speed NAT router, make you enjoy easy network atmosphere. What’s more, G504 support T.38 real time FAX and T.30 FAX with G.711.

G504 is a stand-alone device, which requires no PC to make Internet calls. This ATA guarantees clear and reliable voice quality on Internet, which is fully compatible with SIP industry standard and able to interoperate with many other SIP devices and software on the market.

How to Connect G504 to the Internet ?


1) Insert one end of the Ethernet cable into the WAN port on the back panel of the G504 and the other end
of the cable to your existing broadband connection port.
2) Connect the LAN port on the back panel of the G504 to your conventional ATA using a standard ATA
cabling.
3) If need to set us a small LAN network, the G504 should work in router or bridge mode so that you or more people can access to the Internet through G504. Then you need to connect your PC or LAN connection equipment to the LAN port on the back panel of the G504 using Ethernet cable.
4) Connect the power adapter to the power port at the back panel of G504 and then plug another end of power adapter into a wall outlet or power strip. The LED of G504 will turn on to indicate operated properly.
Notice: please do not attempt to use other different power adapter or cut off supply during configuration or updating G504 IP ATA. Using other power adapter may damage G504 and will void the manufacture
warranty.

Ways to Configure G504

There are three ways to configure G504: use IVR, use provision and use WEB GUI, recommend is WEB GUI. And you can configure only some parameters through IVR, like WAN port IP address, WAN port IP mode, Subnet mask and so on. User presses **** to start IVR, and the IVR will lead you to configure. Every time you finish some changes, you may need reboot G504 to make the changes take effective. Details about IVR, please refer to G504 user manual. Provision is also a convenient way to make configurations, to get more information about provision, please refer to provision user manual. And you can configure all the parameters of G504 through WEB GUI, login to G504’s webpage, then you can begin to configure.
The login webpage of G504:

  Basic use of G504

1) Connect a analog telephone to G504’s FXS port, register an account and make calls;
2) Connect a FAX machine to G504’s FXS port, register an account and send FAX;

The G504, 4 FXS Analogue Telephone Adapter products in Flyingvoice, which enables customers to register to different SIP Proxy server, IP PBX and establish up to 4 concurrent VoIP calls for more flexibility in the voice communication.

Their compact size, excellent voice quality, packed feature functionality and best-in-class price-performance point enable consumers to maximize the power of IP voice and data connectivity.

G504 is based on SIP V2.0 standard and compatibility with most service providers. It features 4 FXS telephone ports, TR069 CPE management & monitoring protocols and a base stand for vertical positioning.
. Up to 4 concurrent VoIP calls
. Real time FAX over IP via T.38 and T.30 FAX with G.711
. TR069 CPE management & monitoring protocols
. Field proven compatibility and stability
. Very Highly affordable and effective 8 FXS ports VoIP CPE

G504 Specfications
