Сканер 3d автомобильный коврик для сканирования кожи Осциллирующий режущий плоттер кожаного коврика губки резки ПВХ ткани

Сканер 3d автомобильный коврик для сканирования кожи Осциллирующий режущий плоттер кожаного коврика губки резки ПВХ ткани

Категория: Оборудование для производства кожи >>>
Поставщик: Jinan Suntec Cnc Machinery Co. Ltd.

Цена:13 800,00 $ - 14 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

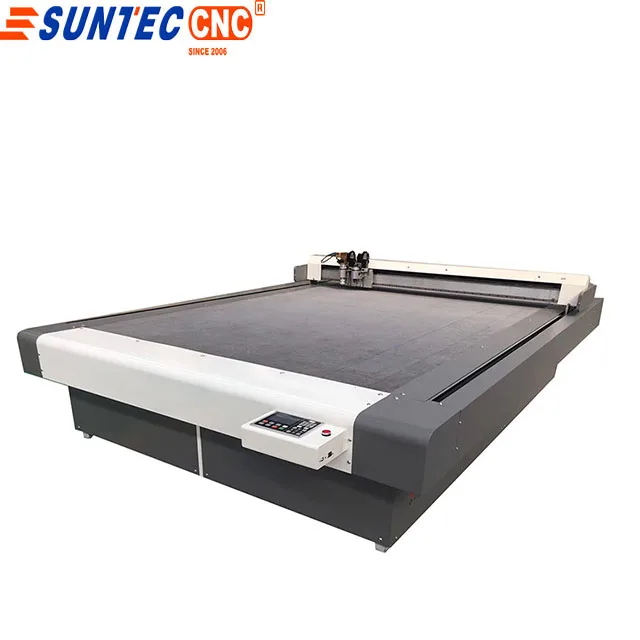

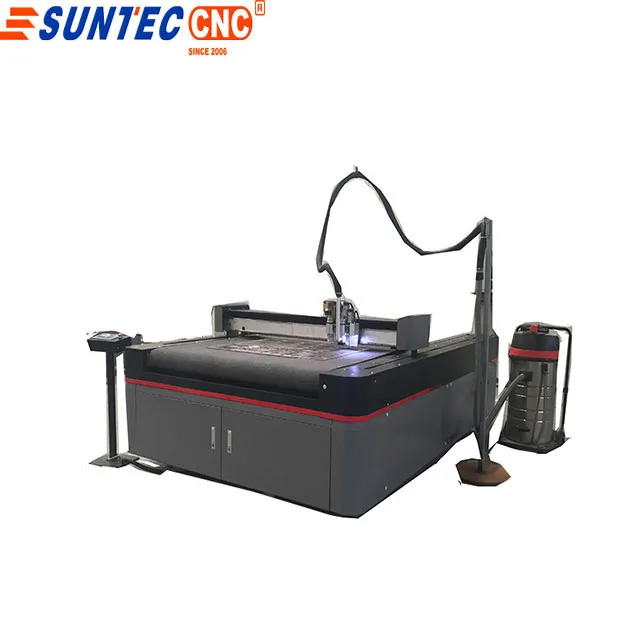

3d scanner scan car mat leather oscillating cutting plotter for leather carpet mat sponge pvc fabric cutting

11111

1. Specification

1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

2. The high precision CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.

3. The anti-collision and the built-in auto-sensing devices ensure the security of cnc oscillating knife leather cutting machine.

4. High efficiency can be realized without making a high-cost knife model.

5. The high precision CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.

Parameter/Model	ST1325	ST1625	ST 2030

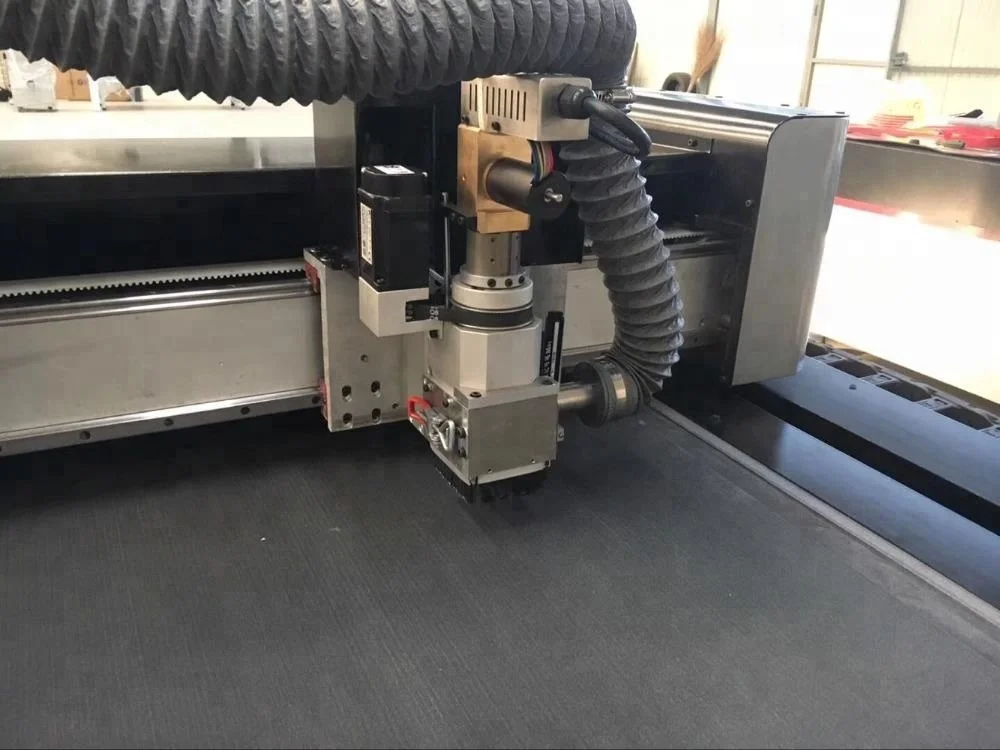

Multi-functional Cutting Head	Replaceable oscillating knife, half knife, full knife, oblique knife and creasing wheel etc.
Tools configuration	Various cutting tools, creasing wheels, pen, cross positioning laser
Safety	High sensitivity infrared induction (optional)
Moving Speed	Max. 1200mm/s
Cutting Speed	Max. 800mm/s(please set the speed according to the material)
Material Applicable	Corrugated paper,non woven fabric , PVC expansion sheet, KT board, foam board, grey paperboard, cardboard, vehicle sticker, adhesive sticker etc.
Cutting Depth	Max 50mm (depends on the material)
Material Fixing Method	Strong power vacuum absorption and intelligence Partition
Resetting Positioning Accuracy	Max 0.01mm
Mechanical Precision	Max 0.02mm
Drive System	Steel Simultaneous Belt, AC Panasonic servo motor. Linear guide rail
Control System	Jinan suntec control systerm
Display	English LCD touch screen
Data Transmission	Ethernet
Command	HP-GL compatible format
Buffering Capacity	Standard--4GB
Rated Power	11KW	12KW	14KW
Max Working Size	1300*2500	2500*1600	3050*2050
Rated voltage	380V
Body dimension	224121521235mm	339127231235mm	389131731235mm
We reserve the final explanation for the above parameters and able to make any alternations without notice
