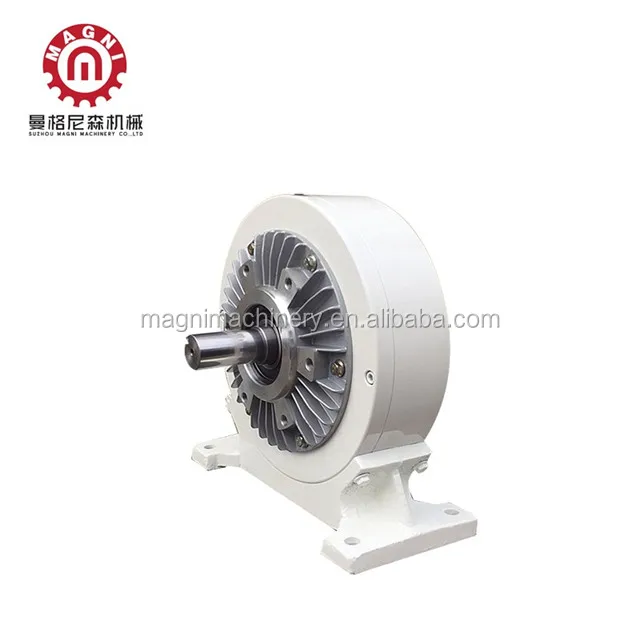

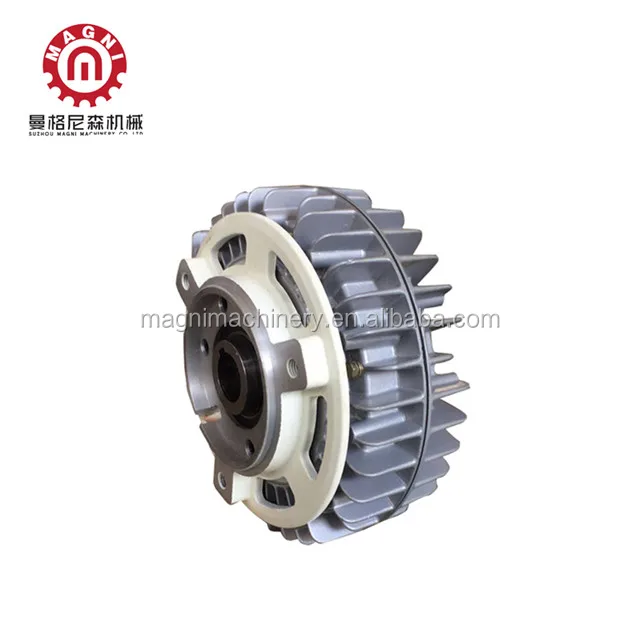

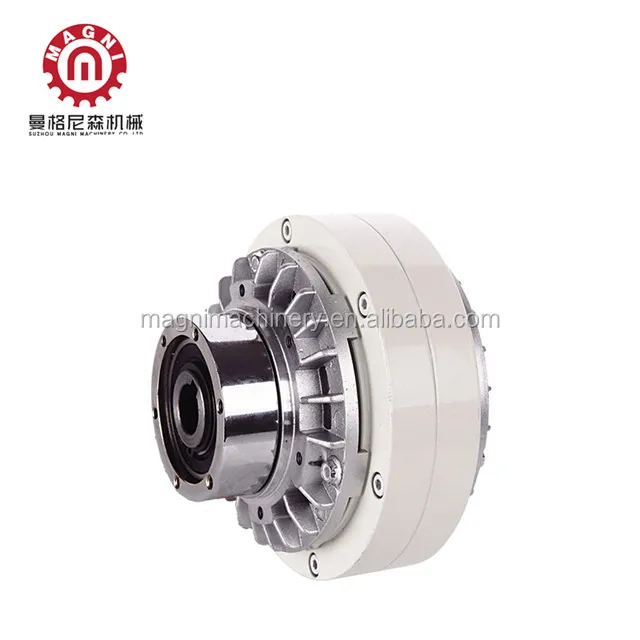

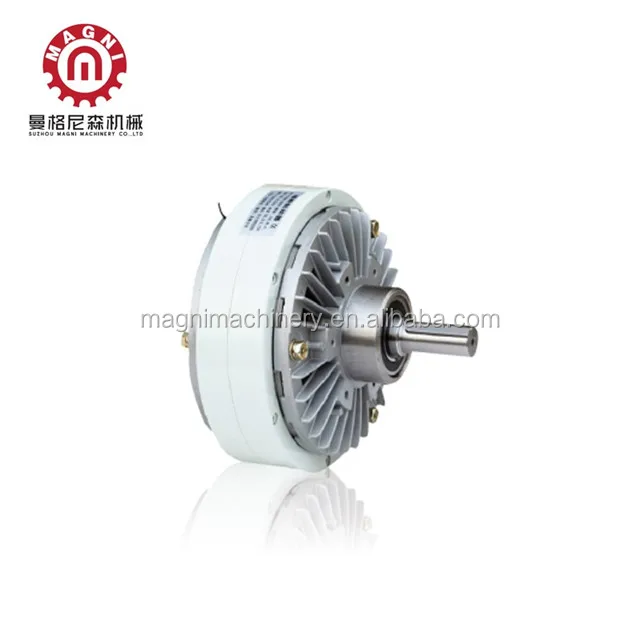

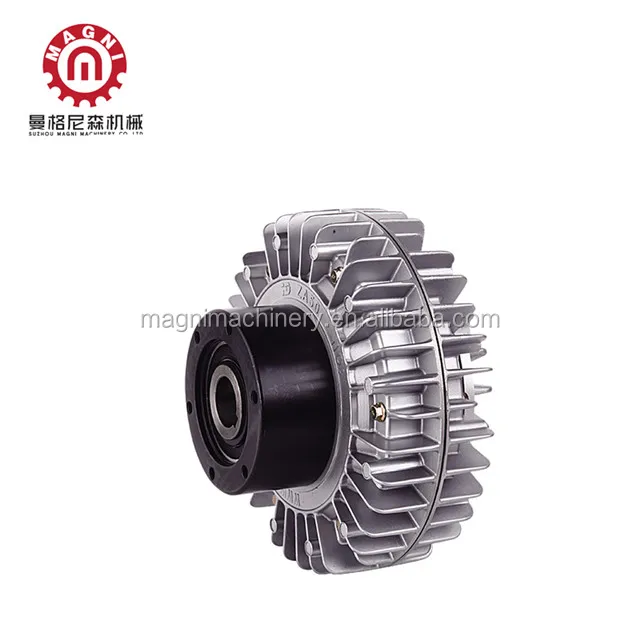

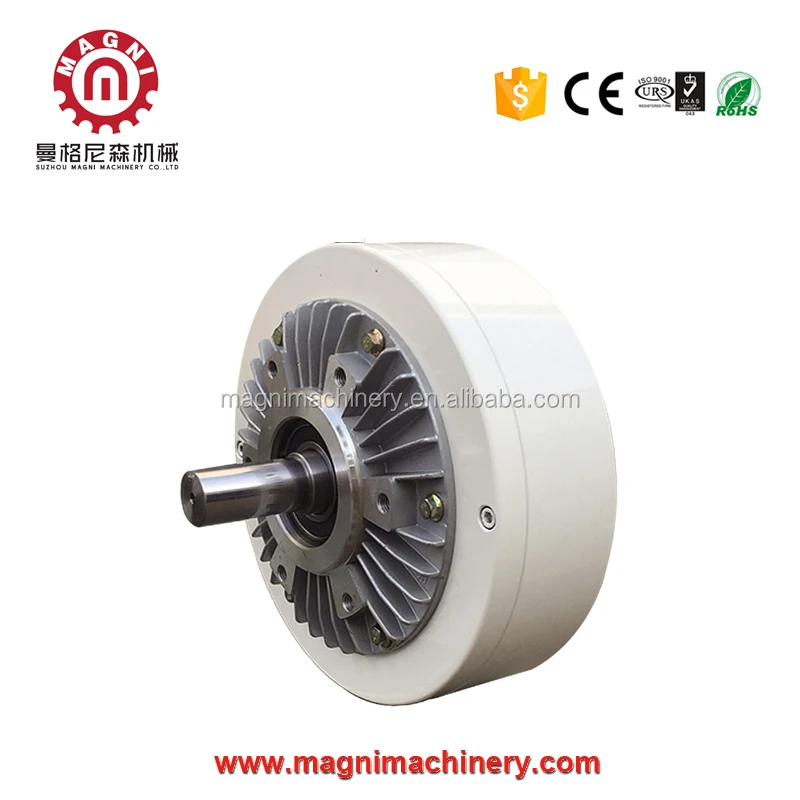

             Magni Magnetic Powder Brake





magnetic powder magnetic particle brake description

  The micro magnetic clutch and magnetic particle brake is composed of active rotor(input shaft), driven rotor(output shaft) and Yoke with excitation coil. The three parts are assembled relative concentric and form a system which can rotate relatively. The annular gap between active rotor and driven rotor is full of alloy powder which has high magnetic conductivity.

Magnetic powder magnetic particle brake  Feature

   The transmission torque has a linear relationship with the magnetizing current. The size of the torque can get controlled within large range. Under normal circumstance, the magnetizing current has a linear relationship with transitive torque within range of 5%-100% rated torque.

The friction part will generate heat inevitably or even destroyed when it keep continuous sliding. But this device has a complete cooling set, it will not generate a lot of heat after long time running and it has a long service life.

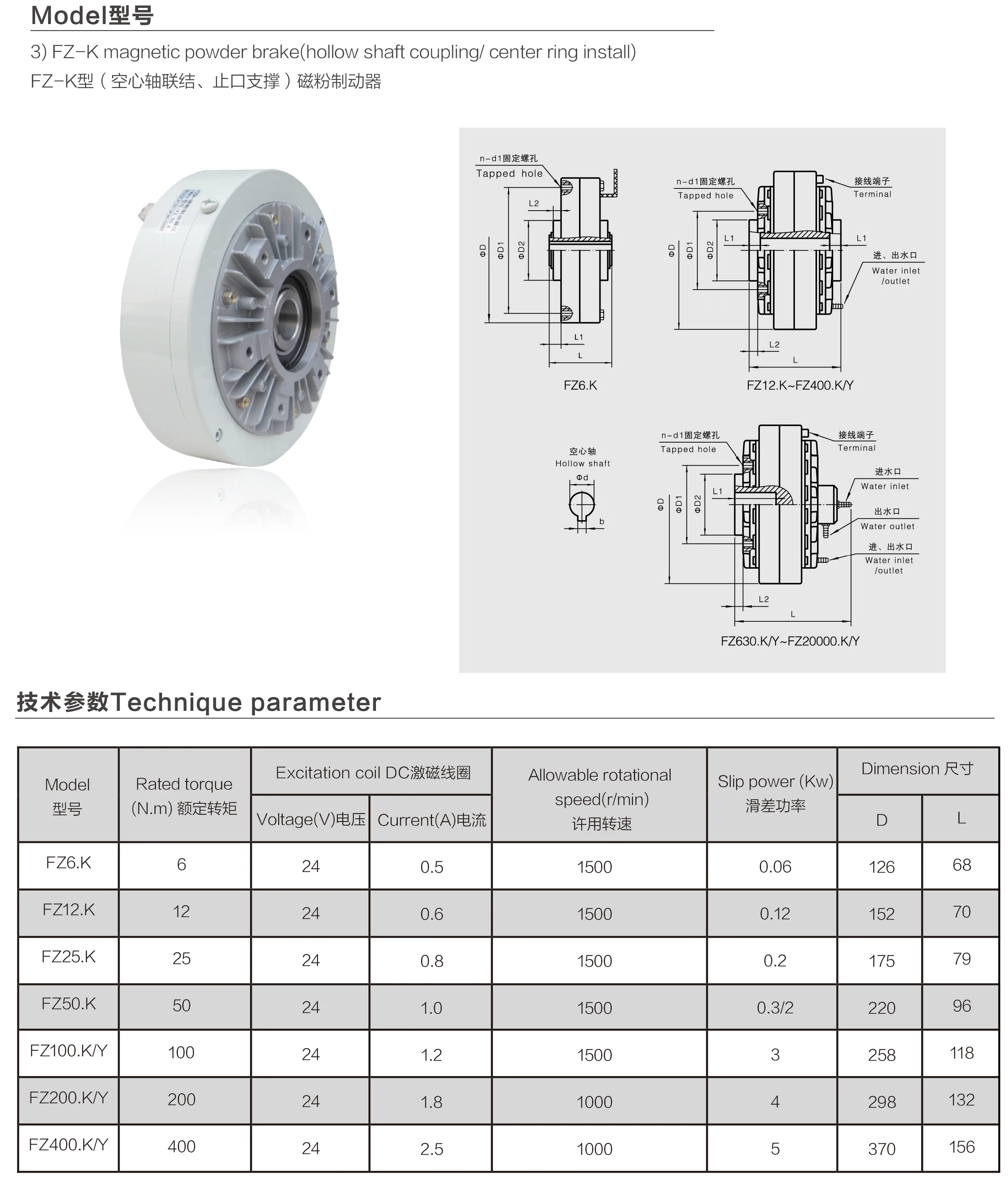

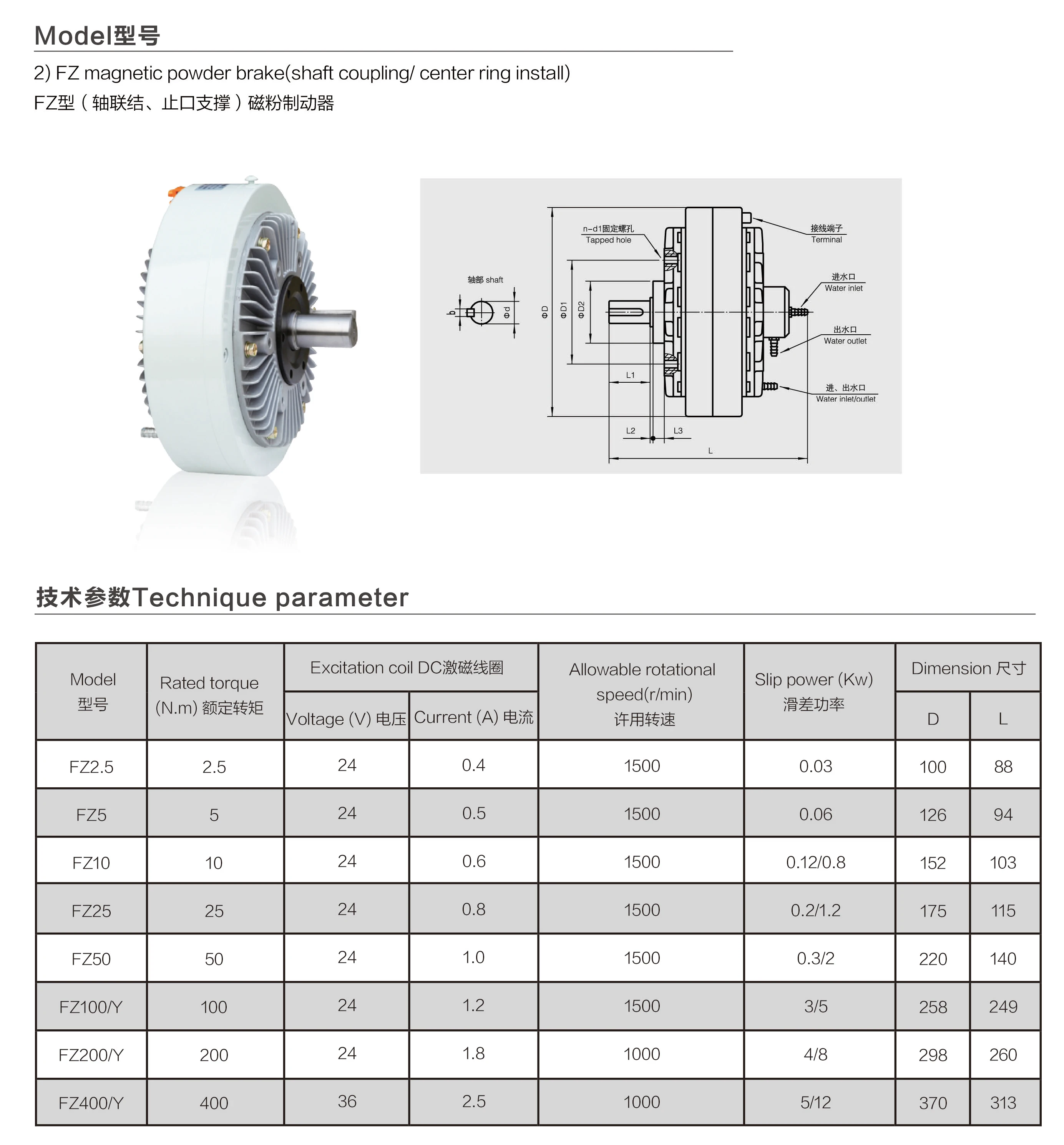

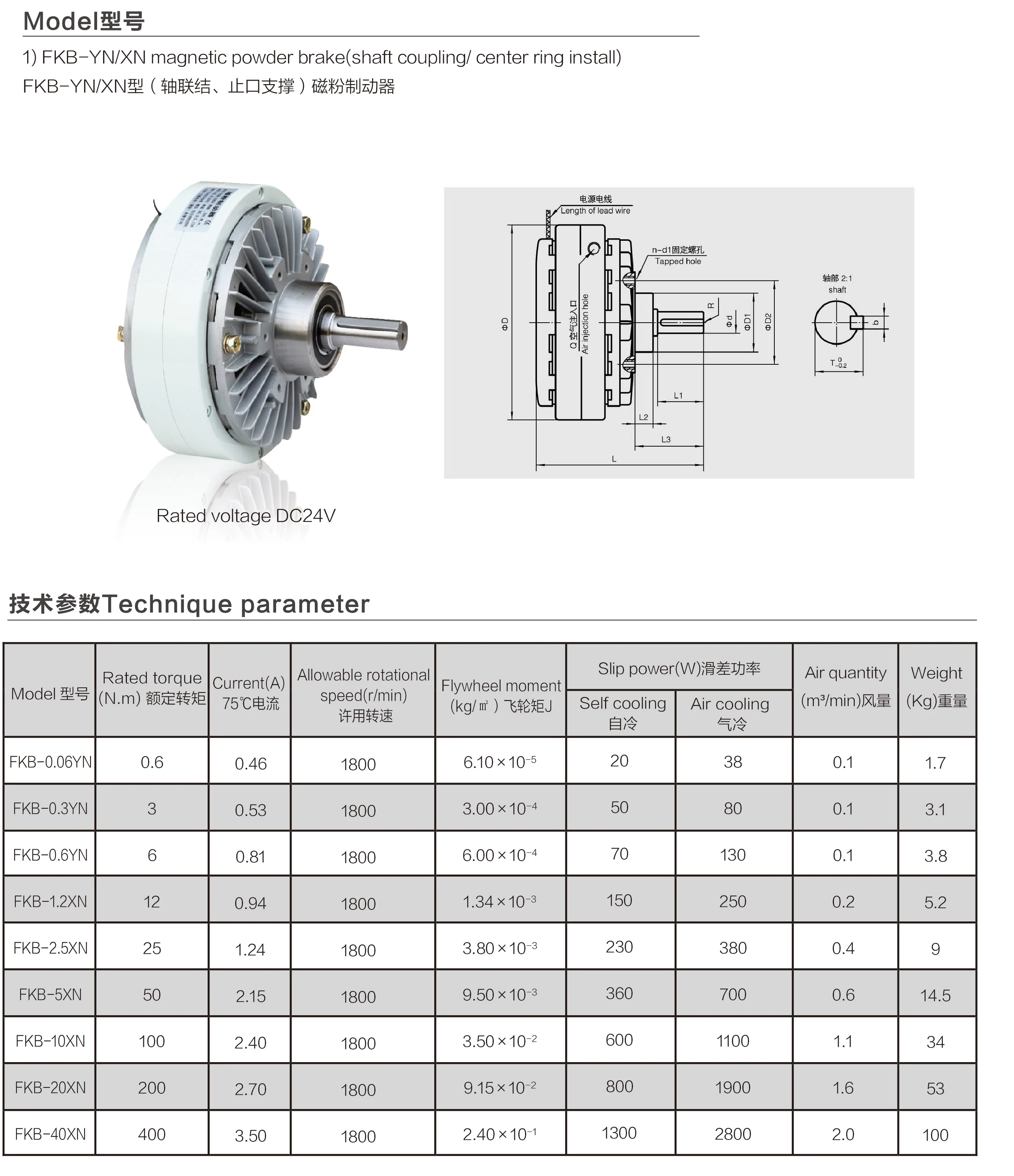

Magnetic powder magnetic particle brake  data

Application of Magnetic powder magnetic particle brake

Due to the features of the magnetic powder clutch and magnetic particle brake, they have been widely used in paper making, printing, plastic items, rubber industry, textile industry, printing and dyeing,wire and cable, metallurgy industry and tension control of winding and winding in roll material processing industry.

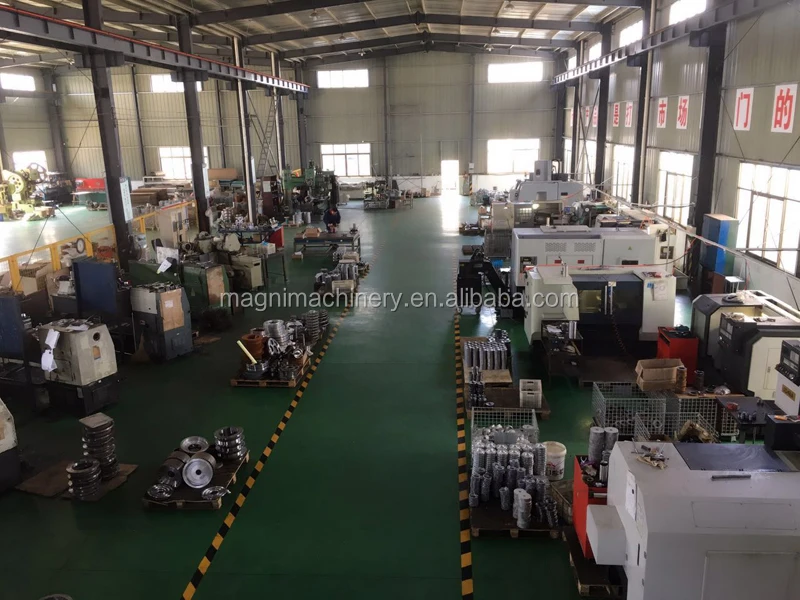

Work shop of magnetic powder magnetic particle brake
