Good quality corn filling snack machine price

Сохранить в закладки 62031665514:


Цена:18 900,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Good quality corn filling snack machine price(2)_01.jpg






Working Process


Full Automatic line process from raw material mixing to final Packing.


Mixer  -  Screw hoister  –  Double screw extruder  -  Core filler  -  Multi functional shaper  –  Hoister  –  Dryer  -  Flavoring machine

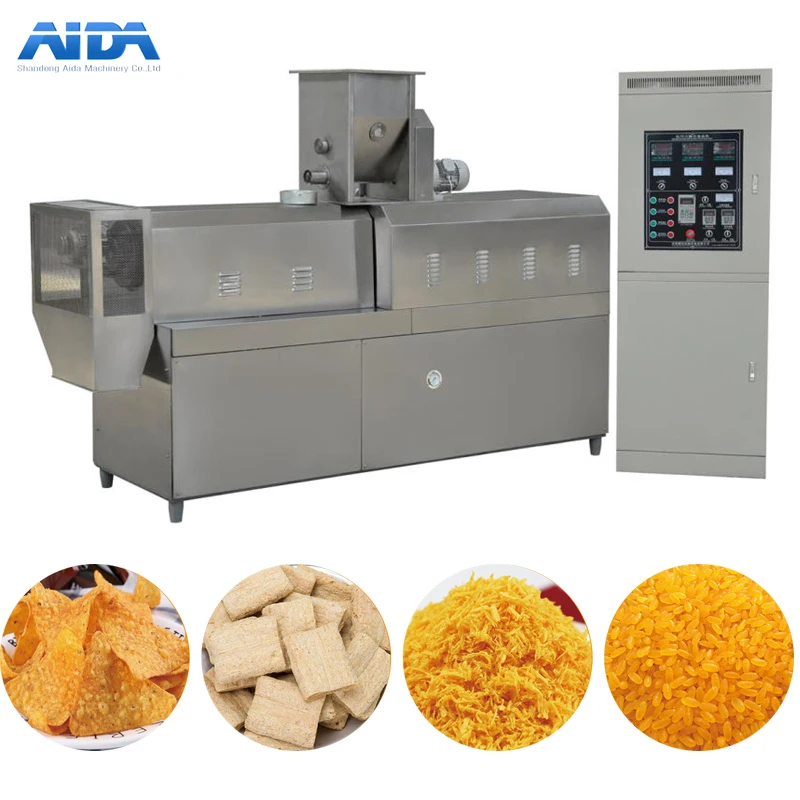

  Series of Screw Extruder mainly consist of feeding system, extruding system, cutting system, heating system, lubricating system and controlling system.


  Automatic lubricating and forced cooling make sure that extruder performs safely and extends using life.


  Feeding system, extruding system and cutting system all adopt frequency conversion timing to gain powerful drive, stable perform, and electricity saving.


  Screws are made of alloy and processed by special technique to possess high in-tensity, abrasion resistant.


  By means of designing different structures and slenderness ratios according to needs of products, screw ex- truding system can meet different technology demands.





































Model



AD90-II



AD85-II



Input Voltage



380V/ 50Hz



380V/ 50Hz



Installed Power



135kw



90kw



Power Consumption



85kw



 55kw



Production Capacity



500-800kg/h



300-500kg/h



Outside Dimension



5500×1300×2500mm



4500×1200×2300mm

















































Model



AD-3D



AD-5D



AD-3G



AD-5G



AD-7F



Electric(gas)
Consumption



28kw



42kw



5-10kg/h(gas)



15-20kg/h


(gas



90kw



Heating
Temperature



~200



~200



~200



~200



~200



Production
Capacity



120-180kg/h



150-200kg/h



150-250kg/h



200-250kg/h



300-500kg/h



Outside
Dimension


(mm)



5200×1250×1800



5500×1250×2200



5800×1500×2000



5800×1500×2500



8800×2000×2500



  Dryer is compact, has small dry area and a large superficial area. It features small scale of heat elimination & high thermal efficiency.
  Mesh belt conveyors and thermal insulation boards all use stain-less steel material, making the equipment clean and sanitary.
  The speed of mesh belt conveyor is adjustable. The drying period for food in the oven can be adjusted.
  The automatic temperature control system makes it possible to set the temperature according to your needs.
  These series of roasting oven are widely used, it is used for drying all kinds of stick, piece, grain etc. shape inflating snack food, the user can choose different types of dryer according to layer, length or energy.(2)_10.jpg





Parameter

 The core-filling snacks/puffed snacks production line with advanced German technology, it’s function and extrusion technology is on the top level all over the world.

  The production line is an integration of raw material mixing, raw material conveying, extruding and shaping, drying and coating to final products. Many kinds of snacks/puffed snacks suck as crispy rice flakes, core-filling snacks, cereal porridge, nutritional powder (instant porridge), etc. Rich various kinds of shapes and color can be produced by adjusting formula with various food additives and food coloring and different moulds.Rich various of tastes can be made by changing various of seasoners.









































Model AD56-II AD70-II A85-II
Input Voltage 380V/ 50Hz 380V/ 50Hz 380V/ 50Hz
Installed Power 68kw104kw125kw
Power Consumption58kw85kw 130kw
Production Capacity120-150kg/h180-220kg/h 300-500kg/h
Length 16000mm18000mm 20000mm




Finished Products







Our Services







Advantages







Packaging & Shipping





Packing:inside plastic bag, outside wooden case for fried pellet snack food machine  (Based on the customers' need adopt the wooden case or wooden pellets, etc.).


Delivery time:15-20 working day.(2)_13.jpg





Company Information


 (2)_15.jpgShandong Aida Machinery Co., Ltd. is a high and new technology enterprise integrating technology, manufacture and trade. We have devoted ourselves to developing, manufacturing and trading double/single screw extruders, snack production lines, breakfast cereal/corn flake production lines, soya meat production lines, pasta/macaroni production lines, pet food production lines, etc. for more than 10 years.
Aida has a comprehensive manufacturing program offering equipment and systems to customers in extruded snack food processing machinery and allied industries. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to meet the requirements of customers.
We are insisting on improving the standard of products and trying our best to serve our clients. Our goal is to become the biggest and best puffing snack food processing machinery manufacturer in China. We wish our products can benefit clients from all over the world.(2)_17.jpg





FAQ


 Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check the machines.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.
Q: Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
Q: How about the after-service?
A: We will send 1 engineer to the buyer’s factory for 7-14 days period installation and training to the operators.
Q:do you supply any formula to buyer?
A: yes, we supply formulas to buyer
