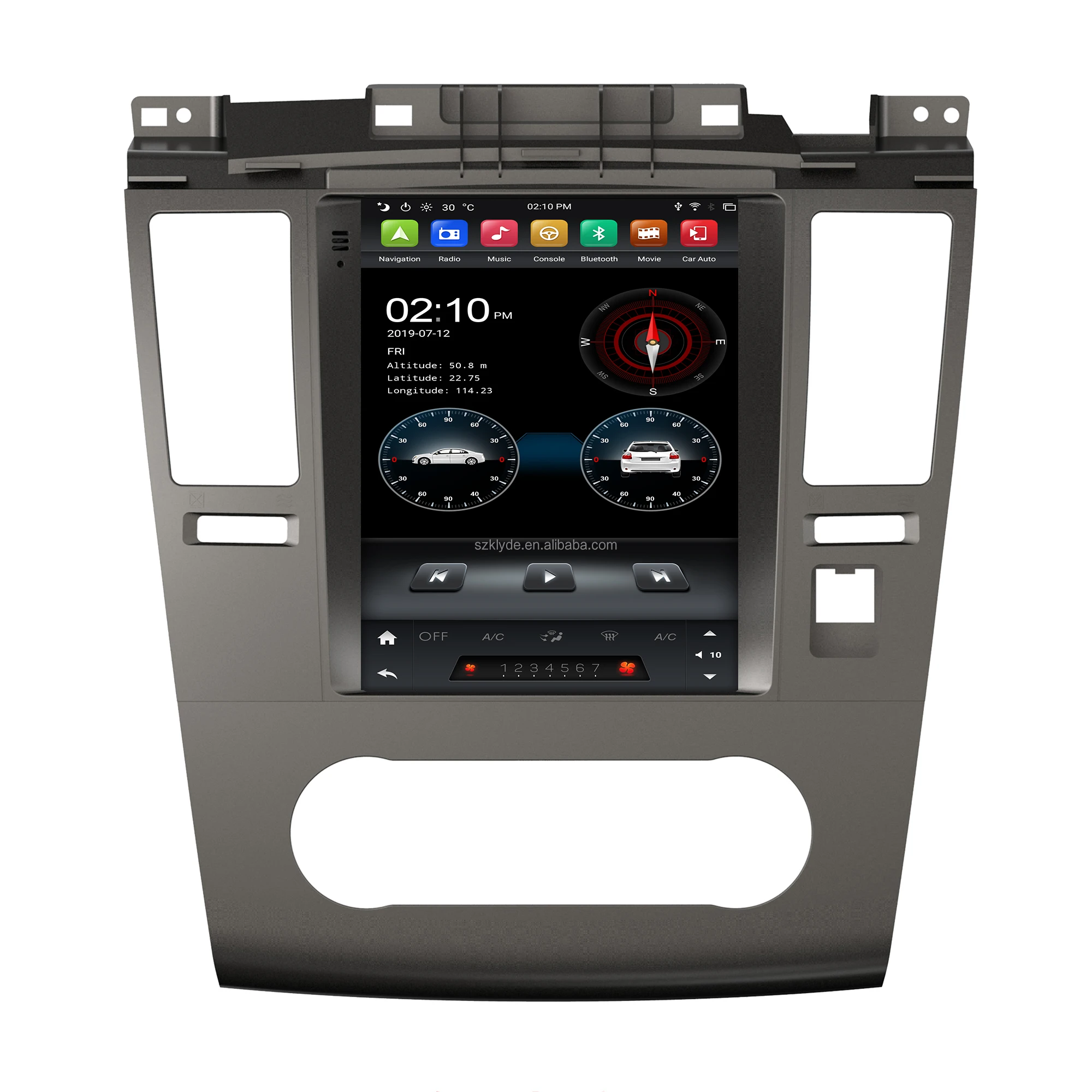

Автомобильный мультимедийный плеер для Nissan TIIDA 2008-2011, 4 + 32 ГБ, экран Тесла, Android 9,0, Px6, Carplay, GPS-навигация, головное устройство, DVD
479,00 $ - 505,00 $

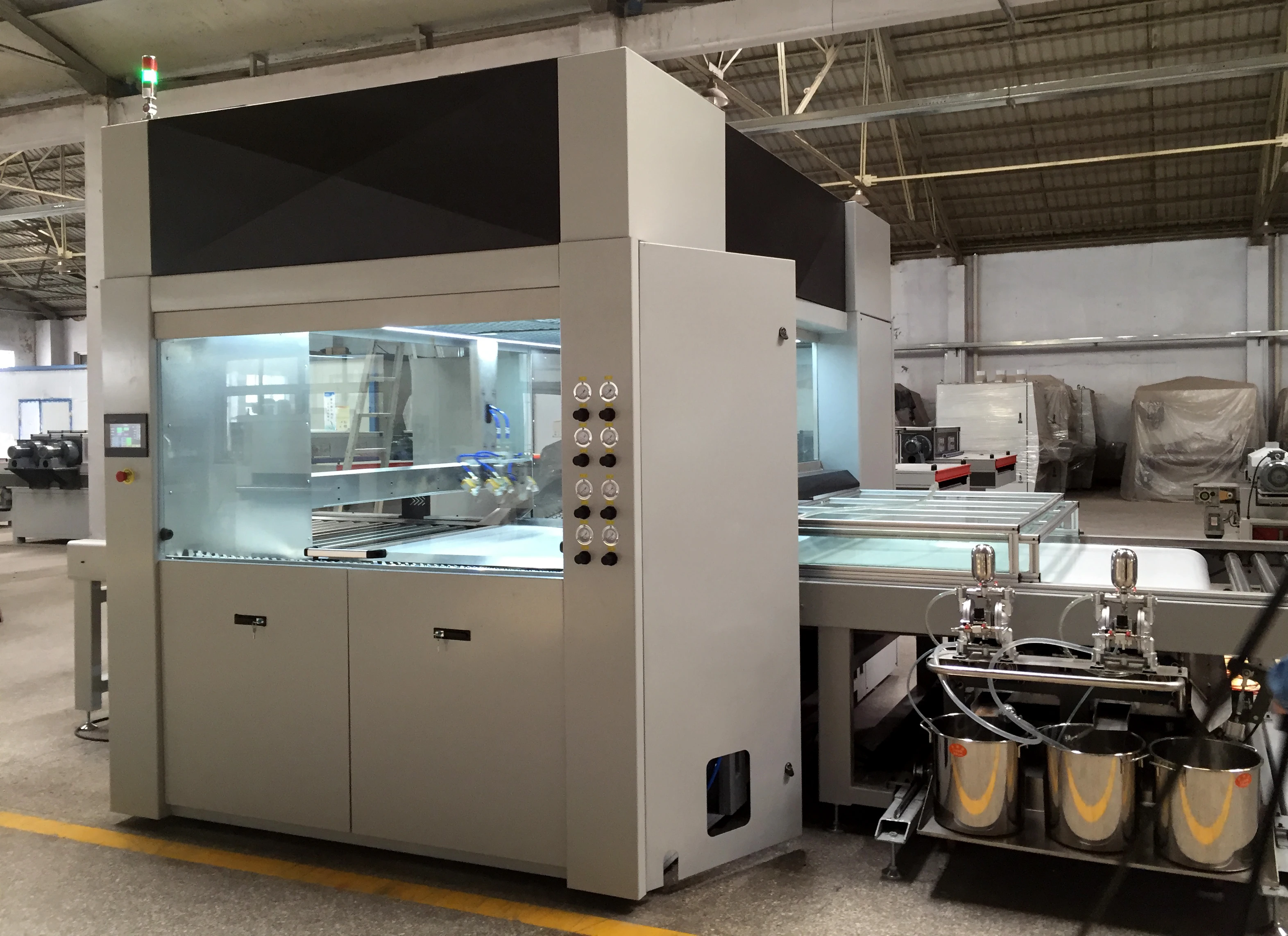

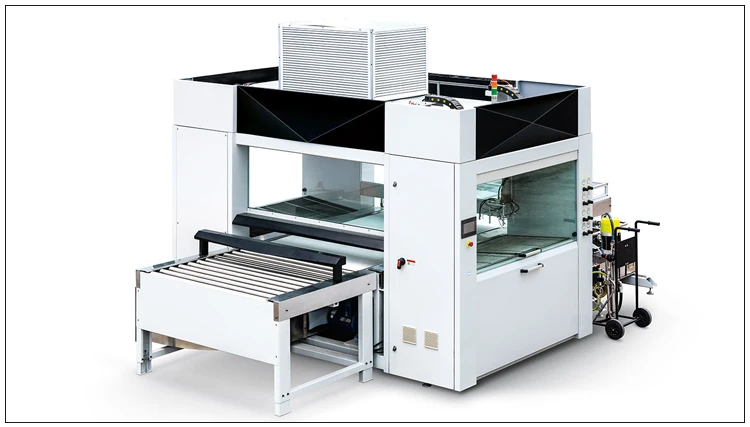

Автоматический станок с ЧПУ для распыления деревянных дверей
- Категория: >>>
- Поставщик: Qingdao High-Class Service Import & Export Co. Ltd.
Сохранить в закладки 62034005111:
Описание и отзывы
Характеристики
Product Description
Model No. | HCS1300 |
Length | 300-No limit |
Width | 20-1300mm |
Thickness | 5-80mm |
Spraying gun(kremlin) | 8pcs |

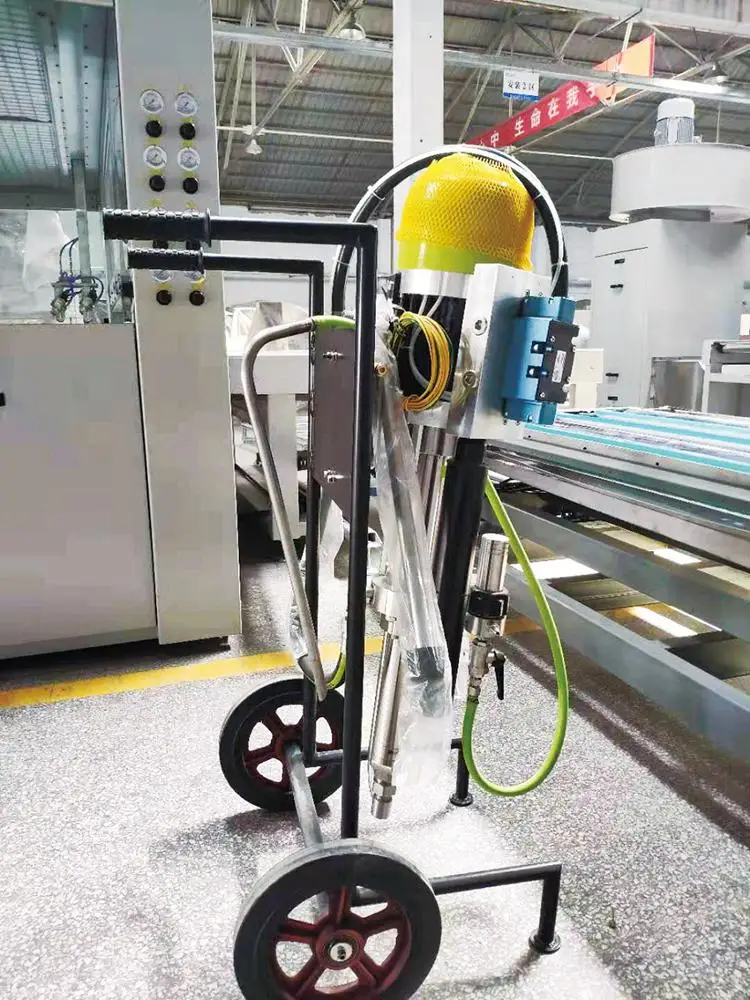

Pump (kremlin) | 2pcs |
Max. Feeding speed | 6m/min |
Air pressure | 0.5-0.8 M pa |
Total power | 14.5kw |
Voltage | 380V/50HZ/3P |
Weight | 3000kg |
Overall dimension | 4800*6700*2650mm |
This machine is applicable to the front and four sides of plate-type workpieces such as panel furniture, solid wood doors, cabinet door panels, decorative panels, calcium silicate boards, glass magnesium boards, and cement fiber boards. For PU/NC/UV/water-based
paints, fluorocarbon paints, etc.
Continuous high-quality automatic spray painting, improve product quality and production efficiency, while reducing paint loss,saving production costs.
paints, fluorocarbon paints, etc.
Continuous high-quality automatic spray painting, improve product quality and production efficiency, while reducing paint loss,saving production costs.

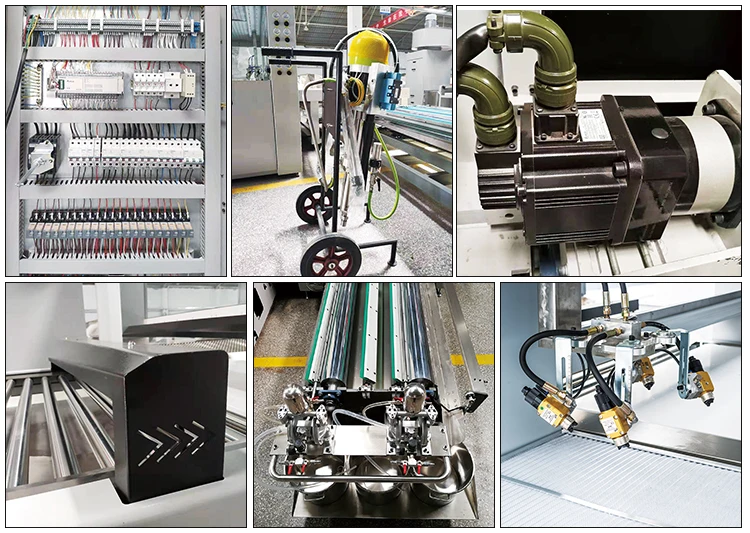

Detailed Images
Transport and Clean recycling system
- The main steel structure adopts bending and jointing of cool roll steel plates.
- The transport belt is made of PU material, with high abrasion and chemical eroding resistant. All the loading conveyor, spraying conveyor and unloading conveyor are belt type.
- The driving roller of transport belt adopts waist-drum type design to prevent the belt deviation effectively.
- The newest designed transport belt cleaning system can keep the belt clean and tidy better and ensure the equipment continue working. At the same time it also reduces the maintaining cost and makes the max. usage of the paint, especially for the reclaimed paint, such as UV.
- There are 4 working procedure for the belt cleaning system which ensure to make the belt cleaning.
- The paint has been removed from the belt is conveyed automatically into vessel and some kinds of paint can be reused by this reclaim system and cleaning system.
Spraying system
- Reciprocating mechanism is driven by the servo motor timing belt, along the high-speed linear guide to do high-speed reciprocating motion, the speed can reach 110m / min. Each sprayer is equipped with two reciprocating mechanisms. All electrical control systems are used in Germany Siemens or Japan Omron products.
- According to the size and thickness of the workpiece to adjust the height, width, angle, can effectively control the amount of paint spray and delivery speed, so that the side of the film even no sagging.

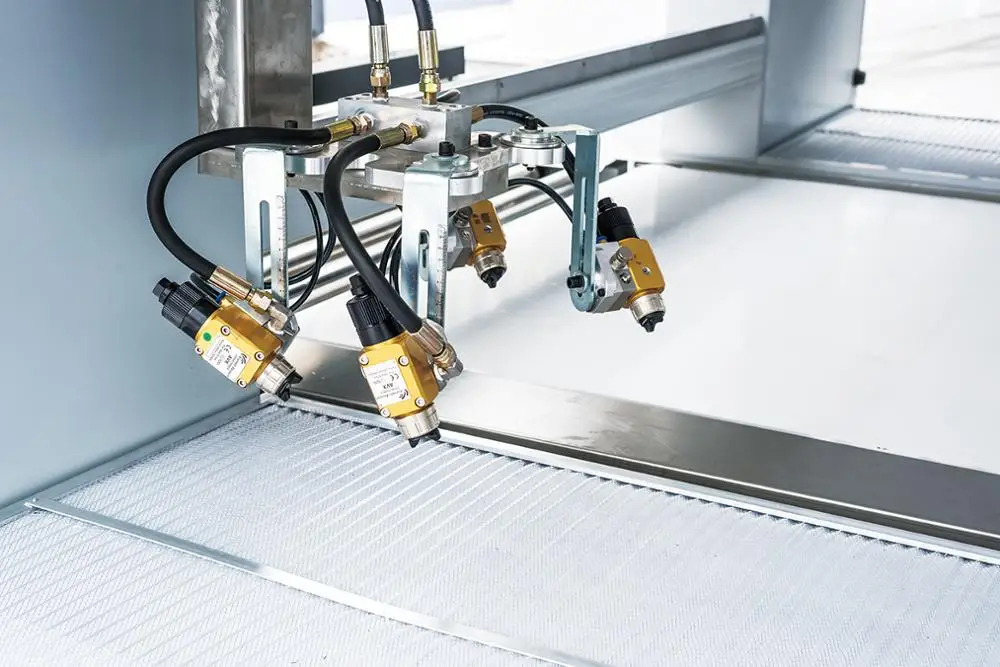

- The machine is equipped with two reciprocating robots, can be installed up to 8 guns, according to the production process to determine the angle of the gun and the number of guns open. To achieve uniform spraying to improve product quality. Two sets of pipes can be independent.

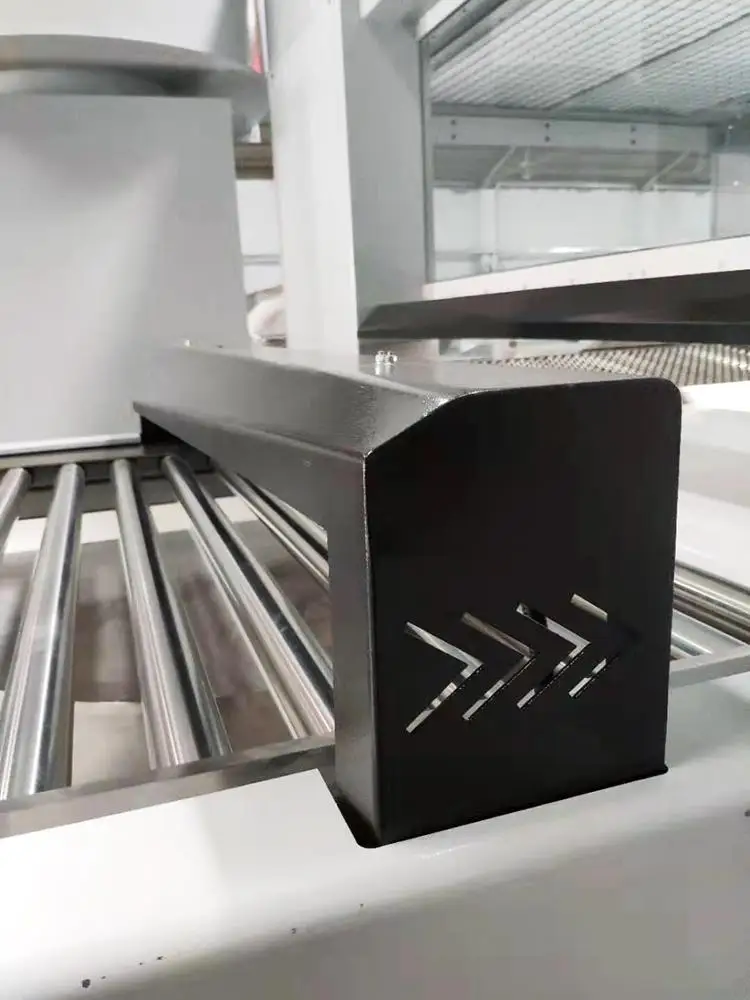

- The grating automatic width measurement system at the entrance can automatically measure the width of the workpiece to be sprayed, making the stroke and switching time of the gun more accurate and reducing unnecessary waste. The grating is made of American Banner products
- The main steel structure adopts bending and jointing of cool roll steel plates.
- The transport belt is made of PU material, with high abrasion and chemical eroding resistant. All the loading conveyor, spraying conveyor and unloading conveyor are belt type.
- The driving roller of transport belt adopts waist-drum type design to prevent the belt deviation effectively.
- The newest designed transport belt cleaning system can keep the belt clean and tidy better and ensure the equipment continue working. At the same time it also reduces the maintaining cost and makes the max. usage of the paint, especially for the reclaimed paint, such as UV.
- There are 4 working procedure for the belt cleaning system which ensure to make the belt cleaning.
- The paint has been removed from the belt is conveyed automatically into vessel and some kinds of paint can be reused by this reclaim system and cleaning system.
Spraying system
- Reciprocating mechanism is driven by the servo motor timing belt, along the high-speed linear guide to do high-speed reciprocating motion, the speed can reach 110m / min. Each sprayer is equipped with two reciprocating mechanisms. All electrical control systems are used in Germany Siemens or Japan Omron products.
- According to the size and thickness of the workpiece to adjust the height, width, angle, can effectively control the amount of paint spray and delivery speed, so that the side of the film even no sagging.
- The machine is equipped with two reciprocating robots, can be installed up to 8 guns, according to the production process to determine the angle of the gun and the number of guns open. To achieve uniform spraying to improve product quality. Two sets of pipes can be independent.
- The grating automatic width measurement system at the entrance can automatically measure the width of the workpiece to be sprayed, making the stroke and switching time of the gun more accurate and reducing unnecessary waste. The grating is made of American Banner products
- The switch of the gun is based on the scanning of the workpiece, by spraying the sensor at the area of the sensor to achieve
- Spray parameters set by the operator on the touch-screen display, using Siemens Omron imported products

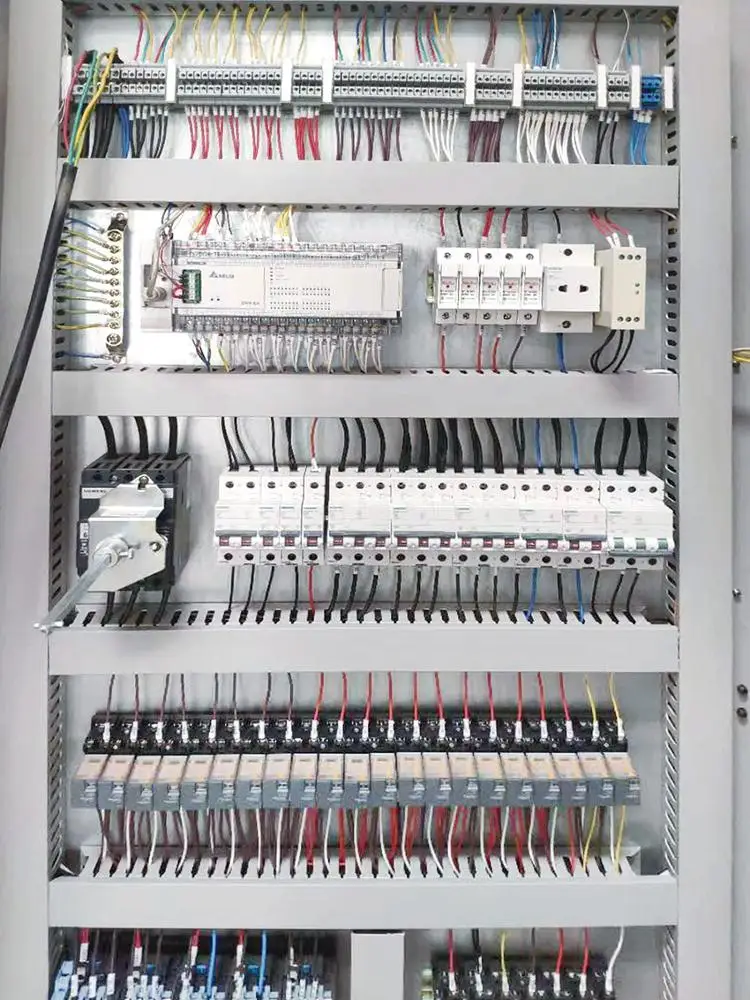

- PLC control system makes the operation easier, direct, the use of Siemens or Omron import products
Air circulation system
- Air inlet configuration A 3KW pressure air blower can be individually switched to effectively prevent the paint mist from spreading.
- The air entering the spray chamber has been filtered twice to keep the air in the spray chamber clean.
- Exhaust fan with 7.5kw large horsepower fan, effectively ruled out the spray chamber paint mist.
- Exhaust system on the paint indoor air for 2 times, so that the exhaust gas harmful to the human body to minimize the chemical content, in line with environmental requirements.
- Spray parameters set by the operator on the touch-screen display, using Siemens Omron imported products
- PLC control system makes the operation easier, direct, the use of Siemens or Omron import products
Air circulation system
- Air inlet configuration A 3KW pressure air blower can be individually switched to effectively prevent the paint mist from spreading.
- The air entering the spray chamber has been filtered twice to keep the air in the spray chamber clean.
- Exhaust fan with 7.5kw large horsepower fan, effectively ruled out the spray chamber paint mist.
- Exhaust system on the paint indoor air for 2 times, so that the exhaust gas harmful to the human body to minimize the chemical content, in line with environmental requirements.
Related Products
Company Introduction
1.15 years woodworking machinery experience
2. 8 years exportation experience
3. Engineer team with +20 years experience
4. We joined Alibaba Trade Assurance to make sure the buyer’s benefit.
5.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
6. Customer Feedback
2. 8 years exportation experience
3. Engineer team with +20 years experience
4. We joined Alibaba Trade Assurance to make sure the buyer’s benefit.
5.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
6. Customer Feedback
7.We are Gold Plus & Verified supplier in Alibaba.
8. Our company and products have been verified onsite by SGS Group
8. Our company and products have been verified onsite by SGS Group
Похожие товары
Автомобильный радиоплеер, плеер на Android 10, 2 + 32 ГБ, встроенный CarPlay, с поддержкой DSP, BT, GPS, с возможностью просмотра сзади
113,43 $ - 123,75 $
Для Nissan TIIDA 2016 + AT GPS-навигатор Android мультимедийный PX6 HD сенсорный экран видеоплеер Carplay авто стерео
Вертикальный экран Android 32 Гб 64 Гб для Nissan TIIDA 2008-2011 Автомобильный dvd-плеер gps система мультимедийный плеер
Оптовая продажа, автомобильный Gps-навигатор Klyde в стиле Tesla с Android 9, автомобильная DVD-навигационная система для TIIDA 2008-2011
330,00 $ - 338,00 $
3 шт для серфинга плавники комплект пластичный стекловолокный углерода досок для серфинга SUP плавник для продажи
3,79 $ - 4,50 $
Высококачественный Комплект кузова для Mercedes benz W222 S class S63 2018 2019
848,00 $ - 998,00 $

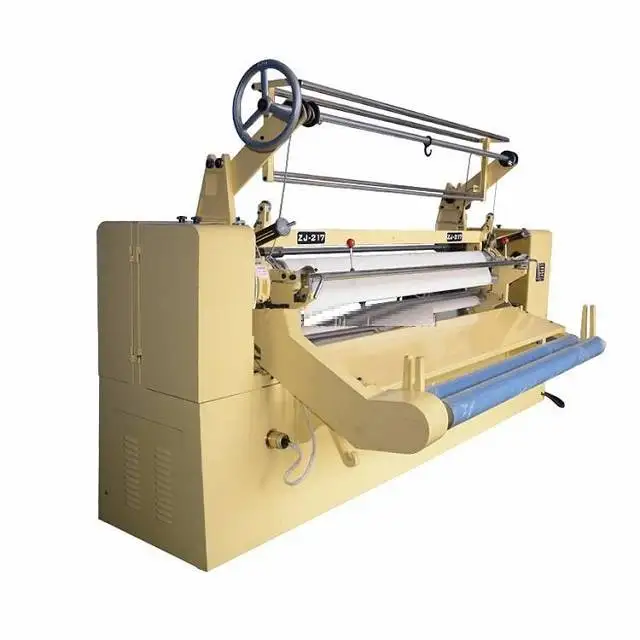

Zj-217 Zj-416 Zj-516 Многофункциональный плиссировочная машина для ткани текстильные плиссировка машина
