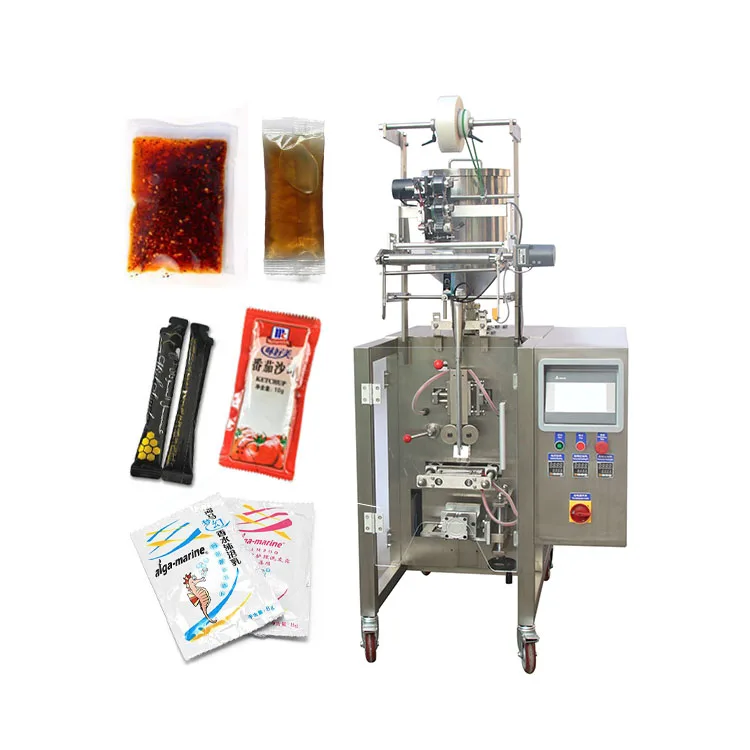

10-70 мл шампунь мед Кетчуп Крем Уксус Жидкости Саше наполнения запайки упаковочная машина для томатного соуса
2 500,00 $ - 8 000,00 $

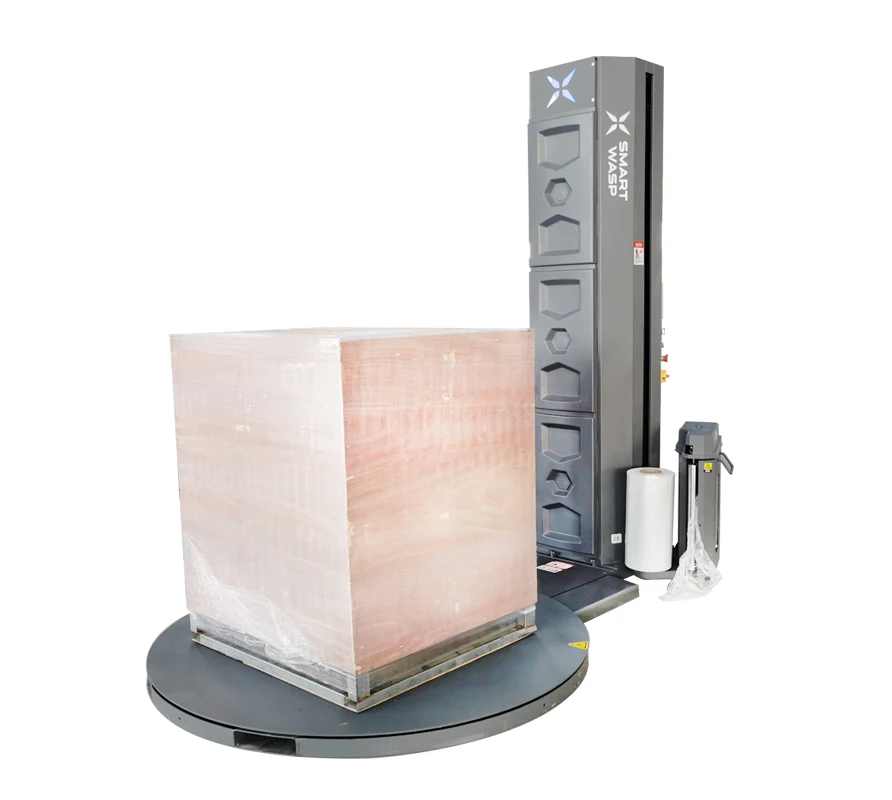

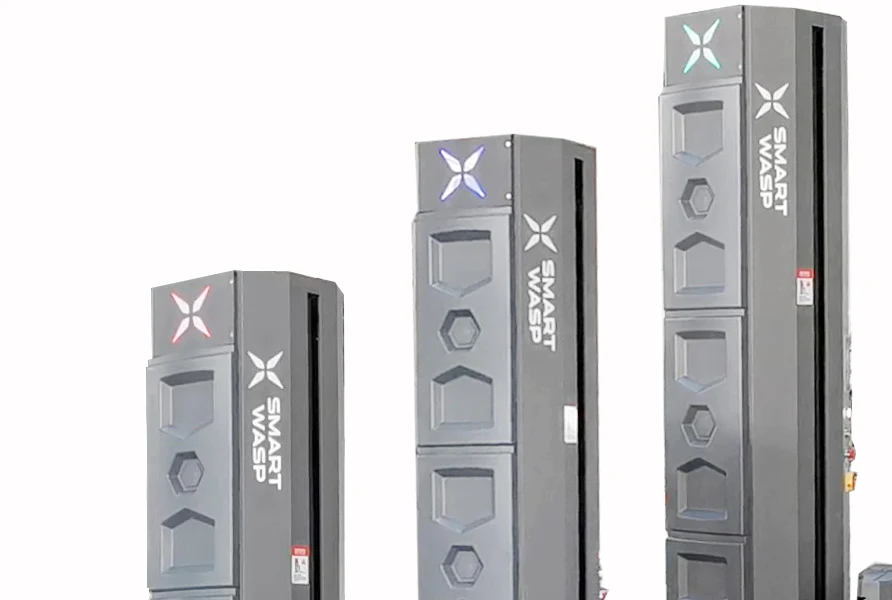

Полуавтоматическая машина для обертывания поддонов с функцией пленочной резки 300% предварительно растягивающаяся и сертифицированная CE автоматическая обертка
- Категория: Packaging Machine >>>
- Поставщик: Suzhou Jiajun Packing Machinery Co. Ltd.
Сохранить в закладки 62034420613:
Описание и отзывы
Характеристики
Product Description
Model | Smart Wasp X1 | Spare Parts | Brand | |
Maximum wrapping speed | 20-30 loads/hour (1x1.2x1.8 m 2 layer NOT include loading and Unload time) | Inverter | X-LINE | |
Maximum pallet size | 1.2*1.2 m | Position sensor | SICK(Germany) | |
Maximum Wrapping Height | 2400mm(for pallet height:2300mm +100mm over top) | PLC | SIEMENS | |
Turntable Speed | 0-13RPM(Adjustable) | Travel Switch | OMRON(Japan) | |
Turntable Size | 1650mm(1500mm/1800mm/2000mm optional) | Motor | GPG Taiwan | |
Machine Power | 1.5KW | Relay | OMRON(Japan) | |
Film Cut | Automatic (Mechanical type) | Touch screen | SMARTWASP IoT Touch screen | |
Max Load Weight | 2000KG | Switch | Schneider | |
Standard Film Width | 500mm | Photoelectric sensor | Autonics | |
Constant Film Delivery Force | Standard | Terminal block | Weidmuller(Germany) | |
Standard Pre-Stretch | 250% | 24V power supply | OMRON | |
Film Capacity | 250mm Diameter | |||
Up&down Drive system | Up&down Drive system | |||
Fix Film on Pallet | Manual | OPTIONAL FUNCTION | ||
Roping system | Optional | Ramp | Optional | |
Muti-layer function | Have | weighing scale | Optional | |

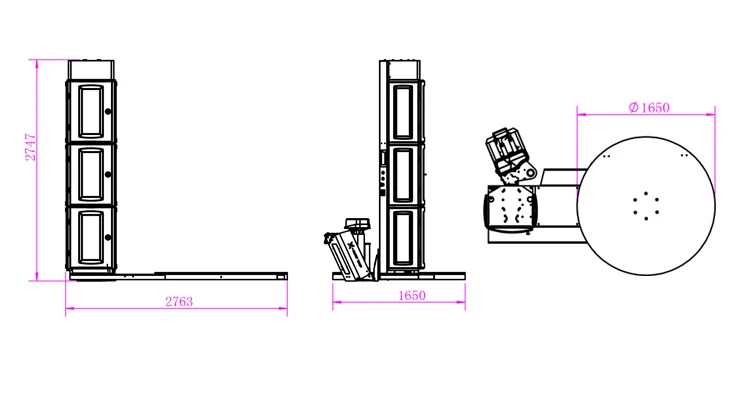

Machine Size | 2.8*1.65*2.74m | Top pressure function | Optional | |
Machine weight | 680KG | |||
Voltage | 110-240V/50HZ/60 HZ 3P | |||
Detailed Images
1.Automatic Cut Film
After finishing wrapping the pallet, our pallet stretch wrapper will cut the film automatically. There is no need for workers to cut the film with tools, which is very helpful for users.

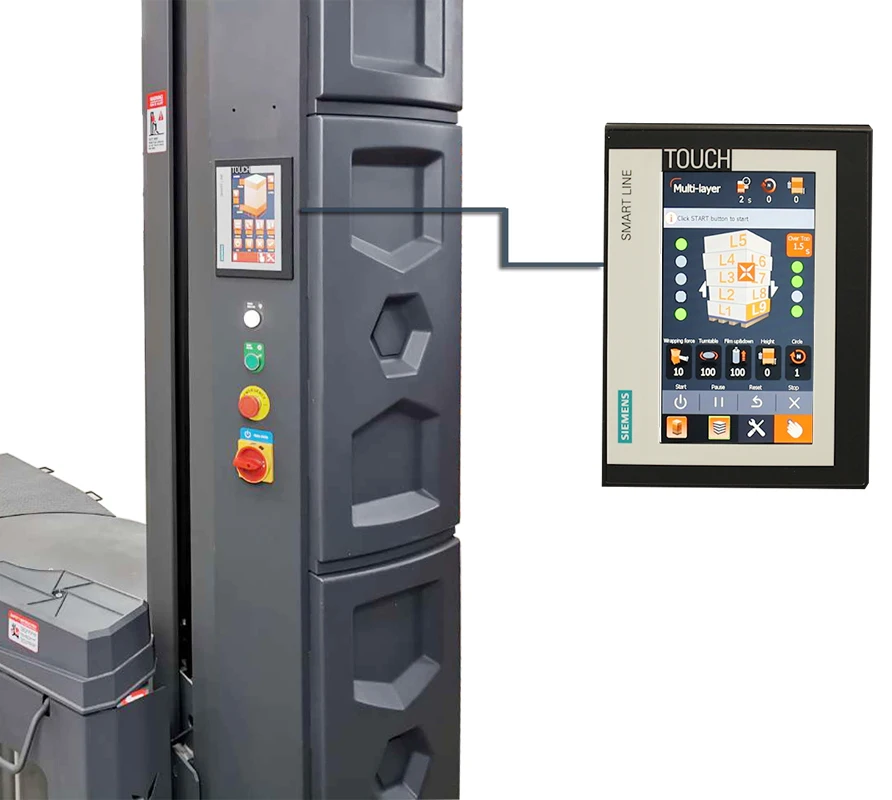

2.Muti-layer Function
This function can set different wrapping circles, wrapping force
at any height that you want and maximum we can set 9 layers for pallet. Normal machine's wrapping force from bottom to top is the same, and it can not stop during wrapping and achieve reinforce wrapping function. Such function completely avoids these problems.
at any height that you want and maximum we can set 9 layers for pallet. Normal machine's wrapping force from bottom to top is the same, and it can not stop during wrapping and achieve reinforce wrapping function. Such function completely avoids these problems.

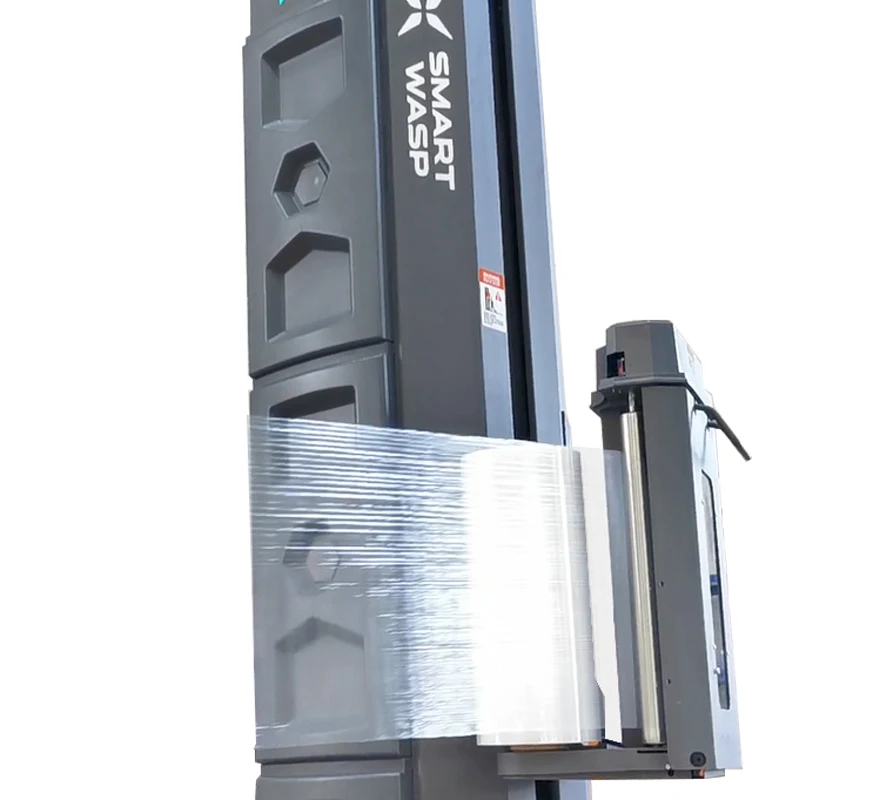

3.Saving Film Consumption
With pre-stretch roller, maximum up to 380% pre-stretch rate.
Maximize the value of each meter of stretch film
Standard constant releasing film
Fixed-point wrapping and quantitative use film

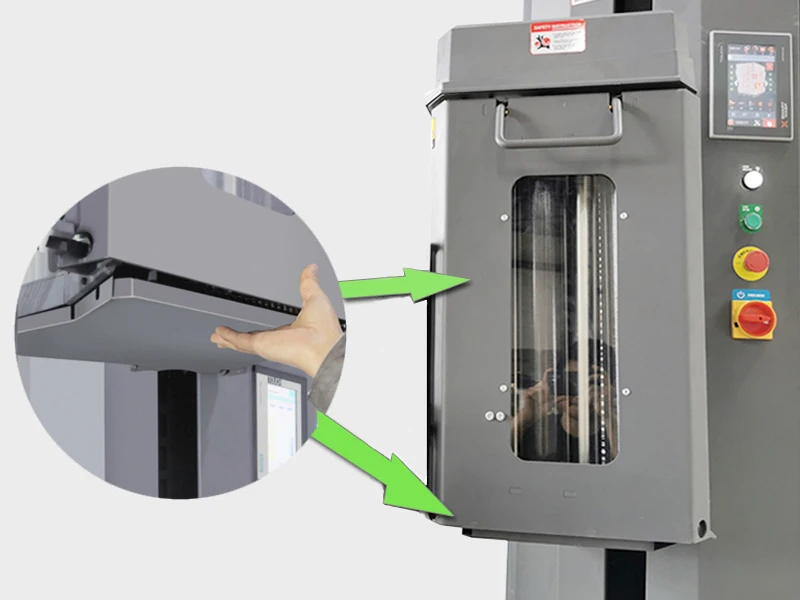

1.Safety device under film carriage to protect
the foot or head of the operator
2.Transparent board makes it easy to find problems without opening the door.
2.Transparent board makes it easy to find problems without opening the door.
3.Up and down belt deviation and damaged alarm system gives alarm in time to avoid carriage dropping down.

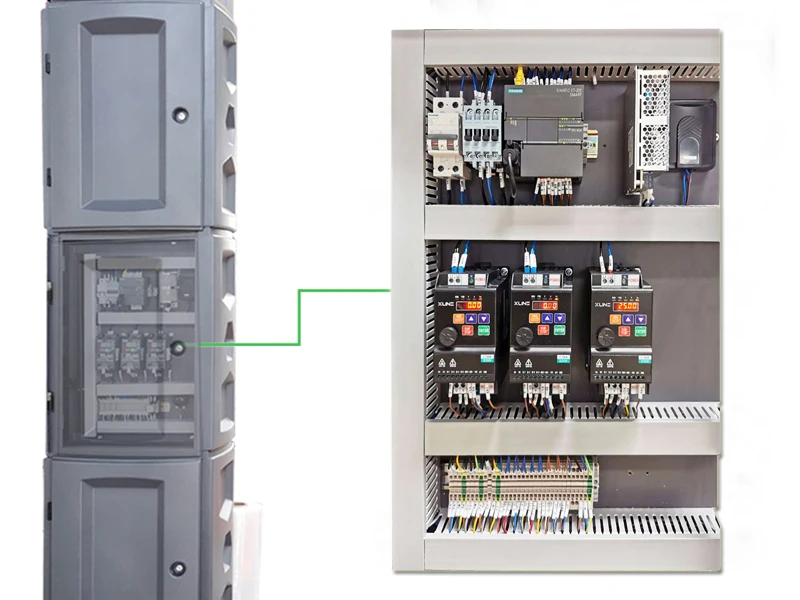

5.Better Spare Parts
SIEMENS PLC
SICK proximity switch
AUTONICS photoelectric switch
WEIDMULLER terminal block
X-LINE Inveter
OMRON 24DC supply
6.Intelligent operation Guiding system
1. X1 with LED indicator on machine.
Ready for work--Blue color
Working--Green color
Alarm--Red color
2.Touch screen guide you how to operate machine. If alarm appears, touch screen will show you how to solve problem
CUSTOMER CASES

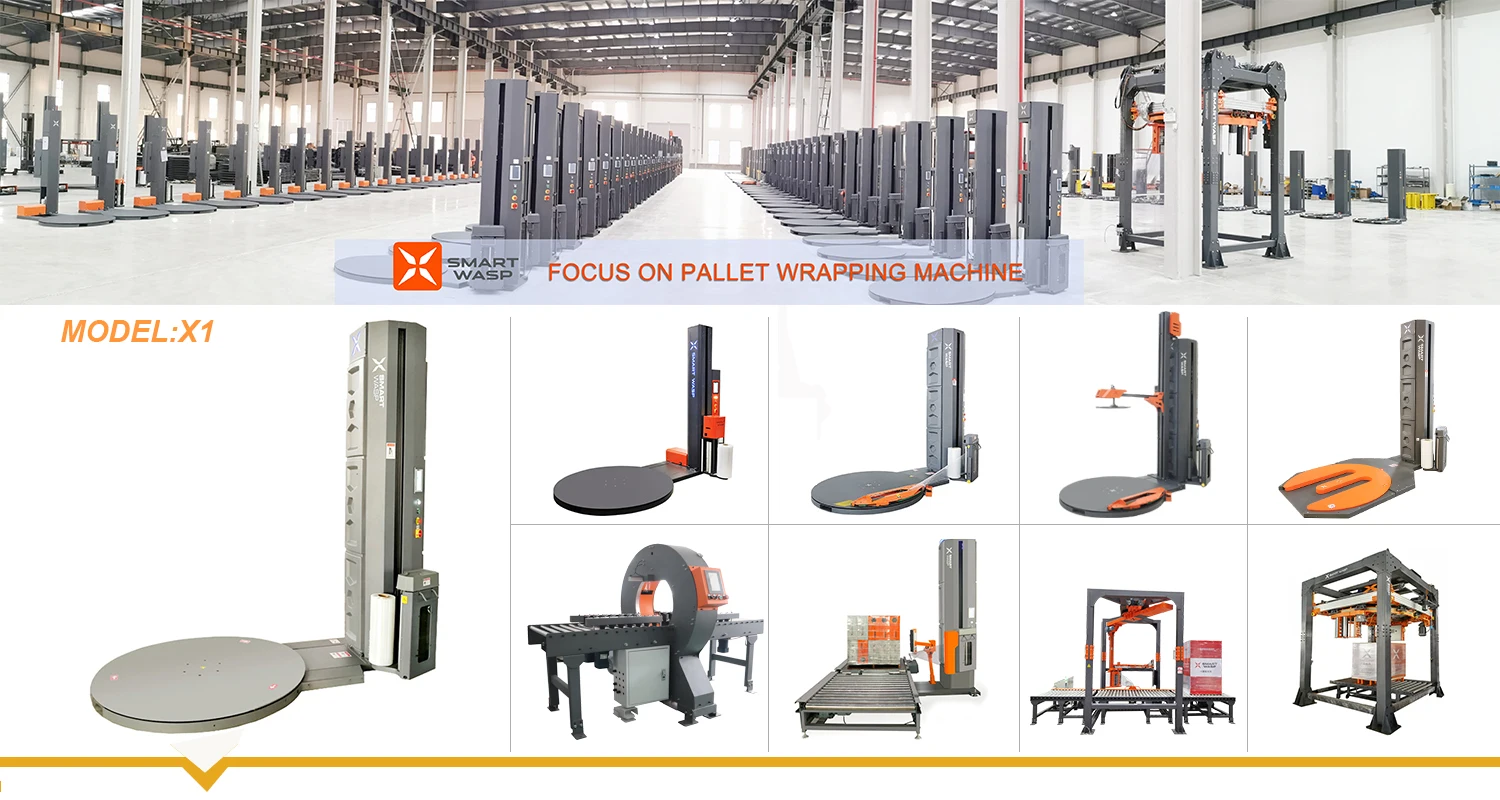

SMART WASP standard machine series include the x0ms X0ps X1 X100 X3 X300 X5 X500
All series machine will provide you with all the wrapping solution
SMART WASP have provide automatic wrapping solution for LG ,Sharp.Heineken ,china tobacco ,we sue our professional design and rich experience let our customer use reliable automatic wrapping machine
WE PACK MACHINE MORE SAFETY
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Shipping Type | 1set machine/crate (size/weight) | 2sets machines /crate (size/weight) | Mix packing (just for FLC shipping type) |
LCL Shipping | 2.98x1.8x0.9m 800KG | 2.98x1.8x0.95m 1500KG | Turntable /crate Carriage/crate Tower/crate |
Quantity crates in 20 FT | 4sets | 8sets | 12sets |
Quantity crates in 40 HQ | 8sets | 16sets | 24sets |
Exhibition
WELCOME TO VISIT US
SMARTWASP Attend Exhibition in JAPAN UKRAINE THAILAND MALAYSIA GERMANY POLAND MEXICO..Over 10 countries And attend China Professional Exhibition Every Year
2021SMARTWASP EXHIBITION LIST
The 27th China International Exhibition on Packaging Machinery & Materials ProPak China
Time： 2021/6/23-25
Address: National Exhibition Convention Center (Shanghai), China
Time： 2021/6/23-25
Address: National Exhibition Convention Center (Shanghai), China
The 17th China (Qingdao) International Packaging Industry Exhibition CIPI
Time： 2021/7/18-22
Address：Qingdao red island international convention and exhibition center
Time： 2021/7/18-22
Address：Qingdao red island international convention and exhibition center
The 22nd Asia International Logistics Technology and Transportation Systems Exhibition CeMAT
Time：2021/10/26-29
Address：Shanghai New International Expo Center
Time：2021/10/26-29
Address：Shanghai New International Expo Center

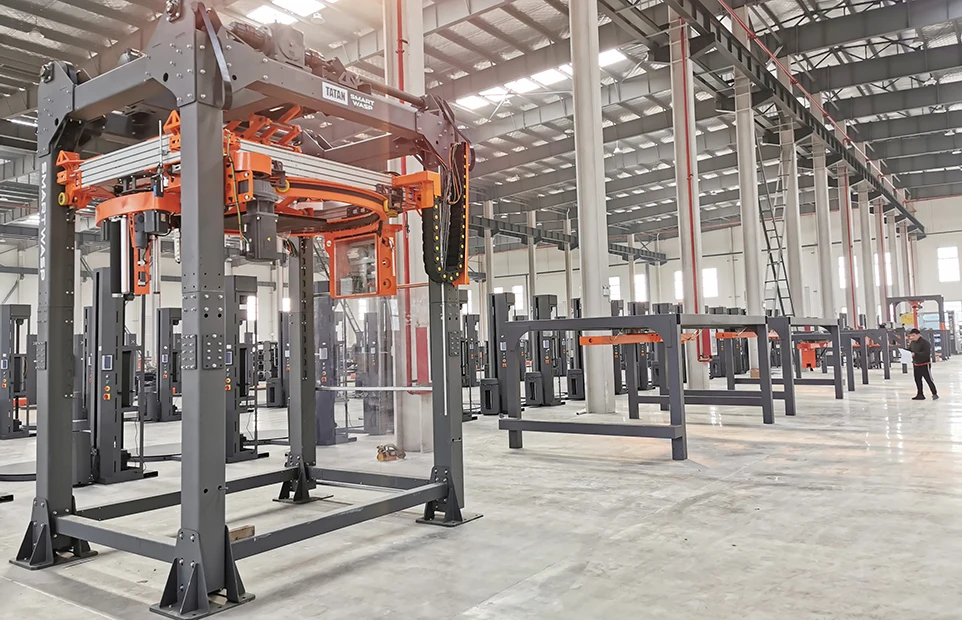

OUR TEAM
SMART WASP Team have 210 people ,we have over 30 mechanical engineer and electric engineer ,SMARTWASP international team in Ukraine Thailand Mexico Malaysia USA Ireland Poland Panama ..for promoting and doing service for Smart wasp machine .we hope more and more partner join us .
Smart Wasp Intelligent Technology (Suzhou) Co., Ltd., specializing in designing, researching and manufacturing intelligent pallet
wrapping equipment and providing packaging automation solutions.Smart Wasp has a professional design and development team. The new factory covers an area of 50 acres.Smart Wasp standard pallet wrapping machine series, fully automatic pallet wrapping machine, high speed ring pallet wrapping machine series popular in the United States, Germany, Canada, Mexico, Australia, South Korea, more than 60 countries and regions, and ZF, Kraft Foods, LG, Panasonic, etc. Well-known companies establish long-term cooperative relationships. Smart Wasp is committed to building products with Chinese brands and world-class quality and strives to become a respected company.
wrapping equipment and providing packaging automation solutions.Smart Wasp has a professional design and development team. The new factory covers an area of 50 acres.Smart Wasp standard pallet wrapping machine series, fully automatic pallet wrapping machine, high speed ring pallet wrapping machine series popular in the United States, Germany, Canada, Mexico, Australia, South Korea, more than 60 countries and regions, and ZF, Kraft Foods, LG, Panasonic, etc. Well-known companies establish long-term cooperative relationships. Smart Wasp is committed to building products with Chinese brands and world-class quality and strives to become a respected company.
YOU MAY LIKE
Похожие товары
Tentoo Автоматическая многофункциональная машина для упаковки чипсов, картофеля фри, закусок
1 296 807,60 ₽
Лучшее качество RH-400A резательная машина
9 000,00 $ - 10 000,00 $
Автоматический нетканый ультразвуковой сварочный аппарат с петлями (односторонний)
3 600,00 $ - 4 000,00 $

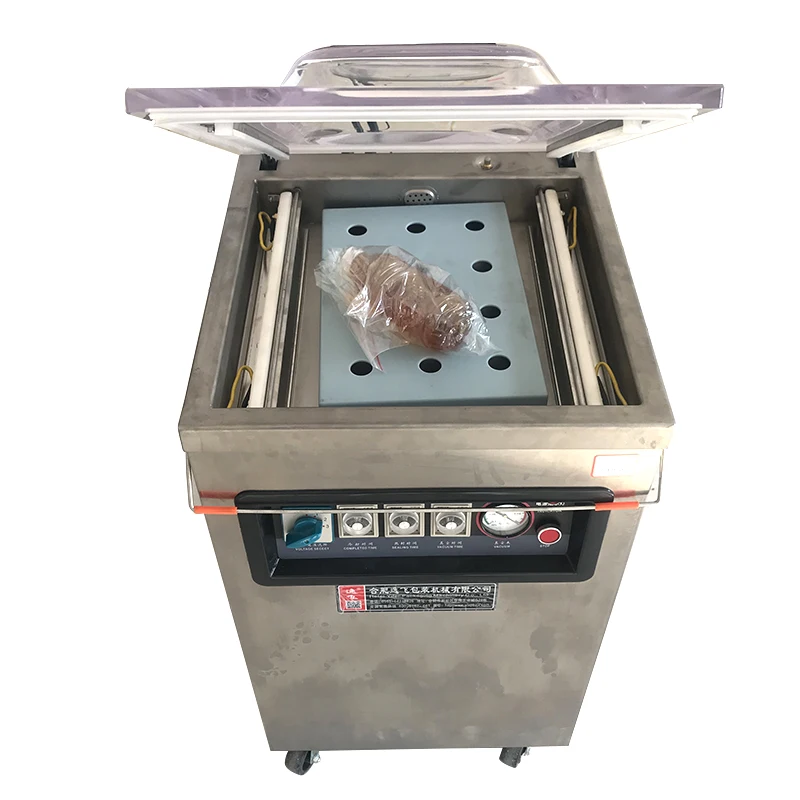

Вакуумный упаковщик с большой камерой
450,00 $ - 600,00 $

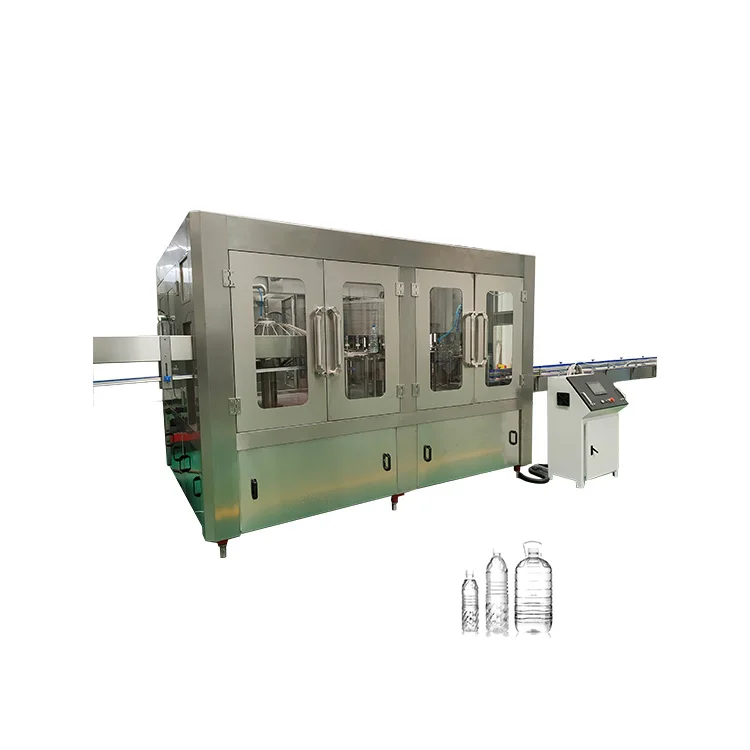

Автоматическое оборудование для розлива минеральной воды в бутылках с контролем качества
15 000,00 $

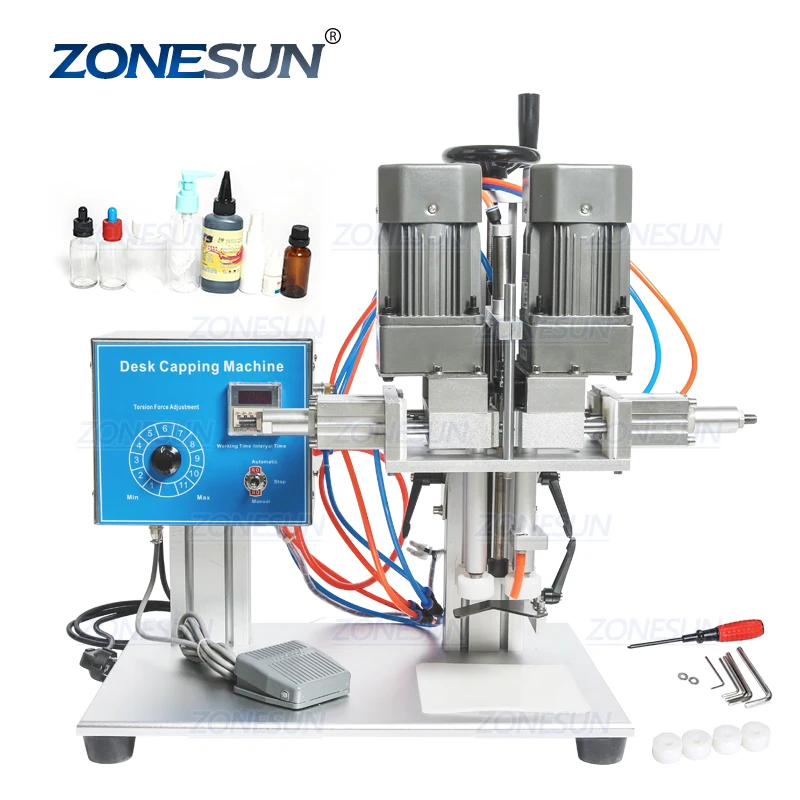

ZONESUN E-juice E-liquid Настольный триггер колпачок закручивающийся пластиковый стеклянный капельница носик чехол для бутылки укупорочная машина
