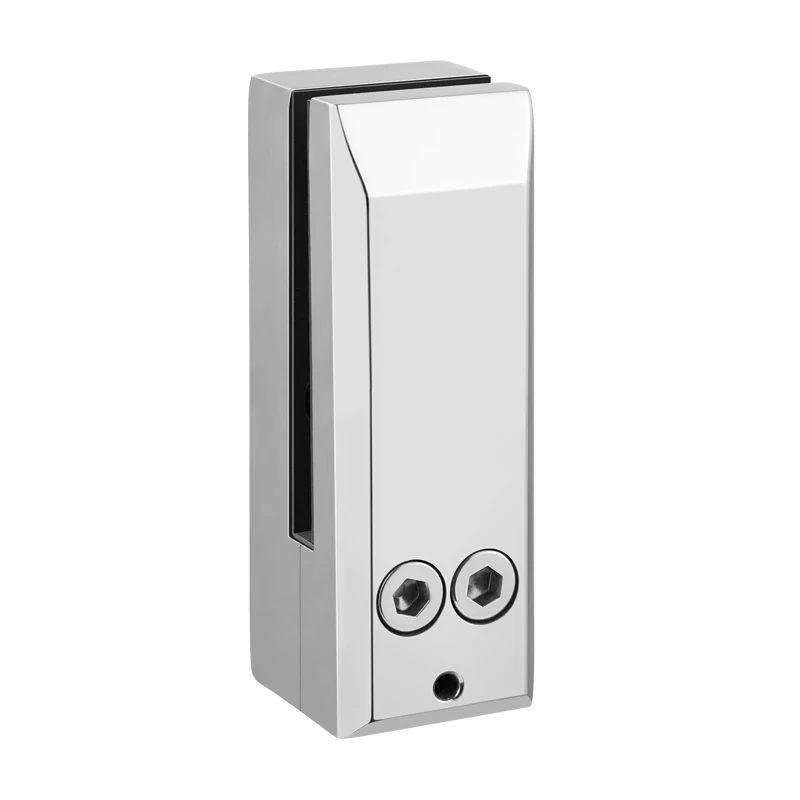

Item Number | SSC1471B |
Material | Deplex 2205 Stainless Steel |

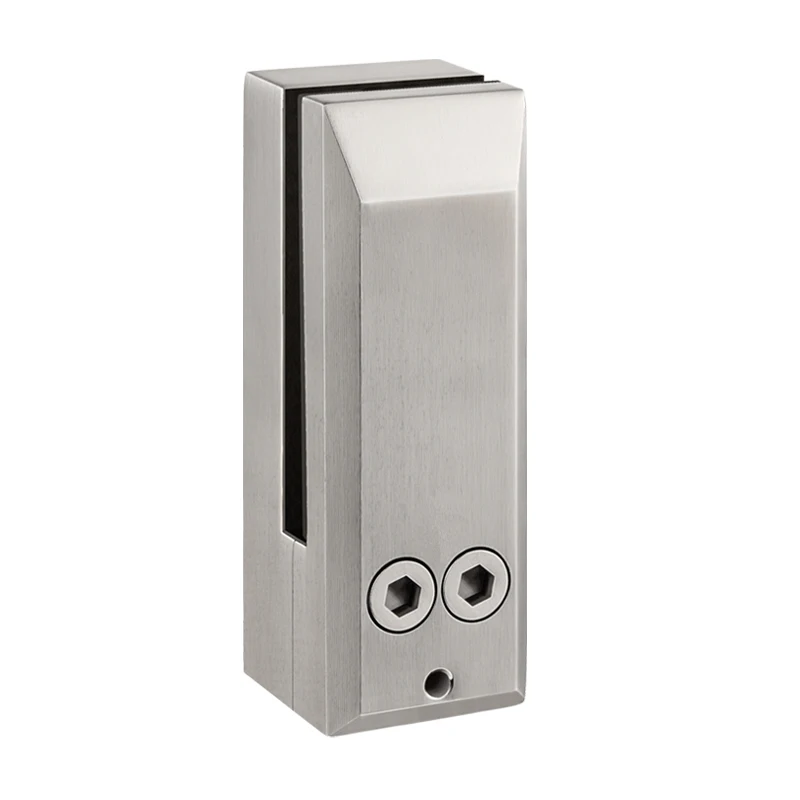

Surface Finish | Matte black finish, also available in satin brushed and mirror polished finish |
Suitable Glass Thick | 12 mm |
Size | 140 mm in height |
Weight | 1.60kg |
Tilt Adjustment Installation Instrcution
Step 1 Drill and fix the wall bracket
Use the wall bracket to mark out the hole positions and drill holes accordingly. Then fix the wall bracket to the wall and tighten firmly. Use the provided shims to adjust the distance off the wall if needed.
Step 2 Fix the adjustable body
Fix the adjustment body to the wall bracket and tighten firmly.
Step 3 Fix the surface cover
Fix the surface cover to the wall bracket too. Don't tighten firmly as the glass need space to be inserted.
Step 4 Install glass panel
Insert glass panel and tighten firmly the threaded bolts. Adjust to make it plumb if needed.
A. To deflect inward, turn anti-clockwise the threaded bolts slightly and then tighten the adjustment grub screw. Repeat this adjustment until glass panel is plumb, finally tighten firmly the threaded bolts.
B. To deflect outward, turn anti-clockwise the adjustment grub screw slightly and then tighten the threaded bolts. Repeat this adjustment until glass panel is plumb.

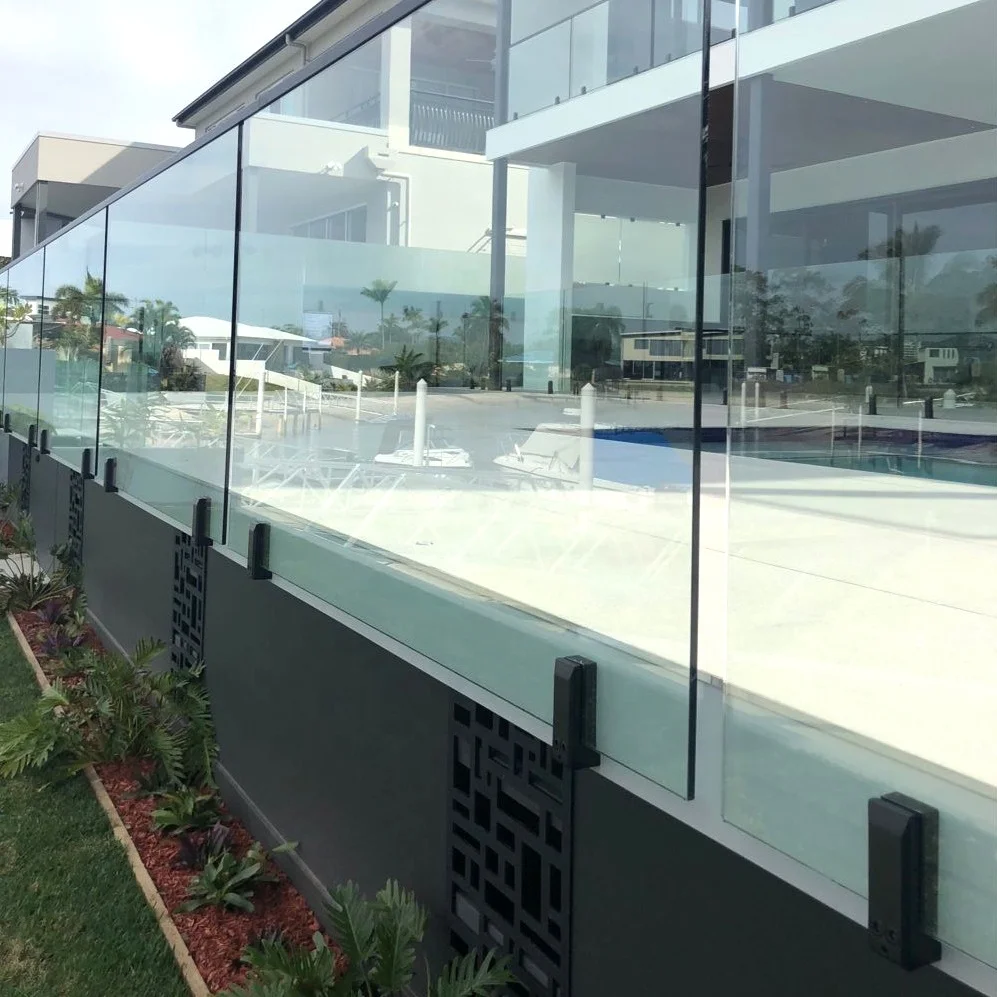

Smarter Spigot™ is Autran’s patented product for side mount applications. It is engineered for both balustrade and pool fencing and it is certified compliant with Australian/New Zealand standards for balustrade and pool fencing. The patented tilt adjustment technology distinguished the Smarter Spigot from ordinary side mount spigot which offered no adjustment capability. In many side mount installations, the surface on which the spigots are mounted are not perfectly vertical which can be a hassle to adjust with shims and packers. With Smarter Spigot™, tilt adjustment is fast and easy and can be done from the outside without removing the glass panel.

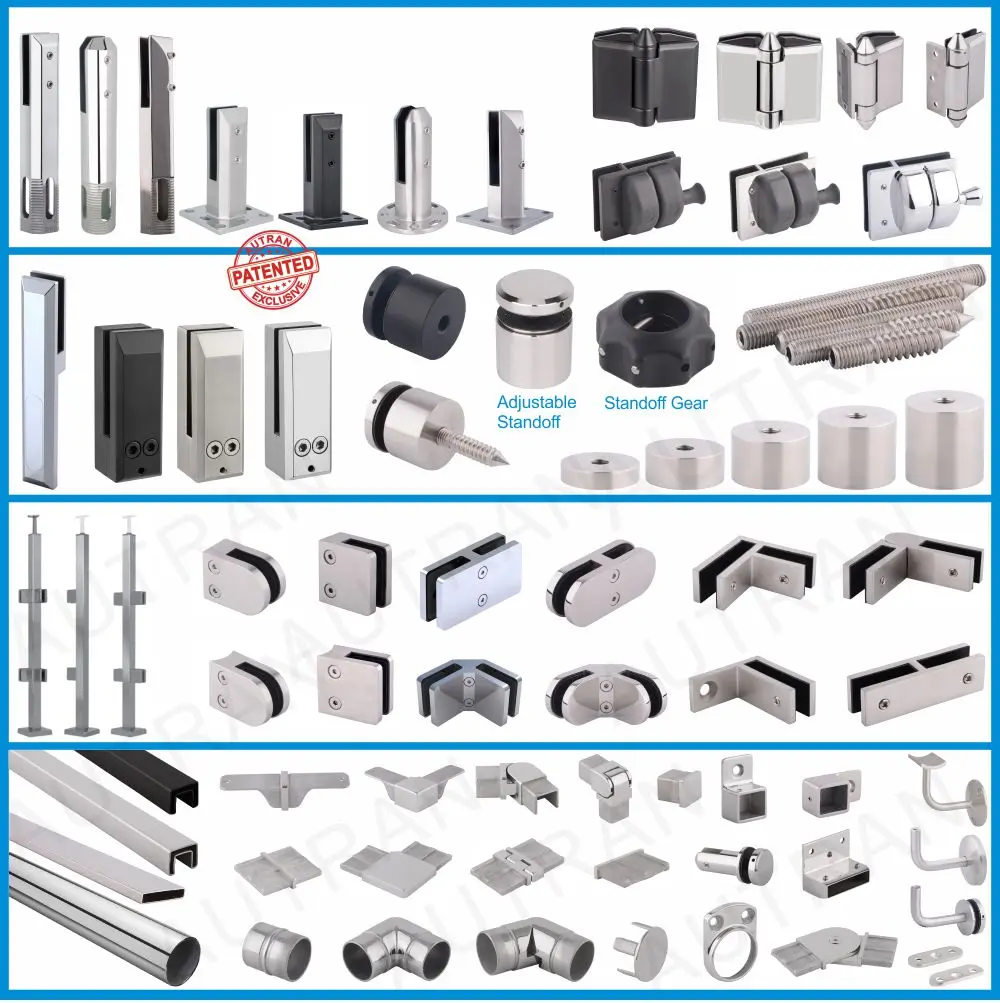

Fuzhou Autran Industrial Co., Ltd is an industry-leading company specialised in the manufacture and supply of tempered glass and stainless steel hardware for glass pool fencing, balustrade and shower screen. Our products are manufactured to the highest standards, providing outstanding quality and durability as well as excellent finishes to ensure they meet all relevant Australian Standards.
With decades of industry expertise and manufacturing experience, we pride ourselves on our ingenuity and innovation capabilities that enables us to always find safe and cost-effective solutions to the challenges of improving glass hardware user experience. Our innovation capabilities are evident in our numerous patents and registered designs that are incorporated into our products as well as our ongoing pursuit of technological and engineering improvement to bring our customers the best products.
1. More than 20 years experience in glass deep processing
2. Have two factory, one for glass and the other one for hardware
3. Have strong R&D team, customized design is available
4. Have professional inspection team guaranteeing the quality
