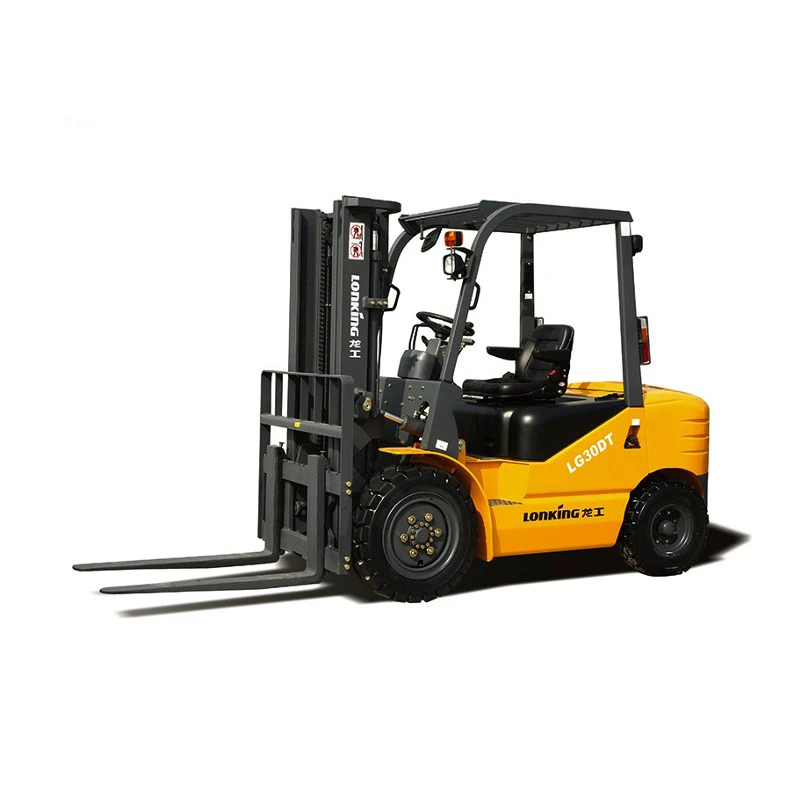

LONKING 3,5-тонный дизельный двигатель вилочный погрузчик FD35 CPCD35 с боковым переключателем
9 300,00 $ - 9 650,00 $
Детали холодильного оборудования DL 25.8/125 Испарительный воздушный охладитель для перевозки холодильных грибов
- Категория: >>>
- Поставщик: Shanghai Xurui Refrigeration Equipment Co. Ltd.
Сохранить в закладки 62035793204:
Описание и отзывы
Характеристики
VR

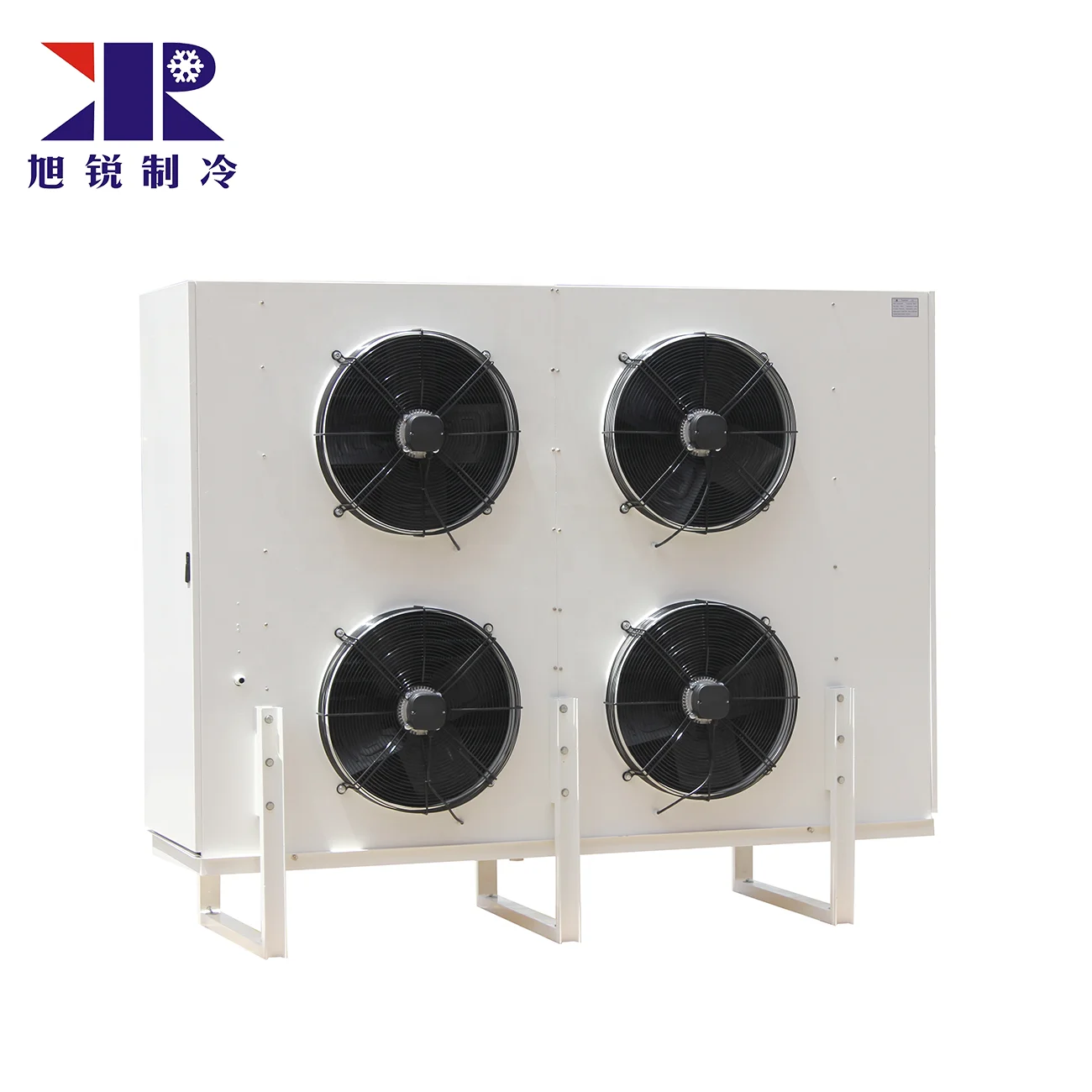

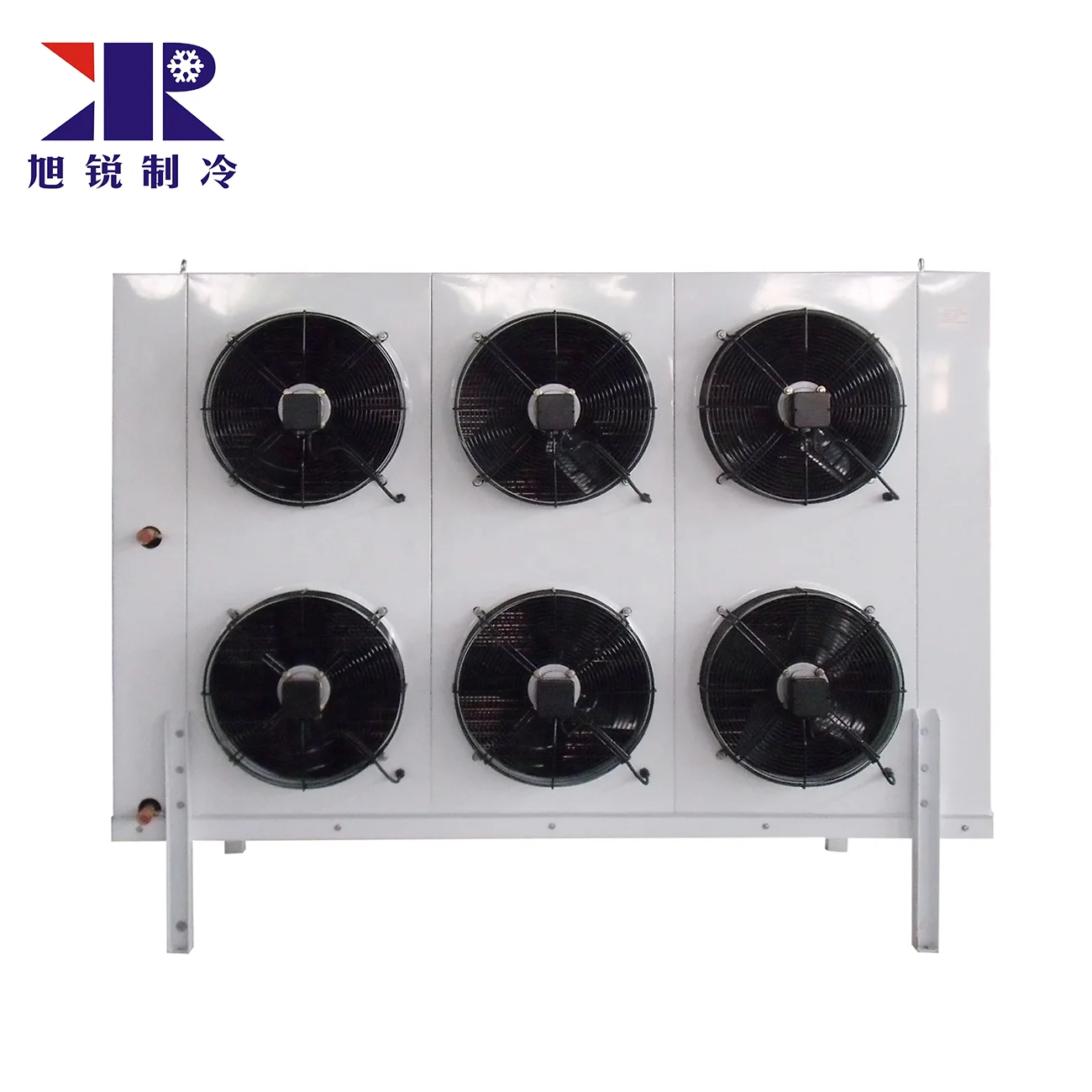

DL-25.8/125 Refrigeration equipment part evaporative air cooler for cold storage mushroom logistic
Evaporator Features
New look in 2021
·Feature:
1. The heat exchange of the evaporator is designed according to the most popular compressor in the market, which is suitable forcondensing units with different models.
2. The shell is made of special galvanized steel, which has high strength, corrosion resistance, shock resistance and gloss. It can also be made of aluminum, stainless steel and other materials according to customer needs.
3. The drain pan is designed so that the sewage faces the drain, which effectively reduces the accumulation of water in the pan.
4. The use of high-quality copper tubes and special aluminum fins. The copper tubes are multi-tooth internal threads with high efficiency. The copper content is up to 99.9%, which increases the surface area and heat transfer efficiency.
5. The pipeline design adopts a direct return oil counterflow heat exchanger to avoid accumulation of refrigerated oil, make full use of the heat transfer area, improve heat exchange efficiency, and ensure overheating.
6. Adopting the most famous brand axial flow fan, high efficiency, low noise, suitable for low temperature and different voltage requirements, reasonable matching of blade and air ring gap, hyperbolic air duct design, to achieve the best effect.
7. Factory management has passed ISO9001-2008 certification, and product quality control runs through the whole process. Before leaving the factory after 24 hours sealing test and pollution removal, all products accept custom.
8. The evaporator motor with UL certification can be customized according to customer needs.
9. Applicable medium: Suitable for R22, R134a, R404A, R407C and other refrigerants;
10. Installation and after sales service: No matter which country or region you are in, as long as you need, we will send professionals to where we can reach to solve your worries.
Parameters Table
DL Series Evaporator Parameter Sheet - 4.5mm
Model | Heat Exchange | Area | Axial Fan | Defrost power | Weight | Size | ||||||
DL-2.1/10 | 2.1kW | 10㎡ | 1*φ300 | 2kW | 30kg | 710*435*465mm | ||||||
DL-3.1/15 | 3.1kW | 15㎡ | 2*φ300 | 2.4kW | 43kg | 1030*355*457mm | ||||||
DL-4.2/20 | 4.2kW | 20㎡ | 2*φ300 | 2.7kW | 50kg | 1180*355*457mm | ||||||
DL-5.2/30 | 5.2kW | 30㎡ | 3*φ300 | 3.6kW | 59kg | 1580*355*457mm | ||||||
DL-8.2/40 | 8.2kW | 40㎡ | 2*φ400 | 3.9kW | 75kg | 1520*502*575mm | ||||||
DL-11.5/55 | 11.5kW | 55㎡ | 2*φ400 | 3.9kW | 85kg | 1520*502*575mm | ||||||
DL-16.7/80 | 16.7kW | 80㎡ | 2*φ500 | 6kW | 110kg | 1820*631*677mm | ||||||
DL-21.9/105 | 21.9kW | 105㎡ | 2*φ500 | 7.5kW | 125kg | 1820*631*677mm | ||||||
DL-25.8/125 | 25.8kW | 125㎡ | 3*φ500 | 12.6kW | 165kg | 2300*652*678mm | ||||||
DL-33.6/160 | 33.6kW | 160㎡ | 3*φ500 | 15kW | 185kg | 2720*652*678mm | ||||||
DL-38.7/185 | 38.7kW | 185㎡ | 4*φ500 | 16.8kW | 220kg | 3080*631*678mm | ||||||
DL-44/210 | 44kW | 210㎡ | 4*φ500 | 18kW | 260kg | 3520*681*678mm | ||||||
DL-52.9/260 | 52.9kW | 260㎡ | 4*φ500 | 22.5kW | 380kg | 3520*681*678mm | ||||||
DL-52.9/260 | 52.9kW | 260㎡ | 2*φ600 | 22.5kW | 380kg | 2180*742*887mm | ||||||
DL-67.2/330 | 67.2kW | 330㎡ | 3*φ600 | 27.2kW | 460kg | 2630*742*650mm | ||||||
DL-83.4/410 | 83.4kW | 410㎡ | 3*φ600 | 27.2kW | 480kg | 3200*742*887mm | ||||||
DL-102/500 | 102kW | 500㎡ | 4*φ600 | 30kW | - | 3326*770*1040mm | ||||||
DL-111/550 | 111kW | 550㎡ | 4*φ600 | 33kW | - | 3646*770*1040mm | ||||||
DL-122/600 | 122kW | 600㎡ | 4*φ600 | 39kW | - | 3340*870*1046mm | ||||||
Air-cooled condenser can also be customized according to requirements | ||||||||||||
DD Series Evaporator Parameter Sheet - 6mm
Model | Heat Exchange | Area | Axial Fan | Defrost power | Weight | Size | ||||||
DD-1.5/7 | 1.5kW | 7㎡ | 1*φ300 | 2kW | 30kg | 710*435*465mm | ||||||
DD-2.35/12 | 2.35kW | 12㎡ | 2*φ300 | 2.4kW | 43kg | 1030*355*457mm | ||||||
DD-3.0/15 | 3.0kW | 15㎡ | 2*φ300 | 2.7kW | 50kg | 1180*355*457mm | ||||||
DD-4.0/22 | 4.0kW | 22㎡ | 3*φ300 | 3.6kW | 59kg | 1580*355*457mm | ||||||
DD-6.0/30 | 6.0kW | 30㎡ | 2*φ400 | 3.9kW | 75kg | 1520*502*575mm | ||||||
DD-8.0/40 | 8.0kW | 40㎡ | 2*φ400 | 3.9kW | 85kg | 1520*502*575mm | ||||||
DD-12.0/60 | 12.0kW | 60㎡ | 2*φ500 | 6kW | 110kg | 1820*631*677mm | ||||||
DD-15.9/80 | 15.9kW | 80㎡ | 2*φ500 | 7.5kW | 125kg | 1820*631*677mm | ||||||
DD-20.0/100 | 20.0kW | 100㎡ | 3*φ500 | 12.6kW | 165kg | 2300*652*678mm | ||||||
DD-24.0/120 | 24.0kW | 120㎡ | 3*φ500 | 15kW | 185kg | 2720*652*678mm | ||||||
DD-28.2/140 | 28.2kW | 140㎡ | 4*φ500 | 16.8kW | 220kg | 3080*631*678mm | ||||||
DD-32.1/160 | 32.1kW | 160㎡ | 4*φ500 | 18kW | 260kg | 3520*681*678mm | ||||||
DD-37.4/200 | 37.4kW | 200㎡ | 4*φ500 | 22.5kW | 380kg | 3520*681*678mm | ||||||
DD-37.4/200 | 37.4kW | 200㎡ | 2*φ600 | 22.5kW | 380kg | 2180*742*887mm | ||||||
DD-46.8/260 | 46.8kW | 260㎡ | 3*φ600 | 27.2kW | 460kg | 2630*742*650mm | ||||||
DD-56.2/310 | 56.2kW | 310㎡ | 3*φ600 | 27.2kW | 480kg | 3200*742*887mm | ||||||
DD-65.1/360 | 65.1kW | 360㎡ | 4*φ600 | 30kW | - | 3326*770*1040mm | ||||||
DD-72.5/400 | 72.5kW | 400㎡ | 4*φ600 | 33kW | - | 3646*770*1040mm | ||||||
DD-81.8/440 | 81.8kW | 440㎡ | 4*φ600 | 39kW | - | 3340*870*1046mm | ||||||
Air-cooled condenser can also be customized according to requirements | ||||||||||||
DJ Series Evaporator Parameter Sheet - 9mm
Model | Heat Exchange | Area | Axial Fan | Defrost power | Weight | Size | ||||||
DJ-1.3/8 | 1.3kW | 8㎡ | 2*φ300 | 2.4kW | 43kg | 1030*355*457mm | ||||||
DJ-2.3/10 | 2.3kW | 10㎡ | 2*φ300 | 2.7kW | 50kg | 1180*355*457mm | ||||||
DJ-3.0/15 | 3.0kW | 15㎡ | 3*φ300 | 3.6kW | 59kg | 1580*355*457mm | ||||||
DJ-4.0/20 | 4.0kW | 20㎡ | 2*φ400 | 3.9kW | 75kg | 1520*502*575mm | ||||||
DJ-5.1/30 | 5.1kW | 30㎡ | 2*φ400 | 3.9kW | 85kg | 1520*502*575mm | ||||||
DJ-8.0/40 | 8.0kW | 40㎡ | 2*φ500 | 6kW | 110kg | 1820*631*677mm | ||||||
DJ-9.8/55 | 9.8kW | 55㎡ | 2*φ500 | 7.5kW | 125kg | 1820*631*677mm | ||||||
DJ-12.8/70 | 12.8kW | 70㎡ | 3*φ500 | 12.6kW | 165kg | 2300*652*678mm | ||||||
DJ-15.7/85 | 15.7kW | 85㎡ | 3*φ500 | 15kW | 185kg | 2720*652*678mm | ||||||
DJ-18.8/105 | 18.8kW | 105㎡ | 4*φ500 | 16.8kW | 220kg | 3080*631*678mm | ||||||
DJ-21.6/115 | 21.6kW | 115㎡ | 4*φ500 | 18kW | 260kg | 3520*681*678mm | ||||||
DJ-23.9/140 | 23.9kW | 140㎡ | 4*φ500 | 22.5kW | 380kg | 3520*681*678mm | ||||||
DJ-23.9/140 | 23.9kW | 140㎡ | 2*φ600 | 22.5kW | 380kg | 2180*742*887mm | ||||||
DJ-29.0/170 | 29.0kW | 170㎡ | 3*φ600 | 27.2kW | 460kg | 2630*742*650mm | ||||||
DJ-35.9/210 | 35.9kW | 210㎡ | 3*φ600 | 27.2kW | 480kg | 3200*742*887mm | ||||||
DJ-42.7/250 | 42.7kW | 250㎡ | 4*φ600 | 30kW | - | 3326*770*1040mm | ||||||
DJ-51.2/300 | 51.2kW | 300㎡ | 4*φ600 | 33kW | - | 3646*770*1040mm | ||||||
DJ-59.8/350 | 59.8kW | 350㎡ | 4*φ600 | 39kW | - | 3340*870*1046mm | ||||||
Air-cooled condenser can also be customized according to requirements | ||||||||||||
Evaporator Types
D Series Evaporator
Roof Mounted Evaporator
Inclined Evaporator
Long Distance Evaporator
Stainless Steel/Aluminum
Evaporator
Vertical Evaporator
Evaporator Application
Suitable for refrigeration condensing unit used in cold room.
Hotels, hospitals, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, agricultural product processing, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling, leather manufacturing, injection molding, machine cooling, steel cooling, ommunication equipment, ship manufacturing and more.
The site picture of the new appearance evaporator is being updated
Company Profile
About us
Shanghai Xurui is located in Shanghai with 15 years' experience in producing condensing unit, evaporator, condenser, water chiller for cold room, ice cream production line, quick-freezing tunnel...
All units adopt world famous brand compressors. It has been certified by ISO9001, CE, got import-export license and the license of National Industrial Product Manufacture of China.
Export to more than 30 countries in Europe, the Middle East, Southeast Asia, Africa, South America and areas etc.
Supply high quality & safety refrigeration equipment. Consecutive sales increase of 15 years.
Our factory
Complete Production Equipment + Professional Production Team + Superb Production Technology = Xu Rui
Not only we have our own brand “XU RUI” , but also we supply the OEM service to our customers. To satisfy with your need,we can print your company Logo or design on the units or the other parts
Our Advantages
At China Wholesale, we can handle your large drive-in refrigerated warehouse projects from start to finish. We have a vast inventory of refrigerant equipment to meet your needs and our nationwide installation teams are ready and waiting to do the job. We offer:
• Top quality new equipment for any size refrigerated building.
• Experienced crews to build your box from walls to ceiling.
• Experience in special needs such as insulated floors, refrigeration parts.
• Turnkey projects available.
• Custom sizes and design services.
• We will go anywhere to do the job.
Whether you are a food distributor, farmer, pharmaceutical company, or cold storage company, we can handle your project from start to finish.
• Top quality new equipment for any size refrigerated building.
• Experienced crews to build your box from walls to ceiling.
• Experience in special needs such as insulated floors, refrigeration parts.
• Turnkey projects available.
• Custom sizes and design services.
• We will go anywhere to do the job.
Whether you are a food distributor, farmer, pharmaceutical company, or cold storage company, we can handle your project from start to finish.
Transportation & Installation
We provide the best packing service to our customers! Arrival safely.
Recommend Products
Похожие товары

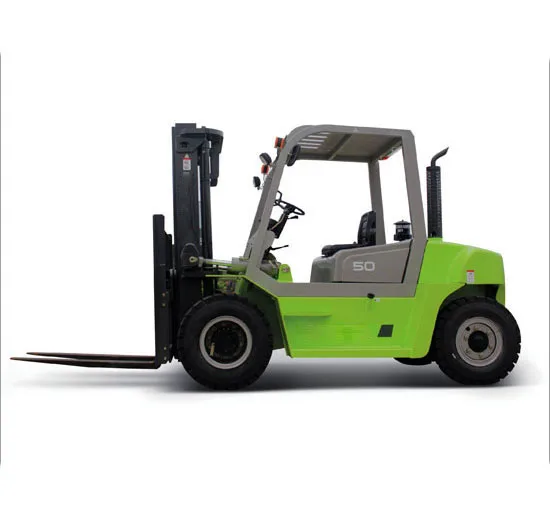

Снабжения 5 тонный мини FD50 дизельный вилочный погрузчик

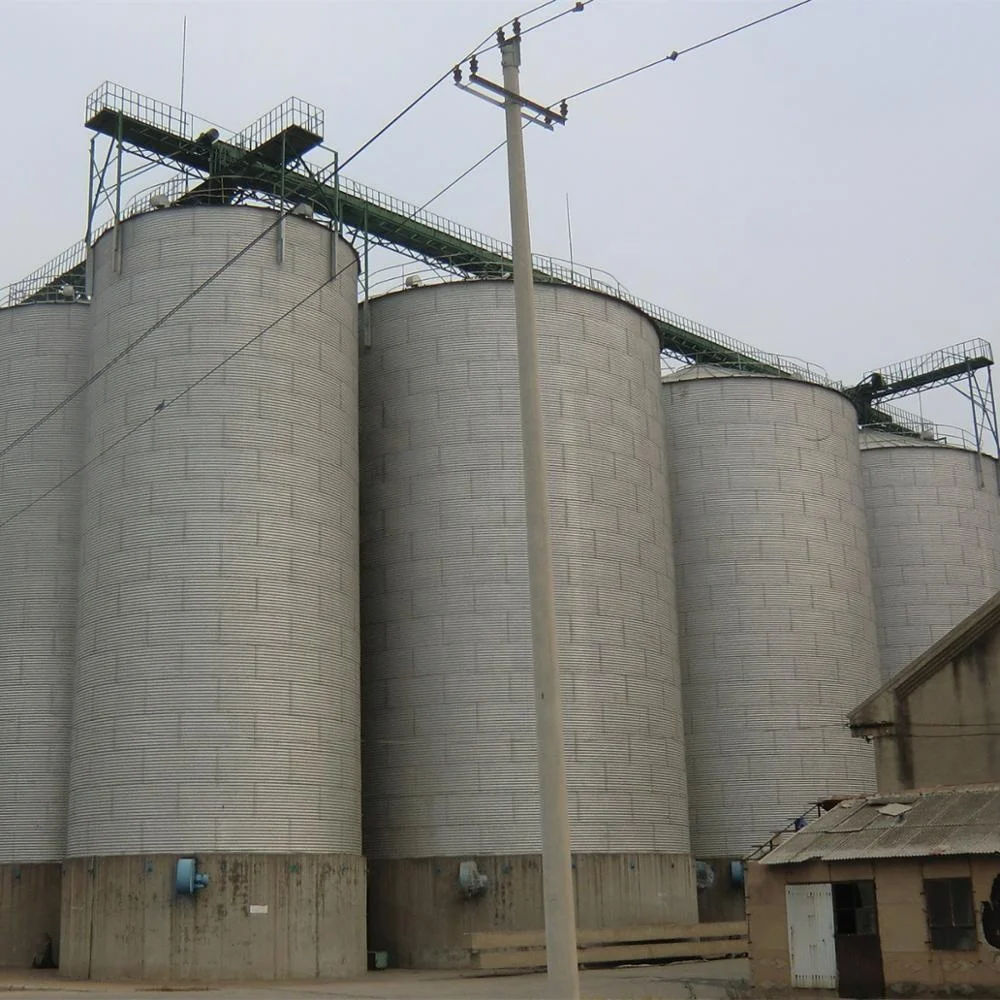

Силос с плоским дном для хранения зерен
3 300,00 $

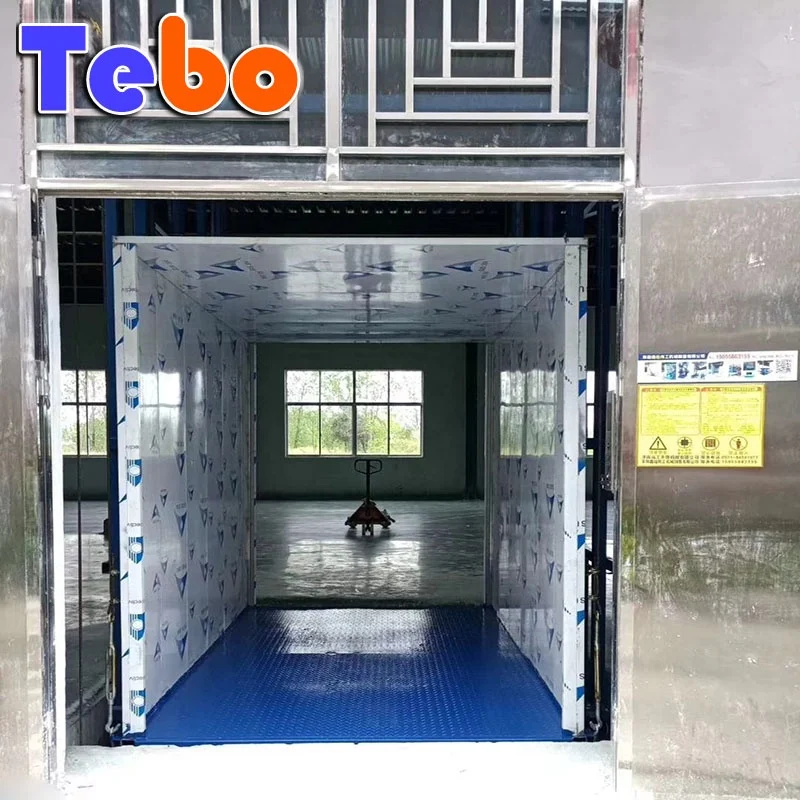

Грузовой лифт 3000 кг, 2 остановки, использование выставочного зала

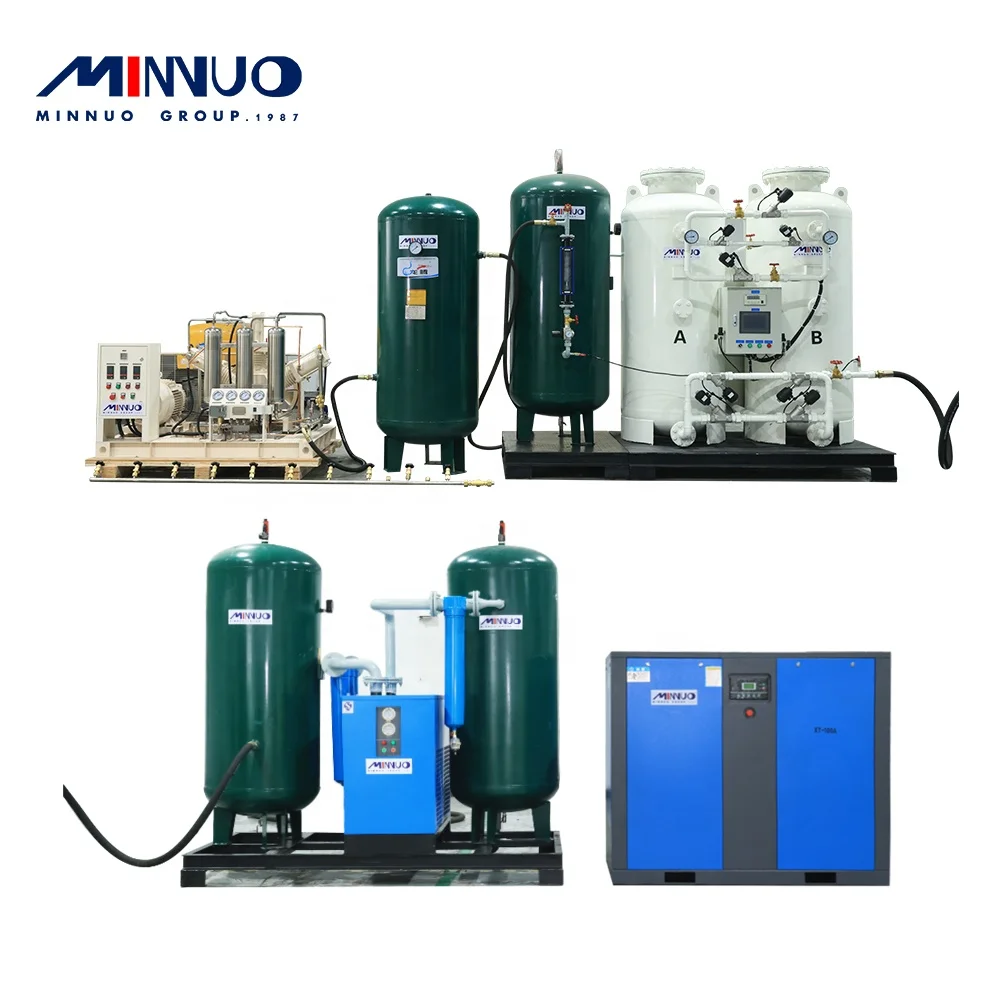

Поставка различных видов кислородных газов psa, Поддержка различных логистических услуг
39 000,00 $ - 48 000,00 $

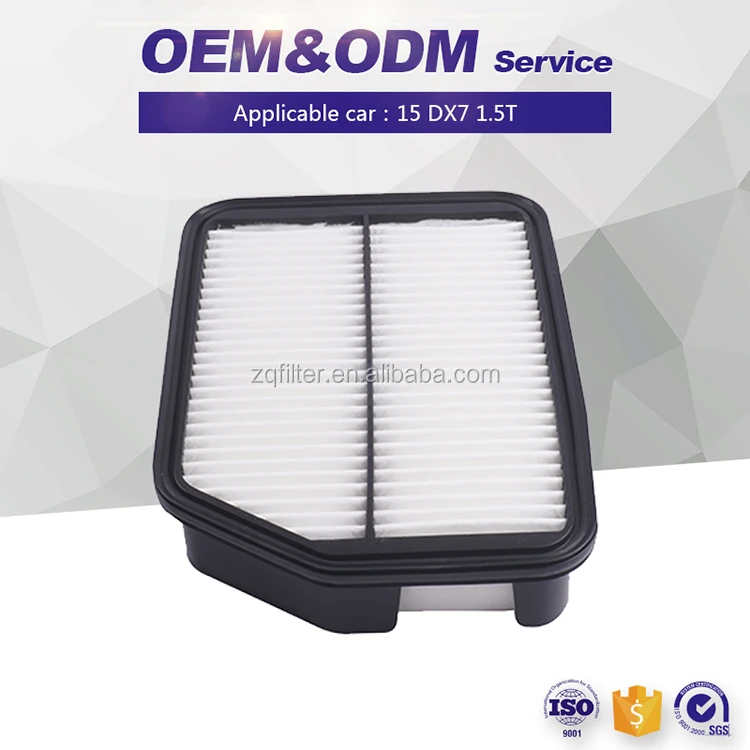

Индивидуальный нетканый полипропиленовый воздушный фильтр SE003039, подходит для автомобиля

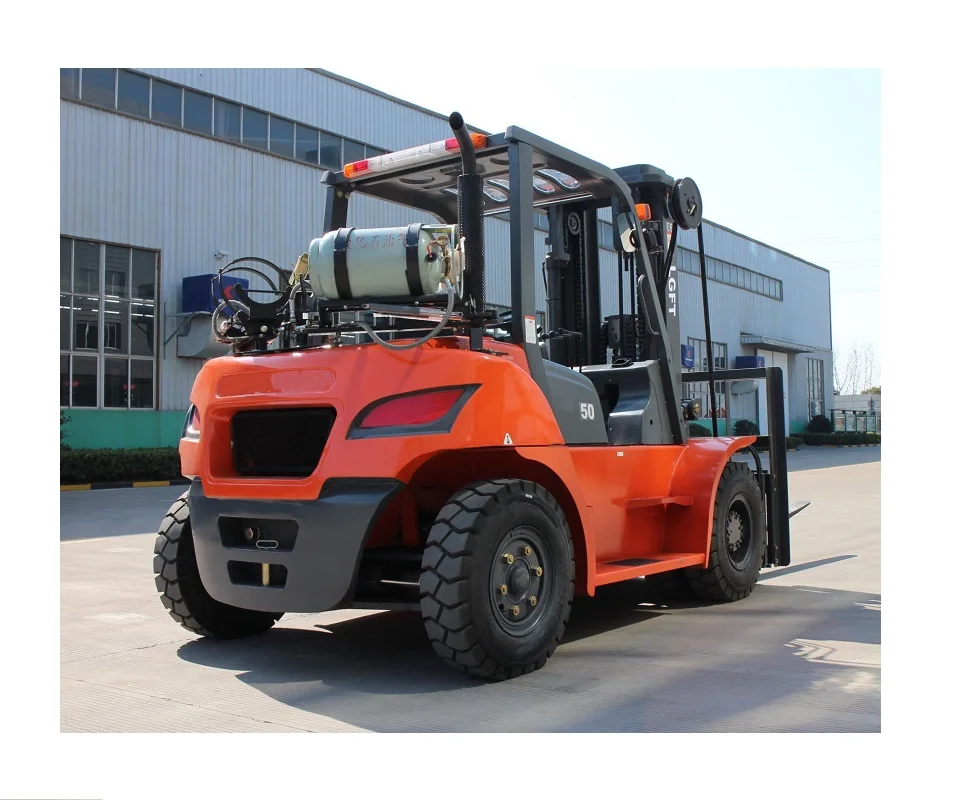

Снабжения 5 тонный дизельный вилочный погрузчик FD50
