3 зоны 1200C вакуумный сердечно сосудистых заболеваний реактор покрытый кожухом для nanofibers нанотрубок алмаз роста graphene
- Категория: >>>
- Поставщик: Zhengzhou Tainuo Film Materials Co. Ltd.
Сохранить в закладки 62035922949:
Описание и отзывы
Характеристики
Product Description

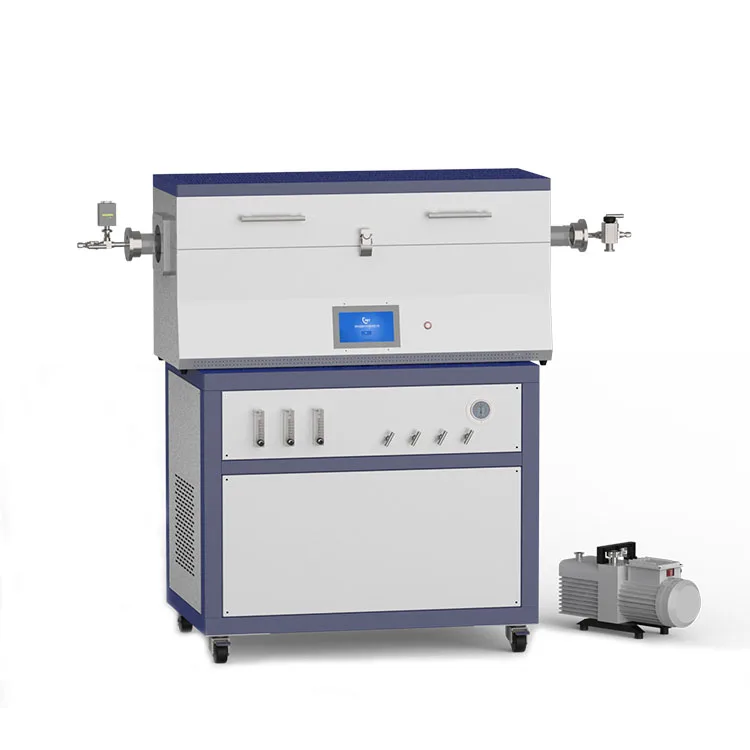

This CVD diamond machine consists of a three-heating zone tube furnace, a three-channel float flow meter and a double stage rotary vane vacuum pump.
- The three heating zones of the tube furnace are independently temperature controlled by the precision temperature control instrument. By adjusting the temperature of each temperature zone, the tube furnace can form three temperature gradients in the heating zone or form a long constant temperature zone. Each zone can be edited with 30 sections of temperature rise and fall, with overheating and short circuit protection.
- The flanges on both sides of the furnace tube are equipped with a digital vacuum gauge and a mechanical pressure gauge, which can be used to control the atmosphere in the furnace tube.
- At the same time, the tube furnace is operated by high-definition true color touch screen, which is easy to use. Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency.

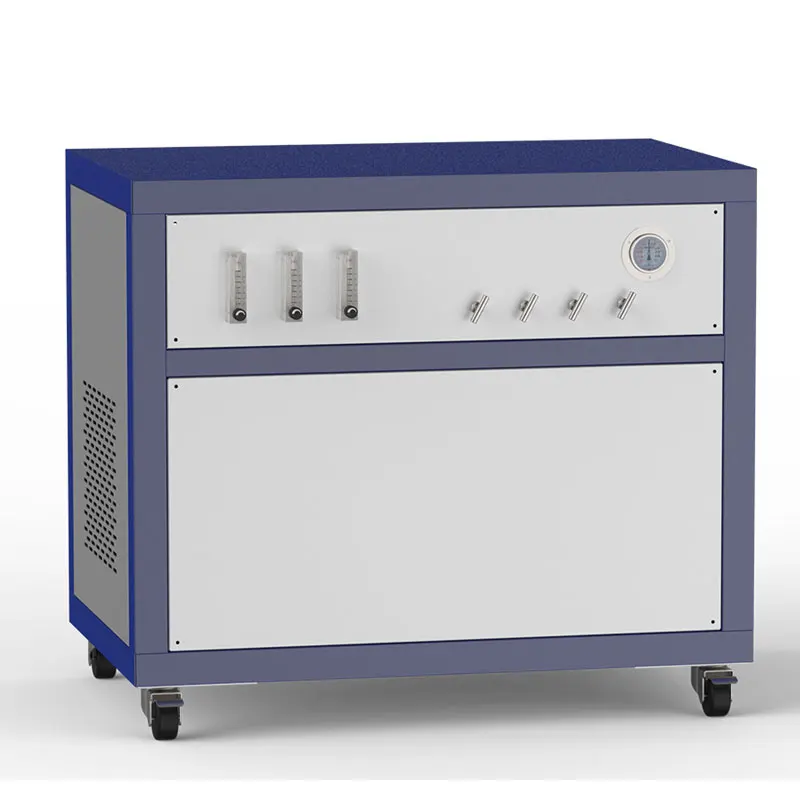

- The system is equipped with a three-channel float flowmeter, which can accurately prepare the mixed gas required for the experiment. Another pressure gauge is installed on the front of the float flowmeter to monitor the gas pressure and the mixing tank pressure.
It is suitable for high-temperature sintering, metal annealing, quality inspection, etc. in universities, research institutes, industrial and mining enterprises, especially for CVD experiments that require a variety of gas mixing atmospheres.
Technical Parameters:
Vacuum tube furnace | Model | TN-O1200-50IIIT-3F-LV | |
Tube material | High purity quartz | ||
Tube diameter | 50mm (optional: 60mm, 80mm, 100mm) | ||
Tube length | 1000mm | ||
Furnace chamber length | 660mm | ||
Heating zone length | 200mm+200mm+200mm | ||
Operating temperature | 0~1100℃ | ||
Temperature control accuracy | ±1℃ | ||
Temperature control mode | 30 or 50 segment program temperature control | ||
Display mode | LCD | ||
Sealing method | 304 stainless steel vacuum flange | ||
Flange interface | 1/4" cutting sleeve joint, KF16/25/40 joint | ||
Vacuum | 4.4×10E-3Pa | ||
Power supply | AC:220V 50/60Hz | ||
Gas supply system | Model | CY-3F | |
Gas channel | 3-channel | ||
Measuring unit | Gas float flowmeter | ||
Measuring range | A channel: 0~100ml H2 gas | Remarks: If you need other ranges or gas types, you need to specify when ordering. According to the customer's specific requirements, the flow meter of the corresponding gas type and range can be selected. | |
B channel: 16~160ml N2 gas | |||
C channel: 25~250ml Ar gas | |||
measurement accuracy | ±2.0% | ||
Pipe pressure resistance | 3MPa | ||
Working pressure difference | 50~300KPa | ||
Connecting pipe | 304 stainless steel | ||
Gas channel | 304 stainless steel needle valve | ||
Interface specification | 1/4" cutting sleeve joint for gas inlet and outlet | ||

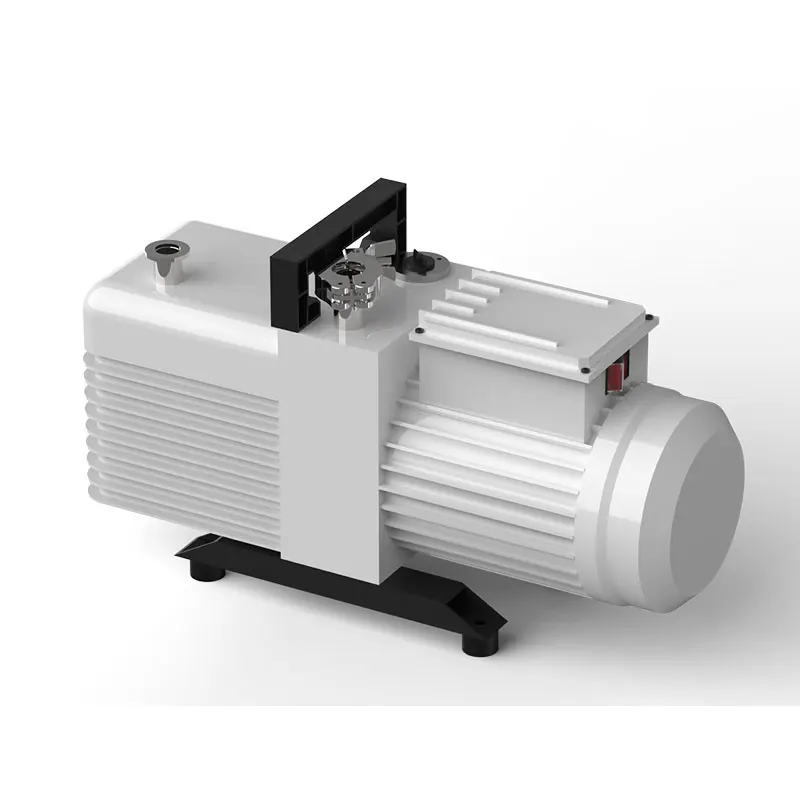

Exhaust system | Mechanical pump | VRD-4 | |
Pumping rate | 4L/S | ||
Exhaust interface | KF16 | ||
Vacuum measurement | Pirani gauge | ||
Ultimate vacuum | 1×10E-1Pa | ||
Power supply | AC:220V 50/60Hz | ||
Pumping interface | KF16 | ||
online service
Company Introduction
Founded in 2005, Zhengzhou Tainuo Film Materials Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Package
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
