2000 кН компьютерная управляемая Универсальная испытательная

Wechat:yzf310922     whatsapp/phone number:+86 18516697269

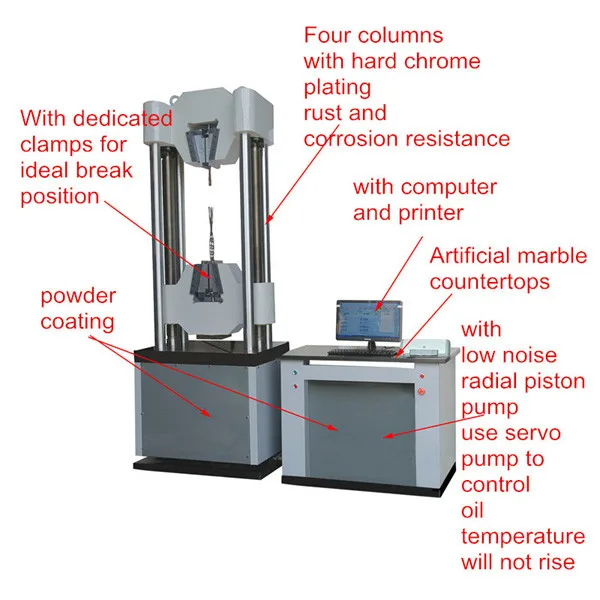

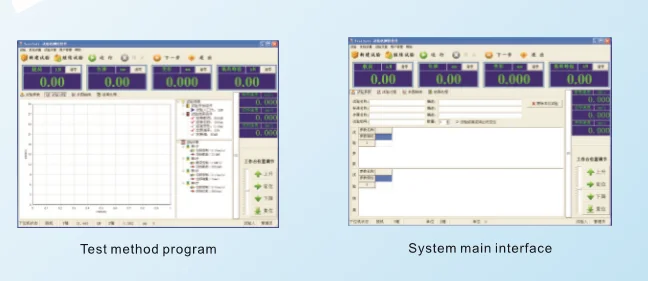

This machine used to do tension test of steel stranded wire, it can used to perform tension, compression, bend, shear test of metal and non-metal material. Oil cylinder of machine is underneath type, can free adjust testing room, automatic hydraulic clamp system, four column of main framestructure can be adjustable. Use import high quality electronic parts and components for production. Windows platform software.  It has the feature such as automatic calibrate  load, distortion, automatic switch measuring range, automatic stock test condition, test result, automatic count Fm, ReL, ReH, RP0.2, RP0.05, Rm and elastic modulus E et.. It has the function of dynamic display test data and curve when test, data edition, browse test curve, magnification, superposition, comparison et., can print complete test report and test curve.

Shanghai Civil & Road Instrument Co., Ltd is professional manufacturer of computerized, digitized and intelligent testing equipments. Our company has great-leap-forward development in the past thirty years since established in 1981. Company cover an area of 26,680 square meters, have 14 modernized standard workshops, be equipped with complete vehicle, gear, milling, grinding, and boring machine, have high independent research and development ability.

Max. testing power:2000kN,1000kN,600kN

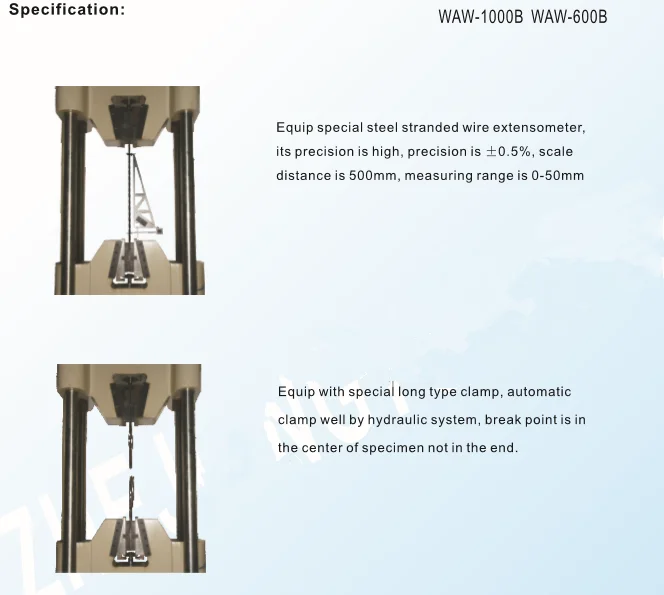

1. 4 upright posts, hard chromeplated, easy installation of hydraulic jaw, tension fracture position in the middle of specimen.
