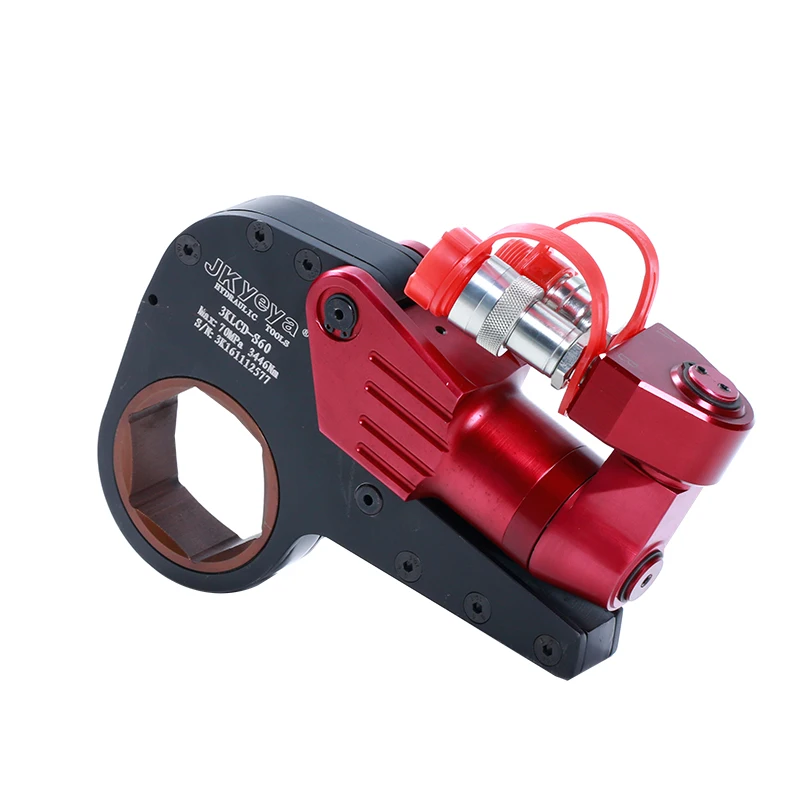

Factory price hydraulic low profile hydraulic torque wrenches
Model | 3YKL | 4YKL | 8YKL | 14YKL | 18YKL | 20YKL | 30YKL | 40YKL | 45YKL | 60YKL |
Torque (Nm) | 345 | 546 | 1055 | 1848 | 2481 | 2909 | 4231 | 5209 | 6057 | 8415 |
3446 | 5458 | 10550 | 18484 | 24814 | 29089 | 42311 | 52088 | 60566 | 84150 | |
Range of nut sizes(mm) | 36-60 | 46-80 | 70-105 | 80-115 | 85-120 | 90-130 | 95-145 | 120-145 | 130-155 | 135-180 |
Weight of Power unit(kg) | 0.8 | 1.9 | 4.2 | 6.8 | 8.1 | 10.5 | 12.7 | 15.2 | 16.3 | 23 |
Weight of bolt tightening wrench(kg) | 1.7 | 3.6 | 7.6 | 12.2 | 19.3 | 22.3 | 32.3 | 47.5 | 58.7 | 75 |
L(mm) | 218 | 266 | 324 | 382 | 404 | 427 | 479 | 479 | 486 | 514 |
H1(mm) | 118 | 139 | 171 | 205 | 229 | 240 | 268 | 285 | 311 | 336 |
H2(mm) | 156 | 167 | 198 | 231 | 255 | 265 | 289 | 302 | 352 | 375 |
W1(mm) | 32 | 42 | 53 | 64 | 68 | 70 | 85 | 98 | 105 | 117 |
W2(mm) | 50 | 66 | 83 | 99 | 105 | 110 | 132 | 148 | 160 | 177 |
1.The YKL series is made of aircraft grade Ti-Al alloy unibody design that offers high-strength and exceptional durability
2.The accurate anti-reversion pawl structure overcomes bolt kick-back phenomena thru-swivel that result in tool swiveling
3.Allow 360*180 degree movement and operation liberty with space restrictions
4.Single-piece extended design offers a longer force arm and more light-weight design
5.Spanner and reaction arm have same supporting forcepoint and total structural support design means an extended use life
6.Generate constant torque, with high accuracy up to ±3%
7.Adjustable multiple bolting head.
8.Counter-acting force arm is customizable according to on-site requirements

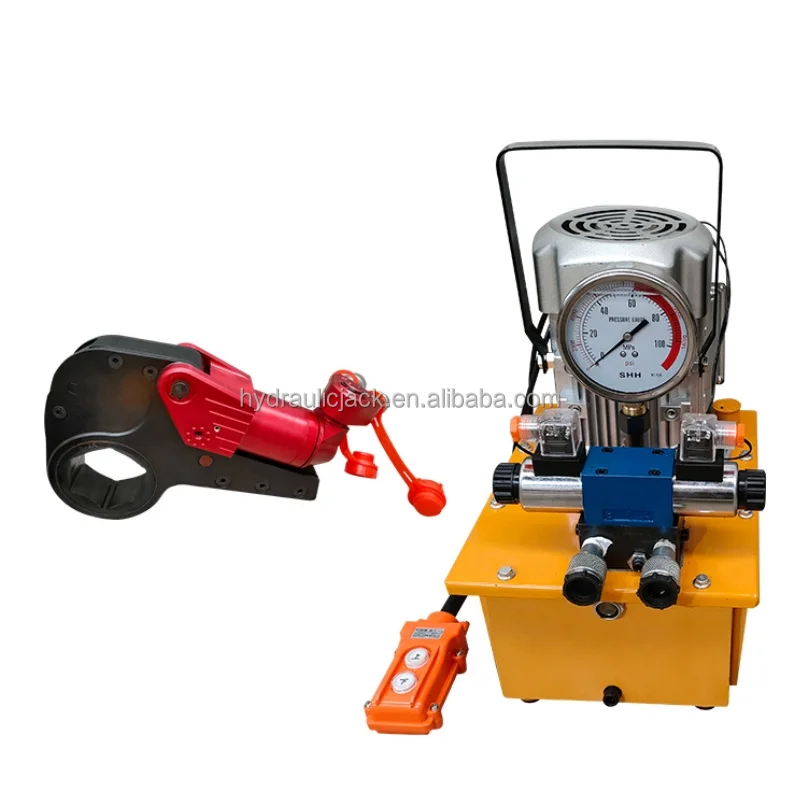

Model | Reservoir | Flow Rate | Output | Electricity | Power | Volume (mm) | Weight |
Capacity | Pressure | ||||||
L | L/min | Mpa |
| KW | L×W×H | Kg | |
YEMP304 | 8 | 8 | 6 | 220V/50Hz | 1.1 | 400×310×440 | 26 |
1.6 | 32 | ||||||
0.8 | 70 | ||||||
YEMP304S | 20 | 16 | 6 | 220V/50Hz | 1.1X2 | 520×500×540 | 48 |
3.2 | 32 | ||||||
1.6 | 70 |
PINGYUAN JINGKE HYDRAULIC CO., LTD. Was established in 2005, located in the northwest of shandong, close to beijing-shanghai high-speed railway. With 20 years experience research, design and manufacturing of Hydraulic wrench, Hydraulic pump, Hydraulic bolt tensioner, PLC synchronous lifting systerms, hydraulic cylinders, puller tool, Ect. Our enterprise philosophy "striving for excellence, casting quality, science and technology first, striving for industry pioneer". We have professional research and development team, advanced production testing equipment and high-quality technical staff. We continues to innovate research, scientific fine management, guaranteed continuous improvement of product quality.In order to ensure the reliability of precision and reduce the failure rate, we pass Control design - production experiment - transportation of each intermediate link and conduct a large number of experiments on newly developed products to verify the properties to ensure the quality. Quality wins the future, service creates value, continuous innovation of technology and strict scientific management are the basis of enterprise survival. Excellent quality and first-class service are our forever pursuit.
Q1: Are you trading company or manufacturer ?
A1: We are the manufacturer.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or 15-20 days if no stock, depending on quantity.
Q3: How can I pay?
A3: Payment <=10000USD, 100% in advance. Payment >=10000USD, 50% T/T in advance ,balance before shippment.
Q4: How can I contact the sales?
A4: Please call at 008615254819073 for presales services or check homepage email
Q5: How can I buy JINGKE products in my country?
A5: Please send us an inquiry or email. We will reply to you if there are distributors in your country.
Q6: Can I have JINGKE products catalogs and price lists?
A6: Please visit our website(//www.jk-hydraulic.com) to download our Ecatalog, and send us an email for price lists.
