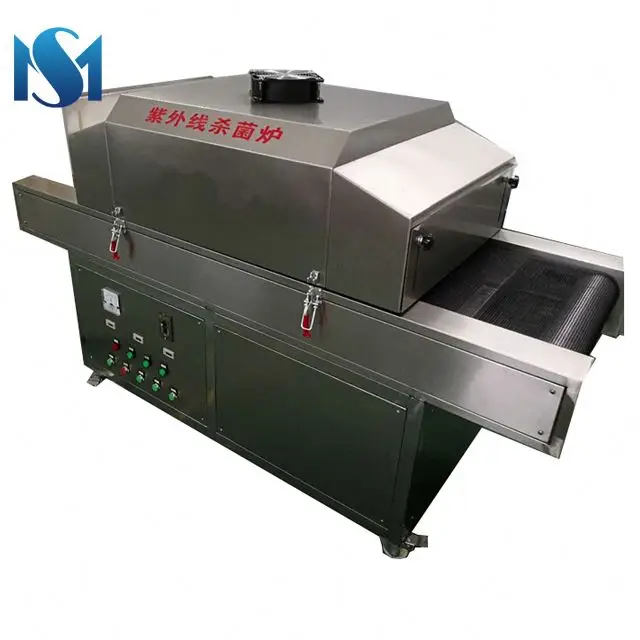

Прямая поставка с завода стерилизационная машина для сушеных трав

Сохранить в закладки 62038903865:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Direct factory supply dried herbs sterilizing machine

Product Description

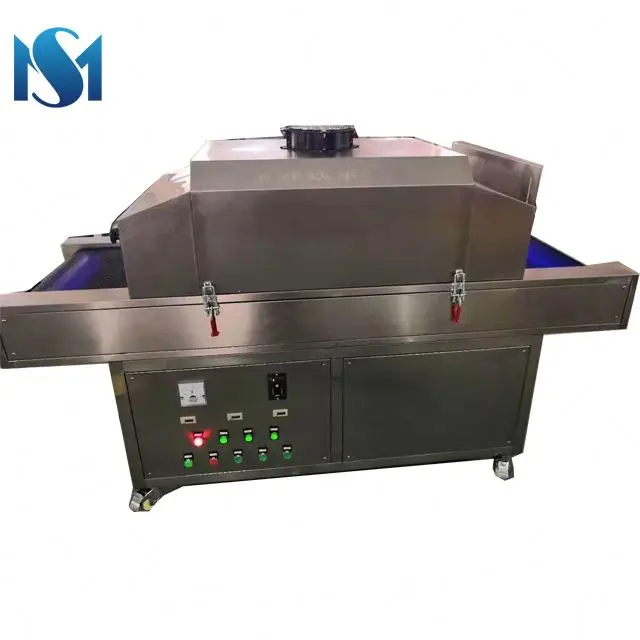

 Introduction of  dried herbs sterilizing machine

The dried herbs sterilizing machine can be used to the Chinese wolfberry, deer antler, bottled vinegar, soy sauce, grain, honey, the bird's nest, fruits, apples, bananas, oranges, Chinese wolfberry, pear, egg products, egg, duck egg, seafood, agricultural and sideline products, rice, wheat, dairy, bubble pepper chicken feet, candy, vegetables, meat, seasoning and food sterilization as following:




Widely used in hospital, food, disinfection cabinet, water treatment equipment, food and beverage processing and packaging equipment, food factory, cosmetics factory, milk factory, brewery, beverage factory, bakery, cold room, etc.

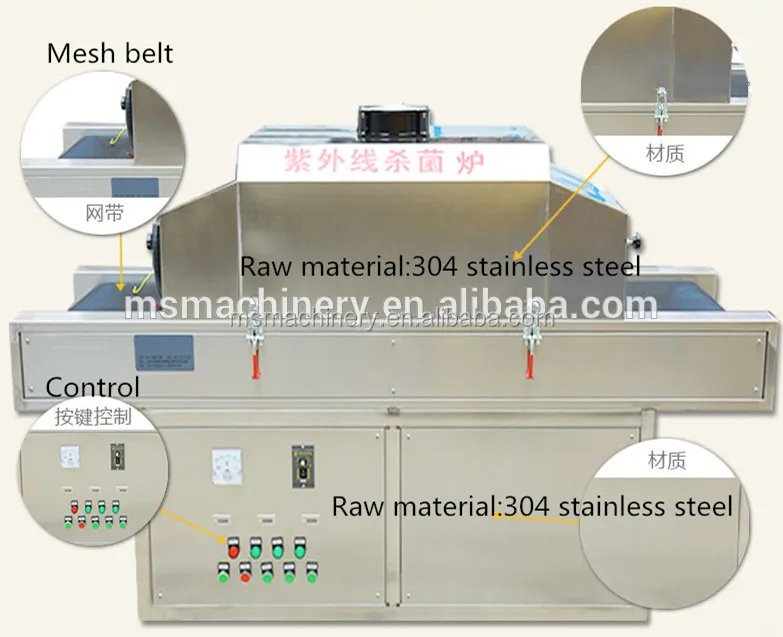

Industrial uv room sterilization




Features of  dried herbs sterilizing machine

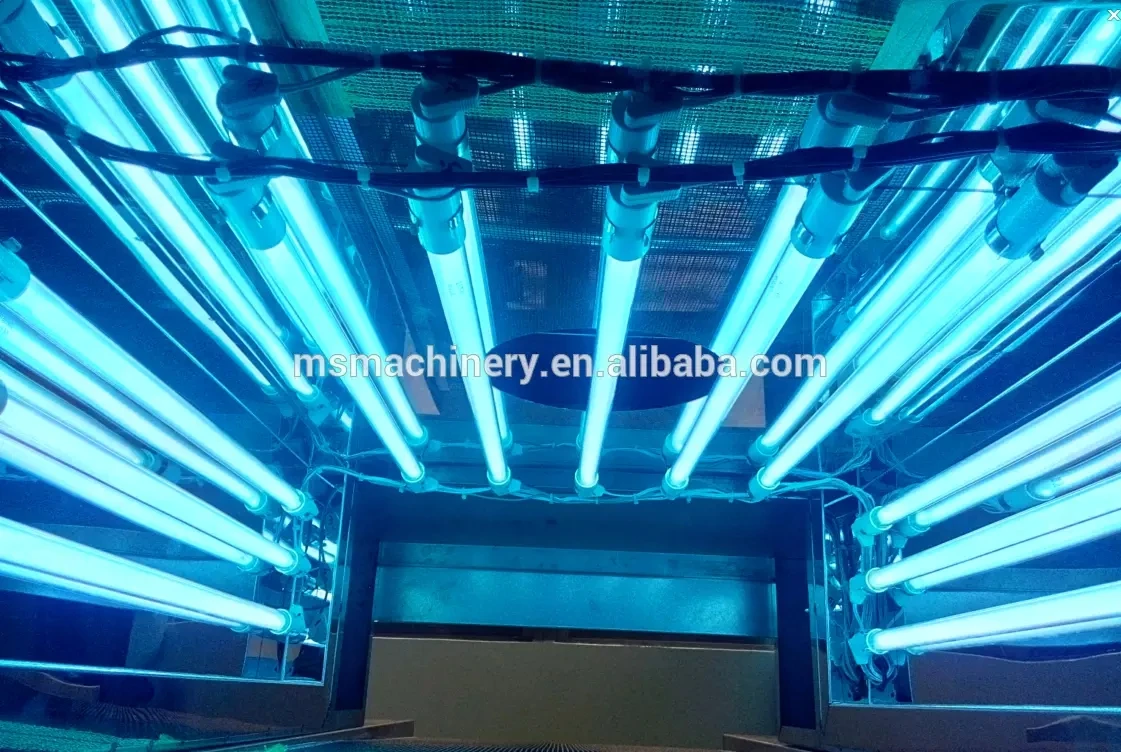

1. With 16 sets of ultraviolet UV sterilization special tubes, sterilization in all directions.Uniform distribution in the furnace up and down the five, three, around each sterilization no dead Angle of 360 degrees all powerful antiseptic effect.


2. There a UV reflectors (inner box mirror stainless steel plate), the product through the sterilization, can greatly improve the utilization rate of up to 90% of UV light.


3. Each group germicidal lamp can separate control, increase UV ultraviolet lamp adjustable Angle adjusting device, peak value of 254 nm, sterilization effect is the best product to stay under the sterilization lamp 1-3 minutes.

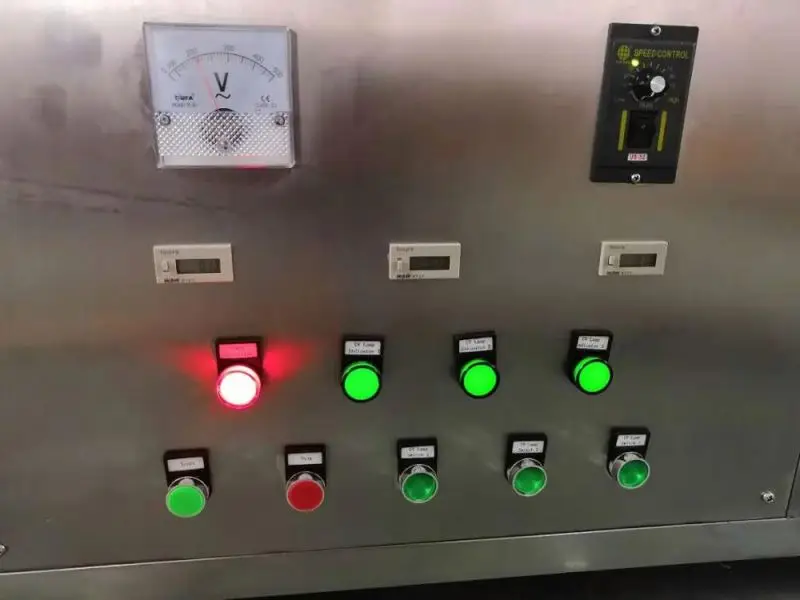

4. Equipped with automatic timer, may at any time to monitor the use time of the tubes, convenient lamp replacement.

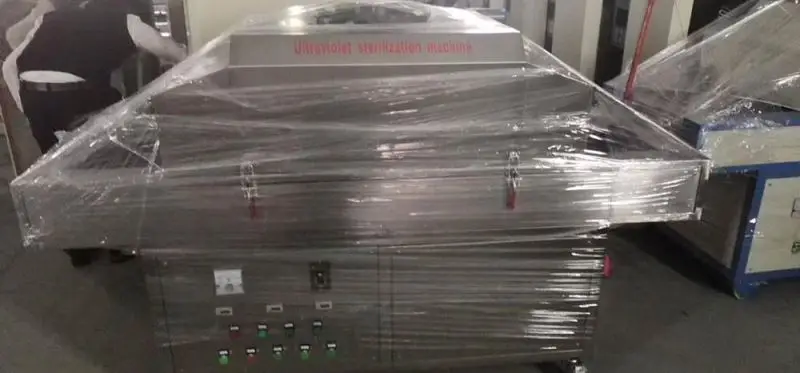

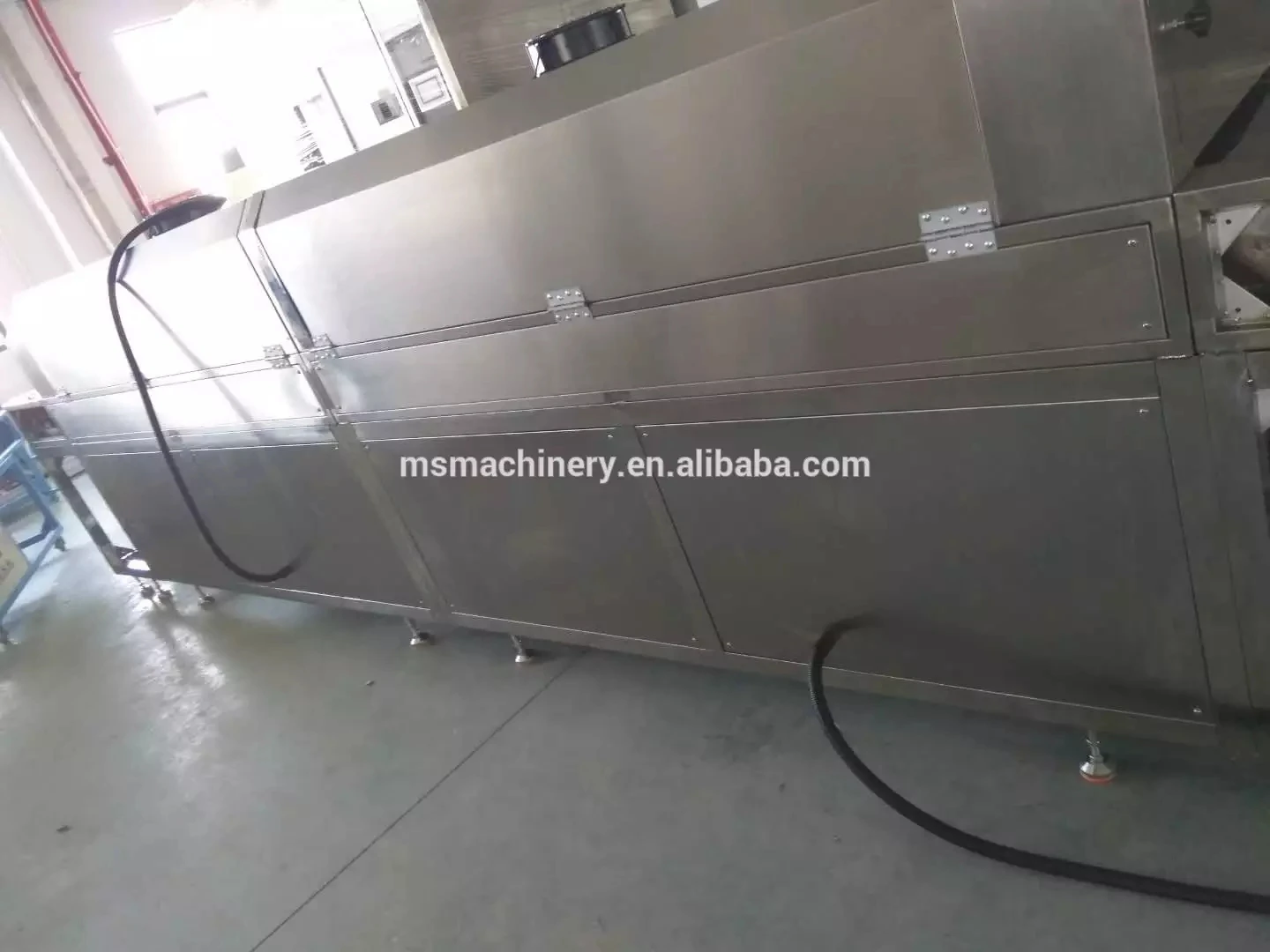

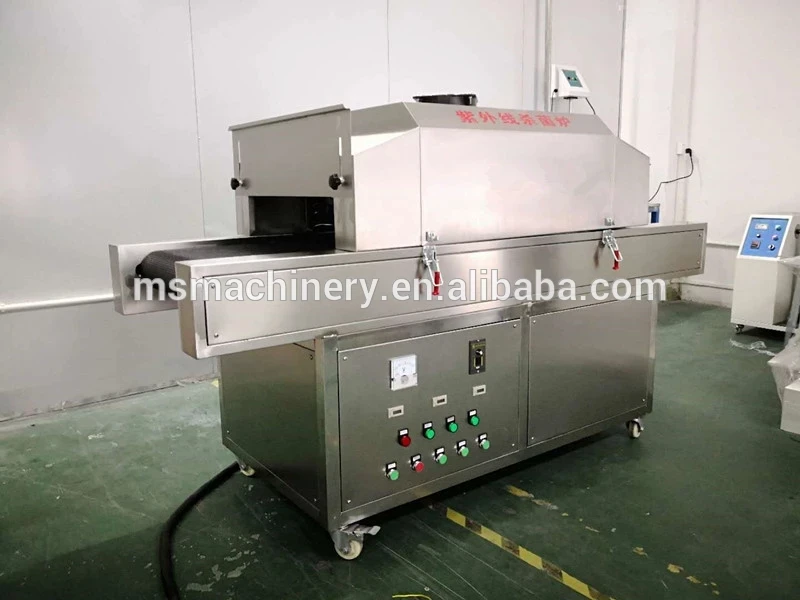

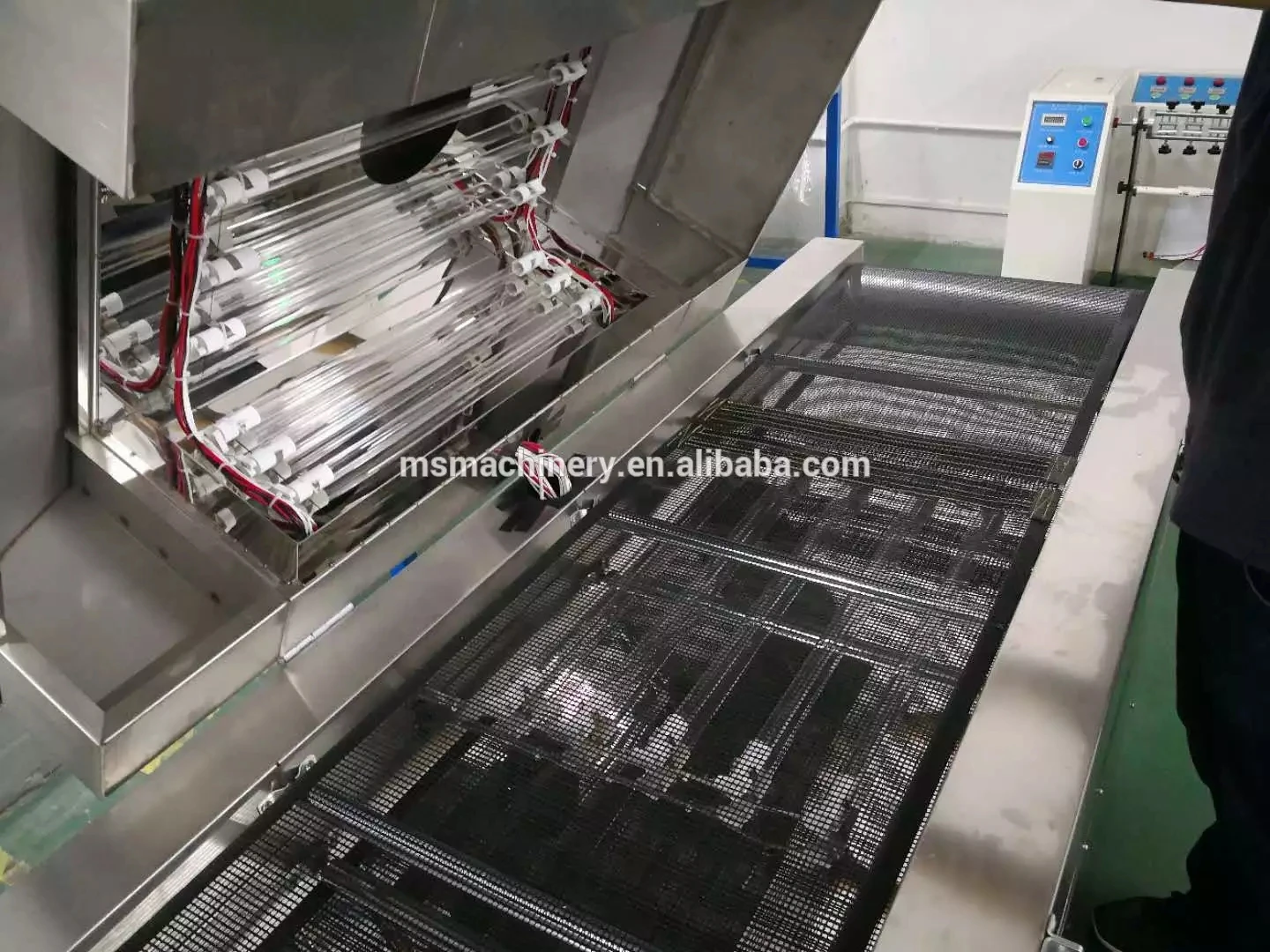

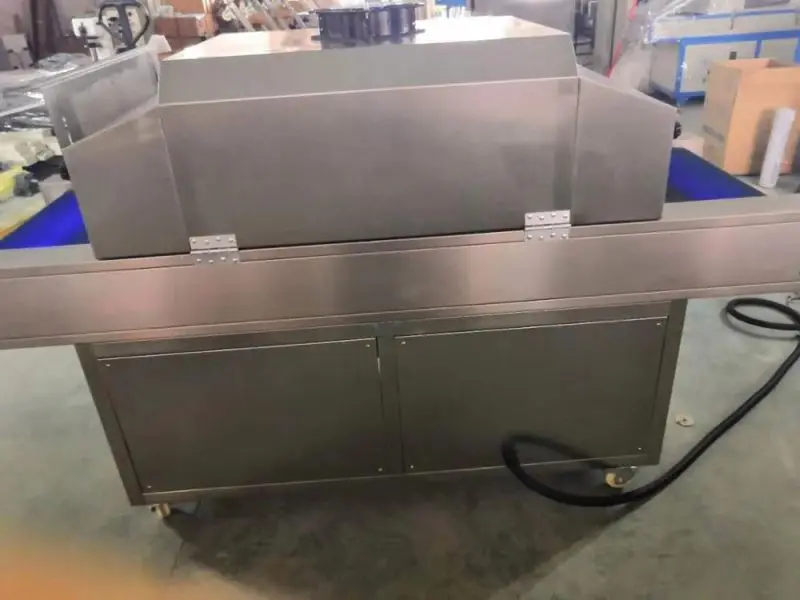

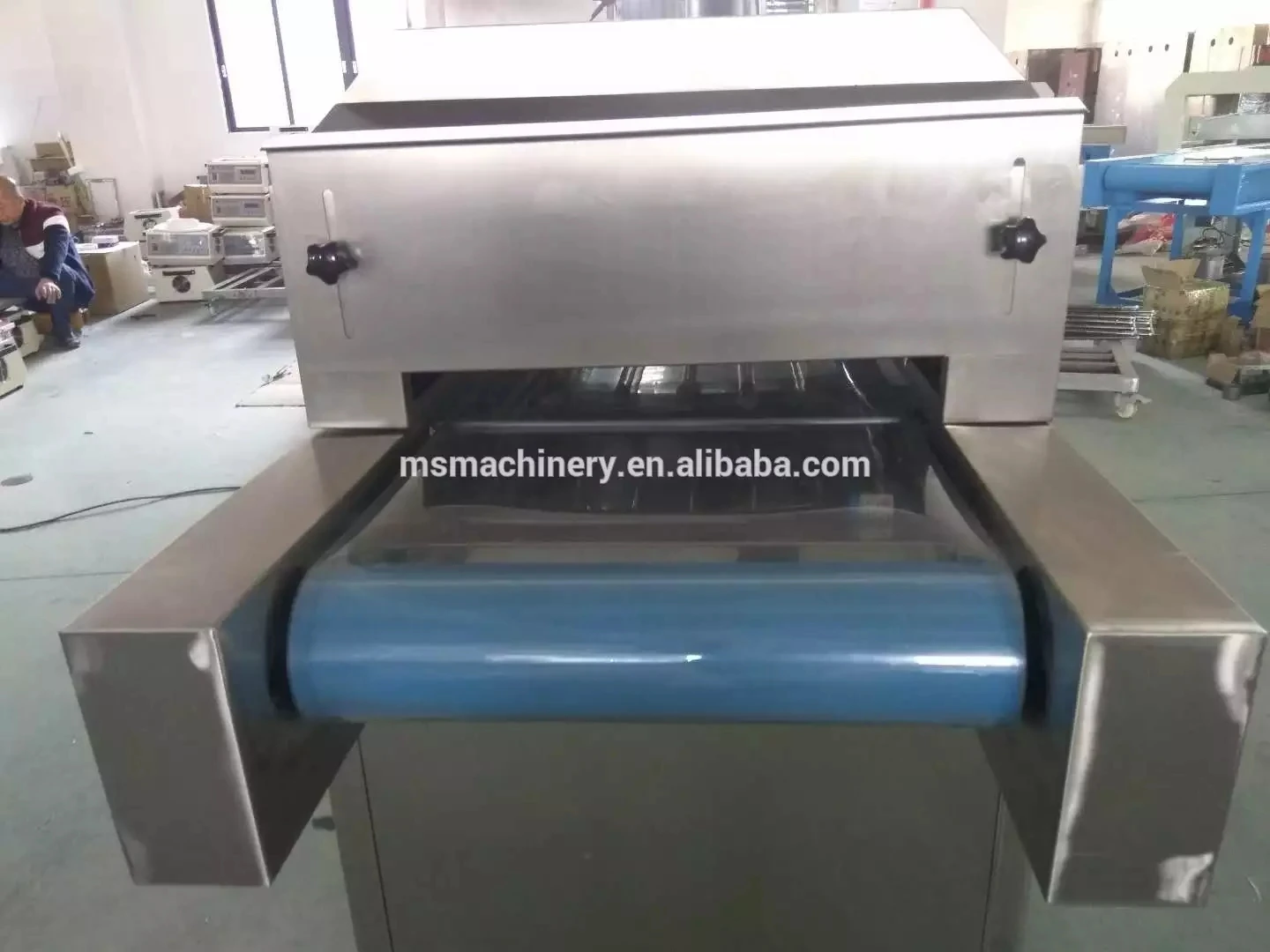

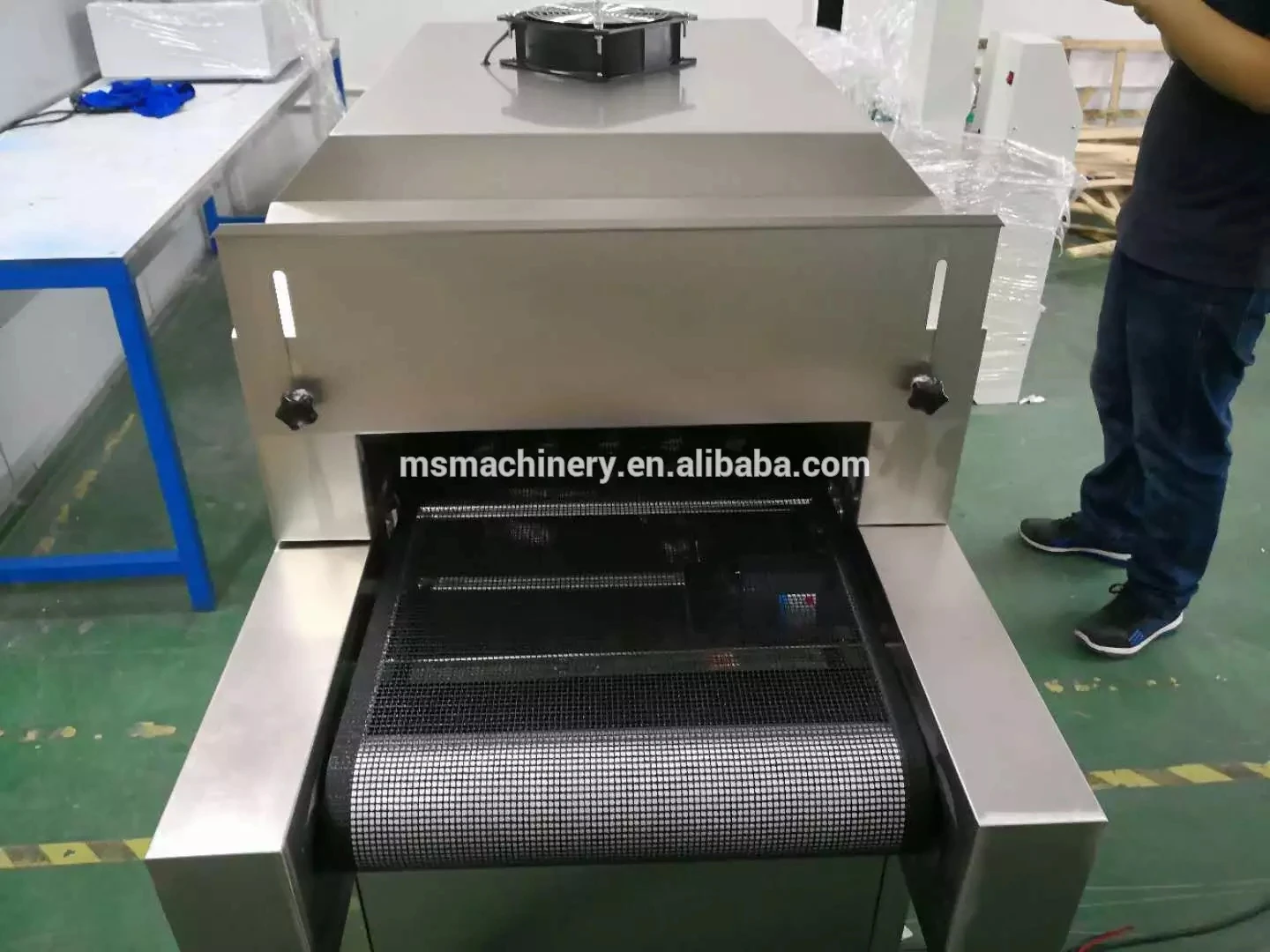

Detail photos show of  dried herbs sterilizing machine

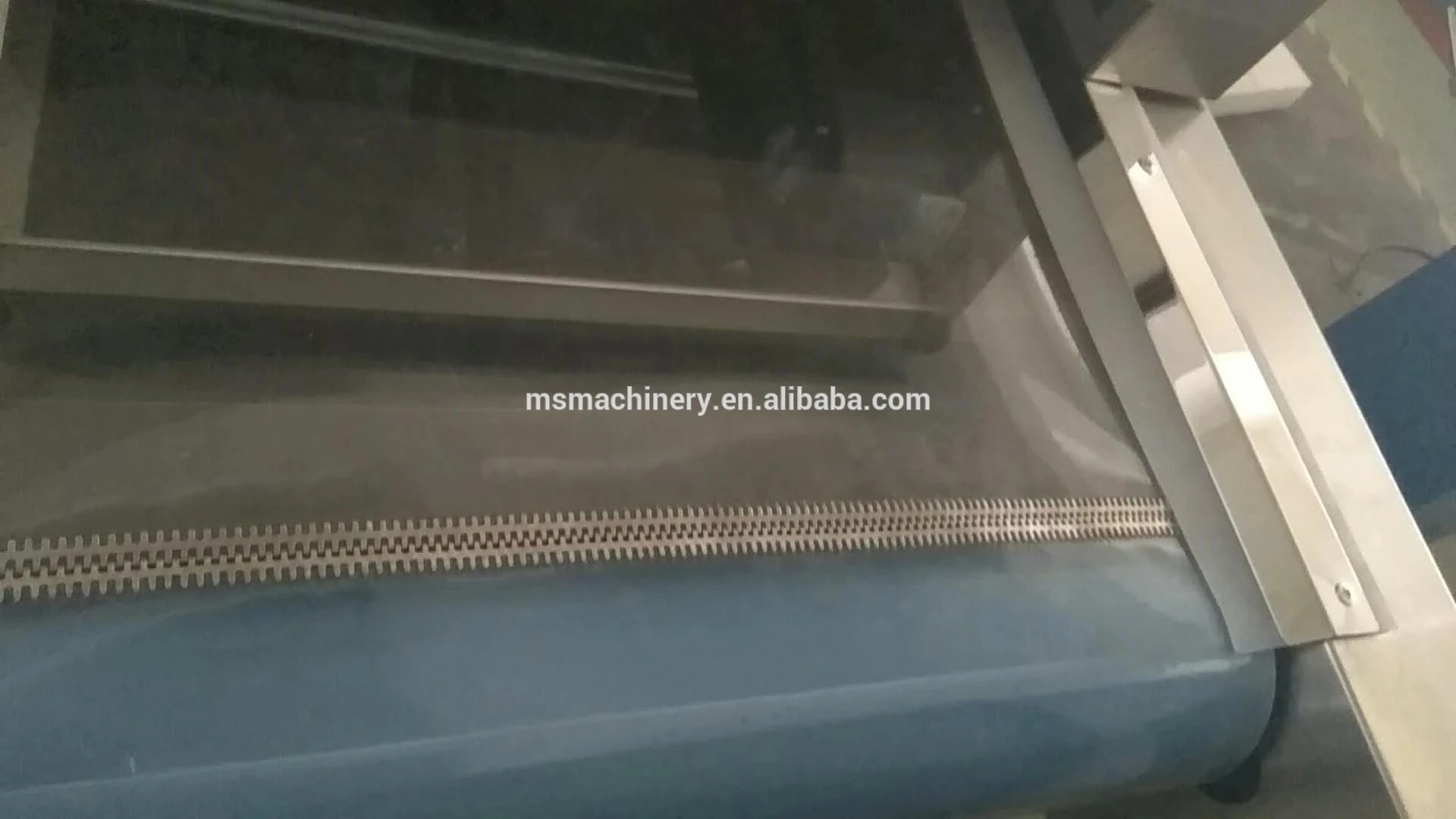

PVC transparent belt




(We do 5m working area for our client)

Technical data of  dried herbs sterilizing machine



dried herbs sterilizing machine

Specifications/ Model

MS-2000

MS-3000

MS-4000

MS-5000

MS-6000

Voltage

220v/ 50 Hz

220v/ 50 Hz

220v/ 50 Hz

220v/ 50 Hz

220v/ 50 Hz

Power

1.5 Kw

1.5Kw

2Kw

2.8 Kw

3Kw

UV working area

1000 mm

2000mm

3000mm

4000 mm

5000mm

Belt Feeding length

500 mm

500 mm

500 mm

500 mm

500 mm

Belt discharge length

500 mm

500 mm

500 mm

500 mm

500 mm

Height from ground to

the Conveyor belt

750mm±20mm

750mm±20mm

750mm±20mm

750mm±20mm

750mm±20mm

Speed range of

Conveyor belt

0-5 m/min

0-5 m/min

0-5 m/min

0-5 m/min

0-5 m/min

UV tube

20 Watt

length: 600 mm

20 Watt

length: 600 mm

20 Watt

length: 600 mm

20 Watt

length: 600 mm

20 Watt

 length: 600 mm

Number of UV tubes

16

20

24

32

42

Machine size

2000 X 700 X 1500

 mm

3000 X 700 X 1500

 mm

4000 X 700 X 1500

 mm

5000 X 700 X 1500

mm

6000 X 700 X 1500

mm

The gross Weight

100 Kg

150Kg

175Kg

195 Kg

225Kg



Packaging & Shipping




Company Information

 HENAN MACHINERY & EQUIPMENT COMPANY LIMITED is a manufacturer of uv room sterilization machines with well equipped testing equipment and strong technical force.We own import & export rights and mainy produces large and mediumsized mining machinery, refining equipment,briquetting machine and girder transporting vehicle. There are 6 branches company and a research institute. Now, We integrate the research, development, production, and sale together. Welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!





FAQ



1.What is your contry 's voltage of uv room sterilization ?
Usually in our country is 220v,50hz,single phase,if you have the special requirement , pls tell us, we will vetify the voltage according to your requirement.


2.How to install uv room sterilization?
We can intrust the install the machine by vedio, email ,picture.....if large project , we can arrange the worker help you to install it in your country .


3.Is your uv room sterilization
customized?

Yes. We can customized machine according to your requirements.



4.What is your guarantee of uv room sterilization?
Usually our guarantee is 1 year.



5.Which material of the transparent belt is better,PVC or FEP?

From the feedback of our customers,PVC is much better.
