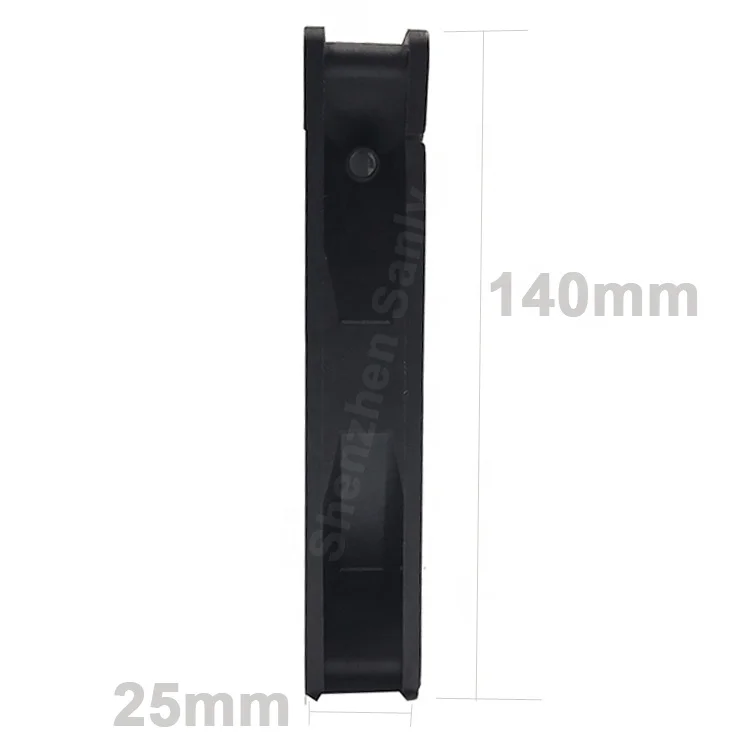

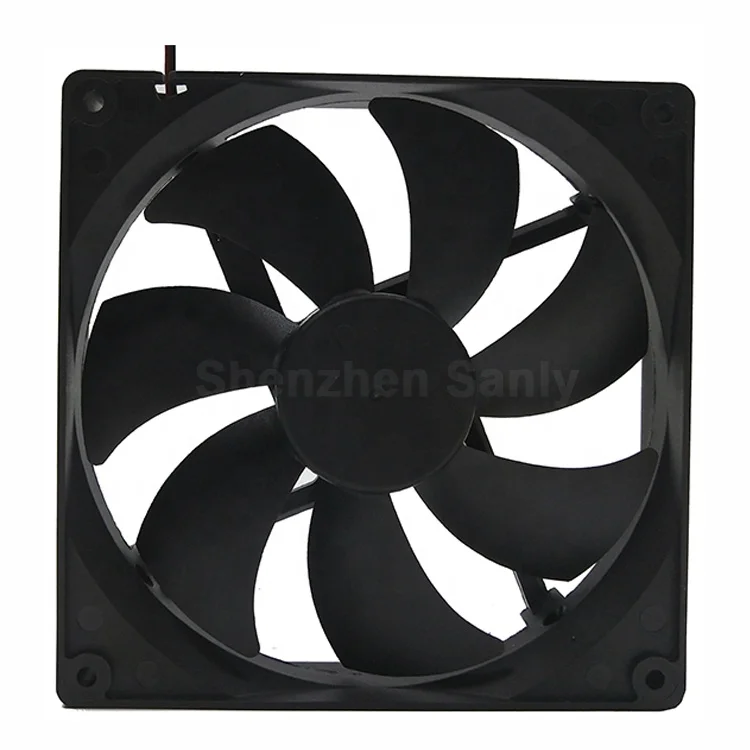

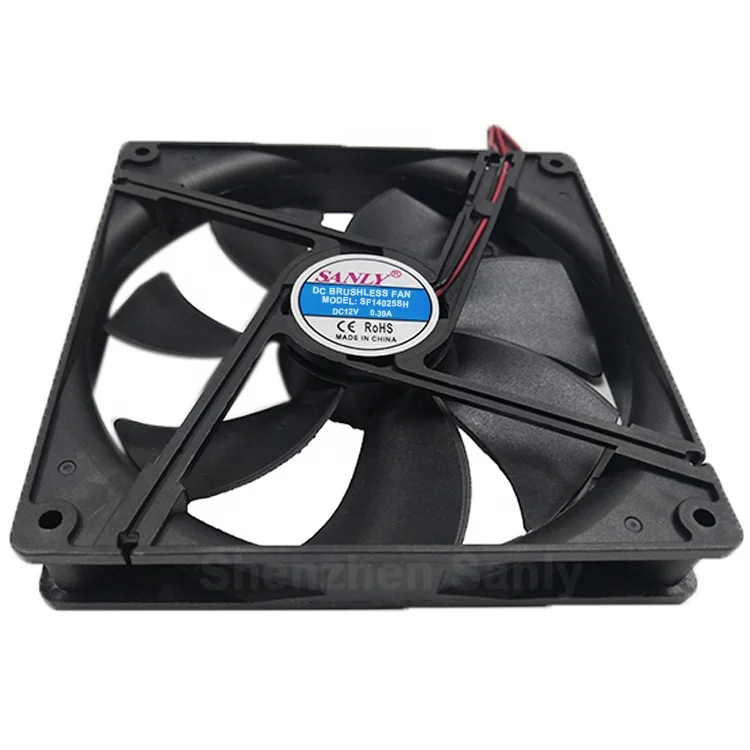

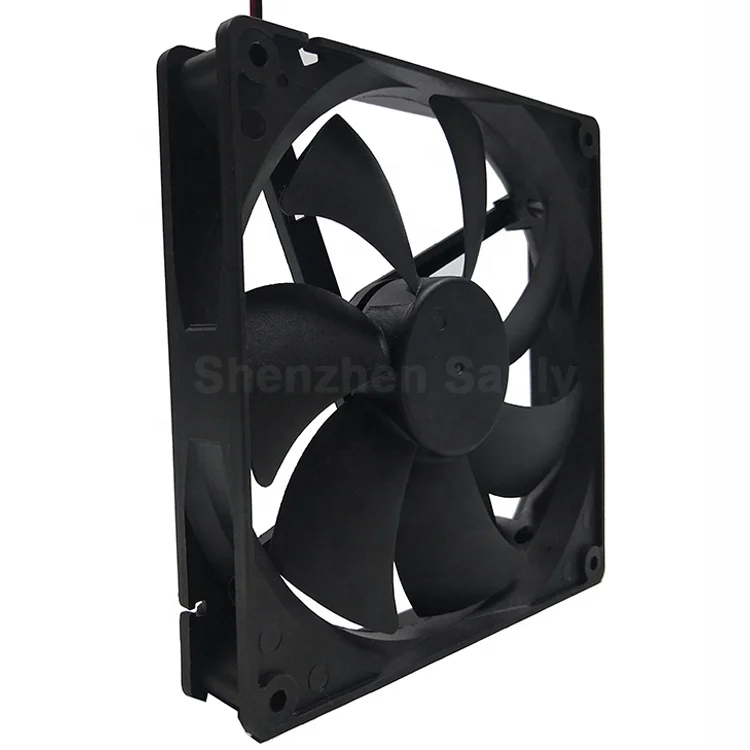

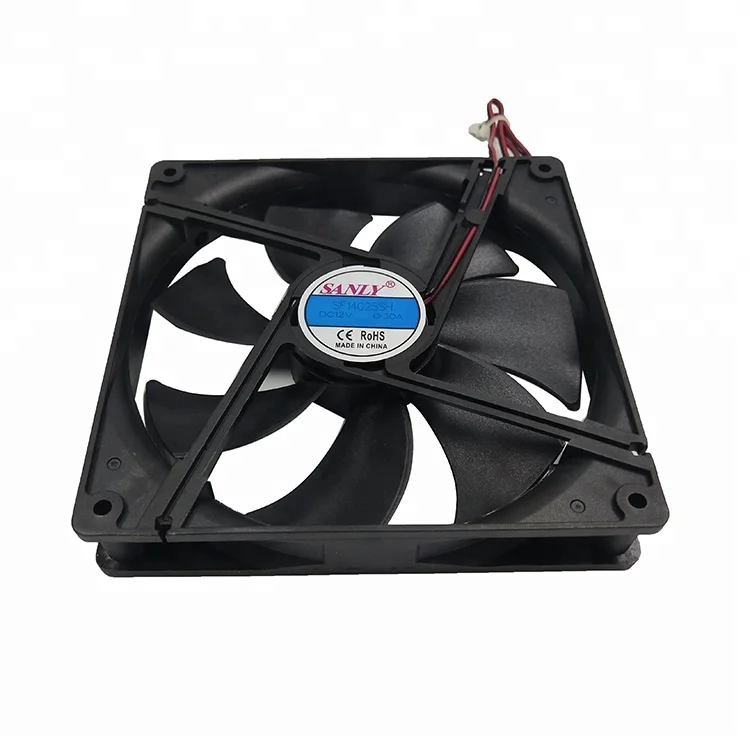

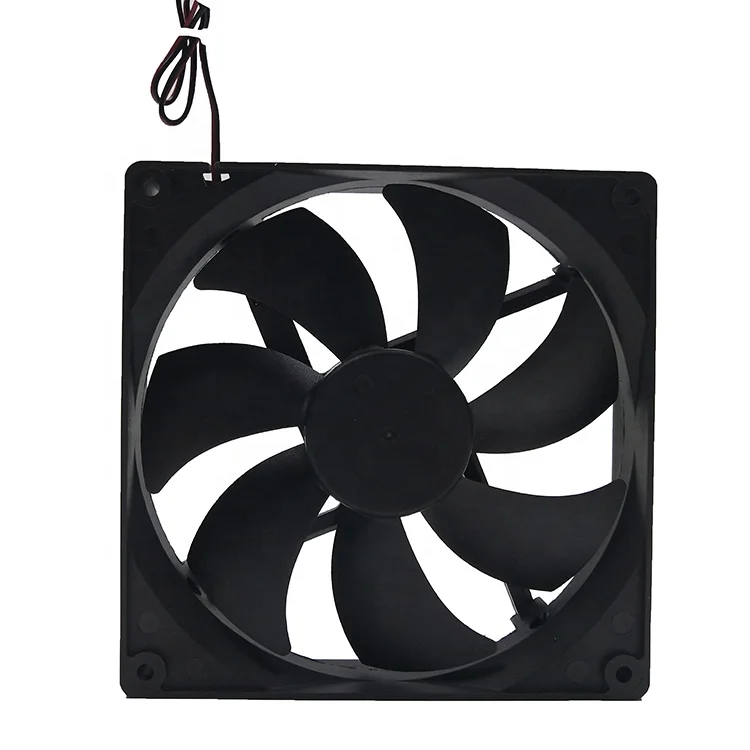

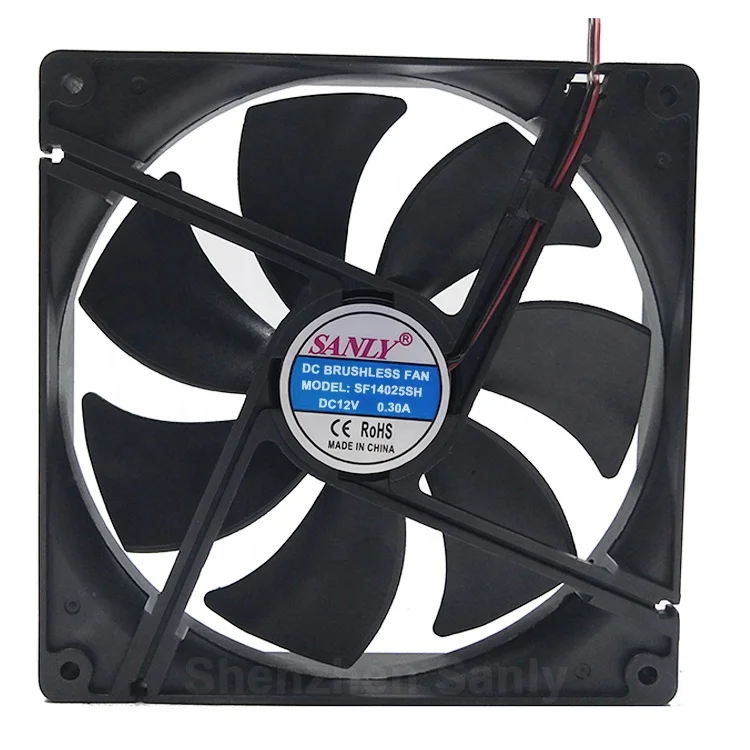

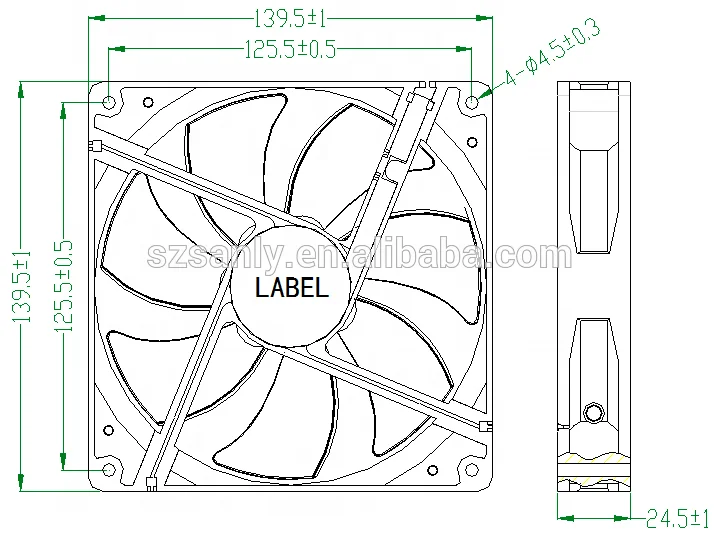

140 мм вентилятор постоянного тока 12 В 14025 140x140x25 маленький охлаждения

140 мм вентилятор постоянного тока 12 В 14025 140x140x25 маленький охлаждения

Категория: Ventilation Fans >>>
Поставщик: Shenzhen Sanly Electronic Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

DC Axial Fan

Applications

3D Printer, Refrigerator, Freezer, Wine Refrigerator, Air purifier,Toy, Electric Equipment, Notebook, Laptop, Mini-projector, Humidifier, Medical Device, etc.

Introduction

1. Bearing Type: High precision Sleeve or Ball bearing
2. Frame & Impeller: Termoplastic PBT UL 94V-0
3. Operating Temperature: -10℃ ~ 60℃
4. Waterproof Grade: IP44
5. Insulation Grade: Standard grade is B grade
6. Motor: DC brushless motor
8. Fan Rotation: standard Clockwise (If need Counterclockwise, please tell us)
9. Lead Wire: Standard RED: Positive(+); BLACK: Negative(-) Wire insert: 2.5-2P / NOP(Tin exposed 5mm)
10. Protection: Reverse protection; Auto Re-start protection.
11. Certification: CE, RoHS

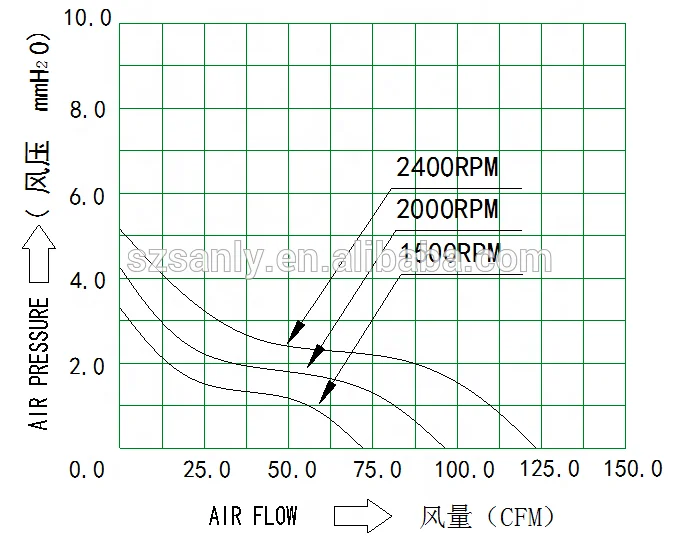

\t Model	\t Rated Voltage	\t Operating Voltage Range	\t Rated Current	\t Rated Input Power	\t Speed	\t Max Air Flow	\t Max Static Pressure	\t Noise
\t Model	\t VDC	\t VDC	\t Amp	\t Watt	\t R.P.M	\t m3/min / CFM	\t mmH2O / INH2O	\t dB-A
\t SF14025S/BL	\t 12	\t 6to13.5	\t 0.20	\t 2.40	\t 1500	\t 2.04/72.03	\t 3.3/0.13	\t 32.5
\t SF14025S/BM	\t 12	\t 6to13.5	\t 0.30	\t 3.60	\t 2000	\t 2.72/96.4	\t 4.25/0.167	\t 37.0
\t SF14025S/BH	\t 12	\t 6to13.5	\t 0.45	\t 5.40	\t 2400	\t 3.49/123.45	\t 5.15/0.2	\t 41.7
\t SF14025S/BL	\t 24	\t 15to25.5	\t 0.15	\t 3.60	\t 1500	\t 2.04/72.03	\t 3.3/0.13	\t 32.5
\t SF14025S/BM	\t 24	\t 15to25.5	\t 0.25	\t 6.00	\t 2000	\t 2.72/96.4	\t 4.25/0.167	\t 37.0
\t SF14025S/BH	\t 24	\t 15to25.5	\t 0.38	\t 9.12	\t 2400	\t 3.49/123.45	\t 5.15/0.2	\t 41.7

FAQ

1. SFxxxxS/BL is two models, SFxxxxSL, SFxxxxBL

2. "S" for Sleeve bearing; "B" for 2 ball bearing
3. Features: Reverse protection; Auto Re-start protection
4. Optional functions: PWM/FG/RD
5. OEM: label, voltage, speed, wire length, wire connector, etc.

Q1: Are you a factory or trading company ?
A1: We are a factory.

Q2: What is DC Fan and AC fan?
A2: DC fan is powered by DC voltage,normal voltage is 5V 12V 24V.
AC fan is powered by AC voltage,normal voltage is 110V,220V and 380V.

Q3:How about the lifetime of fan?
A3:

\t Bearing type	\t Lifetime
\t Sleeve Bearing	\t 20000 hours
\t Hydraulic Sleeve Bearing	\t 30000 hours
\t Dual Ball Bearing	\t 50000 hours

Q4: What effects the quoted price for the fan?

1 size of the fan,

2 voltage,

3 current,
4 speed,

5 air flow,

6 noise,
7 bearing type,

8 two wire or three wire,

9 cable length,
10 connector type,

11 function,

12 quantity

Packing & Delivery

Packing Details : Samples: 1-10pcs/carton, Large order goods: Use the right carton according to the total quantity
Delivery Details : 3-30 days after received deposit payment
