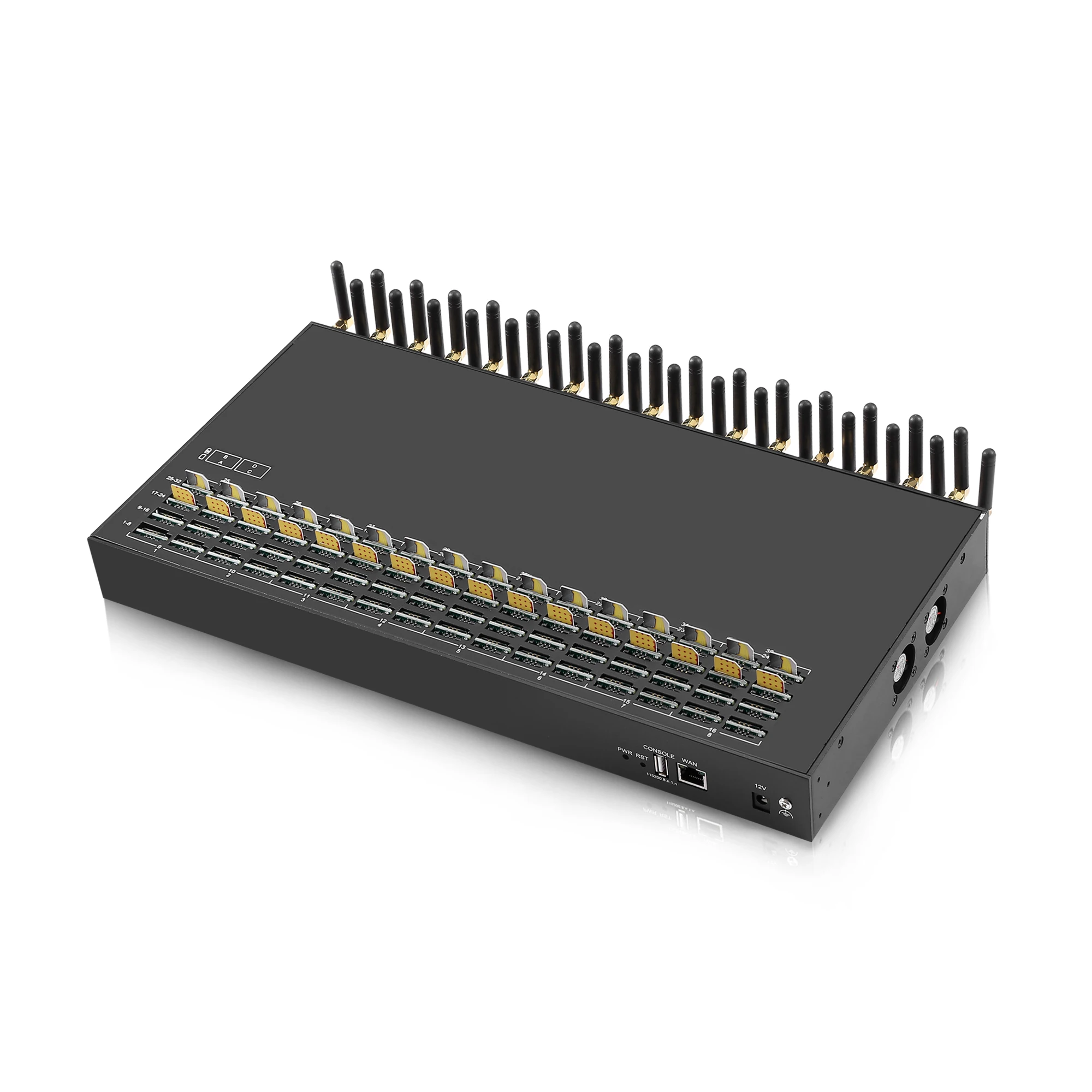

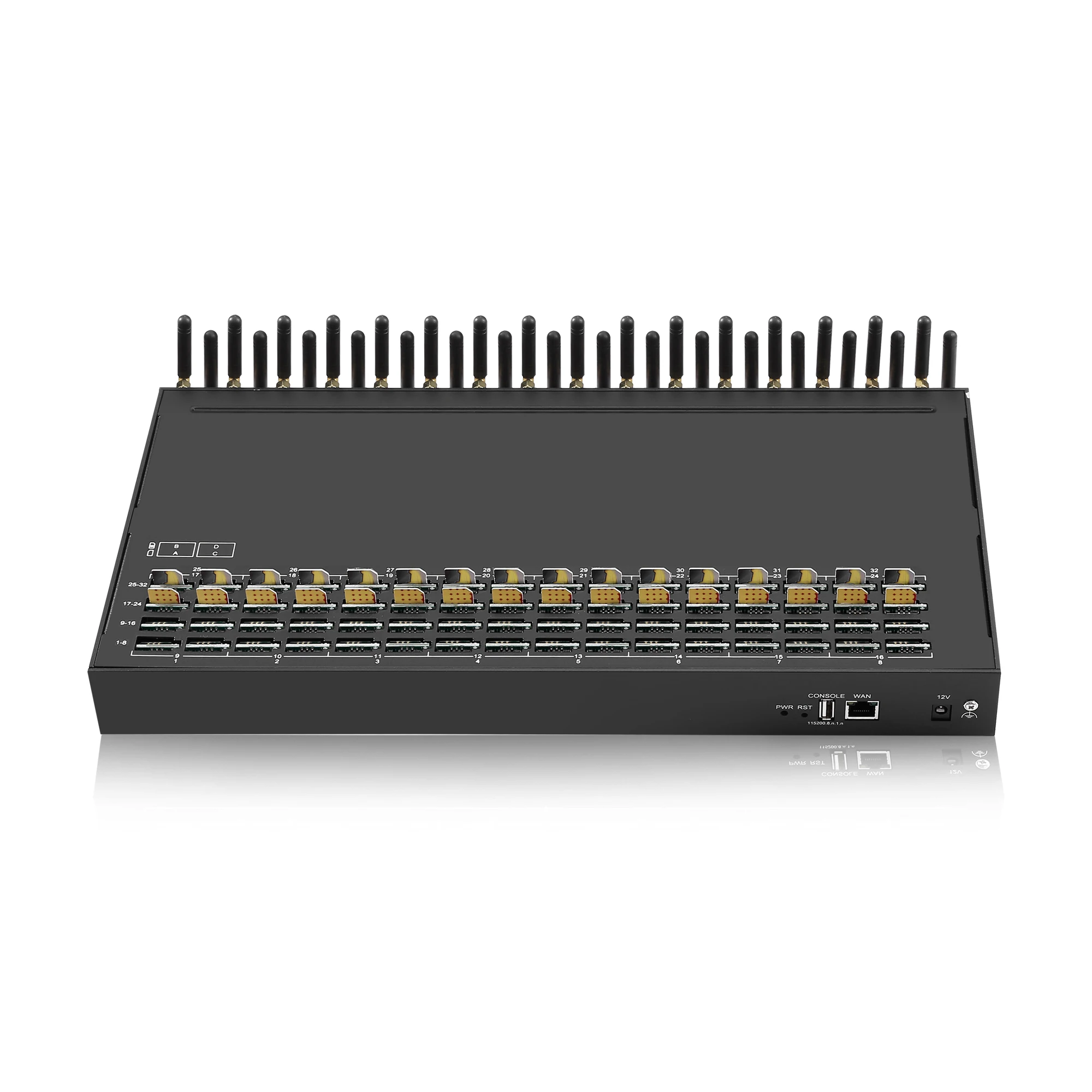

Горячая Распродажа Китай Skyline SK32 128 Voip шлюз GSM 3G 4G объемный Голосовой
- Категория: VoIP Products >>>
- Поставщик: Skyline (Shenzhen) Technology Co. Ltd.
Сохранить в закладки 62039745987:
Описание и отзывы
Характеристики

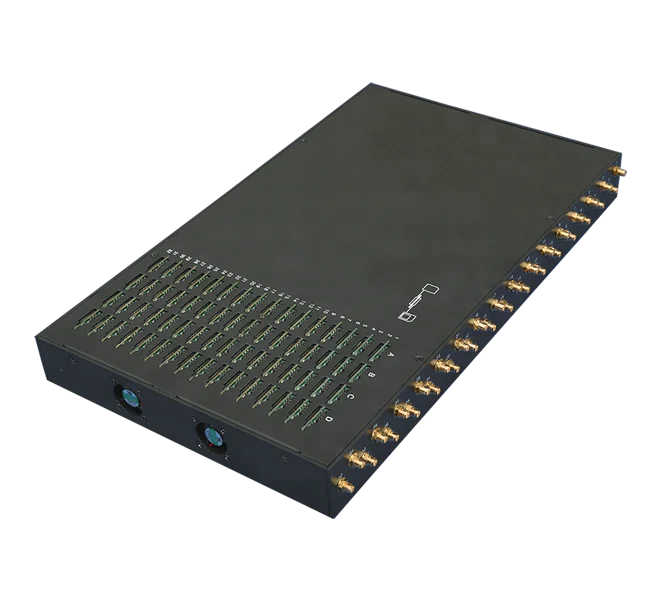

China Skyline Goip 32-128 Voip Gsm Gateway 128 Sim Slots 32 Ports SMS Modem Simbox Sms Text Blaster GOIP GSM Gateway
Product Description
GSM GoIP32 VoIP Gateway
We have 4G model for GOIP32-128 as well. The 4G model support European, African, and Asian countries. It does not support Australia, New Zealand, Japan, South and North American countries!
Contact information:
Jessica Lin
Skype：live:skylinewater Whatsapp: +86 135 9025 6970 Telegram：@JessicalinSMS
Jessica Lin
Skype：live:skylinewater Whatsapp: +86 135 9025 6970 Telegram：@JessicalinSMS
Specification:
Key Features
* Outbound call from VoIP
* Inbound call from PLMN
* VoLTE HD Voice
* High Concurrency Capability
* Quadruple SIMs and Intelligent Switching
* Hot Plug
* Bulk SMS
* Auto obtain SIM Number
* Remote management
* IMEI changeable
* Relay encryption and Saving bandwidth
* Inbound call from PLMN
* VoLTE HD Voice
* High Concurrency Capability
* Quadruple SIMs and Intelligent Switching
* Hot Plug
* Bulk SMS
* Auto obtain SIM Number
* Remote management
* IMEI changeable
* Relay encryption and Saving bandwidth
Physical Features
* GSM Channels: 32 ports
* Power Adapter: DC12V/4.5A
* CPU: ARM11/700MHz
* RAM: 128M
* Flash: 8M
* Max power consumption: 30W
* Net weight: 2.8KG
* Size: 44*26.6*4.7cm
* Operating Tempreture: 0-45℃
* Working Humidity: 10%-90% non
* Power Adapter: DC12V/4.5A
* CPU: ARM11/700MHz
* RAM: 128M
* Flash: 8M
* Max power consumption: 30W
* Net weight: 2.8KG
* Size: 44*26.6*4.7cm
* Operating Tempreture: 0-45℃
* Working Humidity: 10%-90% non
condensation
Soft Features
* VoIP Protocols: SIP V2, H.323 V4
* Audio Codecs: g711(alaw/ulaw), g729,
* Audio Codecs: g711(alaw/ulaw), g729,
g723.1
* DTMF format: SIP INFO, RFC2833, Inband
* Packet Loss Concealment
* Programmable Jitter Buffer: Fixed,
* Packet Loss Concealment
* Programmable Jitter Buffer: Fixed,
Dynamic, Adaptive
* Network Connection: DHCP, PPPOE, Static
IP
* STUN Server
* Support English, Chinese
* Support Signaling encryption
* Support media encryption
* Support Media NAT Traversal
* Support Remote control
* STUN Server
* Support English, Chinese
* Support Signaling encryption
* Support media encryption
* Support Media NAT Traversal
* Support Remote control
EC25-EC Module Frequency | ||||||||
FDD-LET | B1, B3, B5, B7, B8, B20 | 2100, 1800, 850, 2600, 900, 800 | ||||||
TDD-LET | B38, B40, B41 | 2600, 2300, 2500 | ||||||
WCDMA | B1, B5, B8 | 2100, 850, 900 | ||||||
GSM | B3, B8 | 1800, 900 | ||||||
Connections:
The concept diagram below shows a simple VoIP network for call center application. It consists of a softswitch/IP PBX and VoIP clients such as an IP phone, a call center operator, and GoIPs. All VoIP clients are configured to register to the softswitch/IPPBX. For the GoIPs, each GSM channel is inserted with a valid SIM card in order to access the GSM network. Both incoming and outgoing calls between the VoIP and GSM/PSTN networks can now be realized.
Quick set up

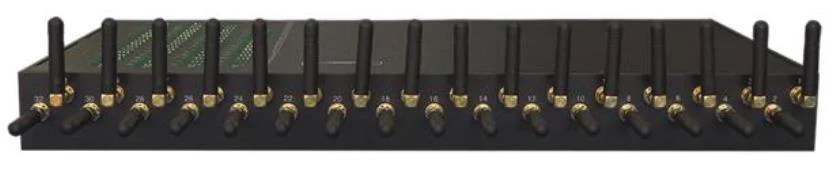

1). All antenna connectors are located on the back panel of the GoIP32-128. When short attentions are used, the Right-angle short antennas shall be installed on the top row with the antennas pointing upward and the straight antennas shall be installed on the bottom row, as shown in the picture below.

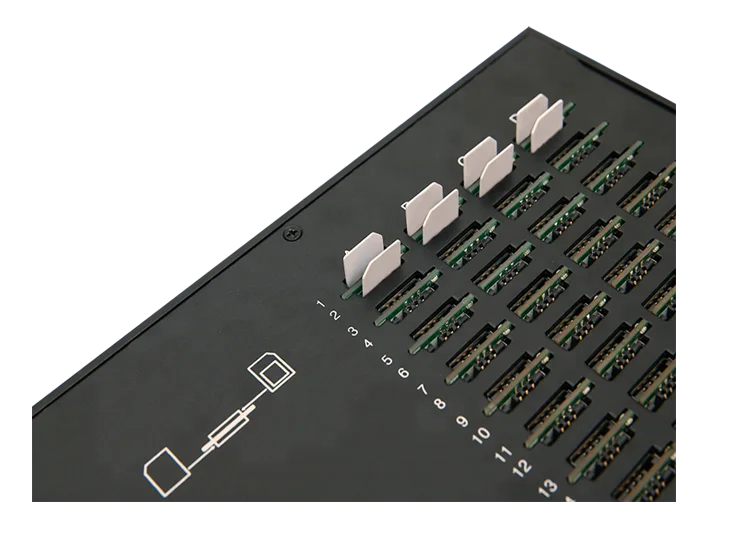

2) The 128 SIM slots are hardware preconfigured as 4 slots per line. Each slot is labelled with its designated line number and its location number (“A”, “B”, “C”, “D”). Please note that the SIM card insertion orientation is different between odd lines and even lines, as shown in the picture below. For the odd lines, SIM cards are inserted with the cut-edge pointing upward and the metal contacts facing the front panel. For the even lines, SIM cards are installed with the cut-edge point upward but the metal contacts facing the back panel. Each SIM card must be inserted in the correct orientation and fully pressed into the slot. There is no click sound to indicate the SIM card is in the lock position (this is different from the old GoIP models). This new slot socket enables the GOIP32-128 to support SIM Hot-swap(swapping SIM cards without powering down the slot first). Please go to the Status page to check if the SIM cards inserted are properly recognized.
2. Device Web Login
There are two Ethernet ports on the back panel of the device. The LAN port is intended for network connection to a VoIP Server. In general, the designated VoIP server is not in the local network; therefore, the LAN port should be connected to a router or a LAN that has an internet access. The PC port is intended to extend the LAN port network or to create a new LAN that is behind the LAN port.
* The default setting for the LAN port is to obtain an IP address from the local DHCP host. Please make sure that a local. DHCP host is available when using the LAN port.
There are two Ethernet ports on the back panel of the device. The LAN port is intended for network connection to a VoIP Server. In general, the designated VoIP server is not in the local network; therefore, the LAN port should be connected to a router or a LAN that has an internet access. The PC port is intended to extend the LAN port network or to create a new LAN that is behind the LAN port.
* The default setting for the LAN port is to obtain an IP address from the local DHCP host. Please make sure that a local. DHCP host is available when using the LAN port.
* The PC port is assigned with the IP address 192.168.8.1 as a factory default. If this port is used for device web login, please make sure that the computer IP is in the same segment of 192.168.8.x.
Since it requires certain technical knowledge in order to find out the IP that is assigned to the LAN port, it is recommended that the PC port is used for the first time device web login.
a. Configure the computer IP to 192.168.8.2.
b. Connect an Ethernet cable to the GoIP32-128 and the computer Ethernet port.
c. Type the PC port IP address (192.168.8.1) in address field of your computer browser. Then enter both username and password as “admin” to login to the device web. Try to use a different browser if a bnormalities or problems encountered during configurations.
Once login, the LAN port IP can then be found in the status page when it is connected to a network that has a local DHCP host. The LAN port IP can then be used for web login via a computer that is connected to the same network.
Since it requires certain technical knowledge in order to find out the IP that is assigned to the LAN port, it is recommended that the PC port is used for the first time device web login.
a. Configure the computer IP to 192.168.8.2.
b. Connect an Ethernet cable to the GoIP32-128 and the computer Ethernet port.
c. Type the PC port IP address (192.168.8.1) in address field of your computer browser. Then enter both username and password as “admin” to login to the device web. Try to use a different browser if a bnormalities or problems encountered during configurations.
Once login, the LAN port IP can then be found in the status page when it is connected to a network that has a local DHCP host. The LAN port IP can then be used for web login via a computer that is connected to the same network.
Related Products
Gateway Web Management
How to log in Web Management?
Open the web browser and type the IP address. If it is the first time you login the gateway, please use the default settings below:
IP Address: 192.168.8.1
Account: admin
Password: admin
IP Address: 192.168.8.1
Account: admin
Password: admin
Following are the pages of GoIP web management:
Packing&Shipping
Trade Terms | FOB, CFR, EXW, DAP |
Payment Terms | Alibaba via Credit Card/Paypal, Bank Wire, T/T, Webmoney, Skrill, Western Union, Cash, USDT |
Payment Condition | 100% deposit in adavance |
Delivery Time | 1-3 days after full payment |
Packing | Strong Carton Box with Water Proof |
Shipping | DHL, UPS, EMS, FEDEX, ARAMEX, TNT or Other Way As You Require |
FAQ
Q: 1 . What is main funtion of the GOIP 16 ports gateway?
A: For call terminal and bulk sms.
A: For call terminal and bulk sms.
And we have Live SMS Traffic to Vietnam, India, USA, Indonesia, Nigeria, Spain, Germany, France, Phillipines, Australia, New Zealand, Canada, UK, UAE, Bangladesh, Thailand, and European regions. If you have sim cards and interested in sms business for huge profit, please contact me!!
Q :2. How about our service?
A: We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatest desire.
Q: 3.If my routes face the issue for quality not good , any solution?
A: Firstly, you can check your internet, gsm signal, sim cards balance, sim blocking. Secondly, if everything is good, we will guide our engineer to help you check your configurations.
Q: 4.I need more ports , any device?
A: If your ports are less than traffic, you should increase more ports to accpet more traffic. We have 4/8/16/32 ports and 4G SK gateway for you to expand your business.
Q: 5.How long we're warranty ?
1 year
Q: 6.During warranty time,if have problem, how to do?
we'll test by teamview or send back, we'll exchange new in free.
Q :2. How about our service?
A: We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatest desire.
Q: 3.If my routes face the issue for quality not good , any solution?
A: Firstly, you can check your internet, gsm signal, sim cards balance, sim blocking. Secondly, if everything is good, we will guide our engineer to help you check your configurations.
Q: 4.I need more ports , any device?
A: If your ports are less than traffic, you should increase more ports to accpet more traffic. We have 4/8/16/32 ports and 4G SK gateway for you to expand your business.
Q: 5.How long we're warranty ?
1 year
Q: 6.During warranty time,if have problem, how to do?
we'll test by teamview or send back, we'll exchange new in free.
Q: 7.How long about our techinical support?
in free,forever.
in free,forever.
Company Introduction
CHINA SKYLINE TELECOM CO.,LIMITED was founded in 2002.We have over 200 employees ,20 departments and more than 10 production
lines.More than 200 companies have established business with us,and they are from 40 different countries.
Our company is a manufacturer of SMS Gateway, SMS Modem, VoIP Gateways,GSM VoIP gateways, with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communication industry and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
lines.More than 200 companies have established business with us,and they are from 40 different countries.
Our company is a manufacturer of SMS Gateway, SMS Modem, VoIP Gateways,GSM VoIP gateways, with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communication industry and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Contact us!
Skype: skylinewater
WhatsApp: +86 13590256970
Telegram: @JessicaLinSMS
Похожие товары
Skyline SK шлюз с 4G LTE GSM 2G/3G/4G 64 порта 512 Simcards SMPP HTTP API массовый SMS 2022 горячая
3 950,00 $ - 4 080,00 $
VoIP PBX с портом 2fxo и 100 sip-расширением
340,00 $ - 360,00 $

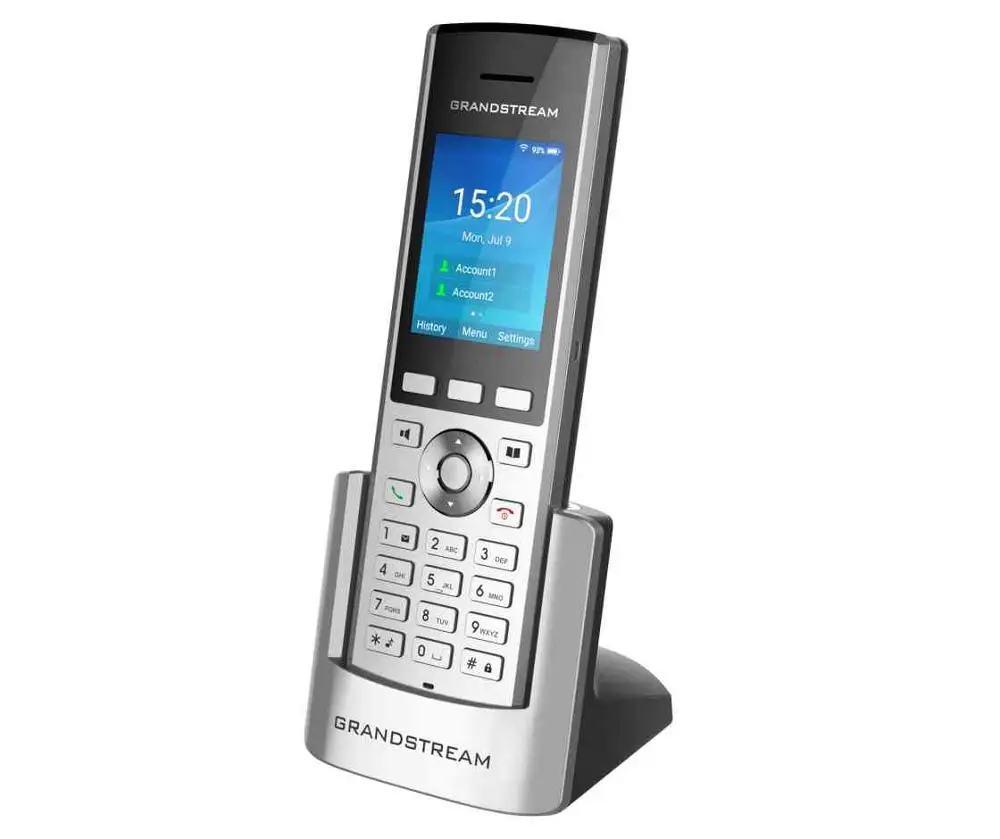

Grandstream WP820 двухдиапазонный Wi-Fi телефон беспроводной
438,99 $ - 493,99 $

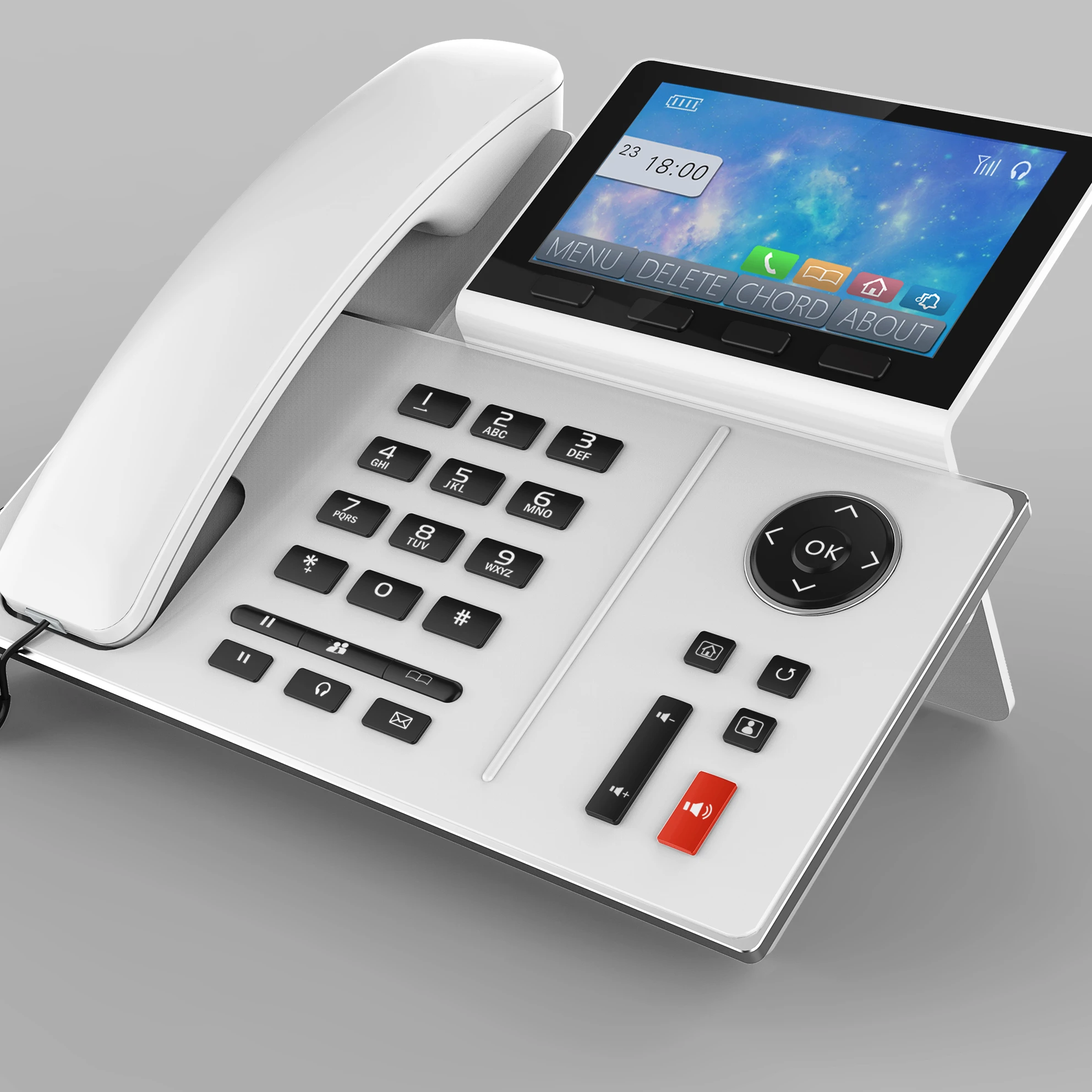

2023 новая модель SIP Business IP-телефона с 4 линиями VOIP большой дисплей для офисного
