3 компоненты Полиуретановая Прокладка делая машину

3 компоненты Полиуретановая Прокладка делая машину

Категория: Другие станки для резины и пластика >>>
Поставщик: Dalian Jinjie Innovation Technology Co. Ltd.

Цена:3 787 254,90 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

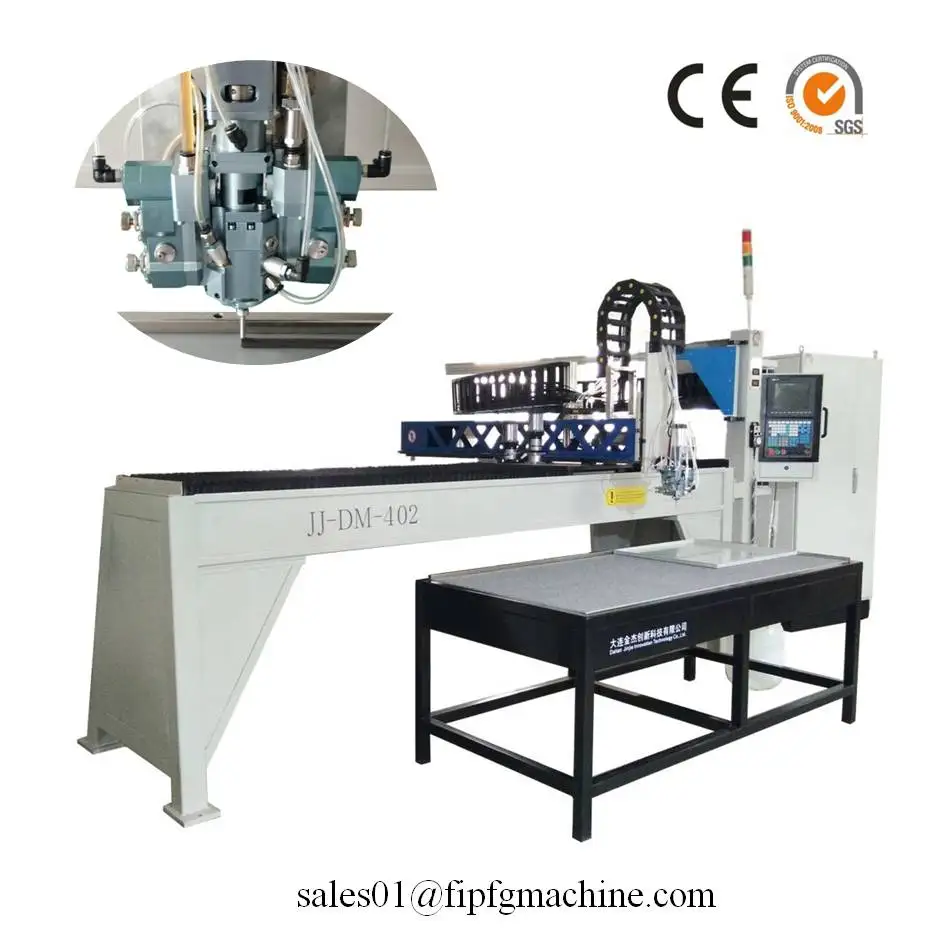

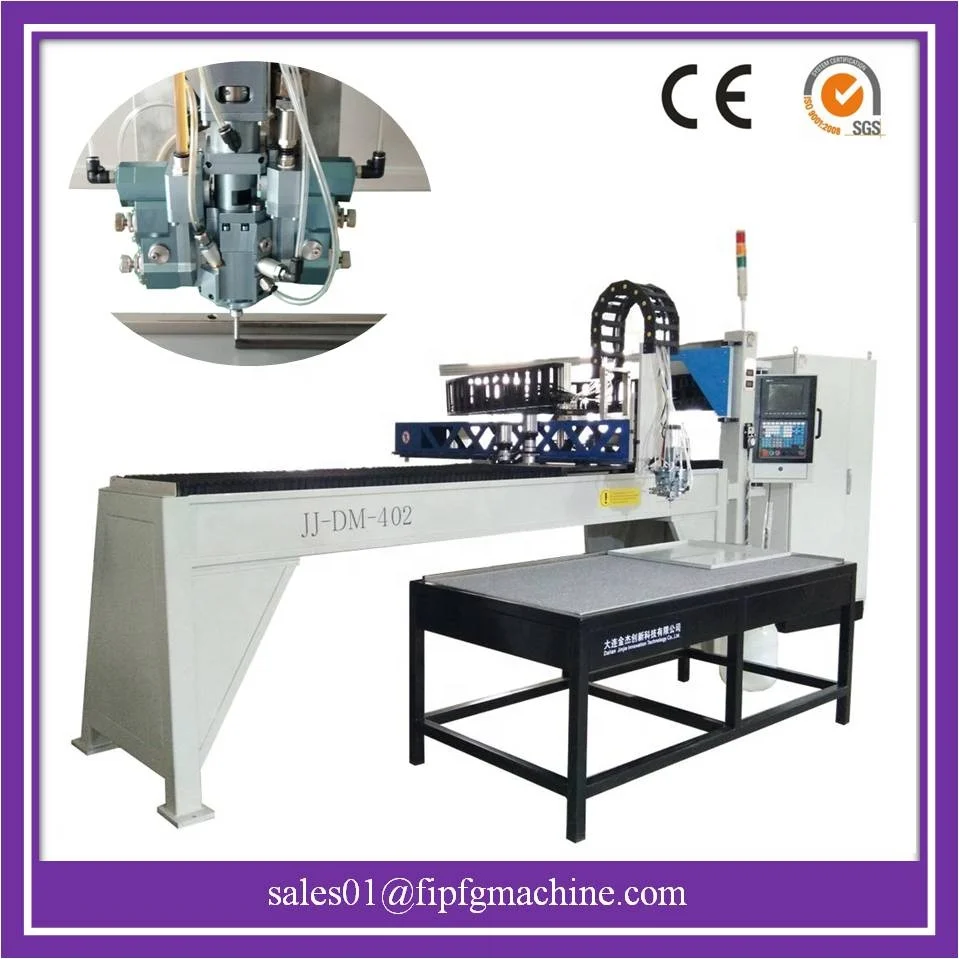

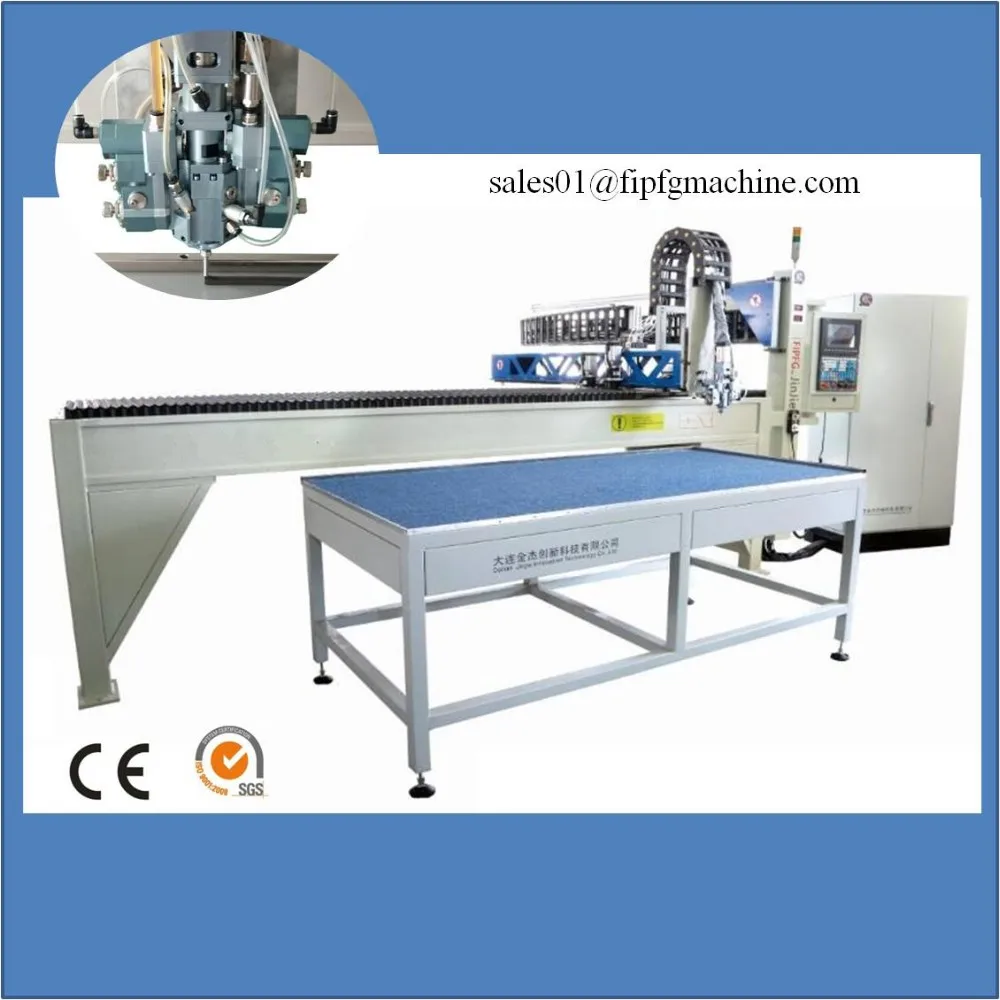

JJ-DM-403 FIPFG form in place foam gasket machine

(400 Series PU foam gasket machine)

Main Specifications
Whole Size	WDH = 542.6 m	Power	4500W
Work Bench	WDH = 2.40.91.1 m	Voltage	3*380V
Material Tanks & Base	WDH = 1.20.851.4 m	Frequency	50HZ or 60HZ
Working Stroke	3D, XYZ = 24001200200 mm	Gasket Width	5-30mm
Working Speed	0-12m/min	Max Speed	30m/min
Control System	CNC, Windows, multi-language	Cleaning	By water
Re-positioning Accuracy	±0.03mm	Mixing Ratio	1:10~10:1
Dosing and Metering	0.5-5g/s	Certifications	CE, ISO, Patents, etc.
Simple pattern could be selected directly from internal storage; Complex pattern can be leaded by using U-disk under CAD format or by hand adjusting through G-code.

Product Application

The FIPFG form in place foam gasket machine can produce and glue sealing strips automatically; it can mix 2-/3-components PU material together and pour to pre-set position, groove, mould, or the surface of workpiece etc directly. Through chemical reaction, the liquid raw materials form elastic sealing strip in seconds. There is no joint or cut point, so comparing with other kind of sealing its effect is much better. And, during the forming process, the sealing strip surface become very smooth and without any crack, so its sealing effect is perfect. And, because it can stick on the workpiece naturally and tightly, no gluing worker is needed, huge cost is saved from labor and time, etc.

Foam sealing equipment is used more and more in sealing fields like controlling cabinets, lighting, motor vehicle, machining industry, etc. It is leak proof, oil proof, water proof, damping, noise proof, and sealing, etc. It is in accordance with certifications like UL/CE, MIL-STD-167, EN50298, and so on.

Advantages:
Compared with common rubber sealing strips, its unique advantages include: super strong adhesive capacity, precise specifications and hardness under set, raw materials are reliable, product quality steady, production mode is easy and quick, high production efficiency, saving labor cost, material cost and time cost.

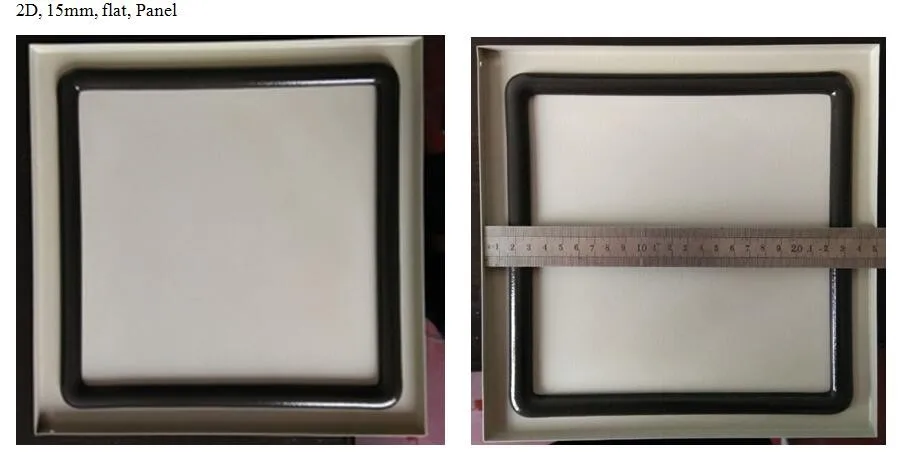

Application Samples

JINJIE Sealing Equipments are widely used in fields like enclosure, power cabinets, auto parts, electronic, appliances, lighting, and filter, etc

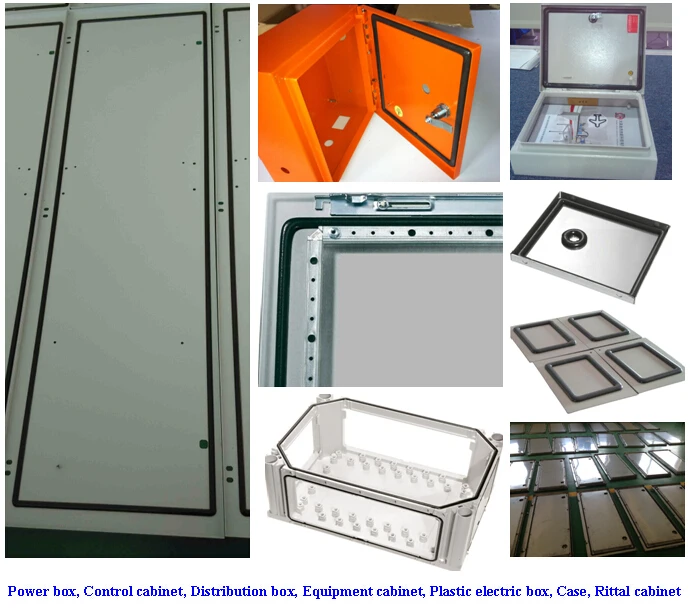

- Electronic & Appliances: Gluing and sealing on the surfaces of controller cabinets, doors, enclosure, or other surfaces, to prevent dust and moisture.

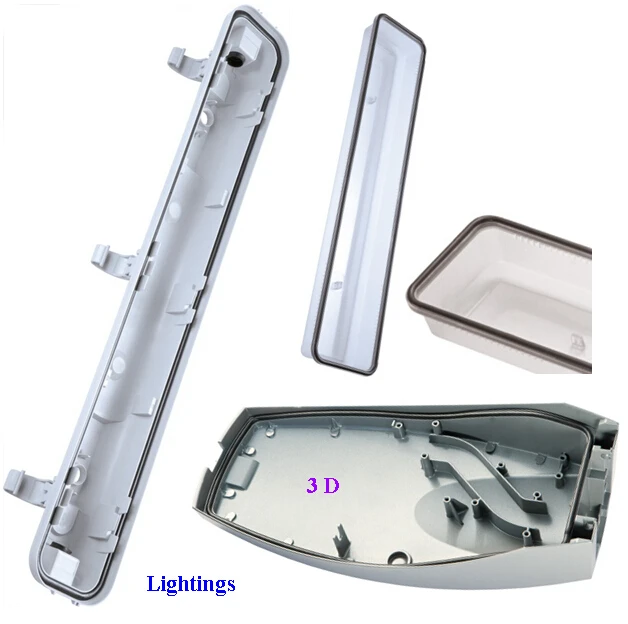

- Lighting: Through foaming sealing to form sealing rings on lightings for industry, furniture, house or outside, etc.
- Small containers & Packing case: sealing rings used on the cover edge of them with a lot of quantity to finish the sealing process efficiently and automatically.

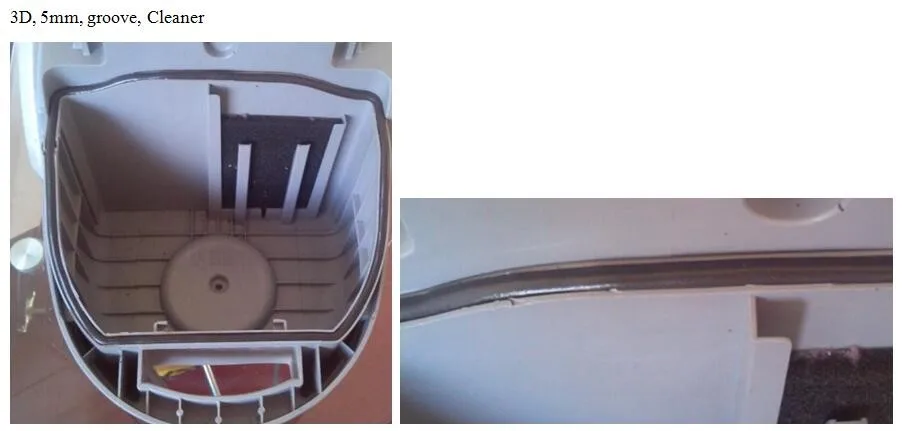

- Appliances: sealing strips are needed for kitchenware's top, back and inside, or filter of cleaner, and other appliances.

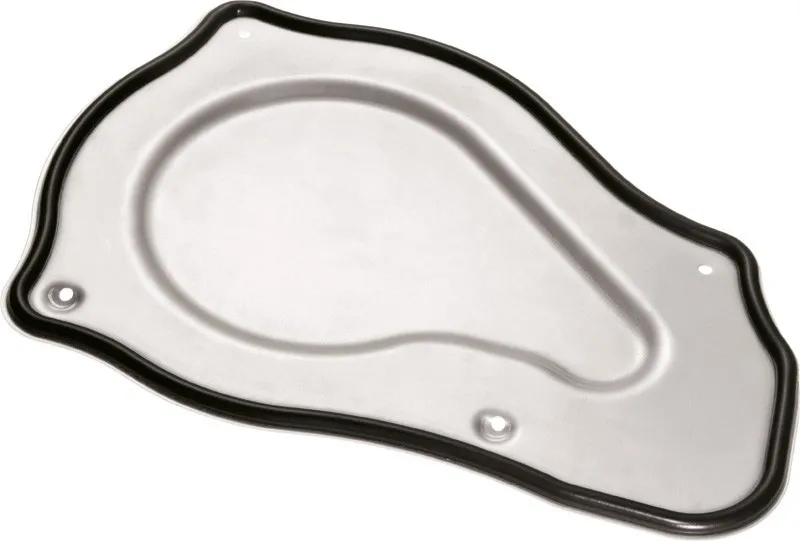

- Auto parts: Sealing strips used on the car body, pedal, steering wheel stand, fireproof metal plate, and other areas like car window, vent, lighting cover, air conditioner, and so on.

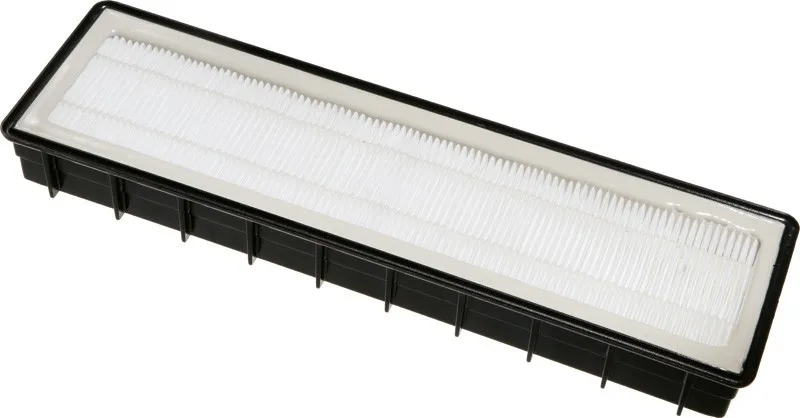

- Filter: like those used on oil industry, air conditioner, building, refrigerator, etc.

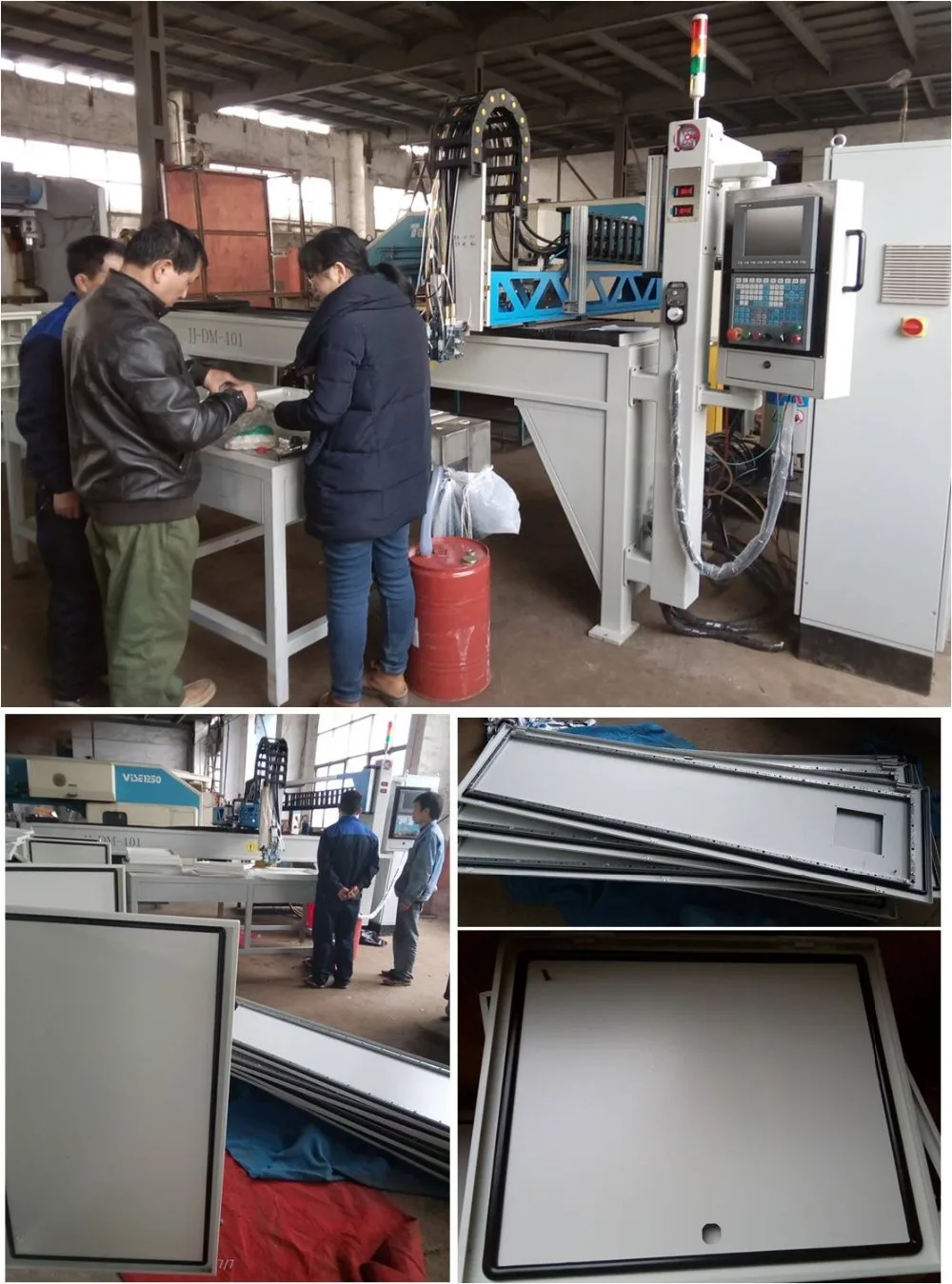

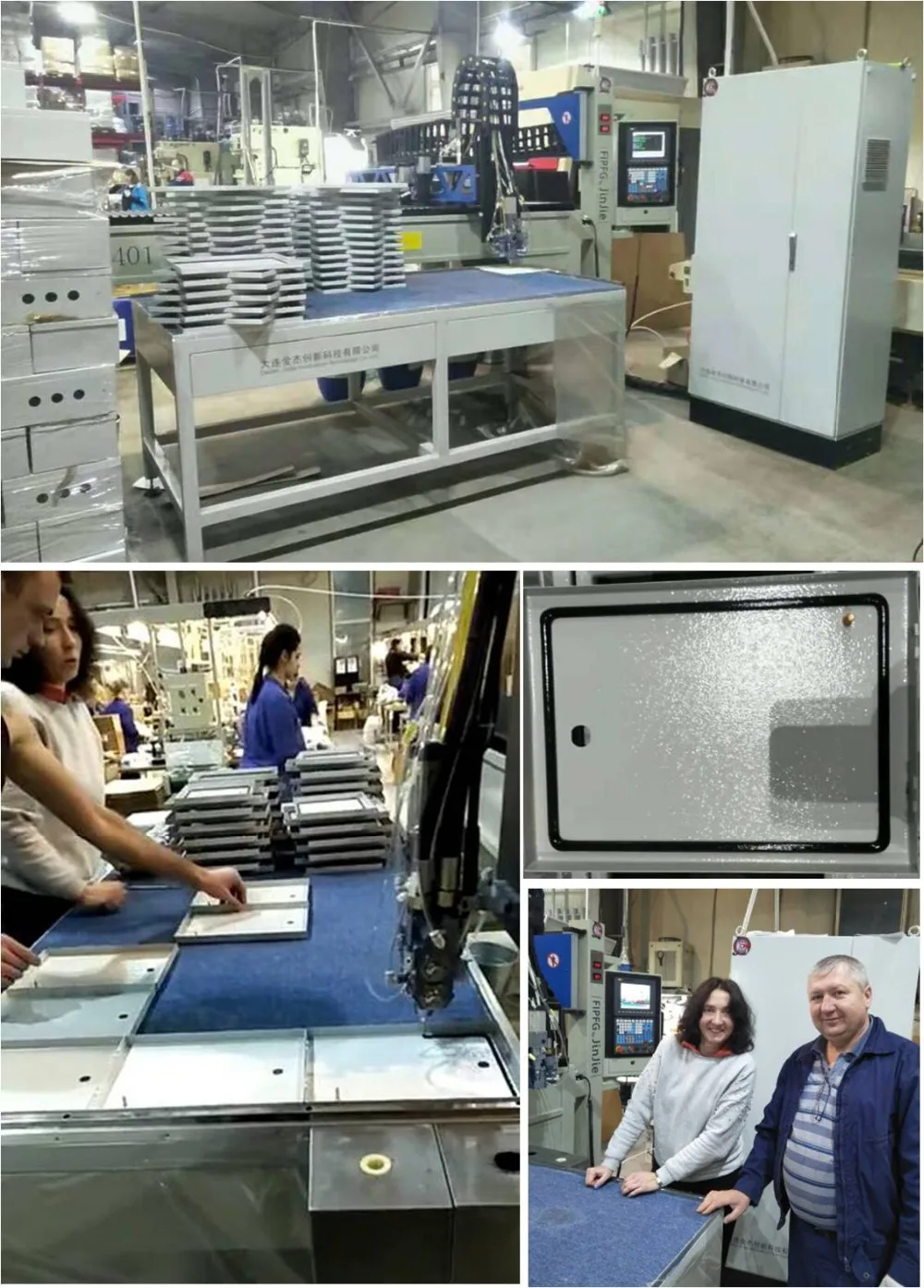

Customer & Fair

Machine Parts

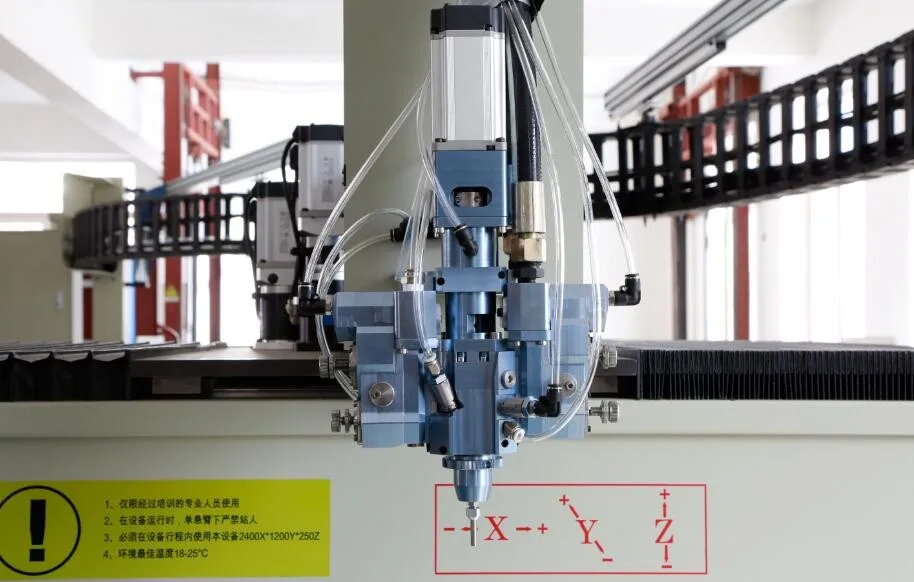

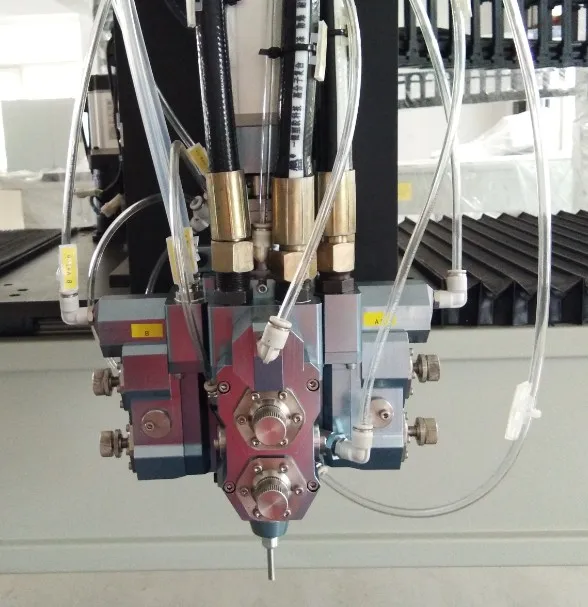

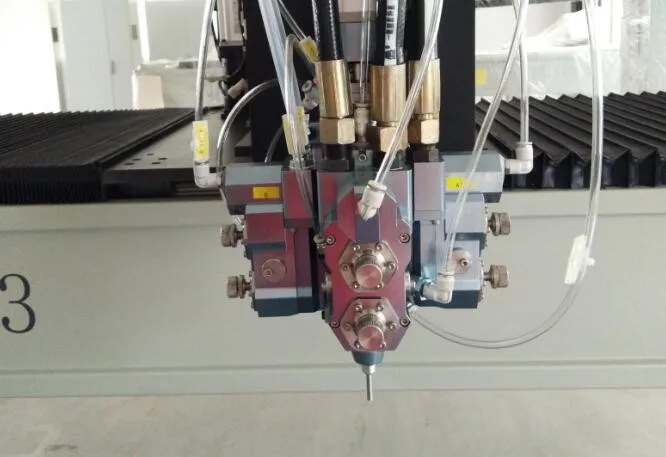

Mixing Head

Type: MK500-3

Brand: JINJIE

Original: Germany

2-/3-components mixing head with high-pressure water rinsing system and dynamic mixing system; with the latest technology origining from Germany, patented modular design, made of air-craft aluminum alloy; high precise, anti-adhesion, drip-proof, easy to control and maintain.

3-components is much suitable for multi-kind workpieces

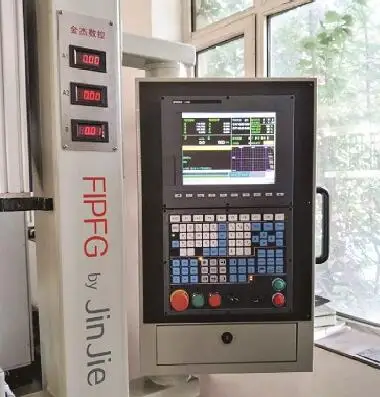

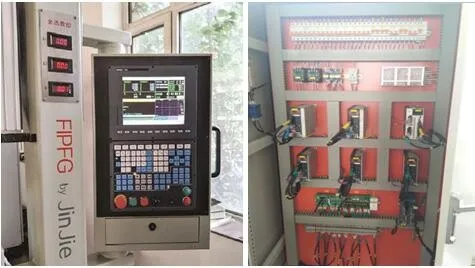

CNC Control System

Type: 8 axes CNC system
Brand: Syntec
Original: China, Taiwan
Windows system, 3D working mode, multi-language; automatic control, colorful led screen with key pad and hand controller; internal storage function for common graphs, CAD drawings, G-code programming, or manul test; easy to control and learn.

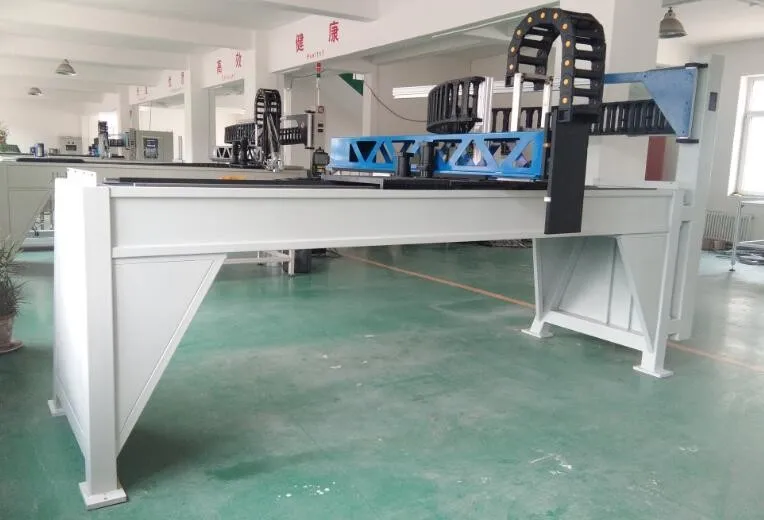

Mechanical Structure

Type: 3-axis Robot
Brand: JINJIE
Original: China, Taiwan, Japan
Strengthened steel alloy, aluminium alloy, Taiwan PMI gear rack, Panasonic servo motor, etc. Gross weight is about 1200KG.

Working stroke: 3D, X*Y*Z=2400*1200*200mm

Working speed: 0-12m/min

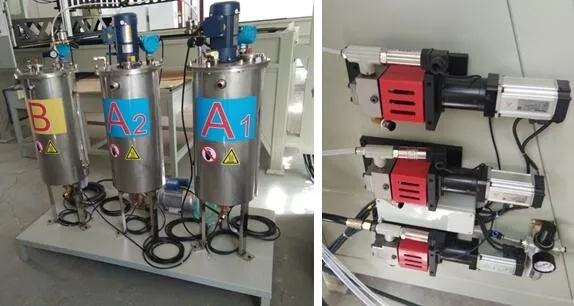

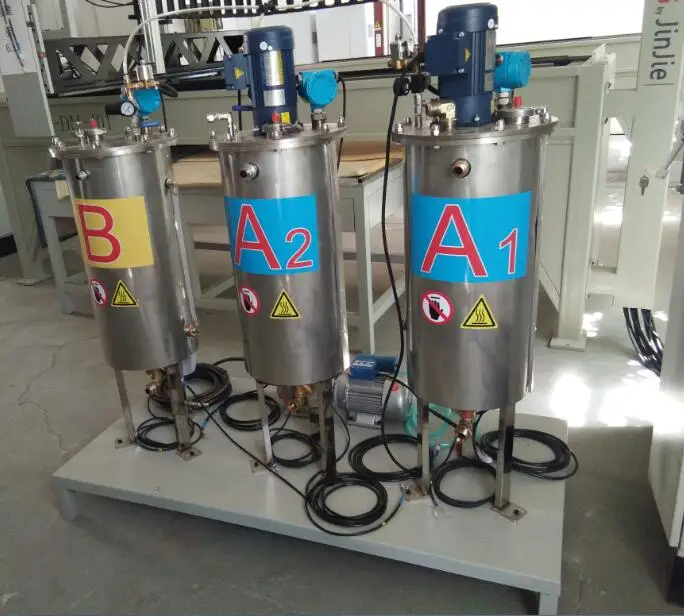

Material Tanks & Dosing System

Type: 40L insulation barrels, High precision metering pump
Brand: JINJIE, Barmag, Panasonic
Original: China, Germany, Japan
Material Tank: Double walled stainless steel with level indicator, material heating function, etc.

Dosing System: high precision metering pumps, like Barmag metering pump with Panasonic servo motor.

Auto feeding equipment for 200L material is optional.

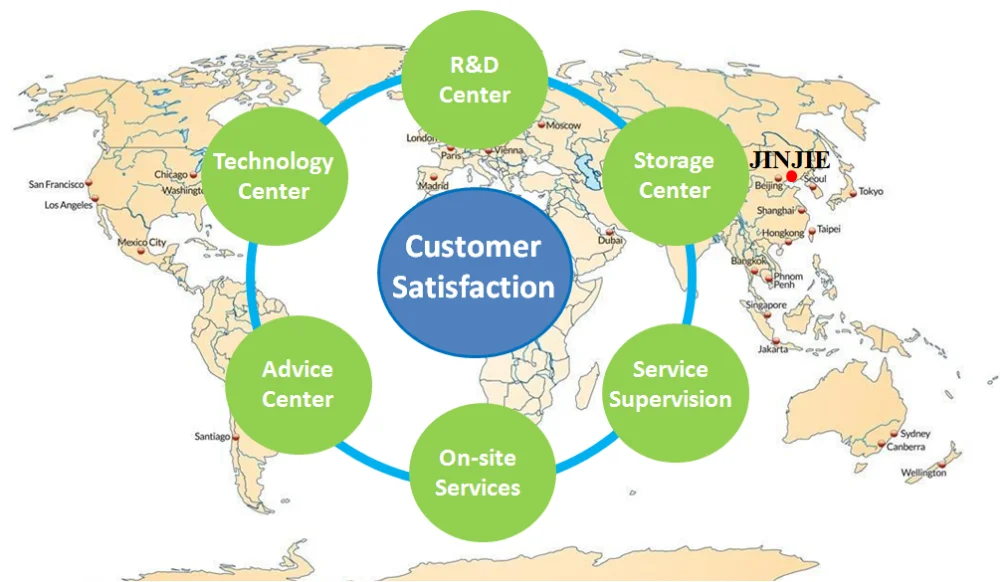

Service & Customized

Service System

* Professional salesman and technicians introduce suitable devices and equipments solutions

* High precision machining technology and strict

quality inspection system

* Free field installing, commisioning, training and 12 months quality guarantee; life-long maintenance,

remote guide, etc.

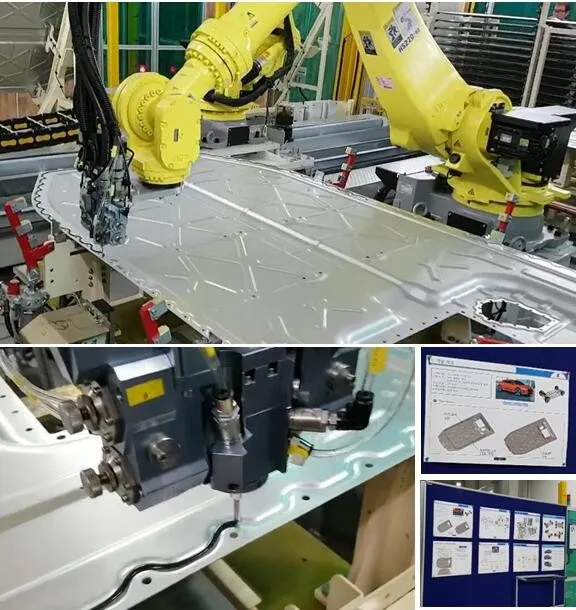

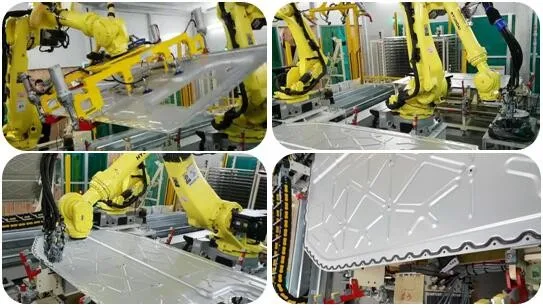

Custom-made Production Line

JINJIE provide professional custom-made / OEM services, including Auto Gasketing & Transfering Robot, Gluing System for Car Production Line, Silicone Gluing & Drying Production Line, etc. Could be ABB, Yaskawa, or Hyundai robot with Simens, Beckhoff or other appointed control system. The project above is Hyundai Robot with Simens System for Hyundai Motor.
