Product Description

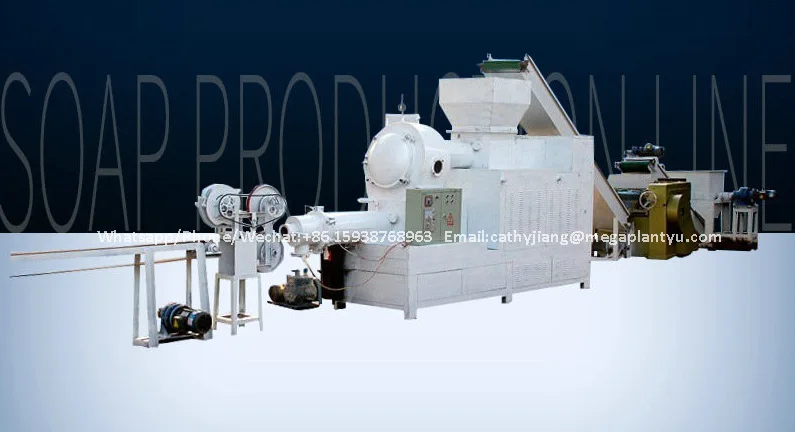

Toilet Bath Soap Making Processing Machine Small Bar Soap Production Line

Introduction:

Our Soap Producton Line is used for both washing clothes soap and perfumed soap.The capacity can be 150-300kgs/hour,500-800kgs/hour,1000kgs/hour or more.

Working Process:

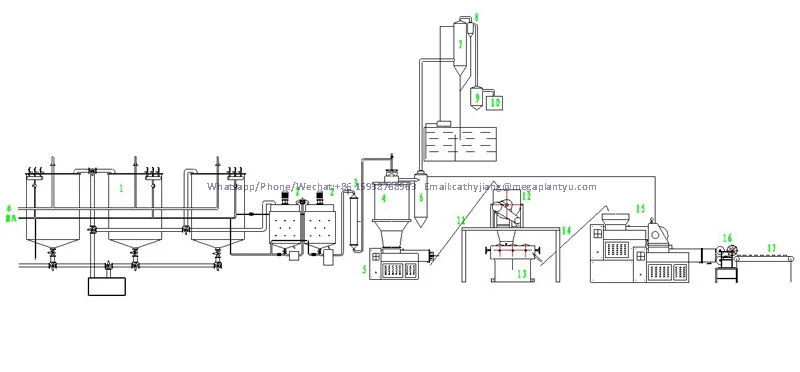

Raw Soap Noodles--Mixer--Conveyor Belt-- Soap Fined machine---Three Roller Mill--Conveyor Belt-- Double Screw Vacuum Plodder Machine--Soap Bar Cutting Machine--Sopa Moulding Machine---Soap Cooling Machine--Soap Packager

Specifications

\t Soap Production Line
\t Item	\t Product	\t Capacity	\t Power	\t Size
\t 1	\t Mixer	\t 75kgs/batch	\t 3kw	\t 1.6511.15M
\t 2	\t Conveyor Belt	\t 1000kg/hour	\t 1.5kw	\t 4.40.550.85M
\t 3	\t Soap Fined machine	\t 1000kg/hour	\t 11kw	\t 2.6117M
\t 4	\t Three Roller Mill	\t 800-1000kg/h	\t 15kw	\t 2.11.951.35M
\t 5	\t Conveyor Belt	\t 1000kg/hour	\t 1.5kw	\t 4.40.550.85M
\t 6	\t Double Screw Vacuum Plodder Machine	\t 1000kg/hour	\t 11kw+22kw	\t 412.45M
\t 7	\t Soap Bar Cutting Machine	\t 2000kg/hour	\t 1.5kw	\t 0.80.360.8M
\t 8	\t Belt	\t 1000kg/hour	\t 1.5kw	\t 3.30.550.65M
\t 9	\t Soap Moulding Machine	\t 70Pcs/Min	\t 4kw	\t 1.11.62M
\t 10	\t Soap Cooling Machine	\t 6800Kcal/h	\t 3kw	\t 1.50.71.7M
\t 11	\t Two-stage rotary vane vacuum pump	\t 15L/S	\t 1.5kw	\t 0.0510.0310.039M
\t 12	\t Electric control Panel

Detailed Images

Mixer

Feeding raw soap noodles into mixer,adding other Incense pigment additive,etc,then mixing evently.

Conveyor Belt

Carry mixer into soap fined machine for next step.

Soap Fined Machine and Three Roller Mill

To make soap thin sheets for easy to be soap strip

Double Screw Vacuum Plodder Machine

The soap thin sheet then converted into desired long strip soap by the plodder machine.

Soap Bar Cutting Machine

Cutting long soap bar into fixed length for next soap moulding.

Soap Moulding Machine

The moulding machine can cut soap bar into soap,perfumed soap is about125g*3,80g*4 ,15g*5;for washing clothes soap,250g/pcs.

Soap Cooling Machiine

Cooling soap into solid and hard.

Electric Control Panel

In order to operate easily and protect machine,use electric control box.

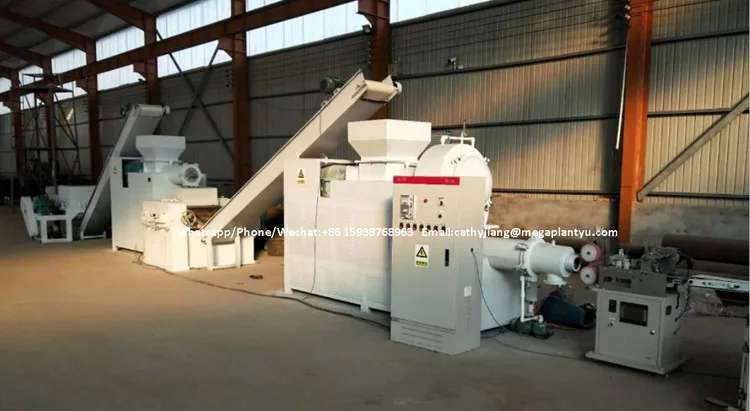

Working Photos:

Packing & Delivery

Packaing

Wooden Crate or Pallet or bare package in standard containers for export;

Shipment

All machines will be sent by sea, if you need other kind of transportation, please inform us in advance.

And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
