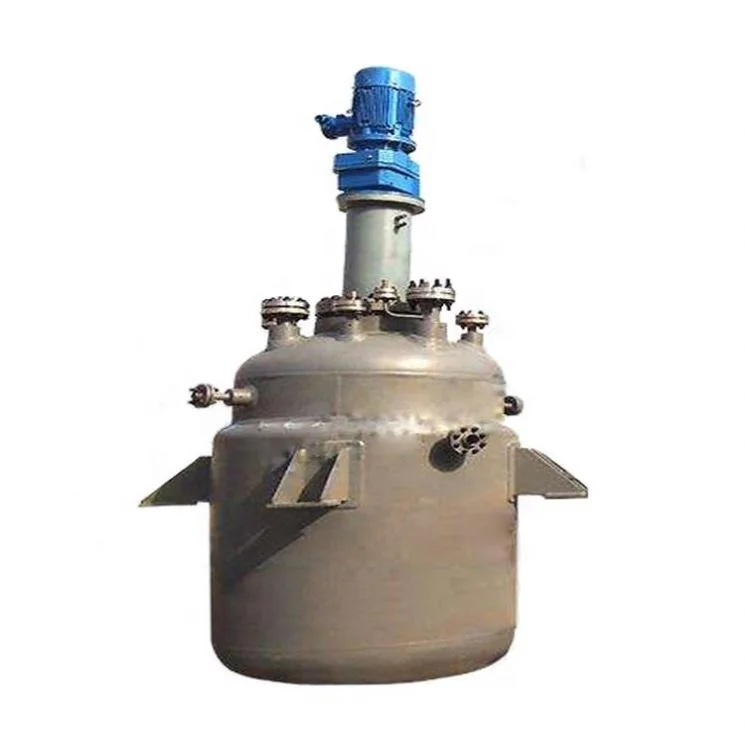

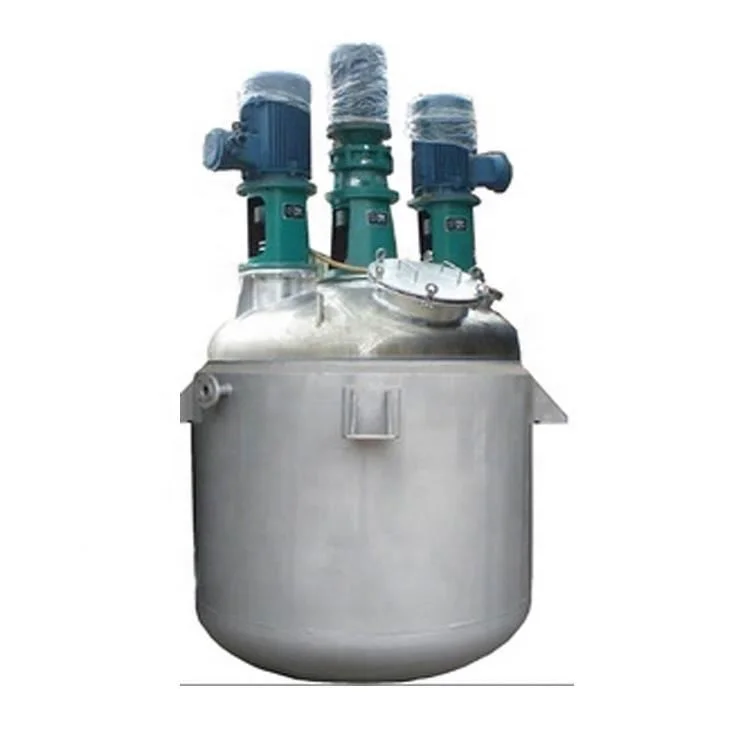

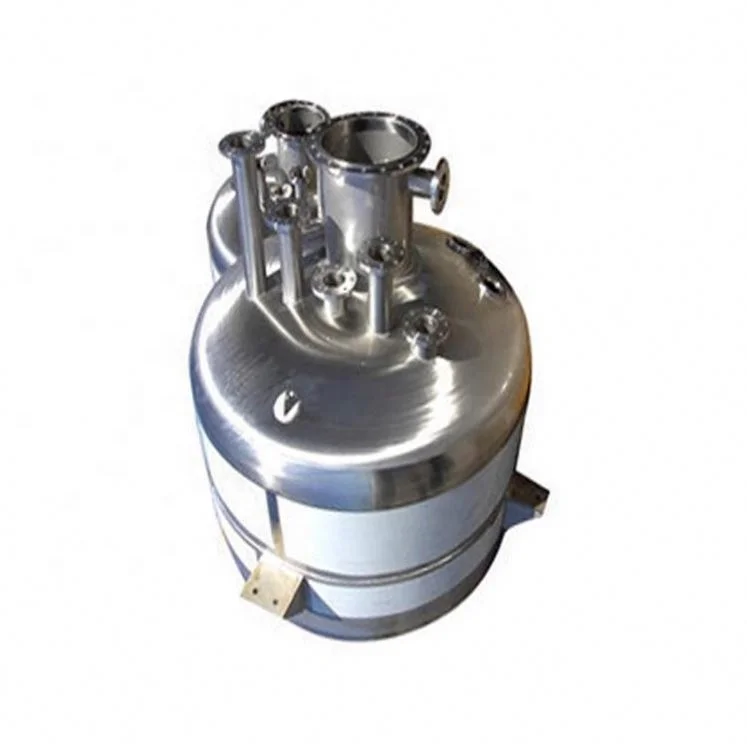

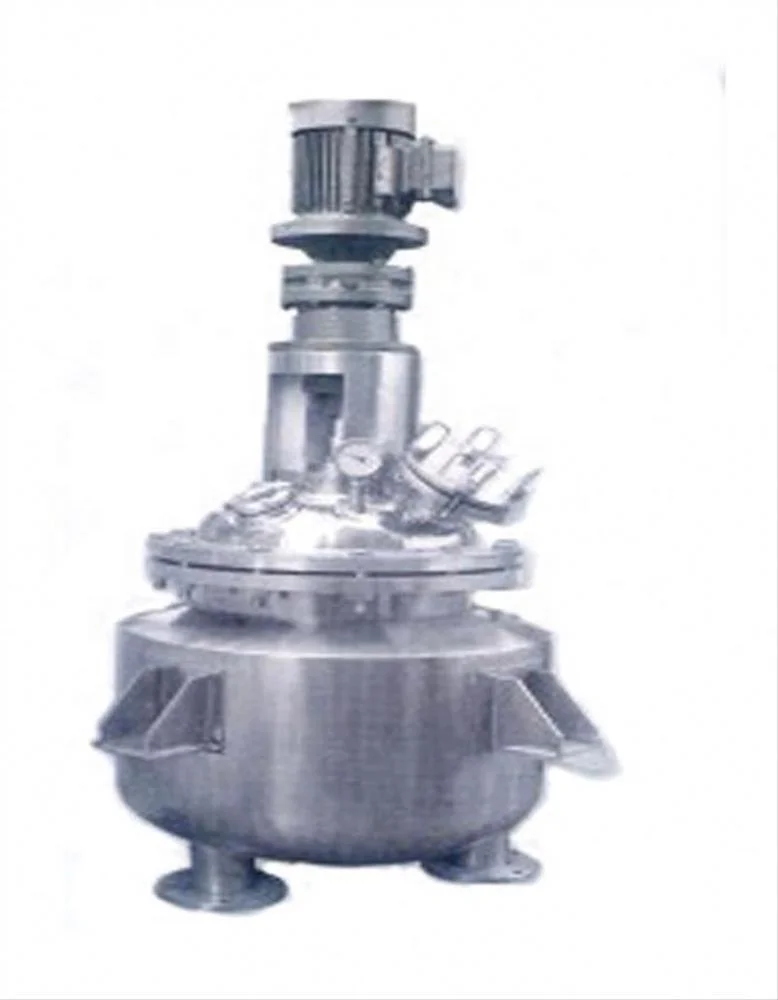

JCT ultrasonic biodiesel reactor

Alias:ultrasonic biodiesel reactor,Tank ultrasonic biodiesel reactor ,ultrasonic biodiesel reactor tank,Mixing tank,Stirring Tank,etc.

1. Product Function Brief of ultrasonic biodiesel reactor :

A. Operating principle: Break down or recombined the materials through mixing, filling and cooling, to promote the ultrasonic biodiesel reactor of polymerization.

B. Components: Body, gears, mixing devices, heating devices, cooling devices, seal, etc.

C. Auxiliary Equipment: Distillation column, head tank, condenser, water separator, collecting cans, filters, etc..

D. Widely used in: Resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.

E. Applicable Field: All the liquid-liquid, liquid-powder ultrasonic biodiesel reactor industry.

2. Instruction:

1).kettle is the main chemicalproduction equipment, which is widely used in resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.

2).Break down or Re-combined the molecule through mixing, Heating, cooling, Vacuumize, etc. Suit for polymerization, hydrogenation, vulcanization, nitration,etc. The ultrasonic biodiesel reactor is made up of body vessel, jacket vessel, gears, mixing devices, heating devices, cooling devices, seal composition,etc. The auxiliary equipment:Head tank, distillation column, condenser, water separator, collecting cans, dilution tank, filters ect.

3. How to Select the Appropriate Machine:

Example:The FYF-1000

FYF means the ultrasonic biodiesel reactor kettle series(mainly for liquid, solvent making industry), 1000 means the design volume is 1000liters.The effect volume is about 80% of the tank, that means 800 liters/batch. The daily production capacity depends on the ultrasonic biodiesel reactor time.

4. The Technical Parameters of ultrasonic biodiesel reactor

Specifications	Effective volume (L)	Heating	Heating(colding) structure	Impeller structure	Shaft seals	Material within the cylinder	Remarks
FYF-50L	50	1.Electric heating 2.Steam 3.Hot water	1.Jacket 2.Outside the half-pipe 3.The coil	1.Oblique paddle 2.Anchor 3.Box 4.Turbo 5.Lo band 6.Impeller 7.Combined	1.Single mechanical seal 2.Double mechanical seal 3.Packing	304 321 316 Q235	1. The motor power size, stirring speed level determined according to actual requirements. 2. The thickness of the cylinder pressure to be based on response.
FYF-100L	100
FYF-200L	200
FYF-300L	300
FYF-500L	500
FYF-1000L	1000
FYF-1500L	1500
FYF-2000L	2000
FYF-2500L	2500
FYF-3000L	3000
FYF-4000L	4000
FYF-5000L	5000
FYF-6000L	6000
FYF-8000L	8000
FYF-10000L	10000
FYF-12000L	12000
FYF-16000L	16000
FYF-20000L	20000
FYF-25000L	25000
FYF-30000L	300000
